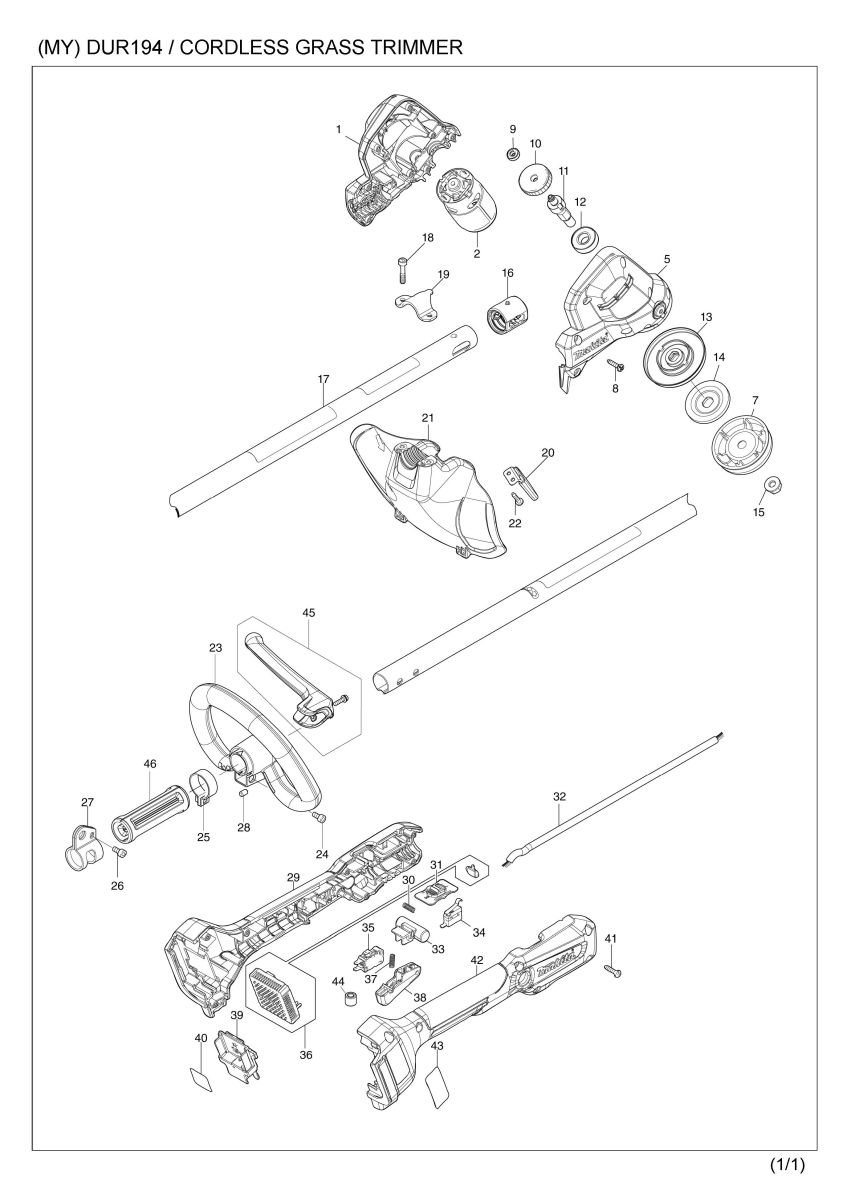

Part Diagram
Total: 78 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183W20-8 | MOTOR HOUSING SET | 1 | |
| 1 | C10 | 213021-5 | O RING 5 | 1 |
| 1 | C20 | 233072-2 | COMPRESSION SPRING 8 | 1 |
| 1 | C30 | 256546-6 | SHOULDER PIN 4 | 1 |
| 1 | C40 | 412408-0 | PIN CAP | 1 |
| 1 | D10 | INC. 5 | ||
| 2 | 629B19-8 | DC MOTOR | 1 | |
| 5 | 183W20-8 | MOTOR HOUSING SET | 1 | |
| 5 | C10 | 213021-5 | O RING 5 | 1 |
| 5 | C20 | 233072-2 | COMPRESSION SPRING 8 | 1 |
| 5 | C30 | 256546-6 | SHOULDER PIN 4 | 1 |
| 5 | C40 | 412408-0 | PIN CAP | 1 |
| 5 | D10 | INC. 1 | ||
| 7 | 168526-9 | CUP | 1 | |
| 8 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 9 | 210215-3 | BALL BEARING 695ZZ | 1 | |
| 10 | 227950-6 | HELICAL GEAR 31 | 1 | |
| 11 | 327542-2 | CUTTER SHAFT | 1 | |
| 12 | 210216-1 | BALL BEARING 6001DDW | 1 | |
| 13 | 140T23-7 | RECEIVE WASHER COMPLETE | 1 | |
| 13 | C10 | 213134-2 | O-RING 11 | 1 |
| 13 | C11 | 213A62-7 | O-RING 11 | 1 |
| 14 | 347668-4 | CLAMP WASHER | 1 | |
| 15 | 264025-0 | HEX. NUT M10-17 | 1 | |
| 16 | 424567-8 | RUBBER SLEEVE 24 | 1 | |
| 17 | 141K17-1 | PIPE COMPLETE B | 1 | |
| 17 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 17 | C20 | 808723-2 | CAUTION LABEL | 1 |
| 17 | C30 | 8050N8-5 | CAUTION LABEL | 1 |
| 18 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 19 | 347667-6 | PROTECTOR CLAMP | 1 | |
| 20 | 140W25-1 | CUTTER COVER COMPLETE | 1 | |
| 21 | 413F99-6 | PROTECTOR | 1 | |
| 22 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 23 | 413L67-5 | LOOP HANDLE 24 | 1 | |
| 24 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | |
| 25 | 347011-7 | PIPE CLAMP 29 | 1 | |
| 26 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | |
| 27 | 347116-3 | HANGER | 1 | |
| 28 | 263005-3 | RUBBER PIN 6 | 1 | |
| 29 | 183V24-4 | GRIP HOUSING SET | 1 | |
| 29 | C10 | 263005-3 | RUBBER PIN 6 | 3 |
| 29 | D10 | INC. 42 | ||
| 30 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 31 | 413G02-3 | SPEED CHANGE LEVER | 1 | |
| 32 | 699196-8 | POWER SUPPLY CORD UNIT | 1 | |
| 33 | 413G01-5 | LOCK OFF BUTTON | 1 | |
| 34 | 632T87-0 | SWITCH UNIT | 1 | |
| 35 | 650029-2 | SWITCH BMC-1212-002 | 1 | |
| 36 | 620J07-6 | CONTROLLER | 1 | |
| 37 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 38 | 413714-6 | SWITCH LEVER | 1 | |
| 39 | 643874-2 | TERMINAL | 1 | |
| 40 | 8118Y1-4 | DUR194 SERIAL NO. LABEL | 1 | |
| 41 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 42 | 183V24-4 | GRIP HOUSING SET | 1 | |
| 42 | C10 | 263005-3 | RUBBER PIN 6 | 3 |
| 42 | D10 | INC. 29 | ||
| 43 | 8118X5-9 | DUR194 NAME PLATE | 1 | |
| 45 | 143695-7 | BARRIER COMPLETE | 1 | |
| 45 | C10 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 |
| 46 | 451601-1 | SPACER 24 | 1 | |
| A01 | 127508-0 | BAND ASS'Y | 1 | |
| A02 | 191Y44-2 | CUTTER BLADE 200-8 SET MG | 1 | |
| A03 | 195246-2 | SAFETY GOGGLE | 1 | |
| A04 | 456924-2 | TOOL COVER | 1 | |
| A05 | 783013-3 | BOX DRIVER 16-17 | 1 | |
| A06 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A07B | ***DC18SD | DC18SD BATTERY CHARGER | 1 | |
| A07B | D10 | COMPO-PARTS | ||
| A08B | 197600-6 | BATTERY BL1830B SET | 1 | |
| A10 | 831304-7 | ACCESSORY BAG | 1 | |
| B01 | 191W97-9 | METAL BLADE ACCESSORY SET | 1 | |
| B01 | D10 | INC.007, 014, 015, A04 | ||
| F06 | 191Y44-2 | CUTTER BLADE 200-8 SET MG | 1 | |
| F07 | 191Y45-0 | PLASTIC BLADE 230 SET MG | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
