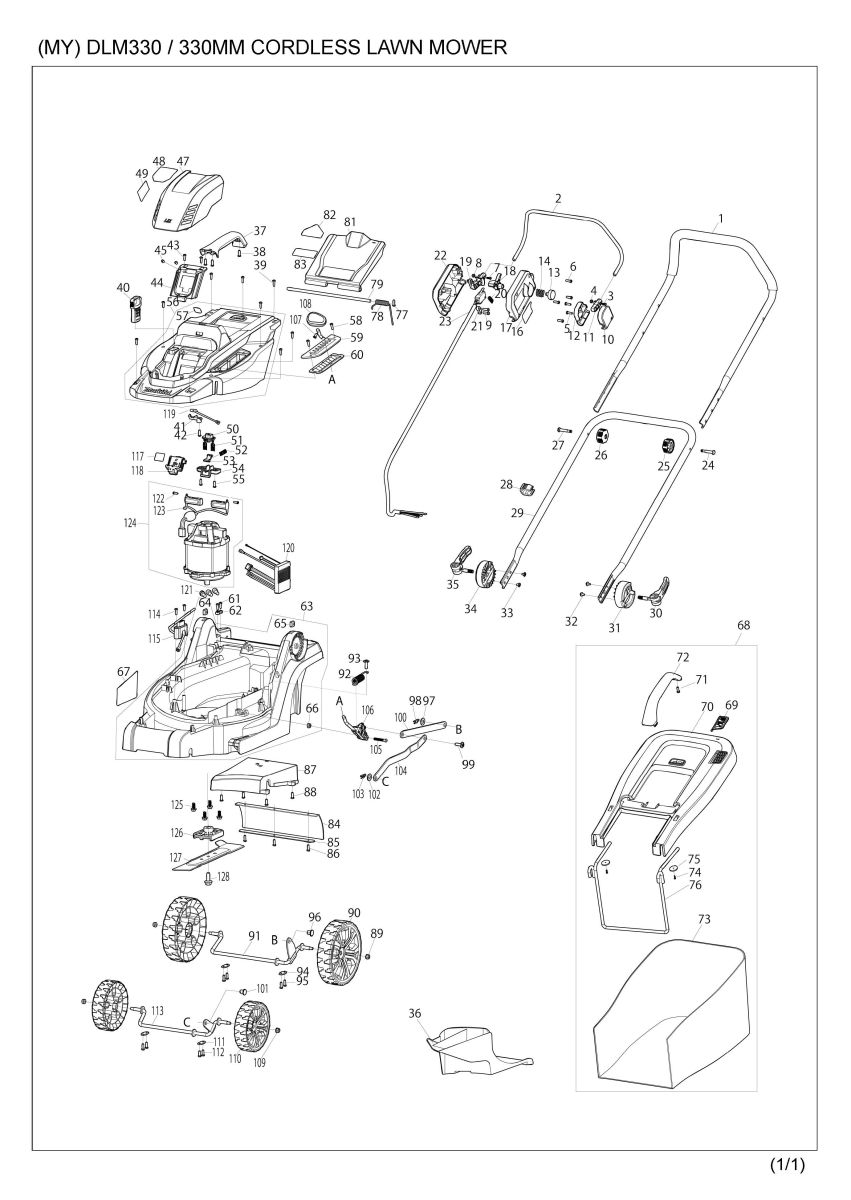

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | GB00000136 | UPPER HANDLE | 1 | |
| 2 | GB00000044 | SWITCH LEVER | 1 | |
| 3 | GB00000045 | PAN HEAD SCREW M4X18 | 1 | |
| 4 | GB00000046 | HEX LOCK NUT M4 | 1 | |
| 5 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 6 | GB00000003 | TAPPING SCREW ST4.2X15 | 4 | |
| 7 | GB00000045 | PAN HEAD SCREW M4X18 | 1 | |
| 8 | GB00000046 | HEX LOCK NUT M4 | 1 | |
| 9 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 10 | GB00000047 | SWITCH LEVER HINGE BOX L | 1 | |
| 11 | GB00000048 | SWITCH LEVER END CAP L | 1 | |
| 12 | GB00000049 | SWITCH LEVER HINGE BOX R | 1 | |
| 13 | GB00000050 | SWITCH LINK BUTTON | 1 | |
| 14 | GB00000051 | COMPRESSION SPRING | 1 | |
| 16 | GB00000153 | SWITCH OPERATION LABEL | 1 | |
| 17 | GB00000053 | SWITCH BOX COVER L | 1 | |
| 18 | GB00000054 | SWITCH CONTROL LINK | 1 | |
| 19 | GB00000055 | SWITCH LEVER END CAP R | 1 | |
| 20 | GB00000056 | TENSION SPRING | 1 | |
| 21 | GB00000057 | CORD CLAMP | 1 | |
| 22 | GB00000058 | SWITCH BOX COVER R | 1 | |
| 23 | GB00000138 | SWITCH&CORD ASSY | 1 | |
| 24 | GB00000060 | SQUARE NECK BOLT M6X42 | 1 | |
| 25 | GB00000061 | KNOB NUT M6 | 1 | |
| 26 | GB00000061 | KNOB NUT M6 | 1 | |
| 27 | GB00000060 | SQUARE NECK BOLT M6X42 | 1 | |
| 28 | GB00000062 | CORD CLIP | 1 | |
| 29 | GB00000063 | LOWER HANDLE | 1 | |
| 30 | GB00000064 | TENSION LEVER ASSY | 1 | |
| 31 | GB00000065 | HANDLE FIX BLOCK | 1 | |
| 32 | GB00000066 | TRAS HEAD TAPPING SCREW 4X8 | 2 | |
| 33 | GB00000066 | TRAS HEAD TAPPING SCREW 4X8 | 2 | |
| 34 | GB00000065 | HANDLE FIX BLOCK | 1 | |
| 35 | GB00000064 | TENSION LEVER ASSY | 1 | |
| 36 | GB00000067 | MULCHING PLUG | 1 | |
| 37 | GB00000068 | CARRYNG HANDLE | 1 | |
| 38 | GB00000003 | TAPPING SCREW ST4.2X15 | 3 | |
| 39 | GB00000003 | TAPPING SCREW ST4.2X15 | 8 | |
| 40 | GB00000069 | KEY | 1 | |
| 41 | GB00000070 | INDICATOR UNIT MOUNT | 1 | |
| 42 | GB00000003 | TAPPING SCREW ST4.2X15 | 1 | |
| 43 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 043-1 | GB00000158 | FLANGED TAPPING SCREW ST4.2X15 | 2 | |
| 44 | GB00000071 | BATTERY HOLDER | 1 | |
| 45 | GB00000072 | RUBBER PIN 5.5X8.5 | 2 | |
| 47 | GB00000074 | BATTERY HOOD | 1 | |
| 48 | GB00000140 | 330MM LABEL | 1 | |
| 50 | GB00000077 | BATTERY HOOD LOCK BUTTON | 1 | |
| 51 | GB00000078 | COMPRESSION SPRING | 2 | |
| 52 | GB00000078 | COMPRESSION SPRING | 1 | |
| 53 | GB00000079 | BATTERY HOOD RATCHI | 1 | |
| 54 | GB00000080 | BATTERY HOOD RATCHI FIX PLATE | 1 | |
| 55 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 56 | GB00000081 | UPPER HOUSING ASSEMBLY | 1 | |
| 56 | D10 | INC. 57 | ||
| 57 | GB00000082 | BATTERY INDICATOR LABEL | 1 | |
| 58 | GB00000083 | TAPPING SCREW ST4.2X15 SILVER | 2 | |
| 59 | GB00000084 | HEIGHT ADJUST GUIDE PLATE | 1 | |
| 60 | GB00000085 | RUBBER SHEET FOR GUIDE PLATE | 1 | |
| 61 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 62 | GB00000057 | CORD CLAMP | 1 | |
| 63 | GB00000086 | DECK ASSEMBLY | 1 | |
| 63 | D10 | INC. 64-66 | ||
| 64 | GB00000087 | SQUARE NUT M8 | 1 | |
| 65 | GB00000087 | SQUARE NUT M8 | 1 | |
| 66 | GB00000088 | HEX LOCK NUT M6 | 1 | |
| 67 | GB00000141 | NAMEPLATE DLM330 | 1 | |
| 68 | GB00000151 | GRASS CATCHER ASSY | 1 | |
| 68 | D10 | INC. 69-76 | ||
| 69 | GB00000090 | GRASS LEVEL INDICATOR PLATE | 1 | |
| 70 | GB00000091 | GRASS CATCHER UPPER PLATE | 1 | |
| 71 | GB00000003 | TAPPING SCREW ST4.2X15 | 1 | |
| 72 | GB00000092 | GRASS CATCHER GRIP | 1 | |
| 73 | GB00000142 | GRASS CATCHER LOWER PLATE ASS | 1 | |
| 74 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 75 | GB00000094 | FLAT WASHER 4.5X20X1.4 | 2 | |
| 76 | GB00000095 | GRASS CATCHER FLAME | 1 | |
| 77 | GB00000003 | TAPPING SCREW ST4.2X15 | 1 | |
| 78 | GB00000096 | REAR FLAP TORSION SPRING | 1 | |
| 79 | GB00000097 | REAR FLAP HINGE ROD | 1 | |
| 81 | GB00000099 | REAR FLAP | 1 | |
| 83 | GB00000144 | WARNING SOUND LABEL | 1 | |
| 87 | GB00000104 | GRASS OUTLET LOWER PLATE | 1 | |
| 88 | GB00000003 | TAPPING SCREW ST4.2X15 | 4 | |
| 89 | GB00000105 | HEX FLANGED+F130 LOCK NUT M6 | 2 | |
| 90 | GB00000106 | WHEEL 180MM | 2 | |
| 91 | GB00000107 | REAR AXLE | 1 | |
| 92 | GB00000108 | HEIGHT ADJUST TENSION SPRING | 1 | |
| 93 | GB00000109 | TRUSS HEAD TAPPING SCREW 5X18 | 1 | |
| 94 | GB00000110 | AXLE FIX PLATE | 2 | |
| 95 | GB00000003 | TAPPING SCREW ST4.2X15 | 4 | |
| 96 | GB00000111 | STEPPED PIN 10-12 | 1 | |
| 97 | GB00000112 | FLAT WASHER 10 | 1 | |
| 98 | GB00000113 | R-PIN 10 | 1 | |
| 098-1 | GB00000159 | R-PIN 10 | 1 | |
| 99 | GB00000109 | TRUSS HEAD TAPPING SCREW 5X18 | 1 | |
| 100 | GB00000114 | HEGHT ADJUST LINK ROD REAR | 1 | |
| 101 | GB00000111 | STEPPED PIN 10-12 | 1 | |
| 102 | GB00000112 | FLAT WASHER 10 | 1 | |
| 103 | GB00000113 | R-PIN 10 | 1 | |
| 103-1 | GB00000159 | R-PIN 10 | 1 | |
| 104 | GB00000115 | HEIGHT ADJUST LINK ROD FRONT | 1 | |
| 105 | GB00000116 | PAN HEAD SCREW 6X30 | 1 | |
| 106 | GB00000117 | HEIGHT ADJUST LEVER ASSY | 1 | |
| 107 | GB00000118 | FLAT HEAD SCREW M4X10 | 1 | |
| 108 | GB00000119 | GRIP FOR HEIGHT ADJUSTMENT | 1 | |
| 109 | GB00000105 | HEX FLANGED+F130 LOCK NUT M6 | 2 | |
| 110 | GB00000120 | WHEEL 138MM | 2 | |
| 111 | GB00000110 | AXLE FIX PLATE | 2 | |
| 112 | GB00000003 | TAPPING SCREW ST4.2X15 | 4 | |
| 113 | GB00000121 | FRONT AXLE | 1 | |
| 114 | GB00000003 | TAPPING SCREW ST4.2X15 | 2 | |
| 115 | GB00000122 | KEY SOCKET | 1 | |
| 117 | GB00000145 | SERIAL NO. LABEL DLM330 | 1 | |
| 118 | GB00000124 | TERMINAL | 1 | |
| 118-1 | 644809-6 | TERMINAL | 1 | |
| 119 | GB00000125 | INDICATOR UNIT | 1 | |
| 120 | GB00000126 | CONTROLLER | 1 | |
| 121 | GB00000127 | CLOSED END SPLICE 5.5-SD | 3 | |
| 122 | GB00000128 | TAPPING SCREW ST3.0X8 | 2 | |
| 123 | GB00000147 | CARBON BRUSH ASSY WITH COIL | 1 | |
| 124 | GB00000148 | MOTOR ASSY WITH CHOKE COIL | 1 | |
| 124 | D10 | INC. 122,123 | ||
| 125 | GB00000131 | HEX FLANGED BOLT M8X18 W/BOND | 4 | |
| 126 | GB00000132 | BLADE SUPPORT | 1 | |
| 127 | GB00000042 | BLADE 330 | 1 | |
| 128 | GB00000133 | BLADE HEX BOLT M8X28 WITH WR | 1 | |
| A01 | GB00000134 | WRENCH 13 | 1 |
