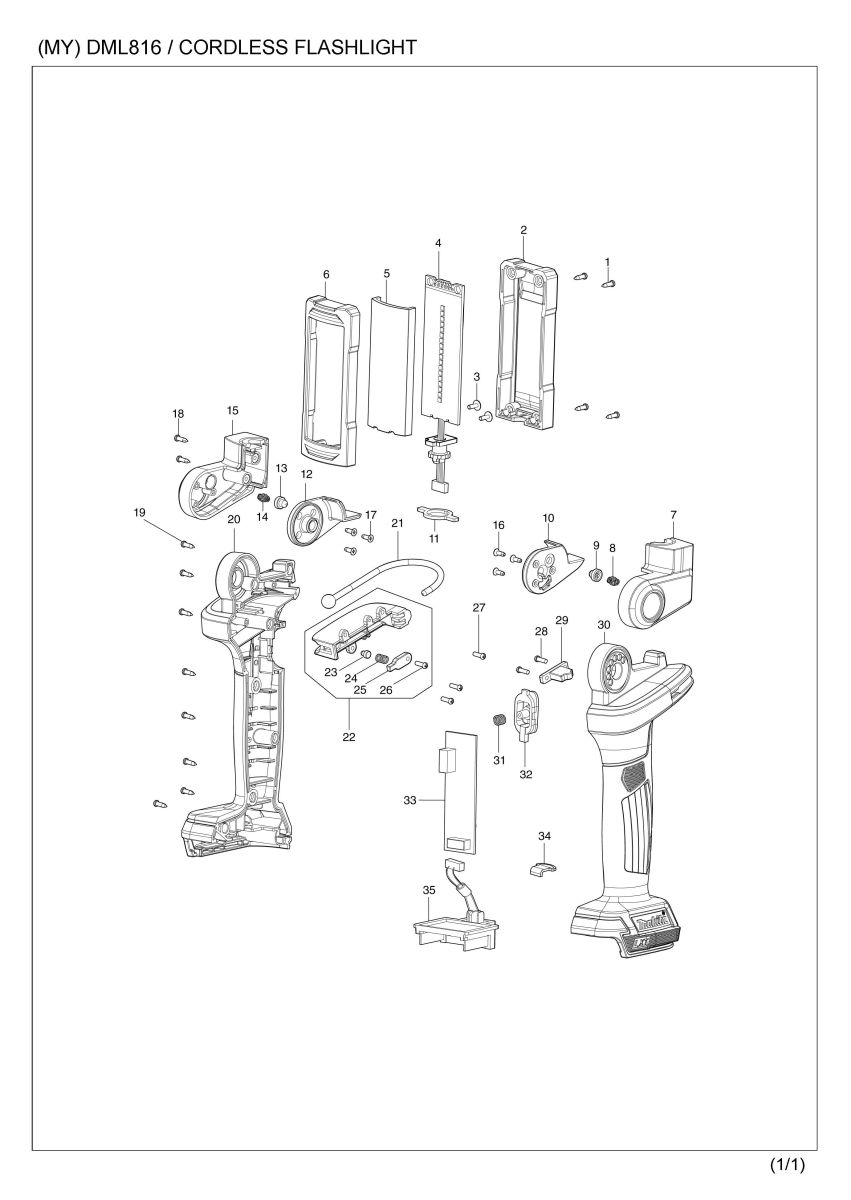

Part Diagram
Total: 40 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | GM00001269 | SCREW 3X12PB(B0130120202) | 4 | |
| 2 | GM00002324 | REAR CASE | 1 | |
| 3 | GM00001267 | SCREW 2.6X8PWB(B0126080006) | 2 | |
| 4 | GM00002349 | LED ASSY | 1 | |
| 5 | GM00002322 | LENS | 1 | |
| 6 | GM00002321 | FRONT CASE | 1 | |
| 7 | GM00002325 | LEFT ROTATOR | 1 | |
| 8 | GM00001270 | SPRING (B1214801020) | 1 | |
| 9 | GM00001279 | SPRING LID (C1020801001) | 1 | |
| 10 | GM00002326 | LEFT ROTATOR BRACKET | 1 | |
| 11 | GM00001282 | FIX PLATE (C3020801001) | 1 | |
| 12 | GM00002327 | RIGHT ROTATOR BRACKET | 1 | |
| 13 | GM00001279 | SPRING LID (C1020801001) | 1 | |
| 14 | GM00001270 | SPRING (B1214801020) | 1 | |
| 15 | GM00002328 | RIGHT ROTATOR | 1 | |
| 16 | GM00001268 | SCREW 2.6X10KA(B0126100121) | 3 | |
| 17 | GM00001268 | SCREW 2.6X10KA(B0126100121) | 3 | |
| 18 | GM00001269 | SCREW 3X12PB(B0130120202) | 2 | |
| 19 | GM00001269 | SCREW 3X12PB(B0130120202) | 8 | |
| 20 | GM00002336 | HOUSING ASSY | 1 | |
| 20 | D10 | INC. 30 | ||
| 21 | GM00002331 | HANGING HOOK ASSY | 1 | |
| 22 | GM00002330 | HOOK COVER ASSY | 1 | |
| 22 | D10 | INC. 23-26 | ||
| 23 | GM00002339 | LOCKING SHAFT | 1 | |
| 24 | GM00002340 | SPRING | 1 | |
| 25 | GM00002341 | COVER | 1 | |
| 26 | GM00001322 | SCREW 2.6X8 PB | 1 | |
| 27 | GM00001322 | SCREW 2.6X8 PB | 3 | |
| 28 | GM00001322 | SCREW 2.6X8 PB | 2 | |
| 29 | GM00002332 | HOOK SUPPORT | 1 | |
| 30 | GM00002336 | HOUSING ASSY | 1 | |
| 30 | D10 | INC. 20 | ||
| 31 | GM00002249 | SWITCH SPRING | 1 | |
| 32 | GM00002333 | SWITCH ASSY | 1 | |
| 33 | GM00002337 | MAIN PCBA ASSY | 1 | |
| 34 | GM00002231 | STRAP HOOK | 1 | |
| 35 | GM00002338 | TERMINAL ASSY | 1 | |
| A01 | GM00001288 | SHOULDER HOOK SET G0180100100 | 1 | |
| A02 | GM00001326 | LAMP SHADE | 1 |
