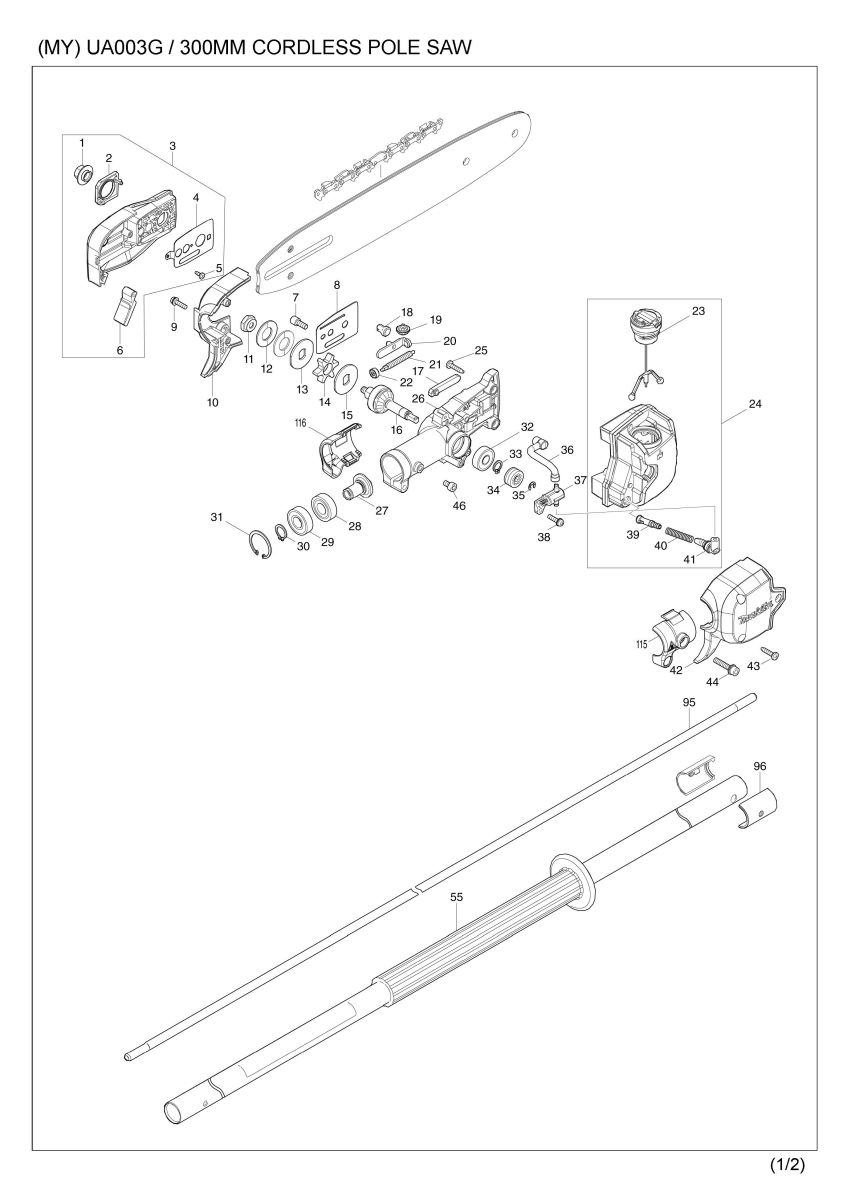

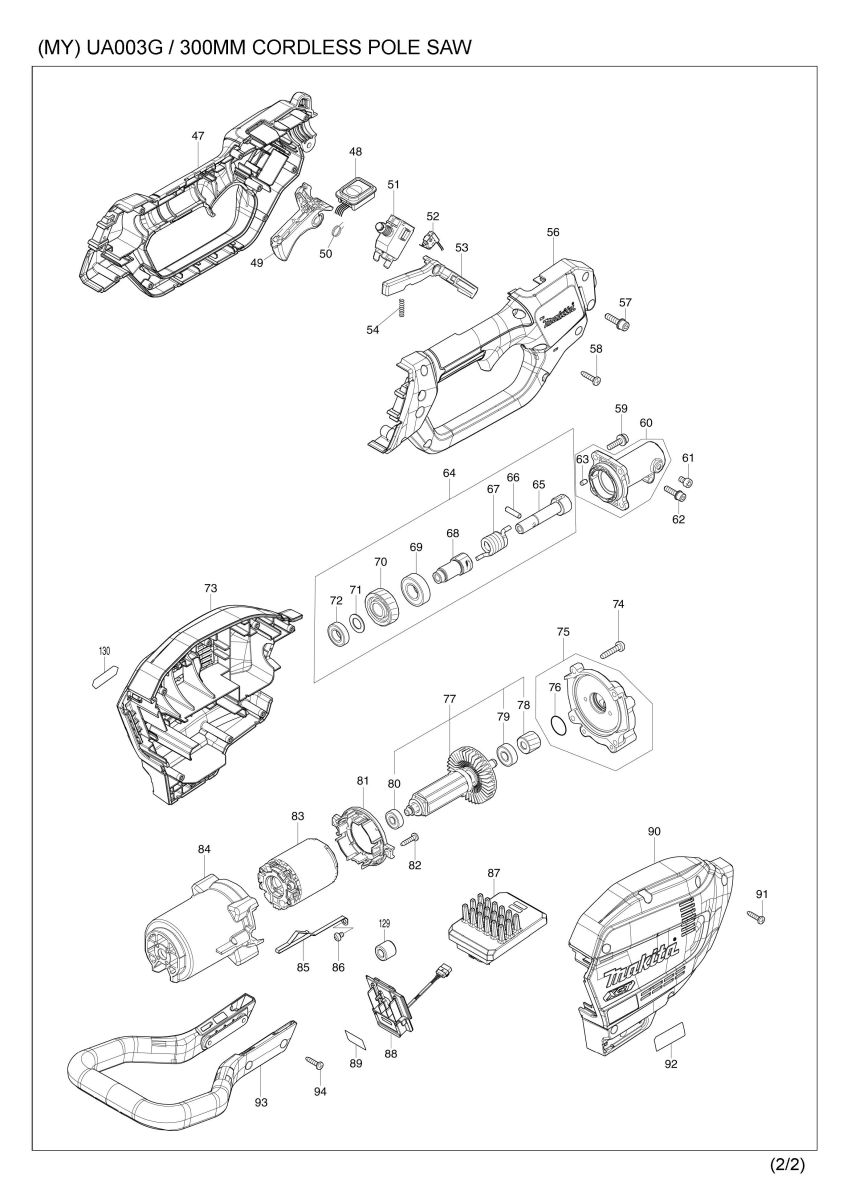

Part Diagram
Total: 131 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 162494-8 | FLANGE NUT COMPLETE | 1 | |
| 2 | 412638-3 | NUT COVER | 1 | |
| 3 | 136373-6 | SPROCKET COVER ASSY | 1 | |
| D10 | INC. 1,2,4-6 | |||
| 4 | 347707-0 | GUIDE PLATE L | 1 | |
| 5 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | |
| 6 | 422599-9 | CHIP GUIDE | 1 | |
| 7 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | |
| 8 | 347708-8 | GUIDE PLATE R | 1 | |
| 9 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 10 | 183P83-2 | GEAR CASE HOUSING SET | 1 | |
| D10 | INC. 42 | |||
| 11 | 252291-1 | HEX. NUT M6 | 1 | |
| 12 | 232626-2 | CORNED DISK SPRING 14 | 2 | |
| 13 | 347705-4 | LOCK WASHER 12 | 1 | |
| 14 | 226992-7 | SPROCKET 6 | 1 | |
| 15 | 347705-4 | LOCK WASHER 12 | 1 | |
| 16 | 140V32-8 | SPINDLE COMPLETE | 1 | |
| 17 | 422602-6 | GROMET | 1 | |
| 18 | 227620-7 | DRIVE GEAR 14 | 1 | |
| 19 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 20 | 347706-2 | TENSION SLIDE | 1 | |
| 21 | 327606-2 | ADJUST SCREW | 1 | |
| 22 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 23 | 126832-8 | TANK CAP ASSEMBLY | 1 | |
| C10 | 213894-6 | O-RING 25 | 1 | |
| 24 | 136372-8 | OIL TANK ASSEMBLY | 1 | |
| D10 | INC. 23,39-41 | |||
| 25 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 26 | 136301-1 | GEAR CASE ASSEMBLY | 1 | |
| C10 | 213437-4 | O RING 28 | 1 | |
| 27 | 226995-1 | SPIRAL BEVEL GEAR 18 | 1 | |
| 28 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 29 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 30 | 961052-5 | RETAINING RING S-12 | 1 | |
| 31 | 962106-1 | RETAINING RING R-28 | 1 | |
| 32 | 211491-2 | BALL BEARING 609DDW | 1 | |
| 33 | 961005-4 | RETAINING RING S-9 | 1 | |
| 34 | 226884-0 | WORM GEAR | 1 | |
| 35 | 961011-9 | STOP RING E-4 | 1 | |
| 36 | 422600-0 | OIL TUBE 3-70 | 1 | |
| 37 | 140U04-7 | OIL PUMP COMPLETE | 1 | |
| 38 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 39 | 452666-6 | NIPPLE | 1 | |
| 40 | 231975-4 | SPRING | 1 | |
| 41 | 422601-8 | OIL TUBE 3-14 | 1 | |
| 42 | 183P83-2 | GEAR CASE HOUSING SET | 1 | |
| D10 | INC. 10 | |||
| 43 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 44 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 46 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 47 | 183U44-2 | GRIP SET | 1 | |
| C10 | 931202-6 | HEX. NUT M5 | 1 | |
| D10 | INC. 56 | |||
| 48 | 141H14-9 | SWITCH CIRCUIT COMPLETE | 1 | |
| C10 | 810D46-0 | SWITCH LABEL | 1 | |
| 49 | 459758-2 | SWITCH LEVER | 1 | |
| 50 | 233622-3 | TORSION SPRING 12 | 1 | |
| 51 | 650015-3 | SWITCH C3JR-4B-PAND3 | 1 | |
| 52 | 632G61-0 | SWITCH UNIT | 1 | |
| 53 | 459759-0 | LOCK OFF LEVER | 1 | |
| 54 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 55 | 141J40-0 | PIPE 24 COMPLETE B | 1 | |
| C10 | 8046S6-7 | CAUTION LABEL | 1 | |
| 56 | 183U44-2 | GRIP SET | 1 | |
| Item | Sub | Parts No. | Parts Description | Qty |
| C10 | 931202-6 | HEX. NUT M5 | 1 | |
| D10 | INC. 47 | |||
| 57 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 58 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 59 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 60 | 136371-0 | PIPE BRACKET ASSY | 1 | |
| D10 | INC. 63 | |||
| 61 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 62 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 63 | 263002-9 | RUBBER PIN 4 | 1 | |
| 64 | 127641-8 | DAMPER SHAFT ASSEMBLY | 1 | |
| D10 | INC. 65-72 | |||
| 65 | 327600-4 | JOINT SLEEVE | 1 | |
| 66 | 256964-8 | PIN 5 | 1 | |
| 67 | 232625-4 | TORSION SPRING 12 | 1 | |
| 68 | 327601-2 | SPINDLE HUB | 1 | |
| 69 | 211232-6 | BALL BEARING 6002LLU | 1 | |
| 70 | 226997-7 | HELICAL GEAR 33 | 1 | |
| 71 | 253744-3 | FLAT WASHER 12 | 1 | |
| 72 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 73 | 183U43-4 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 8 | |
| D10 | INC. 90 | |||
| 74 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 75 | 136231-6 | GEAR BOX ASS'Y | 1 | |
| D10 | INC. 76 | |||
| 76 | 213961-7 | O RING 22 | 1 | |
| 77 | 510470-0 | ROTOR ASS'Y | 1 | |
| D10 | INC. 78-80 | |||
| 78 | 226996-9 | HELICAL GEAR 16 | 1 | |
| 79 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 80 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 81 | 459764-7 | BAFFLE PLATE | 1 | |
| 82 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 83 | 629A97-2 | STATOR | 1 | |
| 84 | 459763-9 | MOTOR HOUSING | 1 | |
| 87 | 620H19-7 | CONTROLLER | 1 | |
| 88 | 632P49-4 | TERMINAL UNIT | 1 | |
| 89 | 8114S8-4 | UA003G SERIAL NO. LABEL | 1 | |
| 90 | 183U43-4 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 8 | |
| D10 | INC. 73 | |||
| 91 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 92 | 8114S5-0 | UA003G NAME PLATE | 1 | |
| 93 | 413C42-7 | GUARD | 1 | |
| 94 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 95 | 327608-8 | SHAFT | 1 | |
| 96 | 312A03-1 | SLEEVE 28 | 2 | |
| 115 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| D10 | INC. 116 | |||
| 116 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| D10 | INC. 115 | |||
| 130 | 8032A7-2 | XGT LOGO LABEL | 1 | |
| A01 | 191G23-2 | GUIDE BAR 12 SET | 1 | |
| A02 | 419288-5 | CHAIN COVER | 1 | |
| A03 | 196206-7 | SAW CHAIN SET | 1 | |
| A04 | 782023-7 | WRENCH 13-16 | 1 | |
| A06 | 199897-3 | OIL VESSEL SET | 1 | |
| A10 | 191K37-5 | BAND ASSEMBLY SET | 1 | |
| A11 | 195246-2 | SAFETY GOGGLE | 1 | |
| A12 | 198457-8 | CHAIN EDGER SET | 1 | |
| A13B | 412393-7 | BATTERY COVER | 1 | |
| A14B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A15B | 191B26-6 | BATTERY BL4040 SET | 1 |
