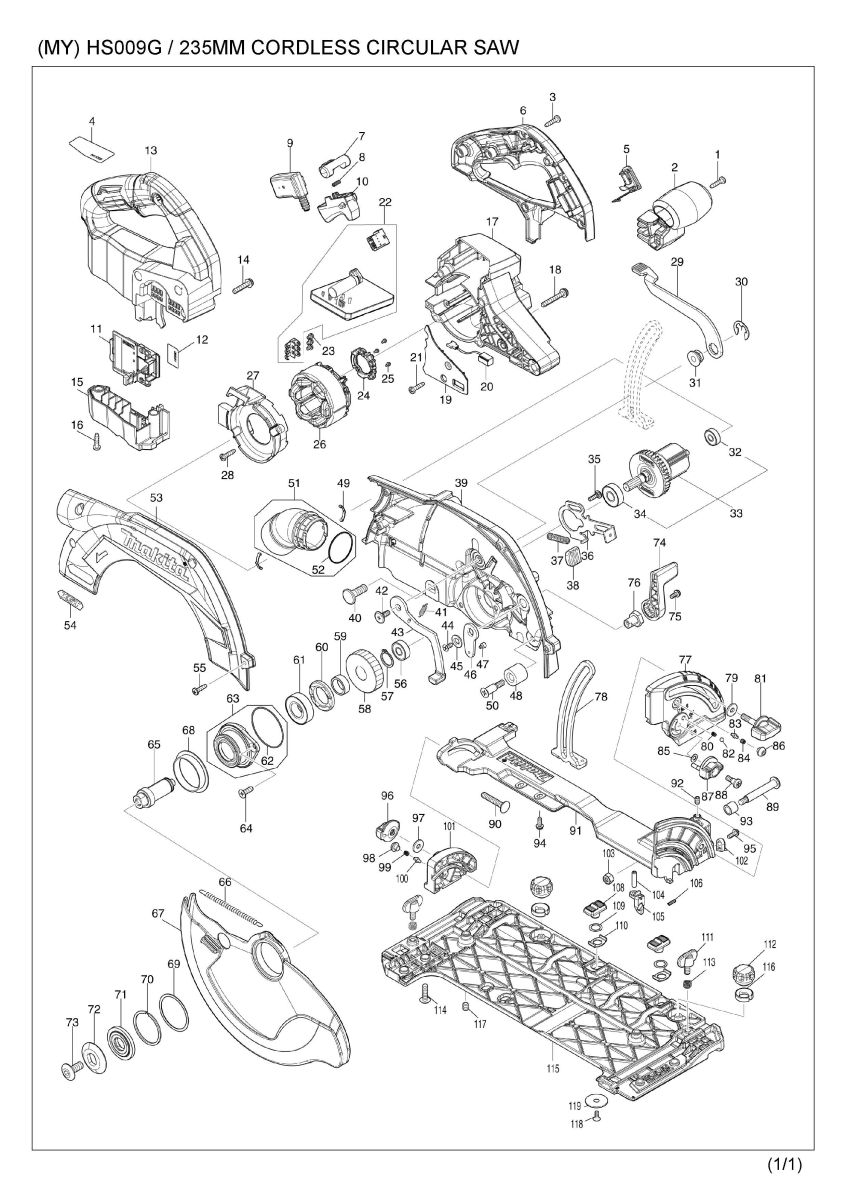

Part Diagram
Total: 310 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 002 | 413C21-5 | FRONT GRIP | 1 | |
| 003 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 004 | 8114P0-9 | HS009G NAME PLATE | 1 | |
| 005 | 140F99-0 | CAP COMPLETE | 1 | |
| 005 | C10 | 213A05-9 | O-RING16 | 1 |
| 006 | 183U47-6 | HANDLE SET | 1 | |
| 006 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 006 | D10 | INC. 13 | ||
| 007 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 008 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 009 | 650008-0 | SWITCH C3XB-1LPSPM | 1 | |
| 009-1 | 650039-9 | SWITCH C3XB-1LPSPM | 1 | |
| 010 | 413C24-9 | SWITCH LEVER | 1 | |
| 011 | 632P65-6 | TERMINAL UNIT | 1 | |
| 012 | 8114P6-7 | HS009G SERIAL NO. LABEL | 1 | |
| 013 | 183U47-6 | HANDLE SET | 1 | |
| 013 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 013 | D10 | INC. 6 | ||
| 014 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | |
| 015 | 141G16-9 | TERMINAL HOUSING COMPLETE | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 016 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 017 | 413C17-6 | MOTOR HOUSING | 1 | |
| 018 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | |
| 019 | 413C23-1 | LIGHT COVER | 1 | |
| 020 | 620936-3 | LED CIRCUIT | 1 | |
| 021 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 022 | 620H80-4 | CONTROLLER | 1 | |
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 024 | 632R96-7 | SENSOR UNIT | 1 | |
| 025 | 652093-9 | PAN HEAD SCREW M2X5 | 3 | |
| 025-1 | 652119-7 | PAN HEAD SCREW M2X6 | 3 | |
| 026 | 629A40-1 | STATOR | 1 | |
| 027 | 413C22-3 | BAFFLE PLATE | 1 | |
| 028 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 029 | 271453-2 | LEVER 132 | 1 | |
| 030 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 031 | 252262-8 | COLLERED HEX. NUT M8 | 1 | |
| 032 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 033 | 519721-8 | ROTOR ASS'Y | 1 | |
| 033 | D10 | INC. 32,34 | ||
| 034 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 035 | 251529-1 | + PAN HEAD SCREW M4X14 | 1 | |
| 036 | 347676-5 | SHAFT LOCK | 1 | |
| 037 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 038 | 286039-9 | CAP | 1 | |
| 039 | 141G17-7 | BLADE CASE COMPLETE | 1 | |
| 039 | C10 | 213434-0 | O RING 26 | 1 |
| 039 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 039 | C30 | 8004T1-0 | SCALE LABEL | 1 |
| 040 | 266396-1 | FLATHEAD SQUARENECKBOLT M8X24 | 1 | |
| 041 | 232563-0 | TENSION SPRING 4 | 1 | |
| 042 | 265A60-7 | + PAN HEAD SCREW M5X14 | 1 | |
| 043 | 162686-9 | OPEN LEVER | 1 | |
| 044 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 | |
| 045 | 347577-7 | WASHER 6 | 1 | |
| 046 | 347576-9 | OPEN PLATE | 1 | |
| 047 | 265A82-7 | HEX. SOCKET HEAD SCREW M3X4 | 1 | |
| 048 | 262185-2 | RUBBER SLEEVE8 | 1 | |
| 049 | 232674-1 | LEAF SPRING | 2 | |
| 050 | 251572-0 | + COUNTERSUNK HEAD SCREW M6X3 | 1 | |
| 051 | 136173-4 | DUST NOZZLE ASS'Y | 1 | |
| 051 | D10 | INC. 52 | ||
| 052 | 213444-7 | O RING 30 | 1 | |
| 118 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 119 | 345748-0 | LOCK WASHER | 2 | |
| A01 | 162687-7 | SUB BASE | 1 | |
| A02 | E-01959 | TCT BLADE 235X24T WOOD EFFICUT | 1 | |
| A03 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A04B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 821866-3 | PLASTIC CARRYING CASE | 1 | |
| A05B | C10 | 162271-8 | LATCH | 2 |
| A05B | C20 | 453229-1 | THUMB SCREW M12X8 | 1 |
| A06B | 412393-7 | BATTERY COVER | 2 | |
| A07B | 191L47-8 | BATTERY BL4050F SET | 2 | |
| F06 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F07 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F09 | 194416-0 | SHEET 10000 SET | 1 | |
| F10 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F11 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F13 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F15 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F17 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F18 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F20 | 198885-7 | GUIDE RAIL CONNECTOR SET(EU) | 1 | |
| F21 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F22 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 | |
| 077 | 312C17-2 | FRONT ANGULAR PLATE | 1 | |
| 078 | 347574-3 | DEPTH GUIDE | 1 | |
| 079 | 253111-2 | FLAT WASHER 6 | 1 | |
| 080 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 081 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 082 | 216008-6 | STEEL BALL 4 | 1 | |
| 083 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 084 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 085 | 253811-4 | FLAT WASHER 5 | 1 | |
| 086 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 087 | 450704-8 | DIAL 27 | 1 | |
| 088 | 251370-2 | + PAN HEAD SCREW M5 | 1 | |
| 089 | 251528-3 | + PAN HEAD SCREW M6 | 1 | |
| 090 | 266332-7 | R.H SQUARE NECK BOLT M6X35 | 1 | |
| 091 | 141G18-5 | FRAME COMPLETE | 1 | |
| 092 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 093 | 257580-9 | SLEEVE 8 | 1 | |
| 094 | 265A84-3 | PAN HEAD SCREW M4X12 WITH WR | 2 | |
| 095 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 096 | 252270-9 | THUMB NUT M6 | 1 | |
| 097 | 253111-2 | FLAT WASHER 6 | 1 | |
| 098 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 099 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 100 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 101 | 312C18-0 | REAR ANGULAR PLATE | 1 | |
| 102 | 419632-6 | POSITION PLATE | 1 | |
| 103 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 104 | 265A83-5 | H.S.SET SCREW(FLAT POINT)M5X20 | 1 | |
| 105 | 412210-1 | SLIDER | 1 | |
| 106 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 108 | 458092-7 | SLIDE LEVER | 2 | |
| 109 | 253932-2 | WAVE WASHER 10 | 2 | |
| 110 | 345977-5 | PLATE | 2 | |
| 111 | 265701-9 | THUMB SCREW M6X14 | 2 | |
| 112 | 265775-0 | THUMB SCREW M4X3 | 2 | |
| 113 | 233376-2 | COMPRESSION SPRING 8 | 2 | |
| 114 | 265181-9 | +TRUSS HEAD SCREW M5X20 | 4 | |
| 115 | 312C15-6 | BASE | 1 | |
| 116 | 419627-9 | HOLDER | 2 | |
| 117 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 2 | |
| 118 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 119 | 345748-0 | LOCK WASHER | 2 | |
| A01 | 162687-7 | SUB BASE | 1 | |
| A02 | E-01959 | TCT BLADE 235X24T WOOD EFFICUT | 1 | |
| A03 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A04B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 821866-3 | PLASTIC CARRYING CASE | 1 | |
| A05B | C10 | 162271-8 | LATCH | 2 |
| A05B | C20 | 453229-1 | THUMB SCREW M12X8 | 1 |
| A06B | 412393-7 | BATTERY COVER | 2 | |
| A07B | 191L47-8 | BATTERY BL4050F SET | 2 | |
| F06 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F07 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F09 | 194416-0 | SHEET 10000 SET | 1 | |
| F10 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F11 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F13 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F15 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F17 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F18 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F20 | 198885-7 | GUIDE RAIL CONNECTOR SET(EU) | 1 | |
| F21 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F22 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 | |
| 001 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 002 | 413C21-5 | FRONT GRIP | 1 | |
| 003 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 004 | 8114P0-9 | HS009G NAME PLATE | 1 | |
| 005 | 140F99-0 | CAP COMPLETE | 1 | |
| 005 | C10 | 213A05-9 | O-RING16 | 1 |
| 006 | 183U47-6 | HANDLE SET | 1 | |
| 006 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 006 | D10 | INC. 13 | ||
| 007 | 419704-7 | LOCK OFF BUTTON | 1 | |
| 008 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 009 | 650008-0 | SWITCH C3XB-1LPSPM | 1 | |
| 009-1 | 650039-9 | SWITCH C3XB-1LPSPM | 1 | |
| 010 | 413C24-9 | SWITCH LEVER | 1 | |
| 011 | 632P65-6 | TERMINAL UNIT | 1 | |
| 012 | 8114P6-7 | HS009G SERIAL NO. LABEL | 1 | |
| 013 | 183U47-6 | HANDLE SET | 1 | |
| 013 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 013 | D10 | INC. 6 | ||
| 014 | 911243-8 | PAN HEAD SCREW M5X25 | 3 | |
| 015 | 141G16-9 | TERMINAL HOUSING COMPLETE | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 016 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 017 | 413C17-6 | MOTOR HOUSING | 1 | |
| 018 | 911258-5 | PAN HEAD SCREW M5X35 | 4 | |
| 019 | 413C23-1 | LIGHT COVER | 1 | |
| 020 | 620936-3 | LED CIRCUIT | 1 | |
| 021 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 022 | 620H80-4 | CONTROLLER | 1 | |
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 024 | 632R96-7 | SENSOR UNIT | 1 | |
| 025 | 652093-9 | PAN HEAD SCREW M2X5 | 3 | |
| 025-1 | 652119-7 | PAN HEAD SCREW M2X6 | 3 | |
| 026 | 629A40-1 | STATOR | 1 | |
| 027 | 413C22-3 | BAFFLE PLATE | 1 | |
| 028 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 029 | 271453-2 | LEVER 132 | 1 | |
| 030 | 257953-6 | BOW STOP RING E-12 | 1 | |
| 031 | 252262-8 | COLLERED HEX. NUT M8 | 1 | |
| 032 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 033 | 519721-8 | ROTOR ASS'Y | 1 | |
| 033 | D10 | INC. 32,34 | ||
| 034 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 035 | 251529-1 | + PAN HEAD SCREW M4X14 | 1 | |
| 036 | 347676-5 | SHAFT LOCK | 1 | |
| 037 | 233084-5 | COMPRESSION SPRING 6 | 1 | |
| 038 | 286039-9 | CAP | 1 | |
| 039 | 141G17-7 | BLADE CASE COMPLETE | 1 | |
| 039 | C10 | 213434-0 | O RING 26 | 1 |
| 039 | C20 | 263005-3 | RUBBER PIN 6 | 1 |
| 039 | C30 | 8004T1-0 | SCALE LABEL | 1 |
| 040 | 266396-1 | FLATHEAD SQUARENECKBOLT M8X24 | 1 | |
| 041 | 232563-0 | TENSION SPRING 4 | 1 | |
| 042 | 265A60-7 | + PAN HEAD SCREW M5X14 | 1 | |
| 043 | 162686-9 | OPEN LEVER | 1 | |
| 044 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 | |
| 045 | 347577-7 | WASHER 6 | 1 | |
| 046 | 347576-9 | OPEN PLATE | 1 | |
| 047 | 265A82-7 | HEX. SOCKET HEAD SCREW M3X4 | 1 | |
| 048 | 262185-2 | RUBBER SLEEVE8 | 1 | |
| 049 | 232674-1 | LEAF SPRING | 2 | |
| 050 | 251572-0 | + COUNTERSUNK HEAD SCREW M6X3 | 1 | |
| 051 | 136173-4 | DUST NOZZLE ASS'Y | 1 | |
| 051 | D10 | INC. 52 | ||
| 052 | 213444-7 | O RING 30 | 1 | |
| 118 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 119 | 345748-0 | LOCK WASHER | 2 | |
| A01 | 162687-7 | SUB BASE | 1 | |
| A02 | E-01959 | TCT BLADE 235X24T WOOD EFFICUT | 1 | |
| A03 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A04B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 821866-3 | PLASTIC CARRYING CASE | 1 | |
| A05B | C10 | 162271-8 | LATCH | 2 |
| A05B | C20 | 453229-1 | THUMB SCREW M12X8 | 1 |
| A06B | 412393-7 | BATTERY COVER | 2 | |
| A07B | 191L47-8 | BATTERY BL4050F SET | 2 | |
| F06 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F07 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F09 | 194416-0 | SHEET 10000 SET | 1 | |
| F10 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F11 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F13 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F15 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F17 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F18 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F20 | 198885-7 | GUIDE RAIL CONNECTOR SET(EU) | 1 | |
| F21 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F22 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 | |
| 077 | 312C17-2 | FRONT ANGULAR PLATE | 1 | |
| 078 | 347574-3 | DEPTH GUIDE | 1 | |
| 079 | 253111-2 | FLAT WASHER 6 | 1 | |
| 080 | 233314-4 | COMPRESSION SPRING 4 | 1 | |
| 081 | 265776-8 | THUMB SCREW M6X26 | 1 | |
| 082 | 216008-6 | STEEL BALL 4 | 1 | |
| 083 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 084 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 085 | 253811-4 | FLAT WASHER 5 | 1 | |
| 086 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 087 | 450704-8 | DIAL 27 | 1 | |
| 088 | 251370-2 | + PAN HEAD SCREW M5 | 1 | |
| 089 | 251528-3 | + PAN HEAD SCREW M6 | 1 | |
| 090 | 266332-7 | R.H SQUARE NECK BOLT M6X35 | 1 | |
| 091 | 141G18-5 | FRAME COMPLETE | 1 | |
| 092 | 266229-0 | H.S.SET SCREW(CUP POINT)M5X8 | 1 | |
| 093 | 257580-9 | SLEEVE 8 | 1 | |
| 094 | 265A84-3 | PAN HEAD SCREW M4X12 WITH WR | 2 | |
| 095 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 096 | 252270-9 | THUMB NUT M6 | 1 | |
| 097 | 253111-2 | FLAT WASHER 6 | 1 | |
| 098 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 099 | 231234-6 | COMPRESSION SPRING 3.5 | 1 | |
| 100 | 263041-9 | SHOULDER PIN 3-5 | 1 | |
| 101 | 312C18-0 | REAR ANGULAR PLATE | 1 | |
| 102 | 419632-6 | POSITION PLATE | 1 | |
| 103 | 252014-7 | HEX. LOCK NUT M6-10 | 1 | |
| 104 | 265A83-5 | H.S.SET SCREW(FLAT POINT)M5X20 | 1 | |
| 105 | 412210-1 | SLIDER | 1 | |
| 106 | 233025-1 | COMPRESSION SPRING 2 | 1 | |
| 108 | 458092-7 | SLIDE LEVER | 2 | |
| 109 | 253932-2 | WAVE WASHER 10 | 2 | |
| 110 | 345977-5 | PLATE | 2 | |
| 111 | 265701-9 | THUMB SCREW M6X14 | 2 | |
| 112 | 265775-0 | THUMB SCREW M4X3 | 2 | |
| 113 | 233376-2 | COMPRESSION SPRING 8 | 2 | |
| 114 | 265181-9 | +TRUSS HEAD SCREW M5X20 | 4 | |
| 115 | 312C15-6 | BASE | 1 | |
| 116 | 419627-9 | HOLDER | 2 | |
| 117 | 266225-8 | H.S.SET SCREW(FLAT POINT)M6X8 | 2 | |
| 118 | 912112-6 | COUNTERSUNK HEAD SCREW M4X10 | 2 | |
| 119 | 345748-0 | LOCK WASHER | 2 | |
| A01 | 162687-7 | SUB BASE | 1 | |
| A02 | E-01959 | TCT BLADE 235X24T WOOD EFFICUT | 1 | |
| A03 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A04B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 821866-3 | PLASTIC CARRYING CASE | 1 | |
| A05B | C10 | 162271-8 | LATCH | 2 |
| A05B | C20 | 453229-1 | THUMB SCREW M12X8 | 1 |
| A06B | 412393-7 | BATTERY COVER | 2 | |
| A07B | 191L47-8 | BATTERY BL4050F SET | 2 | |
| F06 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F07 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F09 | 194416-0 | SHEET 10000 SET | 1 | |
| F10 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F11 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F13 | 194910-2 | POSITION SHEET 1900 SET | 1 | |
| F15 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F17 | 195546-0 | FRONT CUFF 24 SET | 1 | |
| F18 | 196664-7 | BEVEL GUIDE SET | 1 | |
| F20 | 198885-7 | GUIDE RAIL CONNECTOR SET(EU) | 1 | |
| F21 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F22 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F28 | 1913K7-3 | PARALLEL GUIDE SET(MM) | 1 |
Back Download
