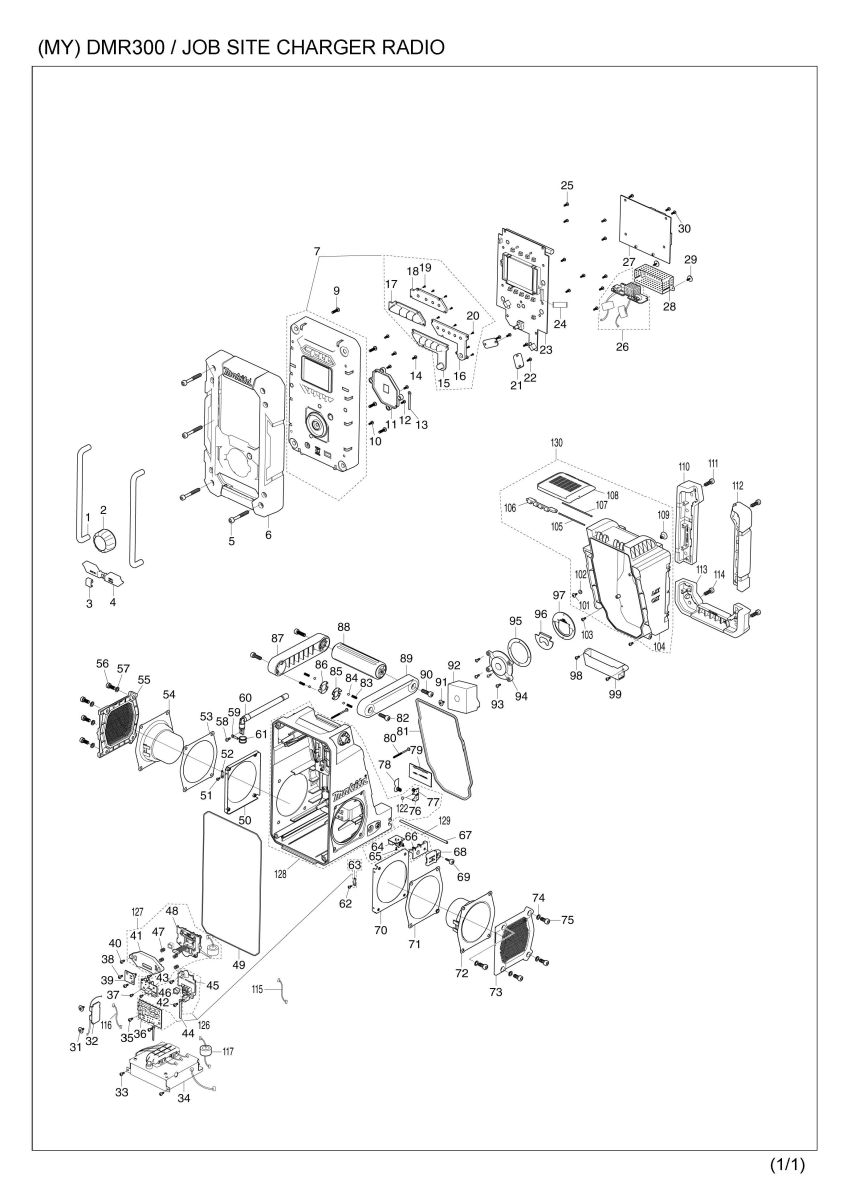

Part Diagram
Total: 134 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | TC00000001 | FRONT BAR | 2 | |
| 2 | TC00000002 | VOLUME KNOB | 1 | |
| 3 | TC00000003 | USB COVER HOLDER | 1 | |
| 4 | TC00000004 | USB COVER | 1 | |
| 5 | TC00000005 | SCREW M6X45 | 4 | |
| 6 | TC00000006 | FRONT CABINET BLUE | 1 | |
| 7 | TC00000162 | FRONT INNER CABINET ASSY | 1 | |
| 7 | D10 | INC. 15-20 | ||
| 9 | TC00000009 | SCREW M4X15 | 4 | |
| 10 | TC00000011 | SCREW M3X8 | 1 | |
| 11 | TC00000012 | VOLUME HOLDER COVER | 1 | |
| 12 | TC00000011 | SCREW M3X8 | 2 | |
| 13 | TC00000010 | WIRE CLAMP | 1 | |
| 14 | TC00000011 | SCREW M3X8 | 4 | |
| 15 | TC00000013 | MIDDLE KEY | 1 | |
| 16 | TC00000014 | MIDDLE KEY HOLDER | 1 | |
| 17 | TC00000016 | TOP KEY | 1 | |
| 18 | TC00000017 | TOP KEY HOLDER | 1 | |
| 19 | TC00000015 | SCREW M1.7X5 | 4 | |
| 20 | TC00000015 | SCREW M1.7X5 | 5 | |
| 21 | TC00000019 | COVER PCB | 2 | |
| 22 | TC00000011 | SCREW M3X8 | 4 | |
| 23 | TC00000020 | PCBA-DISPLAY | 1 | |
| 24 | TC00000178 | FLAT CABLE | 1 | |
| 25 | TC00000011 | SCREW M3X8 | 10 | |
| 26 | TC00000163 | PCBA-USB1 ASSY | 1 | |
| 27 | TC00000025 | PCBA-MAIN B | 1 | |
| 28 | TC00000027 | SHIELD | 1 | |
| 29 | TC00000026 | SCREW M3X8 | 2 | |
| 30 | TC00000011 | SCREW M3X8 | 3 | |
| 31 | TC00000026 | SCREW M3X8 | 2 | |
| 32 | TC00000029 | PCBA-USB2 | 1 | |
| 33 | TC00000011 | SCREW M3X8 | 2 | |
| 34 | TC00000030 | PCBA CHARGING | 1 | |
| 35 | TC00000011 | SCREW M3X8 | 2 | |
| 36 | TC00000031 | PCBA-CXT BATTERY | 1 | |
| 37 | TC00000032 | SCREW M2.6X6 | 2 | |
| 38 | TC00000011 | SCREW M3X8 | 2 | |
| 39 | TC00000033 | PCBA-SWITCH | 1 | |
| 40 | TC00000011 | SCREW M3X8 | 2 | |
| 41 | TC00000034 | LXT TERMINAL HOLDER BLUE | 1 | |
| 42 | TC00000011 | SCREW M3X8 | 2 | |
| 43 | TC00000036 | PCBA-LXT BATTERY | 1 | |
| 44 | TC00000010 | WIRE CLAMP | 2 | |
| 45 | TC00000037 | CXT TERMINAL | 1 | |
| 46 | TC00000038 | BAT SWITCH BUTTON BLUE | 2 | |
| 47 | TC00000040 | LXT SPRING | 4 | |
| 48 | TC00000041 | LXT TERMINAL | 1 | |
| 49 | TC00000042 | FRONT INNER CABINET RUBBER | 1 | |
| 50 | TC00000045 | SPEAKER BRACKET | 1 | |
| 51 | TC00000032 | SCREW M2.6X6 | 1 | |
| 52 | TC00000046 | LEAD UNIT | 1 | |
| 052-1 | TC00000186 | LEAD UNIT | 1 | |
| 53 | TC00000047 | SPEAKER RUBBER | 1 | |
| 54 | TC00000048 | SPEAKER L | 1 | |
| 55 | TC00000049 | SPK COVER | 1 | |
| 56 | TC00000050 | SCREW M6X14 | 4 | |
| 57 | TC00000051 | RUBBER RING | 4 | |
| 58 | TC00000052 | SCREW M3X10 | 1 | |
| 59 | TC00000186 | LEAD UNIT | 1 | |
| 059-1 | TC00000199 | ANTENNA LEAD UNIT | 1 | |
| 60 | TC00000053 | FM ANTENNA | 1 | |
| 61 | TC00000054 | RUBBER RING | 1 | |
| 62 | TC00000032 | SCREW M2.6X6 | 1 | |
| 63 | TC00000046 | LEAD UNIT | 1 | |
| 063-1 | TC00000186 | LEAD UNIT | 1 | |
| 64 | TC00000055 | PCBA-DC JACK | 1 | |
| 65 | TC00000015 | SCREW M1.7X5 | 2 | |
| 66 | TC00000056 | DC JACK HOLDER BLUE | 1 | |
| 67 | TC00000058 | BACK CABINET SHAFT | 1 | |
| 68 | TC00000059 | DC JACK COVER | 1 | |
| 69 | TC00000060 | SCREW M3X14 | 1 | |
| 70 | TC00000045 | SPEAKER BRACKET | 1 | |
| 71 | TC00000047 | SPEAKER RUBBER | 1 | |
| 72 | TC00000174 | SPEAKER R | 1 | |
| 73 | TC00000049 | SPK COVER | 1 | |
| 74 | TC00000051 | RUBBER RING | 4 | |
| 75 | TC00000050 | SCREW M6X14 | 4 | |
| 76 | TC00000061 | BATTERY PLUS PLATE | 1 | |
| 77 | TC00000062 | BATTERY MINUS PLATE | 1 | |
| 077-1 | TC00000200 | BATTERY MINUS PLATE | 1 | |
| 78 | TC00000063 | BATTERY MINUS PLUS PLATE | 1 | |
| 078-1 | TC00000201 | BATTERY MINUS PLUS PLATE | 1 | |
| 79 | TC00000064 | BATTERY COVER BLUE | 1 | |
| 80 | TC00000066 | HEXA SOCKET SCREW T15 3X45 | 2 | |
| 81 | TC00000067 | MIDDLE CABINET RUBBER | 1 | |
| 82 | TC00000068 | SCREW M6X19 | 2 | |
| 83 | TC00000069 | COMPRESSION SPRING | 4 | |
| 84 | TC00000070 | STEEL BALL | 4 | |
| 85 | TC00000071 | HANDLE PLATE R | 1 | |
| 86 | TC00000072 | HANDLE PLATE L | 1 | |
| 87 | TC00000073 | HANDLE L BLUE | 1 | |
| 88 | TC00000075 | GRIP | 1 | |
| 89 | TC00000076 | HANDLE R BLUE | 1 | |
| 90 | TC00000078 | SCREW M6X20 | 2 | |
| 91 | TC00000026 | SCREW M3X8 | 1 | |
| 92 | TC00000175 | BATTERY RUBBER PAD | 1 | |
| 93 | TC00000011 | SCREW M3X8 | 4 | |
| 94 | TC00000080 | BOTTLE OPENER BACK COVER BLUE | 1 | |
| 95 | TC00000082 | RUBBER RING | 1 | |
| 96 | TC00000085 | BOTTLE OPENER | 1 | |
| 97 | TC00000086 | HOLDER | 1 | |
| 98 | TC00000011 | SCREW M3X8 | 2 | |
| 99 | TC00000087 | PHONE POCKET BLUE | 1 | |
| 101 | TC00000089 | SCREW M3X8 | 1 | |
| 102 | TC00000090 | RUBBER RING | 1 | |
| 103 | TC00000011 | SCREW M3X8 | 2 | |
| 104 | TC00000091 | BACK CABINET BLUE | 1 | |
| 105 | TC00000093 | SHAFT SHORT | 1 | |
| 106 | TC00000094 | HINGE BLUE | 1 | |
| 107 | TC00000096 | SHAFT LONG | 1 | |
| 108 | TC00000097 | LATCH BLUE | 1 | |
| 109 | TC00000099 | HOOK | 1 | |
| 110 | TC00000100 | CABINET HOLDER L BLUE | 1 | |
| 111 | TC00000068 | SCREW M6X19 | 2 | |
| 112 | TC00000102 | CABINET HOLDER R BLUE | 1 | |
| 113 | TC00000104 | CABINET HOLDER BLUE | 1 | |
| 114 | TC00000068 | SCREW M6X19 | 2 | |
| 115 | TC00000179 | 4P WIRE | 1 | |
| 116 | TC00000180 | 8P WIRE | 1 | |
| 117 | TC00000181 | 2P/4P WIRE ASSY | 1 | |
| 122 | TC00000169 | LEAD UNIT | 1 | |
| 126 | TC00000164 | CXT TERMINAL ASSY | 1 | |
| 126 | D10 | INC 36,45,63 | ||
| 127 | TC00000165 | LXT TERMINAL ASSY BLUE | 1 | |
| 127 | D10 | INC. 41,43,47,48 | ||
| 128 | TC00000168 | MIDDLE CABINET ASSY BLUE | 1 | |
| 128 | D10 | INC. 76,77,122 | ||
| 129 | TC00000172 | DC JACK ASSY BLUE | 1 | |
| 129 | D10 | INC. 64-66 | ||
| 130 | TC00000176 | BACK CABINET ASSY BLUE | 1 | |
| 130 | D10 | INC. 101,102,104-109 | ||
| A01 | TC00000136 | AC ADAPTER D | 1 | |
| A02 | TC00000143 | AC CORD B | 1 |
