Part Diagram
Total: 190 record(s) at page 1 of 1

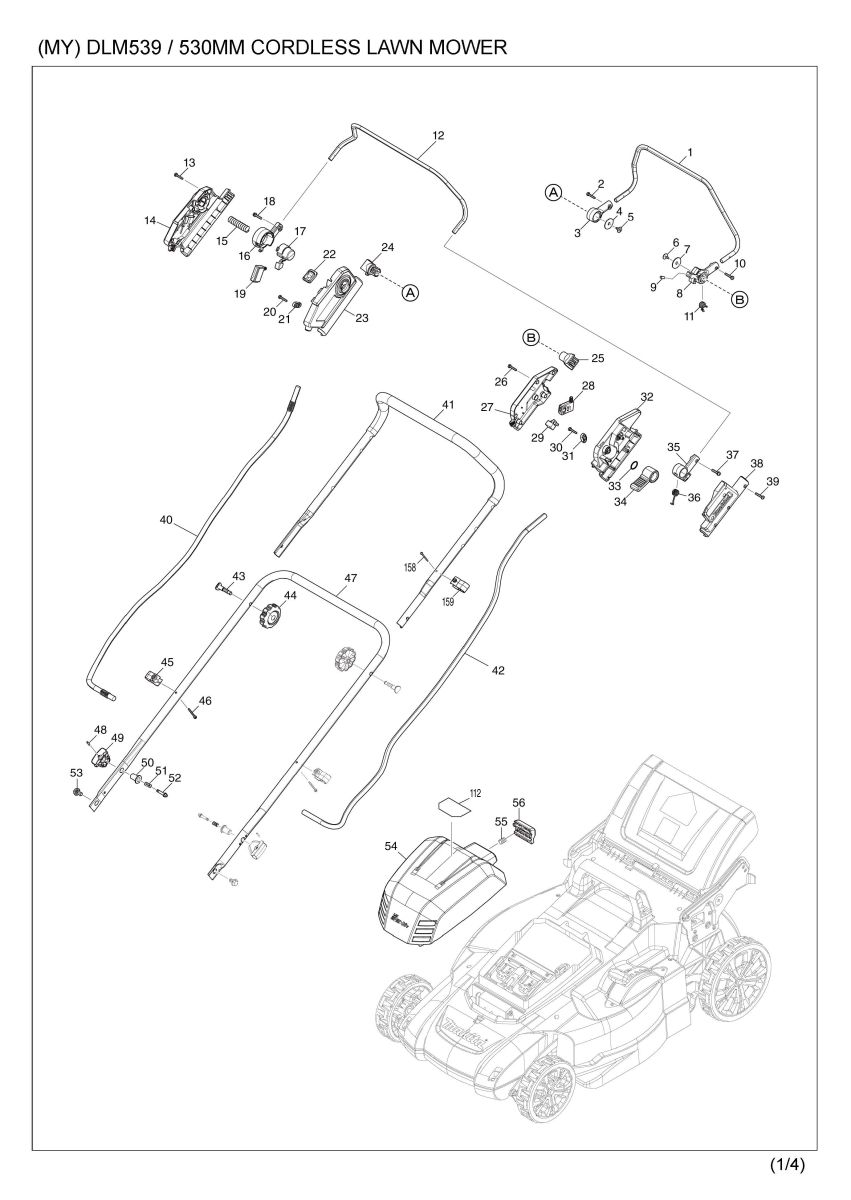

| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 327425-6 | DRIVING LEVER | 1 | |
| 2 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 3 | 459858-8 | DRIVING LEVER SUPPORT R | 1 | |
| 3 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 4 | 253814-8 | FLAT WASHER 8 | 1 | |
| 5 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 6 | 265620-9 | TAPPING SCREW FLANGE 4X18 | 1 | |
| 7 | 253814-8 | FLAT WASHER 8 | 1 | |
| 8 | 413B10-4 | DRIVING LEVER SUPPORT L | 1 | |
| 8 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 9 | 268225-4 | PIN 5 | 1 | |
| 10 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 11 | 232566-4 | TORSION SPRING 12 | 1 | |
| 12 | 327424-8 | SWITCH LEVER | 1 | |
| 13 | 266424-2 | TAPPING SCREW 4X20 | 7 | |
| 14 | 183V30-9 | SWITCH BOX SET | 1 | |
| 14 | C10 | 8045G7-5 | INDICATION LABEL | 1 |
| 14 | D10 | INC. 23 | ||
| 15 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 16 | 413A99-6 | SWITCH LEVER SUPPORT R | 1 | |
| 16 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 17 | 413B00-7 | LOCK OFF BUTTON | 1 | |
| 18 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 19 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 20 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 21 | 687123-7 | STRAIN RELIEF | 1 | |
| 021-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 22 | 141H35-1 | SWITCH CIRCUIT COMPLETE | 1 | |
| 22 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 23 | 183V30-9 | SWITCH BOX SET | 1 | |
| 23 | C10 | 8045G7-5 | INDICATION LABEL | 1 |
| 23 | D10 | INC. 14 | ||
| 24 | 413A98-8 | DRIVING LEVER HOLDER | 1 | |
| 25 | 413A98-8 | DRIVING LEVER HOLDER | 1 | |
| 26 | 266424-2 | TAPPING SCREW 4X20 | 5 | |
| 27 | 183U35-3 | LEVER BOX SET | 1 | |
| 27 | D10 | INC. 38 | ||
| 28 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 29 | 620415-1 | SUB CONTROLLER | 1 | |
| 30 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 31 | 687123-7 | STRAIN RELIEF | 1 | |
| 031-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 32 | 413A95-4 | LEVER BOX C | 1 | |
| 33 | 213A12-2 | O-RING 18 | 1 | |
| 34 | 413B01-5 | SPEED LEVER | 1 | |
| 35 | 459863-5 | SWITCH LEVER SUPPORT L | 1 | |
| 35 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 36 | 232575-3 | TORSION SPRING 12 | 1 | |
| 37 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 38 | 183U35-3 | LEVER BOX SET | 1 | |
| 38 | D10 | INC. 27 | ||
| 39 | 266424-2 | TAPPING SCREW 4X20 | 5 | |
| 40 | 699187-9 | POWER SUPPLY CORD UNIT | 1 | |
| 41 | 327871-3 | HANDLE UPPER | 1 | |
| 42 | 699189-5 | POWER SUPPLY CORD UNIT | 1 | |
| 43 | 265C08-1 | FLAT HEAD BOLT M8X50 | 2 | |
| 44 | 265C06-5 | THUMB NUT M8 | 2 | |
| 45 | 413944-9 | CLAMP | 2 | |
| 45 | C10 | 931102-0 | HEX. NUT M4 | 2 |
| 46 | 911163-6 | PAN HEAD SCREW M4X35 | 2 | |
| 47 | 122A72-2 | HANDLE LOWER ASSEMBLY | 1 | |
| 47 | D10 | INC. 48-52 | ||
| 48 | 258004-8 | SPRING PIN 2.5-16 | 2 | |
| 49 | 413943-1 | KNOB | 2 | |
| 50 | 327877-1 | LOCK HOLDER | 2 | |
| 51 | 234121-8 | COMPRESSION SPRING 8 | 2 | |
| 52 | 327876-3 | LOCK PIN | 2 | |
| 53 | 265C07-3 | HEX. BOLT M8 | 2 | |
| 54 | 141H43-2 | BATTERY COVER COMPLETE | 1 | |
| 54 | C10 | 8044A3-5 | CAUTION LABEL | 1 |
| 55 | 231037-8 | COMPRESSION SPRING 7 | 1 | |
| 56 | 413B03-1 | LOCK LEVER | 1 | |

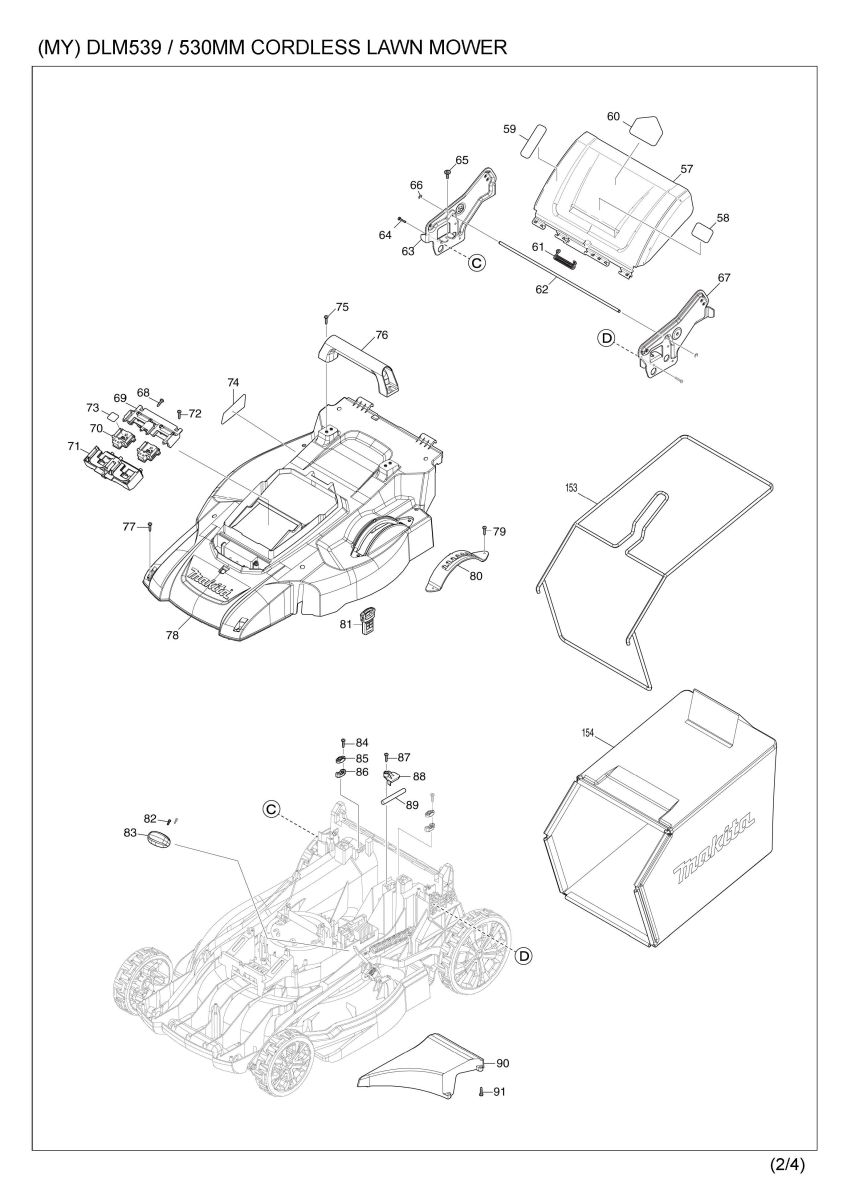

| 57 | 141J53-1 | REAR FLAP COMPLETE | 1 | |
| 57 | D10 | INC. 58 | ||
| 58 | 8047H4-0 | CAUTION LABEL | 1 | |
| 61 | 232721-8 | TORSION SPRING 8 | 1 | |
| 62 | 327418-3 | ROD 6 | 1 | |
| 63 | 347867-8 | HANDLE BRACKET R | 1 | |
| 64 | 266553-1 | TAPPING SCREW 5X30 | 6 | |
| 65 | 265C05-7 | TAPPING SCREW FRANGE 5X20 | 2 | |
| 66 | 961018-5 | STOP RING E-5 | 2 | |
| 066-1 | 259084-7 | STOP RING (EXT) E-5 | 2 | |
| 67 | 347866-0 | HANDLE BRACKET L | 1 | |
| 68 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 69 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 69 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 69 | D10 | INC. 71 | ||
| 70 | 644809-6 | TERMINAL | 2 | |
| 71 | 183N35-1 | TERMINAL HOUSING SET | 1 | |
| 71 | C10 | 263005-3 | RUBBER PIN 6 | 4 |
| 71 | D10 | INC. 69 | ||
| 72 | 266424-2 | TAPPING SCREW 4X20 | 3 | |
| 73 | 8114J9-9 | DLM539 SERIAL NO. LABEL | 1 | |
| 74 | 8114J3-1 | DLM539 NAME PLATE | 1 | |
| 75 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 76 | 413938-4 | REAR GRIP | 1 | |
| 77 | 266424-2 | TAPPING SCREW 4X20 | 11 | |
| 78 | 141J49-2 | COWLING COMPLETE | 1 | |
| 78 | C10 | 422789-4 | SPONGE SEAL | 1 |
| 78 | C20 | 8031N0-1 | INDICATION LABEL | 2 |
| 79 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 80 | 162993-0 | HEIGHT ADJUST PLATE | 1 | |
| 81 | 643535-4 | KEY | 1 | |
| 82 | 266816-5 | + PAN HEAD SCREW M3X12 WITH WR | 2 | |
| 082-1 | 265C97-6 | + PAN HEAD SCREW M3X12 WITH WR | 2 | |
| 83 | 413939-2 | HEIGHT ADJUST LEVER GRIP | 1 | |
| 84 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 85 | 687123-7 | STRAIN RELIEF | 2 | |
| 86 | 687051-6 | STRAIN RELIEF | 2 | |
| 87 | 266424-2 | TAPPING SCREW 4X20 | 1 | |
| 88 | 413B08-1 | LEAD COVER | 1 | |
| 89 | 699183-7 | POWER SUPPLY CORD UNIT | 1 | |
| 90 | 413920-3 | DECK REAR COVER | 1 | |
| 91 | 266424-2 | TAPPING SCREW 4X20 | 4 | |

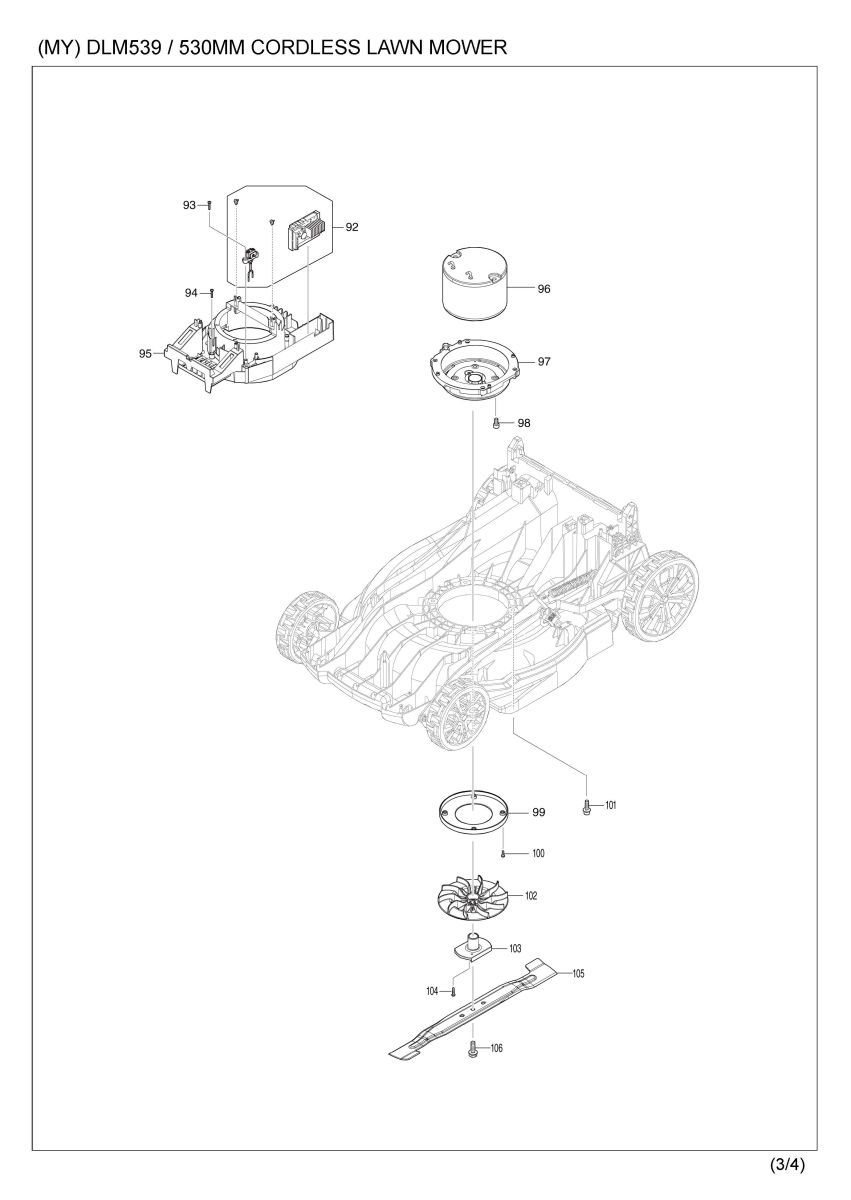

| 92 | 620G77-7 | CONTROLLER | 1 | |
| 93 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 94 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 95 | 413B05-7 | MOTOR COVER | 1 | |
| 96 | 629A88-3 | DC MOTOR | 1 | |
| 97 | 141H61-0 | MOTOR BRACKET COMPLETE | 1 | |
| 98 | 922422-3 | HEX. SOCKET HEAD BOLT M8X16 | 4 | |
| 99 | 459853-8 | BAFFLE PLATE | 1 | |
| 100 | 266385-6 | TAPPING SCREW 4X14 | 4 | |
| 101 | 265C22-7 | H.S.H.BOLT M8X30 WITH WG | 4 | |
| 102 | 240229-8 | FAN 170 | 1 | |
| 103 | 313392-1 | BLADE SUPPORT 530 | 1 | |
| 104 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 105 | 191V96-5 | BLADE 530 SET | 1 | |
| 106 | 265A69-9 | HEX. BOLT M10X35 WITH WG | 1 | |
| 106-1 | 265D72-8 | HEX. BOLT M10X35 WG | 1 | |

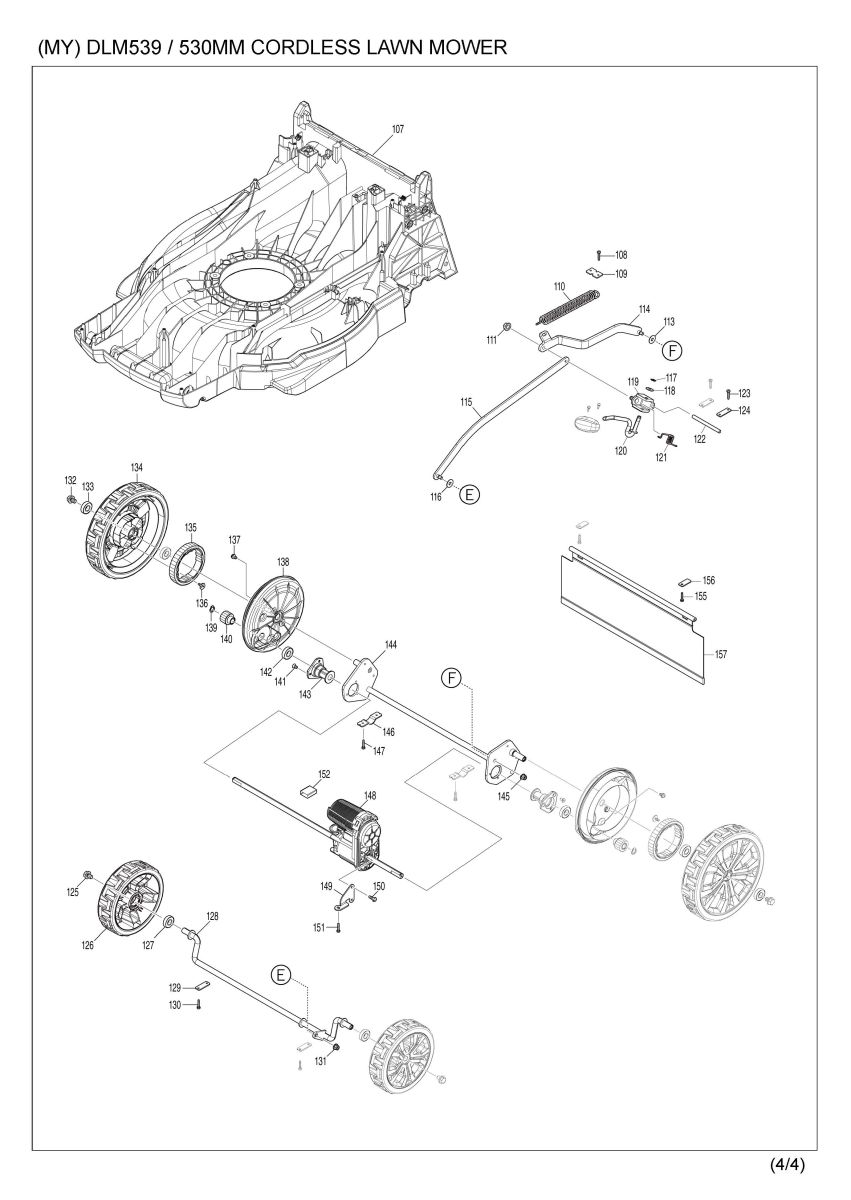

| 107 | 413A63-7 | DECK | 1 | |
| 108 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 109 | 347870-9 | HOOK PLATE | 1 | |
| 110 | 232717-9 | TENSION SPRING 17 | 1 | |
| 111 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 112 | 8046H9-4 | INDICATION LABEL | 1 | |
| 113 | 253731-2 | FLAT WASHER 8 | 1 | |
| 114 | 347873-3 | CONNECTING ROD R | 1 | |
| 115 | 347871-7 | CONNECTING ROD F | 1 | |
| 116 | 253731-2 | FLAT WASHER 8 | 1 | |
| 117 | 961012-7 | STOP RING E-6 | 1 | |
| 117-1 | 259085-5 | STOP RING (EXT)E-6 | 1 | |
| 118 | 267281-1 | FLAT WASHER 8 | 1 | |
| 119 | 313389-0 | ROD HOLDER | 1 | |
| 120 | 327872-1 | HEIGHT ADJUST LEVER | 1 | |
| 121 | 232715-3 | TORSION SPRING 9 | 1 | |
| 122 | 327873-9 | ROD 7 | 1 | |
| 123 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 124 | 347869-4 | PLATE | 2 | |
| 125 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 126 | 141E34-5 | TIRE 180 COMPLETE | 2 | |
| 127 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 128 | 162989-1 | FRONT SHAFT | 1 | |
| 129 | 347869-4 | PLATE | 2 | |
| 130 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 131 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 132 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 133 | 210163-6 | BALL BEARING 6001DDW | 4 | |
| 134 | 141F63-4 | TIRE 230 COMPLETE | 2 | |
| 135 | 227913-2 | SPUR GEAR 49 | 2 | |
| 136 | 265B00-1 | TAPPING SCREW FLANGE 4X12 | 4 | |
| 137 | 911208-0 | PAN HEAD SCREW M5X10 | 4 | |
| 138 | 413B06-5 | WHEEL CAP | 2 | |
| 139 | 961052-5 | RETAINING RING (EXT) S-12 | 2 | |
| 140 | 227912-4 | SPUR GEAR 11 | 2 | |
| 141 | 251951-2 | HEX. SOCKET C.S.H. SCREW M5X10 | 6 | |
| 142 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 143 | 313390-5 | REAR SHAFT HOLDER | 2 | |
| 144 | 162990-6 | REAR SHAFT | 1 | |
| 145 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 146 | 347865-2 | CLAMP 19 | 2 | |
| 147 | 266553-1 | TAPPING SCREW 5X30 | 4 | |
| 148 | 122C20-3 | DRIVE UNIT | 1 | |
| 149 | 347887-2 | BRACKET | 1 | |
| 150 | 266388-0 | TAPPING SCREW 5X16 | 2 | |
| 151 | 266553-1 | TAPPING SCREW 5X30 | 1 | |
| 152 | 683A20-1 | POLYOLEFIN TUBE | 1 | |
| 153 | 162A27-5 | GRASS CATCHER BRACKET | 1 | |
| 153-1 | 162C45-5 | GRASS CATCHER BRACKET | 1 | |
| 154 | 162B25-5 | GRASS CATCHER | 1 | |
| 154-1 | 162C13-8 | GRASS CATCHER | 1 | |
| 158 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | |
| 159 | 413944-9 | CLAMP | 1 | |
| 159 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| A01 | 327589-6 | ROD 6 | 1 | |
| A02 | 413945-7 | MULCHING PLUG 530 | 1 | |
| A03 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| F01 | 191V96-5 | BLADE 530 SET | 1 | |
| F02 | 191W87-2 | BLADE 530 SET | 1 | |
| F04 | 191Y65-4 | BLADE 530 SET | 1 |
