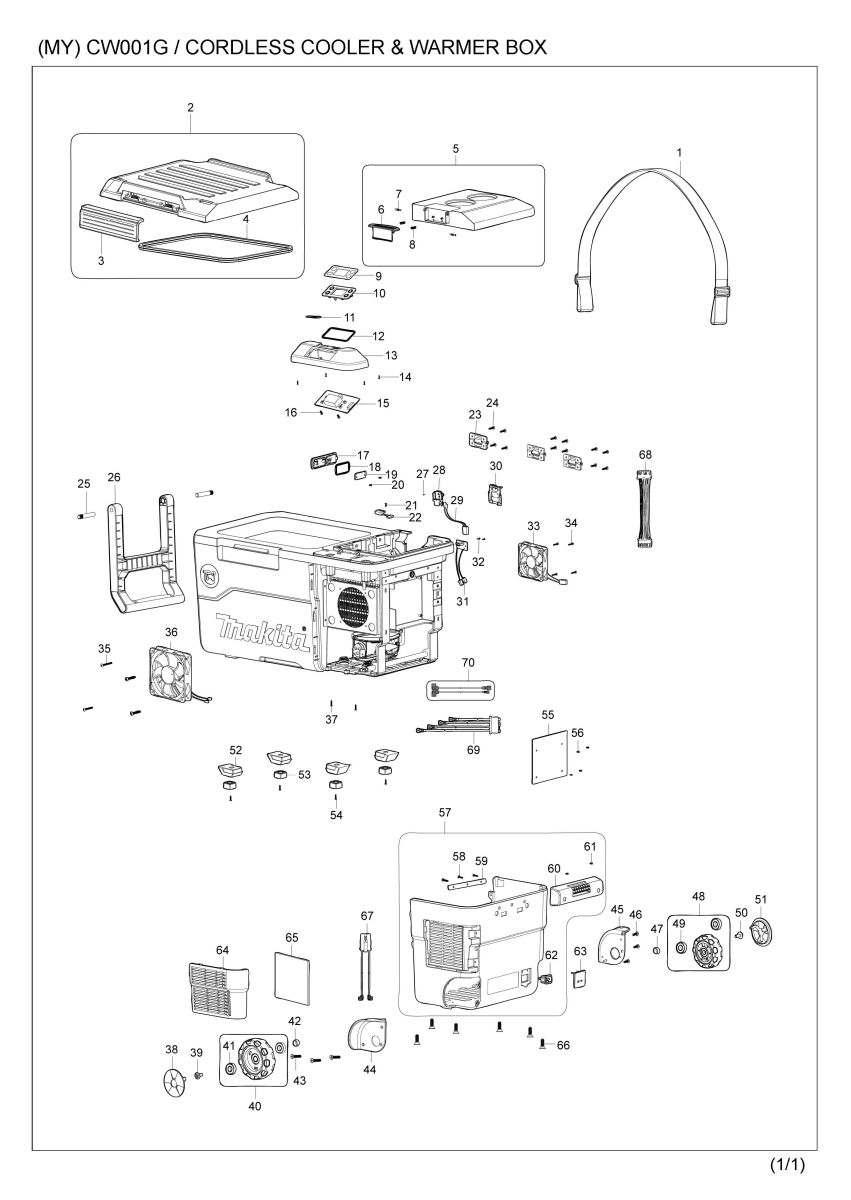

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | A-71093 | SHOULDER BELT | 1 | |
| 2 | WL00000004 | TOP COVER ASSY | 1 | |
| 2 | C10 | WL00000315 | CAUTION LABEL | 1 |
| 2 | D10 | INC. 3,4 | ||
| 3 | WL00000005 | HANDLE A | 1 | |
| 4 | WL00000006 | SEALING | 1 | |
| 5 | WL00000088 | BATTERY COVER | 1 | |
| 5 | D10 | INC. 6,7,8 | ||
| 6 | WL00000089 | HANDLE B | 1 | |
| 7 | WL00000090 | SHAFT | 2 | |
| 8 | WL00000010 | COMPRESSION SPRING 5MM | 2 | |
| 9 | WL00000092 | CONTROL FILM | 1 | |
| 10 | WL00000093 | SWITCH PANEL | 1 | |
| 11 | WL00000094 | XGT LABEL | 1 | |
| 12 | WL00000013 | SEALING B | 1 | |
| 13 | WL00000095 | CONTROL PANEL | 1 | |
| 14 | WL00000015 | TAPPING SCREW 3X10 | 4 | |
| 15 | WL00000096 | CONTROL PCB | 1 | |
| 16 | WL00000017 | TAPPING SCREW 3X8 | 2 | |
| 17 | WL00000018 | THERMOSTAT TOP COVER | 1 | |
| 18 | WL00000019 | SEALING C | 1 | |
| 19 | WL00000097 | LIGHT BOARD ASSY | 1 | |
| 20 | WL00000017 | TAPPING SCREW 3X8 | 2 | |
| 21 | WL00000015 | TAPPING SCREW 3X10 | 1 | |
| 22 | WL00000021 | MAGNETIC SWITCH WITH CABLE | 1 | |
| 23 | WL00000022 | HINGE | 3 | |
| 24 | WL00000023 | TAPPING SCREW 4X16 | 12 | |
| 25 | WL00000025 | SHAFT 10MM (DRAG HANDLE) | 2 | |
| 26 | WL00000026 | DRAG HANDLE | 1 | |
| 27 | WL00000098 | SCREWS ST3X8 | 1 | |
| 28 | WL00000099 | BATTERY TERMINAL | 1 | |
| 29 | WL00000100 | LEAD WIRE | 1 | |
| 30 | WL00000101 | BATTERY TERMINAL COVER | 1 | |
| 31 | WL00000102 | USB PCB | 1 | |
| 32 | WL00000015 | TAPPING SCREW 3X10 | 2 | |
| 33 | WL00000103 | FAN A WITH CABLE | 1 | |
| 033-1 | WL00000103 | FAN A WITH CABLE | 1 | |
| 033-2 | WL00000432 | FAN A WITH CABLE | 1 | |
| 34 | WL00000104 | SCREWS M4X30 | 4 | |
| 35 | WL00000104 | SCREWS M4X30 | 4 | |
| 36 | WL00000030 | FAN B WITH CABLE | 1 | |
| 036-1 | WL00000030 | FAN B WITH CABLE | 1 | |
| 036-2 | WL00000264 | FAN | 1 | |
| 37 | WL00000023 | TAPPING SCREW 4X16 | 2 | |
| 38 | WL00000105 | WHEEL COVER | 1 | |
| 39 | WL00000032 | SCREW M6X16 WITH WASHER | 1 | |
| 40 | WL00000033 | WHEEL ASSY | 1 | |
| 40 | D10 | INC. 41 | ||
| 41 | WL00000034 | BEARING FOR SHAFT | 2 | |
| 42 | WL00000035 | SHAFT SLEEVE 12MM | 1 | |
| 042-1 | WL00000433 | SHAFT SLEEVE 12MM | 1 | |
| 43 | WL00000036 | COUNTERSUNK TAPPING SCREW 4X1 | 3 | |
| 44 | WL00000106 | LEFT WHEEL COVER BLUE | 1 | |
| 45 | WL00000107 | RIGHT WHEEL COVER BLUE | 1 | |
| 46 | WL00000036 | COUNTERSUNK TAPPING SCREW 4X1 | 3 | |
| 47 | WL00000035 | SHAFT SLEEVE 12MM | 1 | |
| 047-1 | WL00000433 | SHAFT SLEEVE 12MM | 1 | |
| 48 | WL00000033 | WHEEL ASSY | 1 | |
| 48 | D10 | INC. 49 | ||
| 49 | WL00000034 | BEARING FOR SHAFT | 2 | |
| 50 | WL00000032 | SCREW M6X16 WITH WASHER | 1 | |
| 51 | WL00000105 | WHEEL COVER | 1 | |
| 52 | WL00000039 | FOOT | 4 | |
| 53 | WL00000040 | FOOT PAD | 4 | |
| 54 | WL00000023 | TAPPING SCREW 4X16 | 4 | |
| 55 | WL00000108 | POWER PCB | 1 | |
| 56 | WL00000017 | TAPPING SCREW 3X8 | 4 | |
| 57 | WL00000109 | REAR COVER ASSY(BLUE) | 1 | |
| 57 | D10 | INC. 58-62 | ||
| 58 | WL00000044 | TAPPING SCREW 4X12 | 3 | |
| 59 | WL00000045 | HANDLE STRENGTHEN IRON | 1 | |
| 60 | WL00000046 | LIFTED HANDLE R | 1 | |
| 61 | WL00000110 | SCREWS M4X12 | 2 | |
| 62 | WL00000048 | DC IN SOCKET | 1 | |
| 63 | WL00000111 | DC IN COVER | 1 | |
| 64 | WL00000112 | DUST PROOF COVER BLUE | 1 | |
| 65 | WL00000051 | FILTER SPONGE | 1 | |
| 66 | WL00000052 | COUNTERSUNK TAPPING SCREW 4X1 | 6 | |
| 67 | WL00000068 | POWER CONNECTION WIRE | 1 | |
| 68 | WL00000069 | CONTROLLING PCB WIRE | 1 | |
| 69 | WL00000070 | COMPRESSOR PCB WIRE | 1 | |
| 70 | WL00000087 | COMPRESSOR INPUT WIRE | 1 | |
| 72 | WL00000284 | SCREW ST 4X30 | 2 | |
| A02 | WL00000002 | CIGAR LIGHTER DC 12-24V | 1 | |
| A02 | C10 | WL00000056 | FUSE | 1 |
| F01 | WL00000132 | AC ADAPTOR ASSY MY | 1 | |
| F01 | C10 | WL00000082 | AC POWER CORD | 1 |
