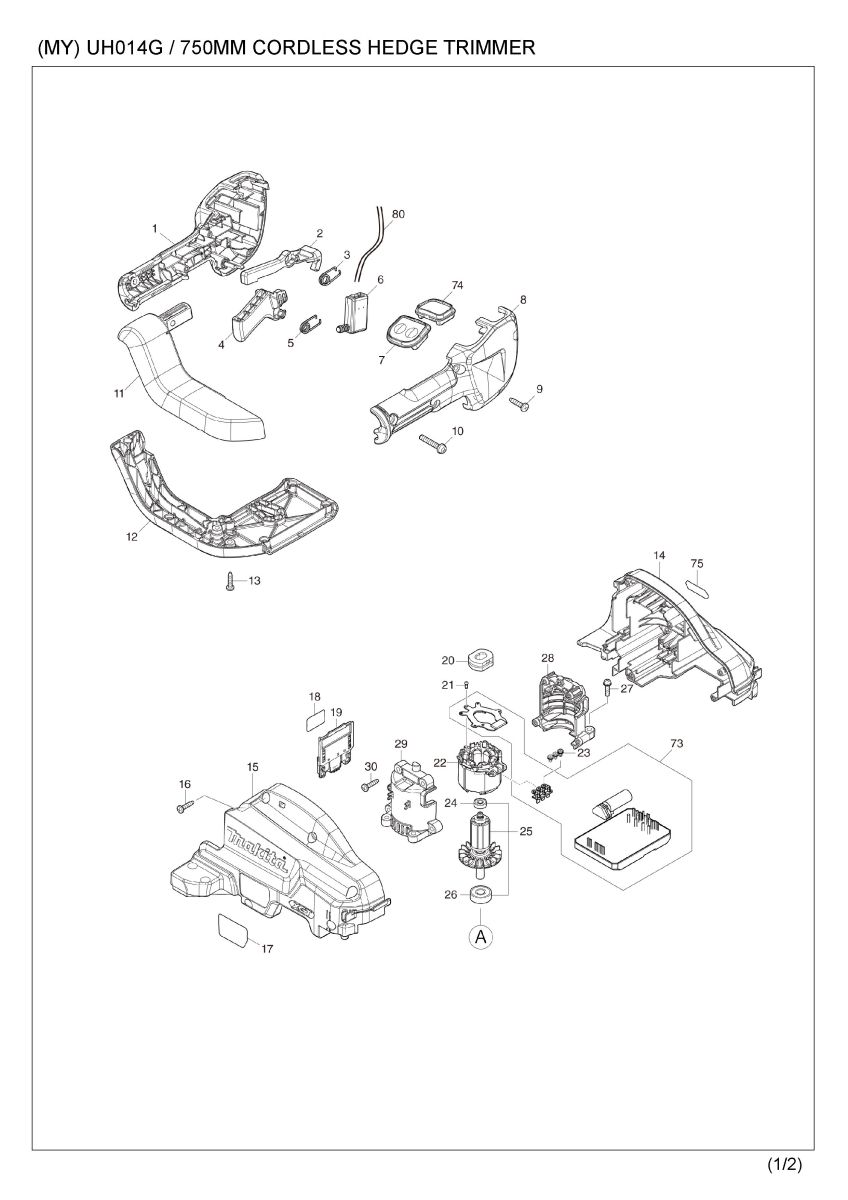

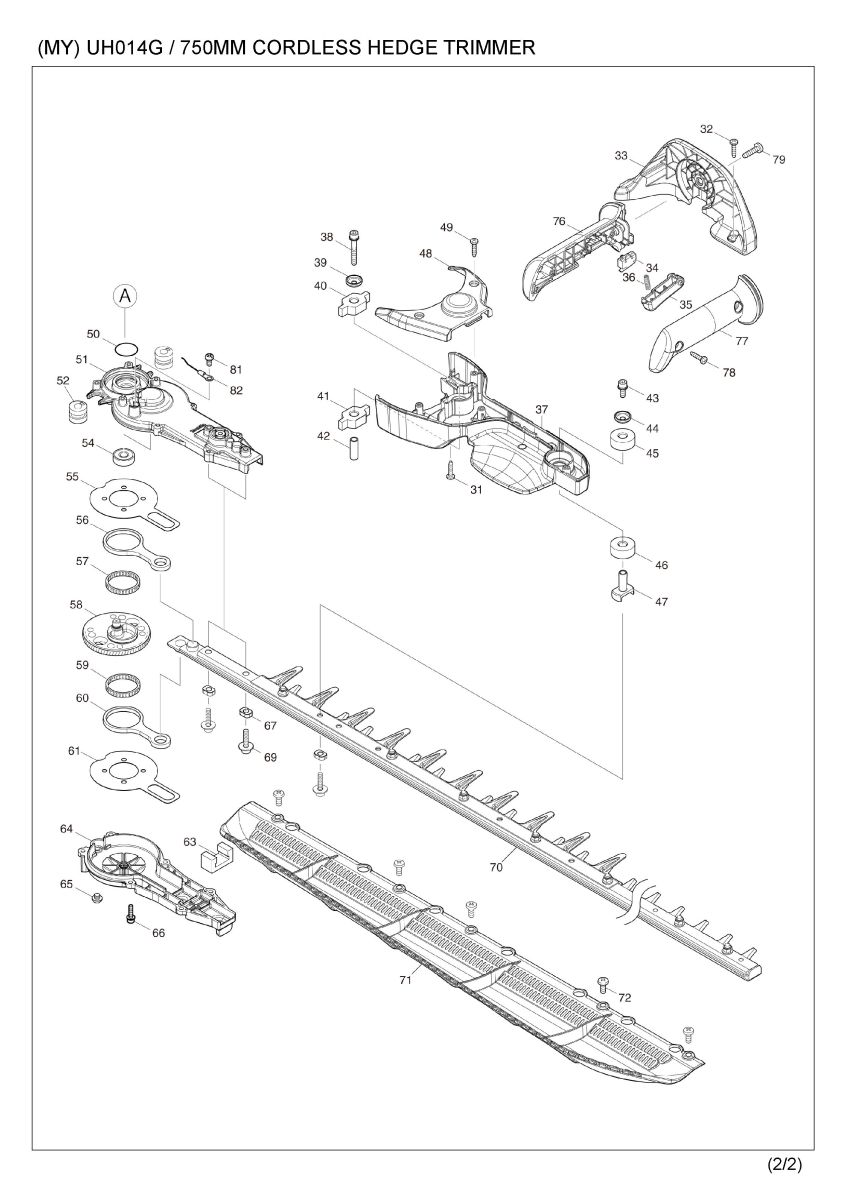

Part Diagram
Total: 121 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183U16-7 | GRIP SET | 1 | |
| 001 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 001 | D10 | INC. 8 | ||
| 001-1 | 1830S0-9 | GRIP SET | 1 | |
| 001-1 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 001-1 | D10 | INC. 8 | ||
| 002 | 455629-1 | LOCK OFF LEVER | 1 | |
| 002-1 | 413Y35-6 | LOCK OFF LEVER | 1 | |
| 003 | 233621-5 | TORSION SPRING 9 | 1 | |
| 004 | 412315-7 | SWITCH LEVER R | 1 | |
| 005 | 233621-5 | TORSION SPRING 9 | 1 | |
| 006 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 007 | 141D66-6 | SWITCH CIRCUIT COMPLETE E | 1 | |
| 007 | C10 | 8034K3-2 | SWITCH LABEL | 1 |
| 008 | 183U16-7 | GRIP SET | 1 | |
| 008 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 008 | D10 | INC. 1 | ||
| 008-1 | 1830S0-9 | GRIP SET | 1 | |
| 008-1 | C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 |
| 008-1 | D10 | INC. 1 | ||
| 009 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 010 | 911253-5 | PAN HEAD SCREW M5X30 | 1 | |
| 011 | 413B85-3 | GRIP JOINT E | 1 | |
| 012 | 413B86-1 | GRIP JOINT COVER E | 1 | |
| 013 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 014 | 183U17-5 | HOUSING SET | 1 | |
| 014 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 014 | C20 | 424344-8 | DAMPER | 4 |
| 014 | D10 | INC. 15 | ||
| 015 | 183U17-5 | HOUSING SET | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 015 | C20 | 424344-8 | DAMPER | 4 |
| 015 | D10 | INC. 14 | ||
| 016 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 017 | 8113B9-7 | UH014G NAME PLATE | 1 | |
| 018 | 8113C5-2 | UH014G SERIAL NO. LABEL | 1 | |
| 019 | 632P75-3 | TERMINAL UNIT | 1 | |
| 020 | 422261-6 | RUBBER SLEEVE | 1 | |
| 021 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 022 | 629A75-2 | STATOR | 1 | |
| 023 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 024 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 025 | 519693-7 | ROTOR ASSY | 1 | |
| 025 | D10 | INC. 24,26 | ||
| 026 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 027 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | |
| 028 | 183S94-5 | MOTOR HOUSING SET | 1 | |
| 028 | D10 | INC. 29 | ||
| 029 | 183S94-5 | MOTOR HOUSING SET | 1 | |
| 029 | D10 | INC. 28 | ||
| 030 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 031 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 032 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 033 | 413B91-8 | FRONT GRIP RETAINER A | 1 | |
| 034 | 632T12-1 | SWITCH UNIT | 1 | |
| 035 | 413B87-9 | SWITCH LEVER F | 1 | |
| 036 | 232353-1 | COMPRESSION SPRING 4 | 1 | |
| 037 | 141G33-9 | FRONT GRIP BASE COMPLETE | 1 | |
| 037 | C10 | 8034N8-3 | CAUTION LABEL | 1 |
| 037-1 | 1410D2-6 | FRONT GRIP BASE COMPLETE | 1 | |
| 037-1 | C10 | 8074J9-5 | CAUTION LABEL | 1 |
| 038 | 251476-6 | H.S.H.BOLT M5X35 WITH WR | 1 | |
| 038-1 | 265D13-4 | H.S.H.BOLT M5X35 WITH WRM | 1 | |
| 039 | 253544-1 | CUP WASHER 5 | 1 | |
| 040 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 041 | 422260-8 | RUBBER SLEEVE 8 | 1 | |
| 042 | 257678-2 | SLEEVE 6 | 1 | |
| 043 | 922218-2 | H.S.H.BOLT M5X14 WITH WR | 1 | |
| 044 | 253544-1 | CUP WASHER 5 | 1 | |
| 045 | 422813-3 | RUBBER SLEEVE 8 | 1 | |
| 046 | 422813-3 | RUBBER SLEEVE 8 | 1 | |
| 047 | 327919-1 | CONNECTOR | 1 | |
| 048 | 413B95-0 | FRONT GRIP COVER | 1 | |
| 049 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 050 | 213961-7 | O RING 22 | 1 | |
| 051 | 141J44-2 | GEAR HOUSING COMPLETE | 1 | |
| 051 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 051 | C20 | 424344-8 | DAMPER | 1 |
| 052 | 422725-0 | RUBBER SLEEVE 8 | 2 | |
| 054 | 210223-4 | BALL BEARING 608ZZ | 1 | |
| 055 | 347361-0 | FRICTION PLATE | 1 | |
| 056 | 347662-6 | CONNECTING ROD | 1 | |
| 057 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 058 | 141C40-8 | GEAR COMPLETE | 1 | |
| 059 | 212229-8 | NEEDLE CAGE 315 | 1 | |
| 060 | 347662-6 | CONNECTING ROD | 1 | |
| 061 | 347361-0 | FRICTION PLATE | 1 | |
| 063 | 443159-4 | SEAL | 1 | |
| 064 | 141H42-4 | GEAR HOUSING COVER COMPLETE | 1 | |
| 065 | 266559-9 | H.S.BUTTON HEAD BOLT M6X4 | 1 | |
| 066 | 922128-3 | HEX. SOCKET HEAD BOLT M4X16 | 6 | |
| 067 | 310983-9 | SLEEVE 5 | 3 | |
| 069 | 265A89-3 | H.S.H.BOLT M5X25 WITH WR | 3 | |
| 070 | 191Y05-2 | SHEAR BLADE 750E SET | 1 | |
| 070 | C10 | 188605-7 | OIL VESSEL SET | 1 |
| 070 | C20 | 310983-9 | SLEEVE 5 | 3 |
| 070 | C30 | 347962-4 | GUARD | 1 |
| 070 | C40 | 253553-0 | FLAT WASHER 5 | 6 |
| 070 | C50 | 252311-1 | COLLARED HEX. LOCK NUT M5-8 | 8 |
| 070 | C60 | 265C41-3 | + TRUSS HEAD SCREW M5X22 | 8 |
| 070 | C70 | 310983-9 | SLEEVE 5 | 8 |
| 071 | 191D34-9 | CHIP RECEIVER 750 SET | 1 | |
| 072 | 265B57-2 | BINDING HEAD SCREW M5X12 | 5 | |
| 073 | 620G85-8 | CONTROLLER | 1 | |
| 073-1 | 620P62-4 | CONTROLLER | 1 | |
| 074 | 140W63-3 | INDICATION CIRCUIT COMPLETE | 1 | |
| 075 | 8025F3-0 | XGT LOGO LABEL | 1 | |
| 076 | 183U18-3 | FRONT GRIP SET | 1 | |
| 076 | D10 | INC. 77 | ||
| 077 | 183U18-3 | FRONT GRIP SET | 1 | |
| 077 | D10 | INC. 76 | ||
| 078 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 079 | 266420-0 | TAPPING SCREW 5X20 | 1 | |
| 080 | 638A24-8 | LEAD UNIT | 1 | |
| A01 | 413B99-2 | BLADE COVER 750 | 1 | |
| A02B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A02B | D10 | COMPO-PARTS | ||
| A03B | 191B26-6 | BATTERY BL4040 SET | 1 | |
| F01 | 191D34-9 | CHIP RECEIVER 750 SET | 1 | |
| F02 | 191Y05-2 | SHEAR BLADE 750E SET | 1 | |
| F03 | 199450-5 | GREASE VESSEL SET | 1 |
