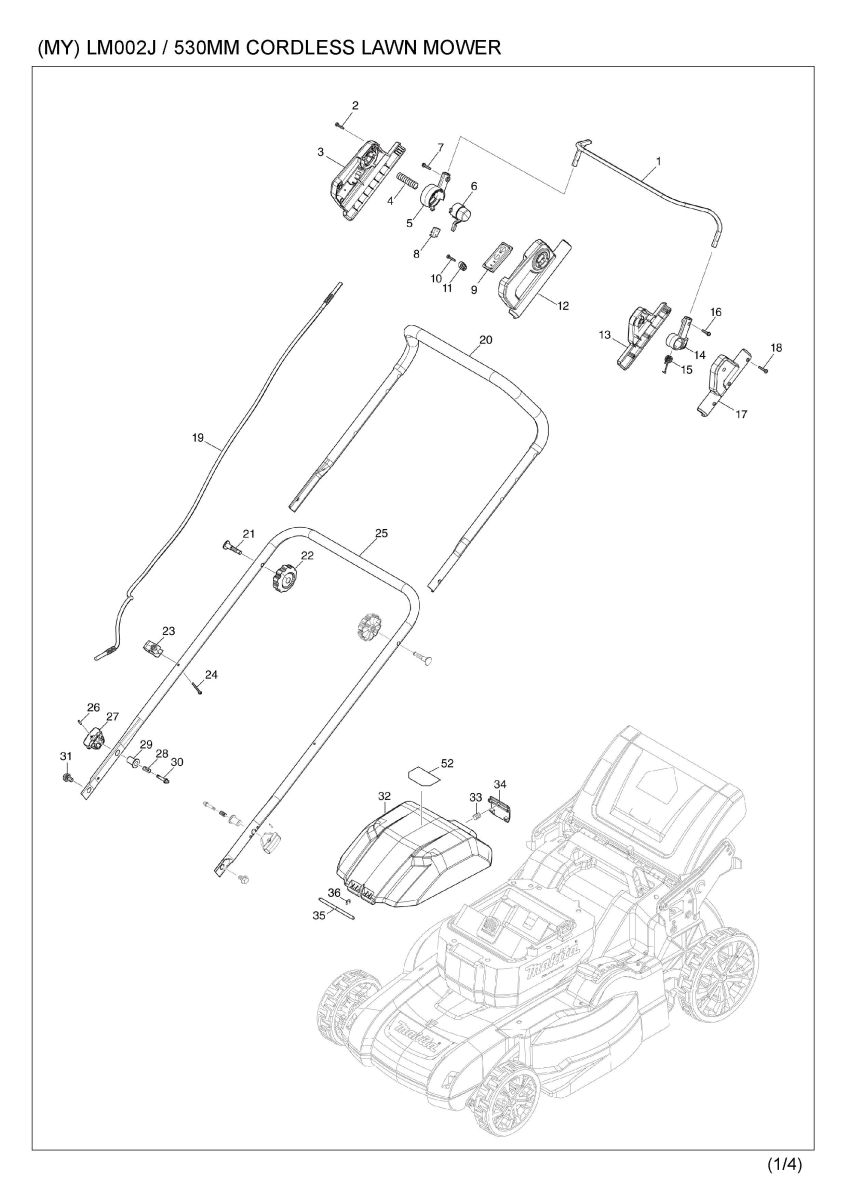

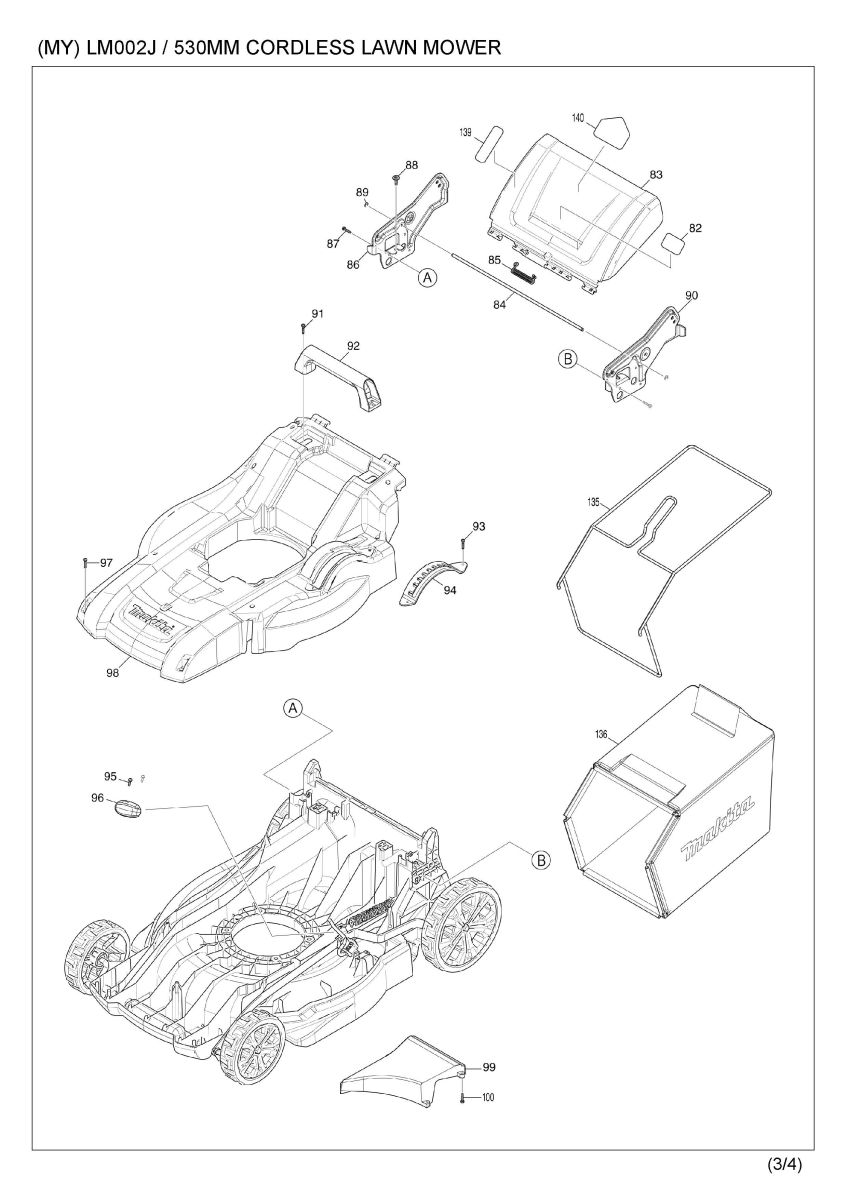

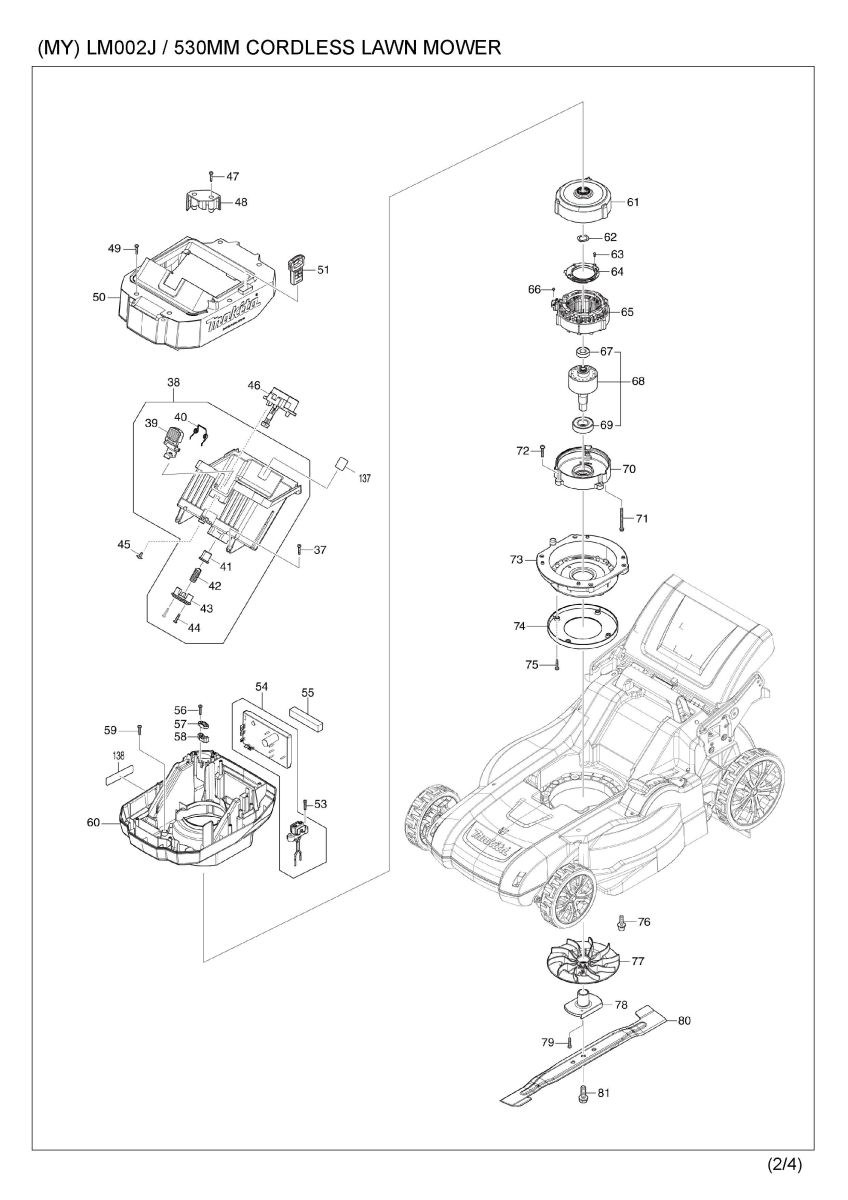

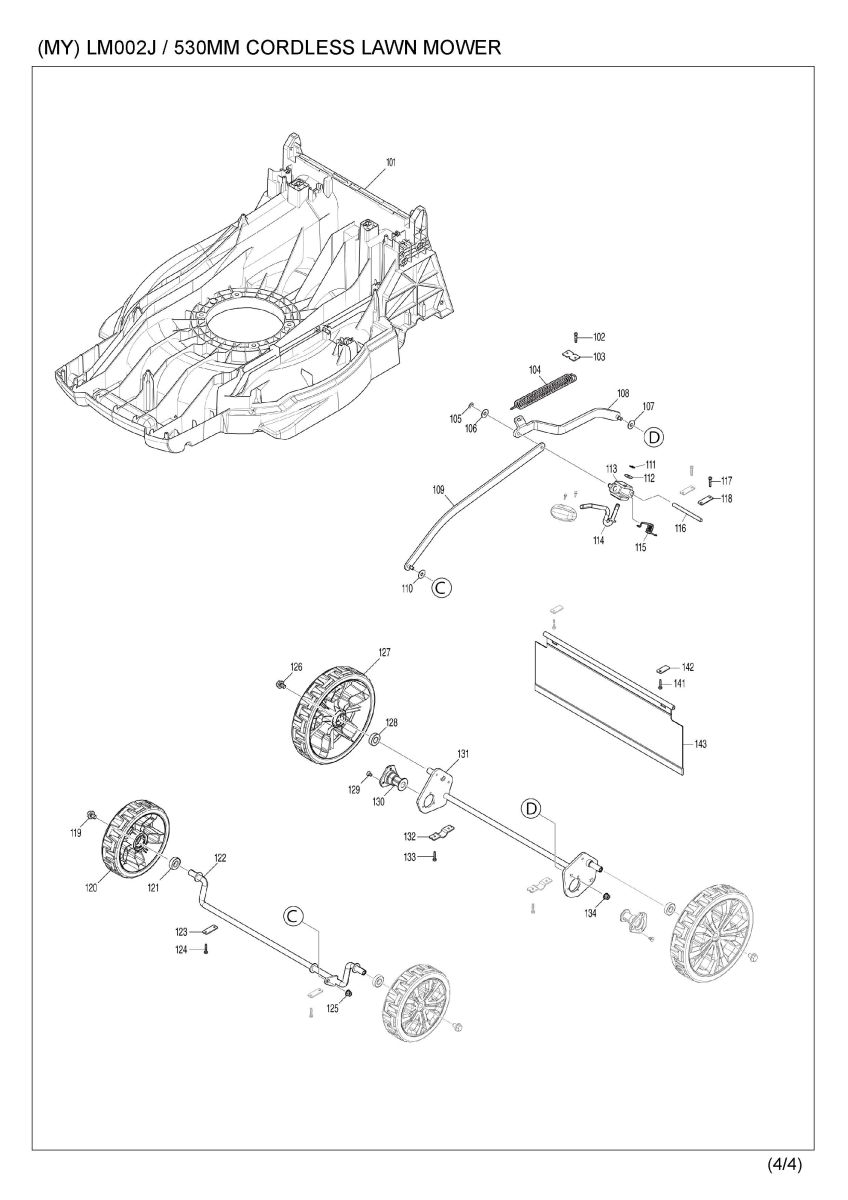

Part Diagram
Total: 177 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 327424-8 | SWITCH LEVER | 1 | |
| 002 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 003 | 183U73-5 | SWITCH BOX SET | 1 | |
| 003 | C10 | 8044A1-9 | INDICATION LABEL | 1 |
| 003 | D10 | INC. 12 | ||
| 004 | 231227-3 | COMPRESSION SPRING 15 | 1 | |
| 005 | 459856-2 | SWITCH LEVER SUPPORT R | 1 | |
| 005 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 006 | 459857-0 | LOCK OFF BUTTON | 1 | |
| 007 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 008 | 632T11-3 | SWITCH UNIT | 1 | |
| 009 | 141E30-3 | SWITCH CIRCUIT COMPLETE | 1 | |
| 009 | C10 | 8031N1-9 | SWITCH LABEL | 1 |
| 010 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 011 | 687123-7 | STRAIN RELIEF | 1 | |
| 012 | 183U73-5 | SWITCH BOX SET | 1 | |
| 012 | C10 | 8044A1-9 | INDICATION LABEL | 1 |
| 012 | D10 | INC. 3 | ||
| 013 | 183U21-4 | LEVER BOX SET | 1 | |
| 013 | D10 | INC. 17 | ||
| 014 | 459863-5 | SWITCH LEVER SUPPORT L | 1 | |
| 014 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 015 | 232575-3 | TORSION SPRING 12 | 1 | |
| 016 | 911138-5 | P.H.SCREW M4X20 WITH WR | 1 | |
| 017 | 183U21-4 | LEVER BOX SET | 1 | |
| 017 | D10 | INC. 13 | ||
| 018 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 019 | 699175-6 | POWER SUPPLY CORD UNIT | 1 | |
| 020 | 327871-3 | HANDLE UPPER | 1 | |
| 021 | 265C08-1 | FLAT HEAD BOLT M8X50 | 2 | |
| 022 | 265C06-5 | THUMB NUT M8 | 2 | |
| 023 | 413944-9 | CLAMP | 1 | |
| 023 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 024 | 911163-6 | PAN HEAD SCREW M4X35 | 1 | |
| 025 | 122A72-2 | HANDLE LOWER ASSEMBLY | 1 | |
| 025 | D10 | INC. 26-30 | ||
| 026 | 258004-8 | SPRING PIN 2.5-16 | 2 | |
| 027 | 413943-1 | KNOB | 2 | |
| 028 | 234121-8 | COMPRESSION SPRING 8 | 2 | |
| 029 | 327877-1 | LOCK HOLDER | 2 | |
| 030 | 327876-3 | LOCK PIN | 2 | |
| 031 | 265C07-3 | HEX. BOLT M8 | 2 | |
| 032 | 141H54-7 | BATTERY COVER COMPLETE | 1 | |
| 032 | C10 | 8044A3-5 | CAUTION LABEL | 1 |
| 033 | 231037-8 | COMPRESSION SPRING 7 | 1 | |
| 034 | 459852-0 | LOCK LEVER | 1 | |
| 035 | 327875-5 | ROD 6 | 1 | |
| 036 | 961018-5 | STOP RING E-5 | 1 | |
| 037 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 038 | 122A74-8 | BATTERY HOUSING ASSEMBLY | 1 | |
| 038 | D10 | INC. 39-44 | ||
| 038-1 | 122D36-4 | BATTERY HOUSING ASSEMBLY | 1 | |
| 038-1 | D10 | INC. 39-44 | ||
| 039 | 413942-3 | LOCK LEVER | 1 | |
| 040 | 232716-1 | TORSION SPRING 9 | 1 | |
| 041 | 413940-7 | SPRING HOLDER | 1 | |
| 042 | 232718-7 | COMPRESSION SPRING 11 | 1 | |
| 043 | 413941-5 | SPRING SUPPORT | 1 | |
| 044 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 045 | 265B00-1 | TAPPING SCREW FLANGE 4X12 | 2 | |
| 046 | 632S59-9 | TERMINAL UNIT | 1 | |
| 046-1 | 632U17-7 | TERMINAL UNIT | 1 | |
| 047 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 048 | 413932-6 | LEAD COVER | 1 | |
| 049 | 266424-2 | TAPPING SCREW 4X20 | 6 | |
| 050 | 122B29-9 | COWLING UPPER ASSEMBLY | 1 | |
| 050 | C10 | 422756-9 | SPONGE SEAL | 1 |
| 051 | 643535-4 | KEY | 1 | |
| 052 | 8046H9-4 | INDICATION LABEL | 1 | |
| 053 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 054 | 620G26-4 | CONTROLLER | 1 | |
| 055 | 422757-7 | SPONGE | 1 | |
| 056 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 057 | 687123-7 | STRAIN RELIEF | 1 | |
| 058 | 687051-6 | STRAIN RELIEF | 1 | |
| 059 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 060 | 413930-0 | COWLING LOWER | 1 | |
| 061 | 319869-4 | MOTOR HOUSING UPPER | 1 | |
| 062 | 253455-0 | WAVE WASHER 19 | 1 | |
| 063 | 265B29-7 | TAPPING SCREW PT 2X8 | 2 | |
| 064 | 620B88-2 | CONTROLLER B | 1 | |
| 065 | 629A87-5 | STATOR | 1 | |
| 066 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 067 | 210141-6 | BALL BEARING 6000DDW | 1 | |
| 068 | 519711-1 | ROTOR ASS'Y | 1 | |
| 068 | D10 | INC. 67,69 | ||
| 069 | 211387-7 | BALL BEARING 6004LLU | 1 | |
| 070 | 313391-3 | MOTOR HOUSING LOWER | 1 | |
| 071 | 911681-4 | PAN HEAD SCREW M5X60 | 3 | |
| 072 | 911243-8 | PAN HEAD SCREW M5X25 | 4 | |
| 073 | 413928-7 | MOTOR BRACKET | 1 | |
| 073 | C10 | 931202-6 | HEX. NUT M5 | 4 |
| 074 | 459853-8 | BAFFLE PLATE | 1 | |
| 075 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 076 | 265C22-7 | H.S.H.BOLT M8X30 WITH WG | 4 | |
| 077 | 240229-8 | FAN 170 | 1 | |
| 078 | 313392-1 | BLADE SUPPORT 530 | 1 | |
| 079 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 080 | 191V96-5 | BLADE 530 SET | 1 | |
| 081 | 265A69-9 | HEX. BOLT M10X35 WITH WG | 1 | |
| 081-1 | 265D72-8 | HEX. BOLT M10X35 WG | 1 | |
| 082 | 8044A0-1 | CAUTION LABEL | 1 | |
| 083 | 141H24-6 | REAR FLAP COMPLETE | 1 | |
| 083 | D10 | INC. 82 | ||
| 084 | 327418-3 | ROD 6 | 1 | |
| 085 | 232721-8 | TORSION SPRING 8 | 1 | |
| 086 | 347867-8 | HANDLE BRACKET R | 1 | |
| 087 | 266420-0 | TAPPING SCREW 5X20 | 6 | |
| 087-1 | 266553-1 | TAPPING SCREW 5X30 | 6 | |
| 088 | 265C05-7 | TAPPING SCREW FRANGE 5X20 | 2 | |
| 089 | 961018-5 | STOP RING E-5 | 2 | |
| 089-1 | 259084-7 | STOP RING (EXT) E-5 | 2 | |
| 090 | 347866-0 | HANDLE BRACKET L | 1 | |
| 091 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 092 | 413938-4 | REAR GRIP | 1 | |
| 093 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 094 | 162993-0 | HEIGHT ADJUST PLATE | 1 | |
| 095 | 266816-5 | + PAN HEAD SCREW M3X12 WITH WR | 2 | |
| 096 | 413939-2 | HEIGHT ADJUST LEVER GRIP | 1 | |
| 097 | 266424-2 | TAPPING SCREW 4X20 | 9 | |
| 097-1 | 266424-2 | TAPPING SCREW 4X20 | 11 | |
| 098 | 413919-8 | DECK COVER | 1 | |
| 099 | 413920-3 | DECK REAR COVER | 1 | |
| 100 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 101 | 413918-0 | DECK | 1 | |
| 102 | 266424-2 | TAPPING SCREW 4X20 | 2 | |
| 103 | 347870-9 | HOOK PLATE | 1 | |
| 104 | 232717-9 | TENSION SPRING 17 | 1 | |
| 105 | 961012-7 | STOP RING E-6 | 1 | |
| 105-1 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 106 | 253731-2 | FLAT WASHER 8 | 1 | |
| 107 | 253731-2 | FLAT WASHER 8 | 1 | |
| 108 | 347873-3 | CONNECTING ROD R | 1 | |
| 109 | 347871-7 | CONNECTING ROD F | 1 | |
| 110 | 253731-2 | FLAT WASHER 8 | 1 | |
| 111 | 961012-7 | STOP RING E-6 | 1 | |
| 111-1 | 259085-5 | STOP RING (EXT)E-6 | 1 | |
| 112 | 267281-1 | FLAT WASHER 8 | 1 | |
| 113 | 313389-0 | ROD HOLDER | 1 | |
| 114 | 327872-1 | HEIGHT ADJUST LEVER | 1 | |
| 115 | 232715-3 | TORSION SPRING 9 | 1 | |
| 116 | 327873-9 | ROD 7 | 1 | |
| 117 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 118 | 347869-4 | PLATE | 2 | |
| 119 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 120 | 141E34-5 | TIRE 180 COMPLETE | 2 | |
| 121 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 122 | 162989-1 | FRONT SHAFT | 1 | |
| 123 | 347869-4 | PLATE | 2 | |
| 124 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 125 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 126 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 2 | |
| 127 | 141E35-3 | TIRE 230 COMPLETE | 2 | |
| 128 | 210163-6 | BALL BEARING 6001DDW | 2 | |
| 129 | 912207-5 | COUNTERSUNK HEAD SCREW M5X10 | 6 | |
| 129-1 | 251951-2 | HEX. SOCKET C.S.H. SCREW M5X10 | 6 | |
| 130 | 313390-5 | REAR SHAFT HOLDER | 2 | |
| 131 | 162990-6 | REAR SHAFT | 1 | |
| 132 | 347865-2 | CLAMP 19 | 2 | |
| 133 | 266424-2 | TAPPING SCREW 4X20 | 4 | |
| 133-1 | 266553-1 | TAPPING SCREW 5X30 | 4 | |
| 134 | 252301-4 | HEX. FLANGE LOCK NUT M6-10 | 1 | |
| 135 | 162A27-5 | GRASS CATCHER BRACKET | 1 | |
| 135-1 | 162C45-5 | GRASS CATCHER BRACKET | 1 | |
| 136 | 162B25-5 | GRASS CATCHER | 1 | |
| 136-1 | 162C13-8 | GRASS CATCHER | 1 | |
| 137 | 8113M9-4 | LM002J SERIAL NO. LABEL | 1 | |
| 138 | 8113M3-6 | LM002J NAME PLATE | 1 | |
| A01 | 327589-6 | ROD 6 | 1 | |
| A02 | 413945-7 | MULCHING PLUG 530 | 1 | |
| A03 | 782210-8 | SOCKET WRENCH 17 | 1 | |
| A04A | 191R06-8 | BATTERY BL6440 SET | 1 | |
| A05A | 413A28-9 | BATTERY COVER | 1 | |
| A06A | ***DC64WA | DC64WA BATTRY CHARGER | 1 | |
| A06A | D10 | COMPO-PARTS | ||
| F01 | 191V96-5 | BLADE 530 SET | 1 | |
| F04 | 191Y65-4 | BLADE 530 SET | 1 |
