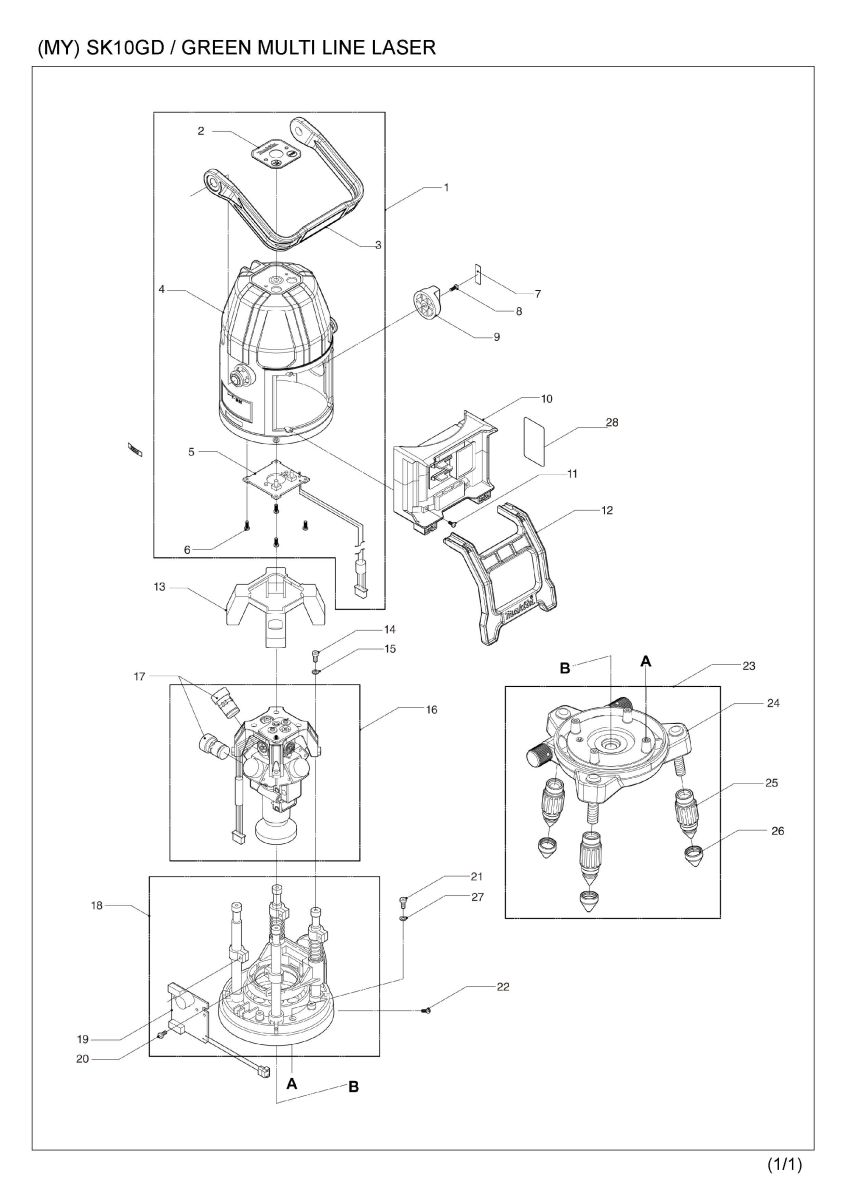

Part Diagram
Total: 38 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | TK235UNSA1 | HOUSING ASSEMBLY | 1 | |
| 001 | D10 | INC. 2-6 | ||
| 002 | TK233UN101 | SWITCH LABEL | 1 | |
| 003 | TK01950104 | HANDLE | 1 | |
| 004 | TK235UN008 | HOUSING | 1 | |
| 005 | TK02330201 | CONTROL UNIT(WITH CABLE) | 1 | |
| 006 | TK02330508 | TAPPING SCREW ST2.2X6.5 | 4 | |
| 007 | TK01700104 | SWITCH KNOB LABEL | 1 | |
| 008 | TK02330501 | PAN HEAD SCREW M2X6 | 1 | |
| 009 | TK02330111 | SWITCH KNOB | 1 | |
| 010 | TK0233009B | TERMINAL ASSY | 1 | |
| 011 | TKTP2080FB | TAPPING SCREW 2X8 | 4 | |
| 012 | TK02330117 | STAND 233 | 1 | |
| 013 | TK02330302 | ANTI SHOCK COVER | 1 | |
| 014 | TK02330505 | PAN HEAD SCREW M3X10 | 4 | |
| 015 | TK02330519 | SPRING WASHER 3 | 4 | |
| 016 | TK0235SA02 | GIMBAL ASSEMBLY | 1 | |
| 016 | D10 | INC. 17 | ||
| 017 | TK02330205 | GREEN LASER UNIT | 2 | |
| 018 | TK0234SA03 | BASE ASSEMBLY | 1 | |
| 018 | D10 | INC. 19,20 | ||
| 019 | TK02340202 | POWER PCB(WITH CABLE) | 1 | |
| 020 | TK02330510 | TAPPING SCREW ST2.2X12 | 2 | |
| 021 | TK02330504 | PAN HEAD SCREW M3X8 | 4 | |
| 022 | TK0P2570FB | PAN HEAD SCREW M2.5X7 | 4 | |
| 023 | TK0233SA04 | TRIPOD ASSEMBLY | 1 | |
| 023 | D10 | INC. 24-26 | ||
| 024 | TK0233005S | TRIPOD BASE | 1 | |
| 025 | TK0233323S | SPIKE | 3 | |
| 026 | TK02330325 | SPIKE CAP | 3 | |
| 027 | TK02330519 | SPRING WASHER 3 | 4 | |
| 028 | TK235UN113 | NAME PLATE 235 UN | 1 | |
| A01 | TK233UNIM1 | CD-ROM | 1 | |
| A02 | TK233UNQSG | OPERATION GUIDE | 1 | |
| A03 | TK233UNSB1 | SAFETY MANUAL | 1 | |
| A04 | TK02100200 | GLASSES LASER VISIBILITY | 1 | |
| A05 | TKK233F000 | STORAGE CASE | 1 | |
| C01 | TK235UNCB1 | CARTON(UN) | 1 |
