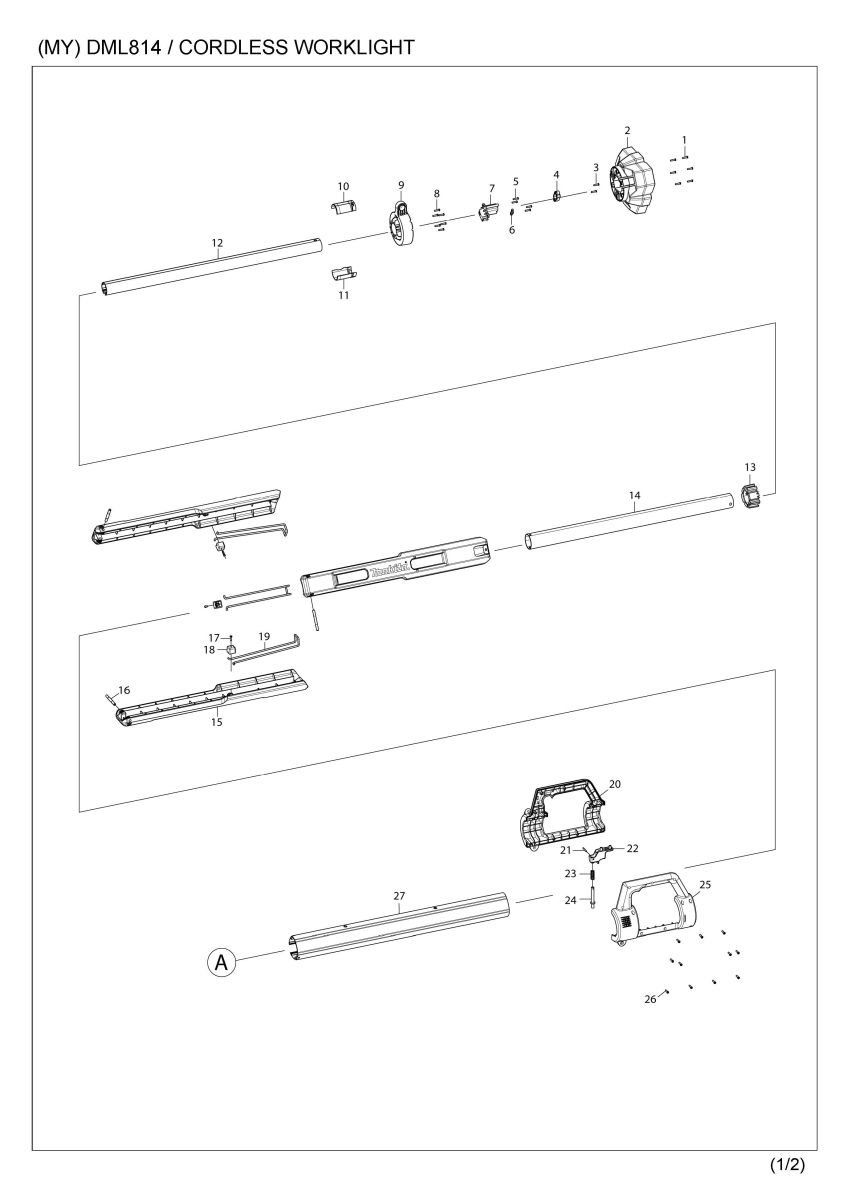

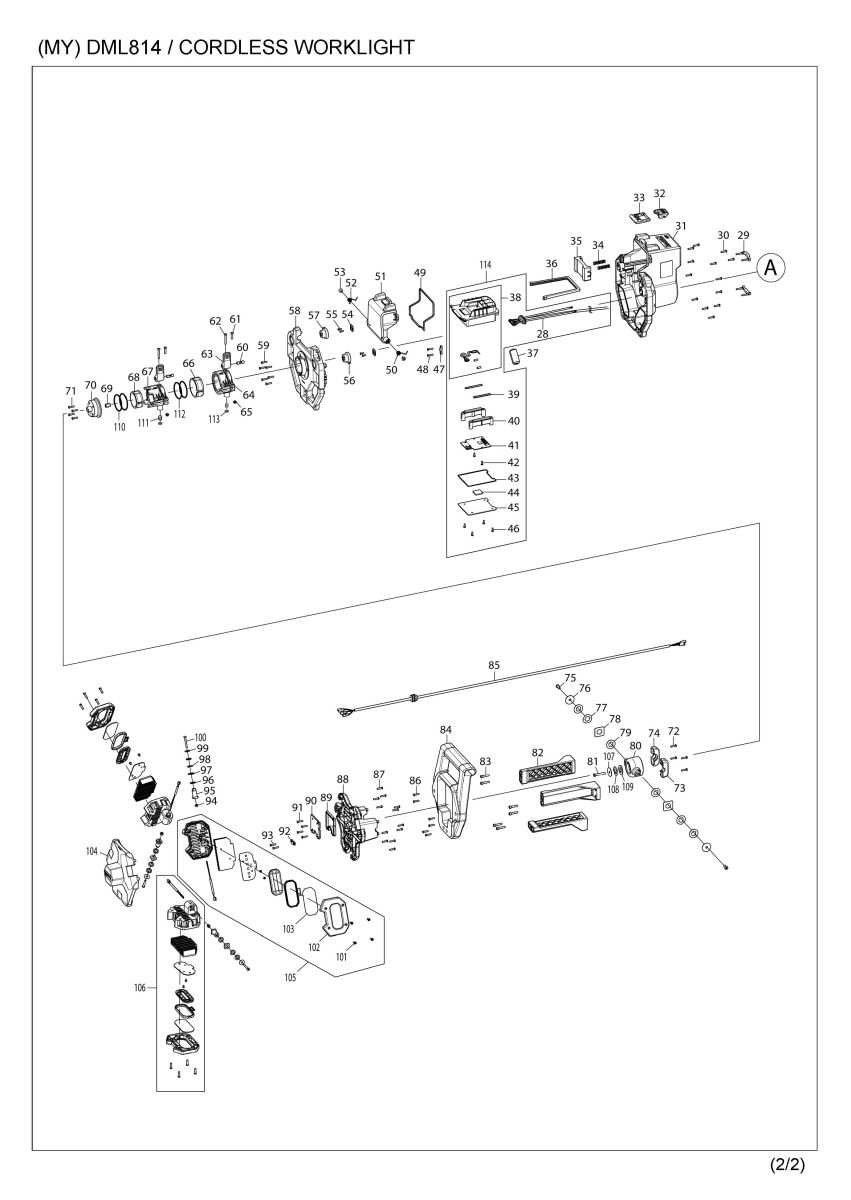

Part Diagram
Total: 121 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | TD00000015 | TAPPING SCREW PB3.5X14 | 6 | |
| 2 | TD00000016 | REAR BASE | 1 | |
| 3 | TD00000015 | TAPPING SCREW PB3.5X14 | 2 | |
| 4 | TD00000017 | CABLE COVER | 1 | |
| 5 | TD00000015 | TAPPING SCREW PB3.5X14 | 4 | |
| 6 | TD00000018 | CORD CLAMP | 1 | |
| 7 | TD00000019 | REAR FOOT L | 1 | |
| 8 | TD00000015 | TAPPING SCREW PB3.5X14 | 6 | |
| 9 | TD00000020 | FRONT BASE | 1 | |
| 10 | TD00000021 | SLEEVE R | 1 | |
| 11 | TD00000022 | SLEEVE L | 1 | |
| 12 | TD00000023 | POLE B | 1 | |
| 13 | TD00000024 | POLE SLEEVE | 1 | |
| 14 | TD00000025 | POLE A | 1 | |
| 15 | TD00000026 | LEG | 3 | |
| 16 | TD00000027 | PIN | 3 | |
| 17 | TD00000015 | TAPPING SCREW PB3.5X14 | 3 | |
| 18 | TD00000028 | CHECK BLOCK | 3 | |
| 19 | TD00000029 | LINK | 3 | |
| 20 | TD00000109 | HANDLE SET | 1 | |
| 20 | D10 | INC. 25 | ||
| 21 | TD00000031 | PIN | 1 | |
| 22 | TD00000032 | RELEASE BUTTON | 1 | |
| 23 | TD00000033 | SPRING | 1 | |
| 24 | TD00000034 | LATCH | 1 | |
| 25 | TD00000109 | HANDLE SET | 1 | |
| 25 | D10 | INC. 20 | ||
| 26 | TD00000015 | TAPPING SCREW PB3.5X14 | 11 | |
| 27 | TD00000036 | BODY | 1 | |
| 28 | TD00000037 | CABLE | 1 | |
| 29 | TD00000038 | RUBBER PAD | 2 | |
| 30 | TD00000015 | TAPPING SCREW PB3.5X14 | 13 | |
| 31 | TD00000039 | BATTERY HOUSING | 1 | |
| 32 | TD00000040 | LATCH | 1 | |
| 33 | TD00000041 | CLIP | 1 | |
| 34 | TD00000042 | SPRING | 2 | |
| 35 | TD00000043 | PUSH PLATE | 1 | |
| 36 | TD00000044 | GASKET | 1 | |
| 37 | TD00000045 | MAGNET RING | 1 | |
| 38 | TD00000046 | PCBA BOX COMPLETE | 1 | |
| 39 | TD00000047 | GASKET | 2 | |
| 40 | TD00000048 | DUST COVER | 2 | |
| 41 | TD00000049 | MAIN BOARD | 1 | |
| 42 | TD00000050 | TAPPING SCREW PB3X8 | 2 | |
| 43 | TD00000051 | GASKET | 1 | |
| 44 | TD00000052 | SILICON SHEET | 1 | |
| 45 | TD00000053 | HEATSINK | 1 | |
| 46 | TD00000050 | TAPPING SCREW PB3X8 | 4 | |
| 47 | TD00000018 | CORD CLAMP | 1 | |
| 48 | TD00000015 | TAPPING SCREW PB3.5X14 | 2 | |
| 49 | TD00000054 | GASKET | 1 | |
| 50 | TD00000055 | TORSION SPRING | 1 | |
| 51 | TD00000056 | BATTERY COVER | 1 | |
| 52 | TD00000057 | TORSION SPRING | 1 | |
| 53 | TD00000058 | TAPPING SCREW PWB3X8 | 2 | |
| 54 | TD00000059 | KEY PCBA | 2 | |
| 55 | TD00000050 | TAPPING SCREW PB3X8 | 4 | |
| 56 | TD00000060 | POWER KEY | 1 | |
| 57 | TD00000061 | MODE KEY | 1 | |
| 58 | TD00000062 | HOUSING COVER | 1 | |
| 59 | TD00000015 | TAPPING SCREW PB3.5X14 | 6 | |
| 60 | TD00000138 | PIN | 2 | |
| 61 | TD00000064 | SCREW PM4.0X16 | 2 | |
| 62 | TD00000136 | SCREW PM4.0X38 | 2 | |
| 63 | TD00000066 | CLAMP | 2 | |
| 64 | TD00000134 | POLE CLAMP A | 1 | |
| 65 | TD00000068 | NUT M4 | 2 | |
| 66 | TD00000132 | BUSH A | 1 | |
| 67 | TD00000135 | POLE CLAMP B | 1 | |
| 68 | TD00000133 | BUSH B | 1 | |
| 69 | TD00000072 | NUT M5 | 1 | |
| 70 | TD00000073 | POLE COVER | 1 | |
| 71 | TD00000015 | TAPPING SCREW PB3.5X14 | 4 | |
| 72 | TD00000015 | TAPPING SCREW PB3.5X14 | 4 | |
| 73 | TD00000074 | SHAFT COVER R | 1 | |
| 74 | TD00000075 | SHAFT COVER L | 1 | |
| 75 | TD00000076 | SCREW PW5.0X12 | 2 | |
| 76 | TD00000077 | FLAT WASHER | 2 | |
| 77 | TD00000078 | SPRING WASHER | 2 | |
| 78 | TD00000079 | SQUARE WASHER | 2 | |
| 79 | TD00000080 | FLAT WASHER | 4 | |
| 80 | TD00000081 | BASE | 1 | |
| 81 | TD00000082 | SCREW PM5.0X30 | 1 | |
| 82 | TD00000083 | HANDLE SUPPORTER | 3 | |
| 83 | TD00000084 | TAPPING SCREW CB4.0X20 | 6 | |
| 84 | TD00000085 | HANDLE | 1 | |
| 85 | TD00000095 | LED CABLE B | 1 | |
| 86 | TD00000015 | TAPPING SCREW PB3.5X14 | 6 | |
| 87 | TD00000015 | TAPPING SCREW PB3.5X14 | 12 | |
| 88 | TD00000096 | LAMP HOUSING | 1 | |
| 89 | TD00000097 | GASKET | 1 | |
| 90 | TD00000098 | COVER | 1 | |
| 91 | TD00000015 | TAPPING SCREW PB3.5X14 | 4 | |
| 92 | TD00000018 | CORD CLAMP | 1 | |
| 93 | TD00000015 | TAPPING SCREW PB3.5X14 | 2 | |
| 94 | TD00000068 | NUT M4 | 3 | |
| 95 | TD00000099 | SHAFT | 3 | |
| 96 | TD00000100 | FLAT WASHER | 6 | |
| 97 | TD00000101 | SQUARE WASHER | 3 | |
| 98 | TD00000102 | SPRING WASHER | 3 | |
| 99 | TD00000103 | FLAT WASHER | 3 | |
| 100 | TD00000065 | SCREW PM4X28 | 3 | |
| 101 | TD00000015 | TAPPING SCREW PB3.5X14 | 4 | |
| 102 | TD00000104 | LED COVER | 1 | |
| 103 | TD00000105 | LENS | 1 | |
| 104 | TD00000106 | FRONT HOUSING | 1 | |
| 105 | TD00000107 | LED ASSEMBLY | 2 | |
| 105 | D10 | INC. 101-103 | ||
| 106 | TD00000108 | LED ASSEMBLY B | 1 | |
| 106 | D10 | INC. 101-103 | ||
| 107 | TD00000077 | FLAT WASHER | 1 | |
| 108 | TD00000078 | SPRING WASHER | 1 | |
| 109 | TD00000080 | FLAT WASHER | 1 | |
| 110 | TD00000141 | RING | 2 | |
| 111 | TD00000139 | SPRING | 2 | |
| 112 | TD00000140 | RING | 2 | |
| 113 | TD00000137 | LOCK NUT | 2 | |
| 114 | TD00000094 | MAIN BOARD ASSEMBLY | 1 | |
| 114 | D10 | INC. 28,38-46 | ||
| A01 | TD00000001 | TOOL BAG | 1 | |
| A02 | TD00000002 | SHOULDER BELT | 1 |
