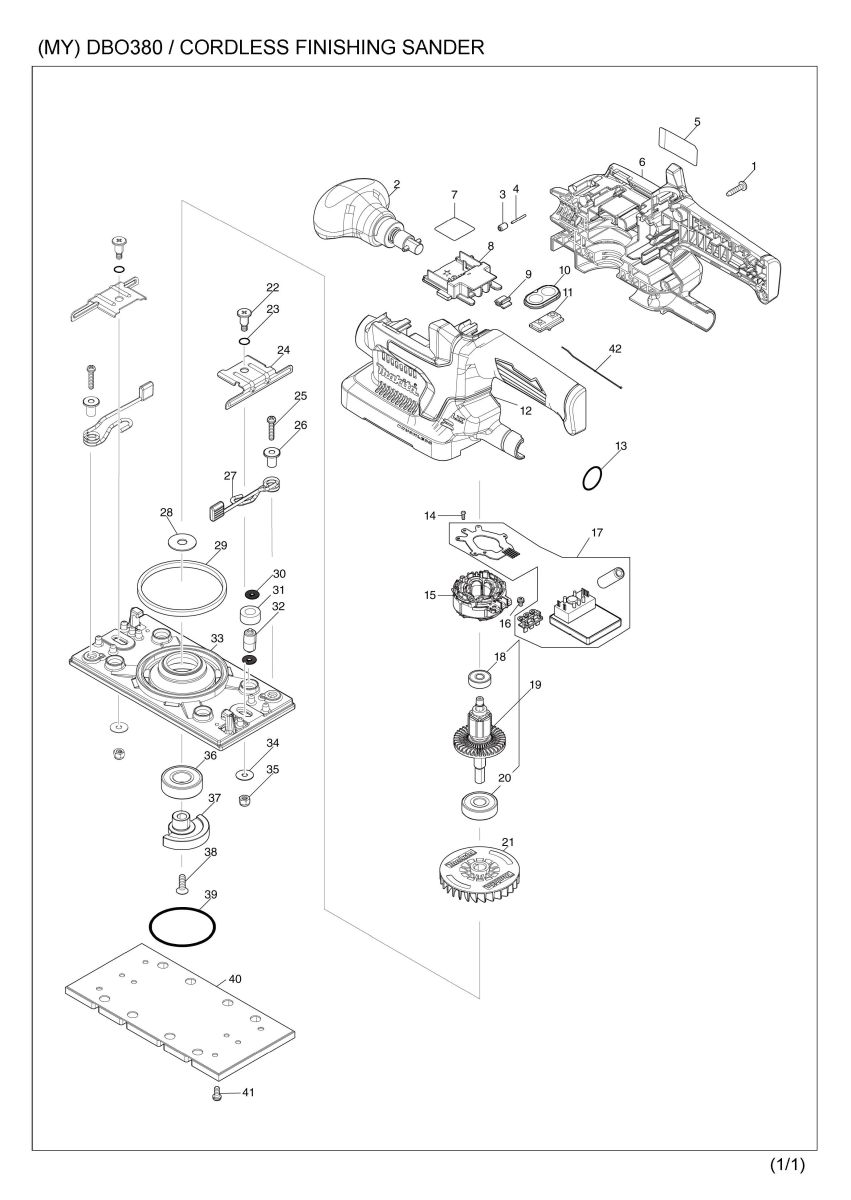

Part Diagram
Total: 73 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 2 | 122A91-8 | FRONT GRIP ASSEMBLY | 1 | |
| 3 | 263036-2 | RUBBER PIN 5 | 1 | |
| 4 | 268284-8 | PIN 1.5 | 1 | |
| 5 | 8111J0-9 | DBO380 NAME PLATE | 1 | |
| 6 | 183T94-1 | HOUSING SET | 1 | |
| 6 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 6 | D10 | INC. 12 | ||
| 7 | 8111J6-7 | DBO380 SERIAL NO. LABEL | 1 | |
| 8 | 643874-2 | TERMINAL | 1 | |
| 9 | 424517-3 | CUSHION | 1 | |
| 10 | 141E90-5 | SWITCH PLATE COMPLETE | 1 | |
| 11 | 632K92-3 | SWITCH UNIT | 1 | |
| 12 | 183T94-1 | HOUSING SET | 1 | |
| 12 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 12 | D10 | INC. 6 | ||
| 13 | 213315-8 | O RING 19 | 1 | |
| 14 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 15 | 629491-2 | STATOR | 1 | |
| 16 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 17 | 620G25-6 | CONTROLLER | 1 | |
| 18 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 19 | 519705-6 | ROTOR ASSY | 1 | |
| 19 | D10 | INC. 18,20 | ||
| 20 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 21 | 240230-3 | FAN 68 | 1 | |
| 22 | 266511-7 | + FLAT FILLISTER HEAD SCREW M5 | 2 | |
| 23 | 213045-1 | O-RING 6 | 2 | |
| 24 | 346102-1 | PAPER CLAMP | 2 | |
| 25 | 911136-9 | PAN HEAD SCREW M4X20 | 2 | |
| 26 | 310300-3 | SPRING GUIDE | 2 | |
| 27 | 162279-2 | LEVER COMPLETE | 2 | |
| 28 | 267353-2 | FLAT WASHER 8 | 1 | |
| 29 | 423469-5 | SPONGE 7X105X3 | 1 | |
| 30 | 213983-7 | O RING 4 | 8 | |
| 31 | 424056-3 | SPONGE SLEEVE 9 | 4 | |
| 32 | 318151-8 | FOOT | 4 | |
| 33 | 318484-1 | BASE | 1 | |
| 34 | 253807-5 | FLAT WASHER 5 | 2 | |
| 034-1 | 253572-6 | FLAT WASHER 5 | 2 | |
| 35 | 252103-8 | HEX. LOCK NUT M5-8 | 2 | |
| 36 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 37 | 313395-5 | BALANCER | 1 | |
| 38 | 912222-9 | COUNTERSUNK HEAD SCREW M5X16 | 1 | |
| 39 | 213656-2 | O RING 53 | 1 | |
| 40 | 140441-9 | PAD COMPLETE | 1 | |
| 41 | 911111-5 | PAN HEAD SCREW M4X10 WITH W | 4 | |
| 42 | 327983-2 | EARTH WIRE | 1 | |
| A01 | 135327-0 | DUST BOX ASSEMBLY | 1 | |
| A01 | C10 | 168557-8 | FILTER | 1 |
| A01 | C20 | 232246-2 | LEAF SPRING | 2 |
| A01 | C30 | 424144-6 | RUBBER SLEEVE | 1 |
| A01 | C40 | 450769-0 | DUST NOZZLE | 1 |
| A01 | C50 | 450770-5 | DUST BOX | 1 |
| A02 | 451271-6 | PUNCH PLATE | 1 | |
| A03 | A-31267 | ABRASIVE PAPER 93X228 #120 | 1 | |
| A04 | 422807-8 | BATTERY PROTECTOR | 1 | |
| A05B | 450128-8 | BATTERY COVER | 1 | |
| A06B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A08B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A08B | C10 | 453974-8 | LATCH | 4 |
| A09B | 8351P0-7 | INNER TRAY | 1 | |
| A10B | 8043D8-0 | DBO380RTJ PLASTIC CASE LABEL | 2 | |
| A11B | 8043D7-2 | DBO380RTJ INDICATION LABEL | 1 | |
| F02 | 194929-1 | PAD COMPLETE SET | 1 | |
| F03 | 194930-6 | PAD COMPLETE SET | 1 | |
| F05 | 194947-9 | PUNCH PLATE SET | 1 | |
| F06 | 194948-7 | PUNCH PLATE SET | 1 | |
| F17 | 195134-3 | FILTER SET | 1 | |
| F18 | 195133-5 | FILTER SET | 1 | |
| F19 | 197464-8 | PAD COMPLETE SET(EU) | 1 |
