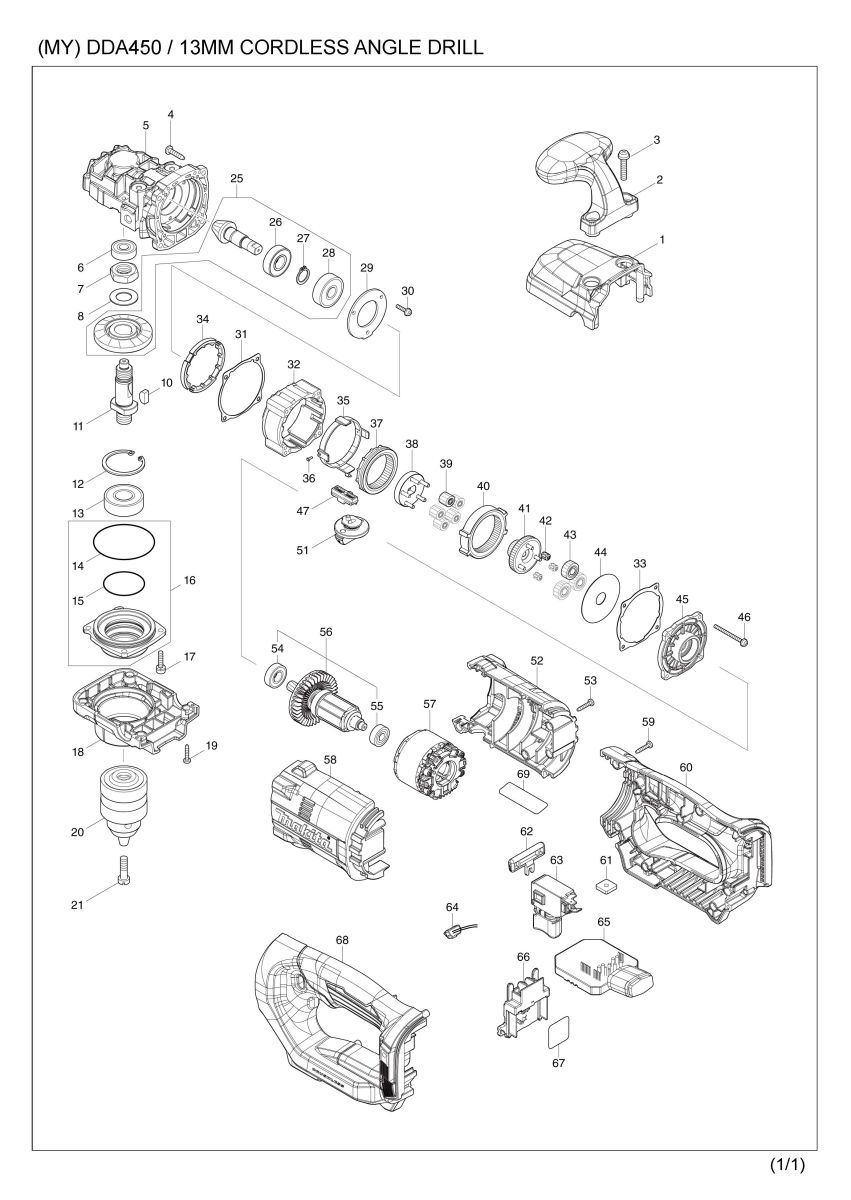

Part Diagram
Total: 90 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183S72-5 | COVER SET | 1 | |
| 1 | D10 | INC. 18 | ||
| 2 | 413433-4 | FRONT HANDLE | 1 | |
| 3 | 911243-8 | PAN HEAD SCREW M5X25 | 2 | |
| 4 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 5 | 312B07-9 | GEAR HOUSING | 1 | |
| 6 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 7 | 252299-5 | HEX. NUT M14 | 1 | |
| 8 | 253536-0 | FLAT WASHER 14 | 1 | |
| 10 | 254032-1 | WOODRUFF KEY 5 | 1 | |
| 11 | 327774-1 | SPINDLE | 1 | |
| 12 | 962153-2 | RETAINING RING R-35 | 1 | |
| 13 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 14 | 213656-2 | O RING 53 | 1 | |
| 15 | 213A04-1 | O RING 35 | 1 | |
| 015-1 | 213343-3 | O RING 35 | 1 | |
| 16 | 136450-4 | BEARING BOX ASSY | 1 | |
| 16 | D10 | INC. 14,15 | ||
| 016-1 | 136566-5 | BEARING BOX ASS'Y | 1 | |
| 016-1 | D10 | INC. 14,15 | ||
| 17 | 911126-2 | PAN HEAD SCREW M4X16 | 4 | |
| 18 | 183S72-5 | COVER SET | 1 | |
| 18 | D10 | INC. 1 | ||
| 19 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 20 | 763183-4 | DRILL CHUCK S13 | 1 | |
| 21 | 251425-3 | - FLAT HEAD SCREW M6X22 | 1 | |
| 25 | 136451-2 | SPIRAL BEVEL GEAR ASSY | 1 | |
| 25 | D10 | INC. 26-28 | ||
| 26 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 27 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 28 | 211067-5 | BALL BEARING 6200ZZ | 1 | |
| 29 | 285044-3 | BEARING RETAINER 48 | 1 | |
| 30 | 911018-5 | PAN HEAD SCREW M3X12 | 3 | |
| 31 | 422683-0 | GASKET A | 1 | |
| 32 | 413437-6 | GEAR CASE | 1 | |
| 33 | 422684-8 | GASKET B | 1 | |
| 34 | 313367-0 | SPEED CHANGE CAM | 1 | |
| 35 | 413439-2 | SPEED CHANGE RING | 1 | |
| 36 | 256952-5 | PIN 1.4 | 2 | |
| 37 | 227881-9 | INTERNAL SPUR GEAR 48 | 1 | |
| 38 | 141A18-9 | CARRIER COMPLETE | 1 | |
| 39 | 227880-1 | SPUR GEAR 13 | 5 | |
| 40 | 227878-8 | INTERNAL SPUR GEAR 62 | 1 | |
| 41 | 141A17-1 | SPUR GEAR 22-48 COMPLETE | 1 | |
| 42 | 212131-5 | NEEDLE CAGE 307 | 3 | |
| 43 | 227877-0 | SPUR GEAR 25 | 3 | |
| 44 | 253493-2 | FLAT WASHER 12 | 1 | |
| 45 | 413438-4 | MOTOR BRACKET | 1 | |
| 46 | 911063-0 | PAN HEAD SCREW M3X35 | 4 | |
| 47 | 127066-6 | CHANGE LEVER ASSEMBLY | 1 | |
| 47 | C10 | 232518-5 | COMPRESSION SPRING 4 | 2 |
| 51 | 127282-0 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| 51 | C10 | 213118-0 | O RING 12 | 1 |
| 52 | 183S73-3 | MOTOR HOUSING SET | 1 | |
| 52 | D10 | INC. 58 | ||
| 53 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 6 | |
| 54 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 55 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 56 | 519688-0 | ROTOR ASSY | 1 | |
| 56 | D10 | INC. 54,55 | ||
| 57 | 629A60-5 | STATOR | 1 | |
| 057-1 | 629B61-9 | STATOR | 1 | |
| 58 | 183S73-3 | MOTOR HOUSING SET | 1 | |
| 58 | D10 | INC. 52 | ||
| 59 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 9 | |
| 60 | 183S70-9 | HANDLE SET | 1 | |
| 60 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 60 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 60 | D10 | INC. 68 | ||
| 61 | 264002-2 | SQUARE NUT M5 | 2 | |
| 62 | 419250-0 | F/R CHANGE LEVER | 1 | |
| 63 | 650710-5 | SWITCH C3JW-4B | 1 | |
| 64 | 620839-1 | LED CIRCUIT | 1 | |
| 65 | 620F07-2 | CONTROLLER | 1 | |
| 065-1 | 620L80-8 | CONTROLLER | 1 | |
| 66 | 643874-2 | TERMINAL | 1 | |
| 67 | 811E86-7 | DDA450 SERIAL NO. LABEL | 1 | |
| 68 | 183S70-9 | HANDLE SET | 1 | |
| 68 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 68 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 68 | D10 | INC. 60 | ||
| 69 | 811E79-4 | DDA450 NAME PLATE | 1 | |
| 70 | 620K37-3 | CONTROLLER B | 1 | |
| 71 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | 251314-2 | + SCREW M4X12 | 1 | |
| A03 | 413434-2 | KEY HOLDER | 1 | |
| A04 | 763259-7 | CHUCK KEY S13 | 1 | |
| A10 | 127778-1 | HOOK ASSEMBLY | 1 | |
| A11 | 911211-1 | PAN HEAD SCREW M5X12 | 2 |
