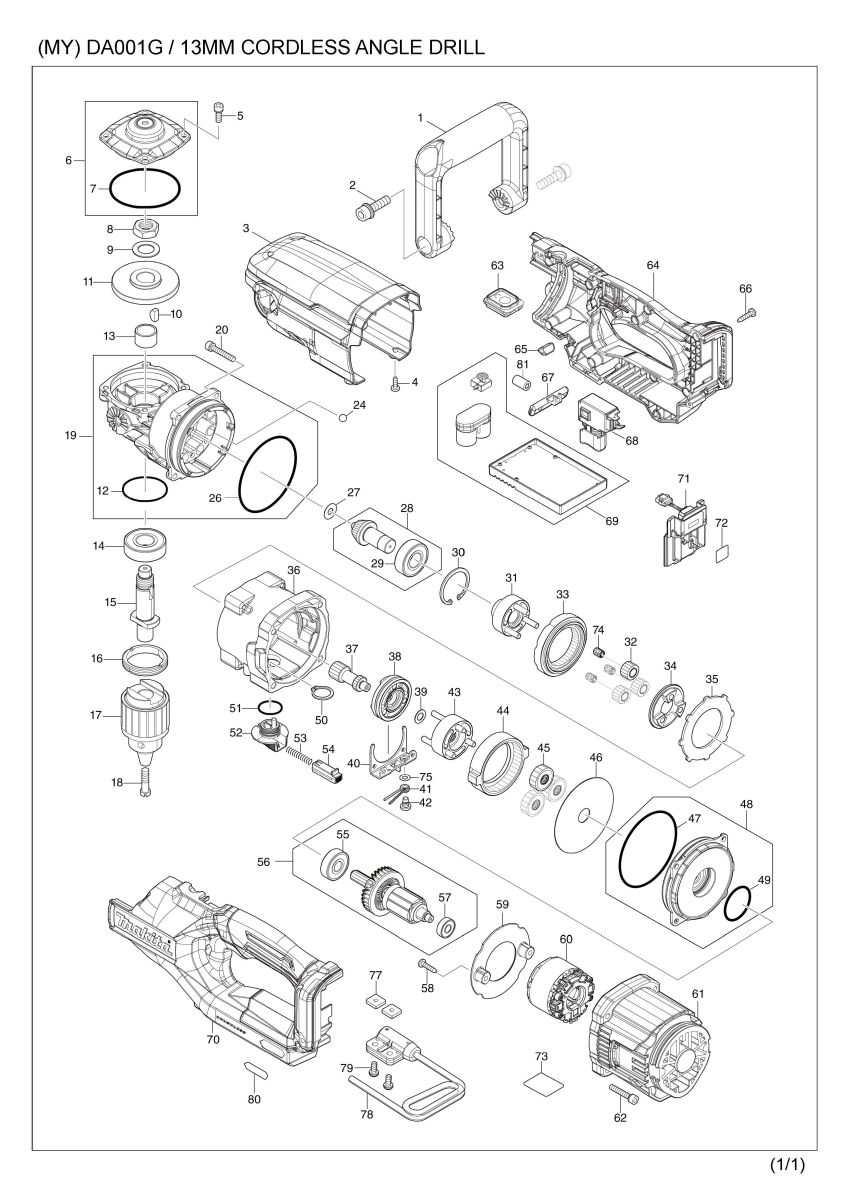

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 458431-1 | FRONT GRIP | 1 | |
| 2 | 922453-2 | HEX.SOCKET HEAD BOLT M8X30 | 2 | |
| 3 | 458430-3 | TOP COVER | 1 | |
| 4 | 266026-4 | TAPPING SCREW BIND CT 4X12 | 2 | |
| 5 | 266086-6 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 6 | 140A21-7 | GEAR HOUSING COVER COMPLETE | 1 | |
| 6 | D10 | INC. 7 | ||
| 7 | 213709-7 | O RING 63 | 1 | |
| 8 | 252267-8 | HEX. NUT M16-22 | 1 | |
| 9 | 253771-0 | FLAT WASHER 16 | 1 | |
| 10 | 254032-1 | WOODRUFF KEY 5 | 1 | |
| 11 | 227416-6 | SPIRAL BEVEL GEAR 40 | 1 | |
| 011-1 | 227920-5 | SPIRAL BEVEL GEAR 40 | 1 | |
| 12 | 213507-9 | O RING 40 | 1 | |
| 13 | 257440-5 | SLEEVE 17 | 1 | |
| 14 | 211278-2 | BALL BEARING 6203DDW | 1 | |
| 15 | 327106-2 | SPINDLE | 1 | |
| 16 | 285842-5 | BEARING RETAINER 36-43 | 1 | |
| 17 | 763250-5 | DRILL CHUCK S-13 | 1 | |
| 18 | 251463-5 | - FLAT HEAD SCREW M6X22 | 1 | |
| 19 | 141D39-9 | GEAR HOUSING COMPLETE | 1 | |
| 19 | D10 | INC. 12,26 | ||
| 20 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 020-1 | 265D08-7 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 020-2 | 265D24-9 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 24 | 216022-2 | STEEL BALL 7.0 | 8 | |
| 26 | 213755-0 | O RING 75 | 1 | |
| 27 | 253411-0 | FLAT WASHER 6 | 1 | |
| 28 | 140A23-3 | SPIRAL BEVEL GEAR 13 COMPLETE | 1 | |
| 28 | D10 | INC. 29 | ||
| 028-1 | 136563-1 | SPIRAL BEVEL GEAR 13 ASS'Y | 1 | |
| 028-1 | D10 | INC. 29 | ||
| 29 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 30 | 962153-2 | RETAINING RING R-35 | 1 | |
| 31 | 140A13-6 | CARRIER A COMPLETE | 1 | |
| 32 | 226176-7 | SPUR GEAR 13 | 3 | |
| 33 | 226177-5 | INTERNAL GEAR 40 | 1 | |
| 34 | 223188-1 | CAM | 1 | |
| 35 | 347365-2 | WASHER 65 | 1 | |
| 36 | 127809-6 | GEAR CASE COMPLETE | 1 | |
| 37 | 226175-9 | SPUR GEAR 14 | 1 | |
| 38 | 310876-0 | CHANGE RING | 1 | |
| 39 | 253215-0 | FLAT WASHER 8 | 1 | |
| 40 | 347366-0 | CHANGE GUIDE | 1 | |
| 41 | 231657-8 | TORSION SPRING 6 | 1 | |
| 42 | 265628-3 | + BINDING HEAD SCREW M5 | 1 | |
| 43 | 140A14-4 | CARRIER B COMPLETE | 1 | |
| 44 | 226174-1 | INTERNAL GEAR 71 | 1 | |
| 45 | 140A12-8 | SPUR GEAR 29 COMPLETE | 3 | |
| 46 | 253412-8 | FLAT WASHER 15 | 1 | |
| 47 | 213755-0 | O RING 75 | 1 | |
| 48 | 140A20-9 | MOTOR BRACKET COMPLETE | 1 | |
| 48 | D10 | INC. 47,49 | ||
| 49 | 213406-5 | O RING 30 | 1 | |
| 50 | 961058-3 | RETAINING RING (EXT) S-18 | 1 | |
| 51 | 213265-7 | O RING 17 | 1 | |
| 52 | 458433-7 | CHANGE LEVER | 1 | |
| 53 | 233279-0 | COMPRESSION SPRING 4 | 1 | |
| 54 | 458434-5 | LOCK BUTTON | 1 | |
| 55 | 211087-9 | BALL BEARING 6200DDW | 1 | |
| 56 | 519689-8 | ROTOR ASSY | 1 | |
| 56 | D10 | INC. 55,57 | ||
| 056-1 | 519689-8 | ROTOR ASSY | 1 | |
| 056-1 | D10 | INC. 55,57 | ||
| 57 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 58 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 59 | 458427-2 | BAFFLE PLATE | 1 | |
| 60 | 629356-8 | STATOR | 1 | |
| 060-1 | 629B69-3 | STATOR | 1 | |
| 61 | 458426-4 | MOTOR HOUSING | 1 | |
| 62 | 265695-8 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 062-1 | 265D08-7 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 062-2 | 265D24-9 | H. S. H. BOLT M5X30 WITH WRM | 4 | |
| 63 | 140A19-4 | SWITCH CIRCUIT COMPLETE | 1 | |
| 63 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 64 | 183S93-7 | HANDLE SET | 1 | |
| 64 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 64 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 64 | D10 | INC. 70 | ||
| 65 | 620839-1 | LED CIRCUIT | 1 | |
| 66 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 67 | 458432-9 | F/R CHANGE LEVER | 1 | |
| 68 | 651443-5 | SWITCH C3JR-4B | 1 | |
| 69 | 620E87-2 | CONTROLLER | 1 | |
| 069-1 | 620P57-7 | CONTROLLER | 1 | |
| 70 | 183S93-7 | HANDLE SET | 1 | |
| 70 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 70 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 70 | D10 | INC. 64 | ||
| 71 | 632P65-6 | TERMINAL UNIT | 1 | |
| 72 | 811G63-1 | DA001G SERIAL NO. LABEL | 1 | |
| 73 | 811G56-8 | DA001G NAME PLATE | 1 | |
| 74 | 212193-3 | NEEDLE CAGE 5810 | 3 | |
| 75 | 267010-2 | FLAT WASHER 5 | 1 | |
| 77 | 264002-2 | SQUARE NUT M5 | 2 | |
| 78 | 127811-9 | HOOK ASSEMBLY | 1 | |
| 79 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | |
| 80 | 8012U4-2 | XGT LOGO LABEL | 1 | |
| 82 | 620K74-7 | CONTROLLER B | 1 | |
| 83 | 638A31-1 | LEAD UNIT | 1 | |
| 84 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 122A18-8 | GRIP ASSEMBLY | 1 | |
| A02 | 783204-6 | HEX. WRENCH 6 | 1 | |
| A03 | 141C01-8 | KEY HOLDER COMPLETE | 1 | |
| A04 | 251314-2 | + SCREW M4X12 | 1 | |
| A05 | 763251-3 | CHUCK KEY S-13 | 1 | |
| A06B | 821847-7 | PLASTIC CARRYING CASE | 1 | |
| A06B | C10 | 162271-8 | LATCH | 2 |
| A06B | C20 | 451134-6 | HANDLE | 1 |
| A06B | C30 | 452875-7 | SHAFT | 2 |
| A07B | 8039X2-5 | DA001GM101 PLASTIC CASE LABEL | 2 | |
| A09B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A09B | D10 | COMPO-PARTS | ||
| A10B | 191B26-6 | BATTERY BL4040 SET | 1 | |
| A11 | 127811-9 | HOOK ASSEMBLY | 1 | |
| A12 | 911211-1 | PAN HEAD SCREW M5X12 | 2 | |
| F01 | 191R81-4 | GRIP SET | 1 |
