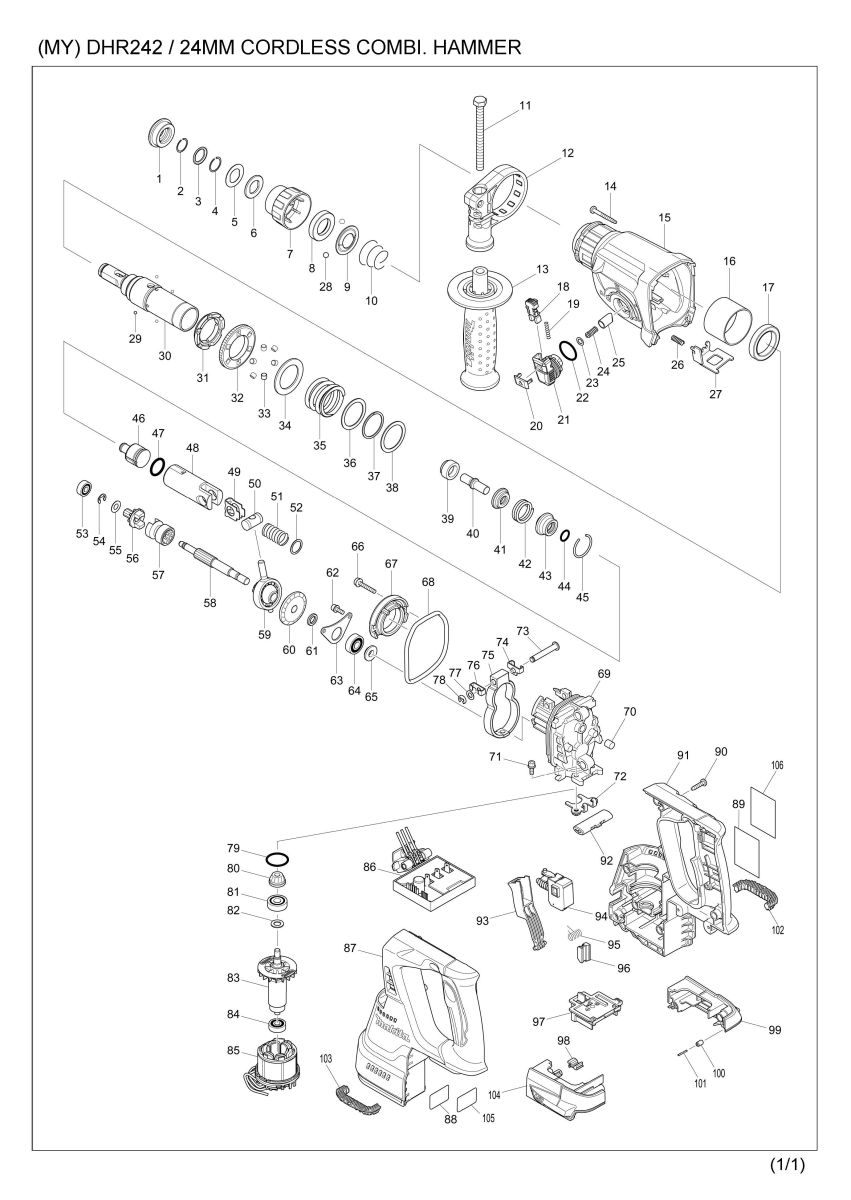

Part Diagram
Total: 156 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 286288-8 | CAP 35 | 1 | |
| 2 | 233989-9 | RING SPRING 14 | 1 | |
| 3 | 346221-3 | WASHER 16 | 1 | |
| 4 | 233992-0 | RING SPRING 15 | 1 | |
| 5 | 267437-6 | FLAT WASHER 17 | 1 | |
| 6 | 424364-2 | RUBBER WASHER 16 | 1 | |
| 7 | 451533-2 | CHUCK COVER | 1 | |
| 8 | 325813-1 | RING 21 | 1 | |
| 9 | 346177-0 | GUIDE WASHER | 1 | |
| 10 | 233916-6 | CONICAL COMP. SPRING 21-29 | 1 | |
| 11 | 266745-2 | HEX.BOLT M8X90 | 1 | |
| 12 | 453129-5 | GRIP BASE | 1 | |
| 13 | 158057-6 | GRIP 36 COMPLETE | 1 | |
| 14 | 266351-3 | TAPPING SCREW 4X35 | 4 | |
| 15 | 141229-0 | GEAR HOUSING COMPLETE | 1 | |
| 15 | C10 | 213345-9 | OIL SEAL 25 | 1 |
| 15 | C20 | 890903-4 | INDICATION LABEL | 1 |
| 16 | 331890-3 | CUP SLEEVE | 1 | |
| 17 | 211294-4 | BALL BEARING 6806LLU | 1 | |
| 18 | 454112-5 | LOCK BUTTON | 1 | |
| 19 | 234264-6 | COMPRESSION SPRING 3 | 1 | |
| 20 | 453131-8 | CHANGE LEVER COVER | 1 | |
| 21 | 453125-3 | CHANGE LEVER | 1 | |
| 22 | 213381-5 | O RING 21 | 1 | |
| 23 | 253308-3 | THIN WASHER 6 | 1 | |
| 24 | 234147-0 | COMPRESSION SPRING 5 | 1 | |
| 025-1 | 326850-8 | PUSH CORN | 1 | |
| 26 | 233360-7 | COMPRESSION SPRING 4 | 1 | |
| 27 | 346537-6 | LOCK PLATE | 1 | |
| 28 | 216022-2 | STEEL BALL 7.0 | 2 | |
| 29 | 216019-1 | STEEL BALL 3 | 4 | |
| 30 | 140265-3 | TOOL HOLDER COMPLETE | 1 | |
| 031-1 | 332139-4 | DRIVING FLANGE | 1 | |
| 032-1 | 227360-7 | SPUR GEAR 51 | 1 | |
| 35 | 234148-8 | COMPRESSION SPRING 31 | 1 | |
| 36 | 267153-0 | FLAT WASHER 30 | 1 | |
| 37 | 257932-4 | SPIRO LOCK WASHER 30 | 1 | |
| 38 | 267153-0 | FLAT WASHER 30 | 1 | |
| 39 | 325783-4 | SLEEVE 9B | 1 | |
| 40 | 325789-2 | IMPACT BOLT A | 1 | |
| 41 | 325792-3 | WASHER 10 | 1 | |
| 42 | 234149-6 | COMPRESSION SPRING 20 | 1 | |
| 43 | 325793-1 | O-RING CASE B | 1 | |
| 44 | 213073-6 | O RING 9 | 1 | |
| 45 | 233979-2 | RING SPRING 28 | 1 | |
| 46 | 326139-4 | STRIKER | 1 | |
| 47 | 213258-4 | O RING 17.5 | 1 | |
| 48 | 310345-1 | PISTON CYLINDER | 1 | |
| 49 | 346036-8 | GUIDE PLATE | 1 | |
| 50 | 324215-8 | PISTON JOINT | 1 | |
| 51 | 234098-7 | COMPRESSION SPRING 14 | 1 | |
| 52 | 267447-3 | FLAT WASHER 14 | 1 | |
| 53 | 211012-0 | BALL BEARING 606ZZ | 1 | |
| 54 | 257336-0 | STOP RING EXT U-6 | 1 | |
| 55 | 253186-1 | FLAT WASHER 7 | 1 | |
| 56 | 227231-8 | SPUR GEAR 10 | 1 | |
| 057-1 | 326849-3 | CLUTCH CAM A | 1 | |
| 58 | 326140-9 | CAM SHAFT | 1 | |
| 59 | 219020-5 | SWASH BEARING 10 | 1 | |
| 60 | 227588-7 | SPIRAL BEVEL GEAR 32 | 1 | |
| 61 | 257323-9 | RING 8 | 1 | |
| 62 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 63 | 346038-4 | BEARING RETAINER B | 1 | |
| 64 | 211032-4 | BALL BEARING 608ZZ | 1 | |
| 65 | 324212-4 | RING 8 | 1 | |
| 66 | 922147-9 | HEX. SOCKET HEAD BOLT M4X25 | 2 | |
| 67 | 141230-5 | INNER SUPPORT COMPLETE | 1 | |
| 68 | 213767-3 | O-RING 75 | 1 | |
| 69 | 318810-4 | INNER HOUSING | 1 | |
| 70 | 443153-6 | FELT | 1 | |
| 71 | 922118-6 | HEX. SOCKET HEAD BOLT M4X12 | 2 | |
| 72 | 346536-8 | BEARING RETAINER A | 1 | |
| 73 | 256536-9 | FLAT FILLISTER HD PIN 6 | 1 | |
| 74 | 346538-4 | WEIGHT HOLDER GUIDE | 1 | |
| 75 | 313224-2 | COUNTER WEIGHT | 1 | |
| 76 | 346538-4 | WEIGHT HOLDER GUIDE | 1 | |
| 77 | 253726-5 | FLAT WASHER 6 | 1 | |
| 78 | 961018-5 | STOP RING E-5 | 1 | |
| 79 | 213008-7 | O RING 22.4 | 1 | |
| 80 | 141458-5 | SPIRAL BEVEL GEAR 11 COMPLETE | 1 | |
| 81 | 210024-0 | BALL BEARING 608LLU | 1 | |
| 82 | 253835-0 | FLAT WASHER 8 | 1 | |
| 83 | 619293-4 | ROTOR | 1 | |
| 083-1 | 619737-4 | ROTOR | 1 | |
| 083-1 | D10 | INC. 80-82,84 | ||
| 84 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 085-2 | 529187-4 | STATOR ASS'Y | 1 | |
| 86 | 620241-8 | CONTROLLER | 1 | |
| 086-1 | 620G68-8 | CONTROLLER | 1 | |
| 087-2 | 183C02-0 | HOUSING SET | 1 | |
| 087-2 | D10 | INC. 91 | ||
| 087-3 | 183C02-0 | HOUSING SET | 1 | |
| 087-3 | D10 | INC. 91 | ||
| 88 | 815B57-8 | DHR242 SERIAL NO. LABEL | 1 | |
| 89 | 815A38-6 | DHR242 NAME PLATE | 1 | |
| 90 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 090-1 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 091-2 | 183C02-0 | HOUSING SET | 1 | |
| 091-2 | D10 | INC. 87 | ||
| 091-3 | 183C02-0 | HOUSING SET | 1 | |
| 091-3 | D10 | INC. 87 | ||
| 92 | 453124-5 | F/R CHANGE LEVER | 1 | |
| 93 | 453123-7 | SWITCH LEVER | 1 | |
| 94 | 650709-0 | SWITCH C3JW-1A-P | 1 | |
| 95 | 233598-4 | TORSION SPRING 6 | 1 | |
| 96 | 313226-8 | OPENER | 1 | |
| 97 | 644808-8 | TERMINAL | 1 | |
| 98 | 424476-1 | CUSHION | 1 | |
| 99 | 187377-1 | BATTERY HOUSING SET | 1 | |
| 99 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 99 | D10 | INC. 104 | ||
| 100 | 263036-2 | RUBBER PIN 5 | 1 | |
| 101 | 268184-2 | PIN 1.5 | 1 | |
| 102 | 424473-7 | CUSHION RUBBER | 1 | |
| 103 | 424473-7 | CUSHION RUBBER | 1 | |
| 104 | 187377-1 | BATTERY HOUSING SET | 1 | |
| 104 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 104 | D10 | INC. 99 | ||
| 105 | 893072-0 | CLEAR LABEL | 1 | |
| 106 | 890994-5 | CLEAR LABEL | 1 | |
| 107 | 424734-5 | SPONGE | 2 | |
| A01 | 324219-0 | DEPTH GAUGE | 1 | |
| A02B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02E | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A03-2B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03-2C | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03-2E | 197280-8 | BATTERY BL1850B SET | 2 | |
| A03-3B | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03-3C | 197265-4 | BATTERY BL1840B SET | 2 | |
| A03-3E | 197280-8 | BATTERY BL1850B SET | 2 | |
| A04B | 450128-8 | BATTERY COVER | 1 | |
| A04C | 450128-8 | BATTERY COVER | 1 | |
| A04E | 450128-8 | BATTERY COVER | 1 | |
| A05B | 141401-4 | PLASTIC CASE COMPLETE | 1 | |
| A05B | C10 | 162271-8 | LATCH | 2 |
| A05B | C20 | 890904-2 | INDICATION LABEL | 1 |
| A05C | 141401-4 | PLASTIC CASE COMPLETE | 1 | |
| A05C | C10 | 162271-8 | LATCH | 2 |
| A05C | C20 | 890904-2 | INDICATION LABEL | 1 |
| A05E | 141401-4 | PLASTIC CASE COMPLETE | 1 | |
| A05E | C10 | 162271-8 | LATCH | 2 |
| A05E | C20 | 890904-2 | INDICATION LABEL | 1 |
| A06B | 802L23-4 | DHR242RFE PLASTIC CASE LABEL | 2 | |
| A06C | 802L17-9 | DHR242RME PLASTIC CASE LABEL | 2 | |
| A06E | 804J02-6 | DHR242RTE PLASTIC CASE LABEL | 2 | |
| B01 | 195833-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 195127-0 | OIL VESSEL SET | 2 |
| B01 | D10 | INC. 1,2,4,6,28,44,45,47 | ||
| F38-3 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F48-1 | 199977-5 | DUST CASE SET | 1 | |
| F50-1 | 199557-7 | FILTER SET | 1 | |
| F52-3 | 197267-0 | BATTERY BL1840B SET | 1 | |
| F53-3 | 197265-4 | BATTERY BL1840B SET | 1 | |
| F54-3 | 197273-5 | BATTERY BL1840B SET(2PIECES) | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 |
