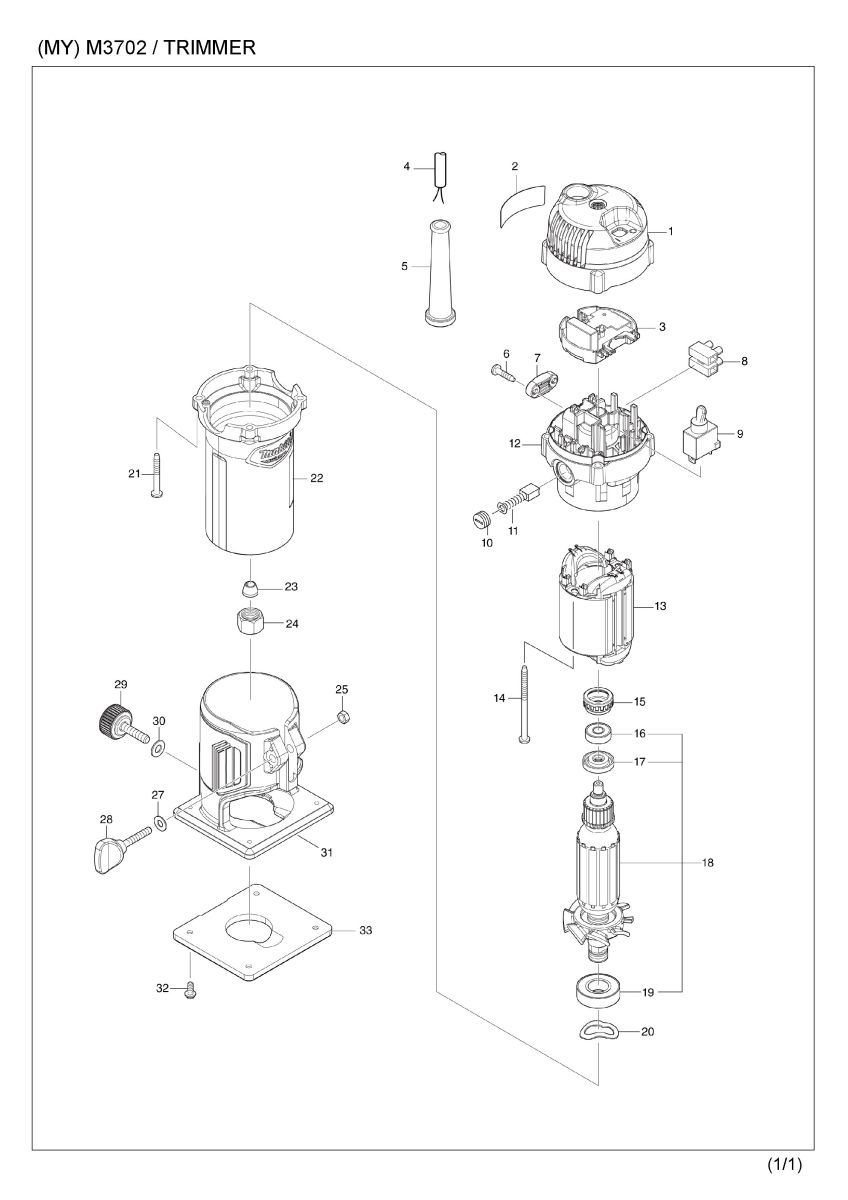

Part Diagram
Total: 53 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 413774-8 | TOP COVER | 1 | |
| 002 | 811T83-3 | M3702 NAME PLATE | 1 | |
| 003 | 620F95-9 | CONTROLLER | 1 | |
| 004 | 692006-8 | POWER SUPPLY CORD 1.0-2-2.0 | 1 | |
| 005 | 682569-2 | CORD GUARD 8-85 | 1 | |
| 006 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 007 | 687123-7 | STRAIN RELIEF | 1 | |
| 008 | 654531-7 | TERMINAL BLOCK 2P | 1 | |
| 009 | 651424-9 | SWITCH STL106AT | 1 | |
| 010 | 643987-9 | BRUSH HOLDER CAP 5-8 | 2 | |
| 011 | 191940-4 | CARBON BRUSH CB-411 | 1 | |
| 012 | 141D21-8 | BRACKET COMPLETE | 1 | |
| 013 | 634774-7 | FIELD | 1 | |
| 014 | 266340-8 | TAPPING SCREW 4X65 | 2 | |
| 015 | 421868-5 | LABYRINTH RUBBER RING 19 | 1 | |
| 016 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 017 | 681668-7 | INSULATION WASHER | 1 | |
| 018 | 510227-9 | ARMATURE ASS'Y 240V | 1 | |
| C10 | 241667-7 | FAN 52 | 1 | |
| D10 | INC. 16,17,19 | |||
| 019 | 211247-3 | BALL BEARING 6002DDW | 1 | |
| 020 | 267785-3 | WAVE WASHER 23 | 1 | |
| 021 | 266351-3 | TAPPING SCREW 4X35 | 4 | |
| 022 | 141D80-2 | MOTOR HOUSING COMPLETE | 1 | |
| C10 | 8034K8-2 | SCALE LABEL | 1 | |
| 023 | 763663-0 | COLLET CONE 6.35 | 1 | |
| 024 | 763661-4 | COLLET NUT 6 | 1 | |
| 025 | 252156-7 | HEX. NUT M5-8 | 1 | |
| 027 | 941101-4 | FLAT WASHER 5 | 1 | |
| 028 | 251867-1 | THUMB SCREW M5X30 | 1 | |
| 029 | 265763-7 | THUMB SCREW M6X25 | 1 | |
| 030 | 941151-9 | FLAT WASHER 6 | 1 | |
| 031 | 454022-6 | BASE | 1 | |
| 032 | 265142-9 | + PAN HEAD SCREW M4X10 | 4 | |
| 033 | 410585-2 | BASE PROTECTOR | 1 | |
| A01 | 122703-7 | TRIMMER GUIDE ASS'Y | 1 | |
| C10 | 251471-6 | - FLAT HEAD SCREW M5 | 1 | |
| C20 | 265135-6 | + COUNTERSUNK HEAD SCREW M4X1 | 1 | |
| C30 | 265763-7 | THUMB SCREW M6X25 | 1 | |
| C40 | 265764-5 | THUMB SCREW M6 | 1 | |
| C50 | 317788-8 | GUIDE HOLDER | 1 | |
| C60 | 324378-0 | ROLLER 11 | 1 | |
| C70 | 341136-9 | HOOK | 1 | |
| C80 | 941151-9 | FLAT WASHER 6 | 1 | |
| A02 | 122704-5 | STRAIGHT GUIDE ASS'Y | 1 | |
| C10 | 252649-4 | THUMB NUT M6 | 1 | |
| C20 | 266339-3 | CAP SQUARE NECK BOLT M6X20 | 1 | |
| C30 | 343593-7 | GUIDE PLATE | 1 | |
| A03 | 343577-5 | TEMPLET GUIDE 10 | 1 | |
| A04 | 781036-5 | WRENCH 10 | 1 | |
| A05 | 781037-3 | WRENCH 17 | 1 | |
| A06 | 418647-0 | CHIP DEFLECTOR | 1 | |
| A07 | 733244-4 | STRAIGHT BIT 6E | 1 |
