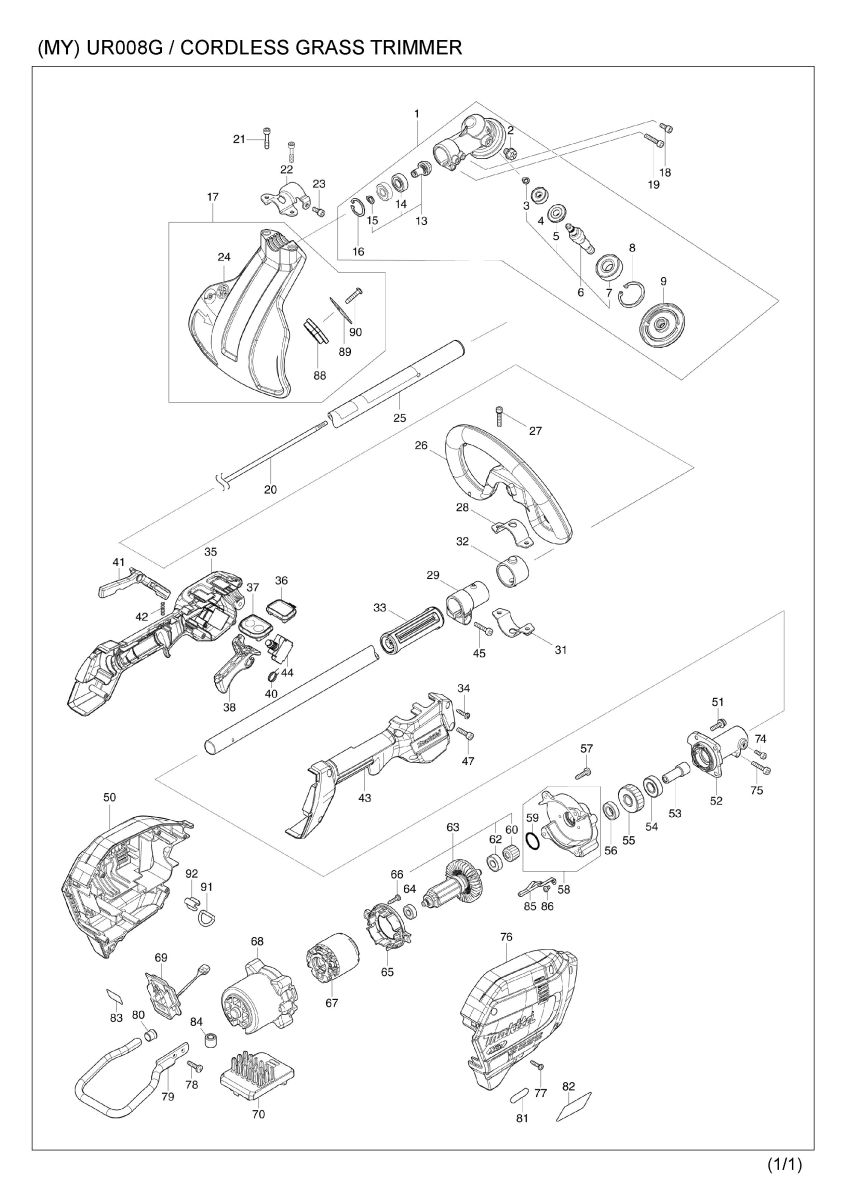

Part Diagram
Total: 128 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 127380-0 | GEAR CASE ASSEMBLY US | 1 | |
| 001 | D10 | INC. 2,6,8,9,13,16 | ||
| 002 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | |
| 003 | 259070-8 | RETAINING RING (EXT) S-7 | 1 | |
| 004 | 210030-5 | BALL BEARING 627ZZ | 1 | |
| 005 | 226954-5 | SPIRAL BEVEL GEAR 21 | 1 | |
| 006 | 136234-0 | CUTTER SHAFT ASS'Y | 1 | |
| 006 | D10 | INC 3-5,7 | ||
| 007 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 008 | 259069-3 | RETAINING RING (INT) R-35 | 1 | |
| 009 | 140N88-3 | RECEIVE WASHER COMPLETE | 1 | |
| 013 | 136236-6 | SPIRAL BEVEL GEAR ASS'Y | 1 | |
| 013 | D10 | INC. 14,15 | ||
| 014 | 210049-4 | BALL BEARING 609ZZ | 2 | |
| 015 | 259071-6 | RETAINING RING (EXT) S-9 | 1 | |
| 016 | 259072-4 | RETAINING RING (INT)R-24 | 1 | |
| 017 | 191B55-9 | PROTECTOR N 430 SET MG | 1 | |
| 017 | D10 | INC. 24,88-90 | ||
| 018 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 019 | 922242-5 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 020 | 327056-1 | SHAFT | 1 | |
| 021 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 022 | 347107-4 | PROTECTOR CLAMP 24 | 1 | |
| 023 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 024 | 457273-0 | PROTECTOR N 420-450 | 1 | |
| 025 | 140S83-3 | SHAFT PIPE COMPLETE J | 1 | |
| 025 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 025 | C20 | 8008K7-9 | CAUTION LABEL | 1 |
| 026 | 457267-5 | LOOP HANDLE | 1 | |
| 026 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 027 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 028 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 029 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 031 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 032 | 424942-8 | DAMPER | 1 | |
| 033 | 451601-1 | SPACER 24 | 1 | |
| 034 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 035 | 183S36-9 | GRIP SET | 1 | |
| 035 | D10 | INC. 43 | ||
| 036 | 141D25-0 | INDICATION CIRCUIT COMPLETE E | 1 | |
| 037 | 140W06-5 | SWITCH CIRCUIT COMPLETE G | 1 | |
| 037 | C10 | 819J26-9 | SWITCH LABEL | 1 |
| 038 | 459758-2 | SWITCH LEVER | 1 | |
| 040 | 233622-3 | TORSION SPRING 12 | 1 | |
| 041 | 459759-0 | LOCK OFF LEVER | 1 | |
| 042 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 043 | 183S36-9 | GRIP SET | 1 | |
| 043 | D10 | INC. 35 | ||
| 044 | 651492-2 | SWITCH C3JR-1A-PAXD3 | 1 | |
| 045 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 047 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 050 | 183S87-2 | HOUSING SET | 1 | |
| 050 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 050 | D10 | INC. 76 | ||
| 050-1 | 183R88-4 | HOUSING SET | 1 | |
| 050-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 050-1 | D10 | INC. 76 | ||
| 051 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 052 | 140Y38-4 | PIPE BRACKET COMPLETE | 1 | |
| 052 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 053 | 325811-5 | SPINDLE HUB | 1 | |
| 054 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 055 | 227848-7 | HELICAL GEAR 33 | 1 | |
| 056 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 057 | 266420-0 | TAPPING SCREW 5X20 | 4 | |
| 058 | 136368-9 | GEAR BOX ASSY | 1 | |
| 058 | D10 | INC. 59 | ||
| 059 | 213961-7 | O RING 22 | 1 | |
| 060 | 227834-8 | HELICAL GEAR 16 | 1 | |
| 062 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 063 | 519647-4 | ROTOR ASS'Y | 1 | |
| 063 | D10 | INC. 60,62,64 | ||
| 064 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 065 | 459764-7 | BAFFLE PLATE | 1 | |
| 066 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 067 | 629A25-7 | STATOR | 1 | |
| 068 | 412961-6 | MOTOR HOUSING | 1 | |
| 069 | 632P49-4 | TERMINAL UNIT | 1 | |
| 070 | 620F29-2 | CONTROLLER | 1 | |
| 074 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 074-1 | 922216-6 | H.S.H.BOLT M5X14 WITH W | 1 | |
| 075 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 076 | 183S87-2 | HOUSING SET | 1 | |
| 076 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 076 | D10 | INC. 50 | ||
| 076-1 | 183R88-4 | HOUSING SET | 1 | |
| 076-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 076-1 | D10 | INC. 50 | ||
| 077 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 078 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 079 | 347752-5 | BATTERY GUARD | 1 | |
| 080 | 422230-7 | CAP | 1 | |
| 081 | 8025F3-0 | XGT LOGO LABEL | 1 | |
| 082 | 811Y17-6 | UR008G NAME PLATE | 1 | |
| 083 | 811Y21-5 | UR008G SERIAL NO. LABEL | 1 | |
| 088 | 459765-5 | CUTTER EXTENSION | 1 | |
| 089 | 347115-5 | CUTTER | 1 | |
| 090 | 266459-3 | TAPPING SCREW 5X25 | 1 | |
| 091 | 327742-4 | D RING 20 | 1 | |
| 092 | 347783-4 | RING SUPPORT | 1 | |
| A01 | 197993-1 | TRIMMER HEAD 95-M10L SET ME | 1 | |
| A01 | C10 | 456640-6 | SPOOL HOLDER | 1 |
| A01 | C20 | 232289-4 | COMPRESSION SPRING 15 | 1 |
| A01 | C30 | 144259-0 | SPOOL COVER COMPLETE | 1 |
| A01 | C40 | 456642-2 | SPOOL | 1 |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A04 | 831304-7 | ACCESSORY BAG | 1 | |
| A05 | 127759-5 | BAND ASSEMBLY L | 1 | |
| A09B | 412393-7 | BATTERY COVER | 1 | |
| A10B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A10B | D10 | COMPO-PARTS | ||
| A11B | 191B26-6 | BATTERY BL4040 SET | 1 | |
| F09 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F10 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F11 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F12 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F15 | 198266-5 | TRIMMER HEAD 110-M10L SET ME | 1 | |
| F19 | 198502-9 | NYLON CORD 2.4-30M SET | 1 | |
| F20 | 198503-7 | NYLON CORD 2.4-120M SET | 1 | |
| F21 | 198504-5 | NYLON CORD 2.4-180M SET | 1 | |
| F23 | 199450-5 | GREASE VESSEL SET | 1 | |
| F25 | 199868-0 | PLASTIC BLADE 305 SET MG | 1 | |
| F26 | 199870-3 | PLASTIC BLADE 305 BLADE SET MG | 1 | |
| F45 | 1915D7-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F46 | 1914R6-0 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
