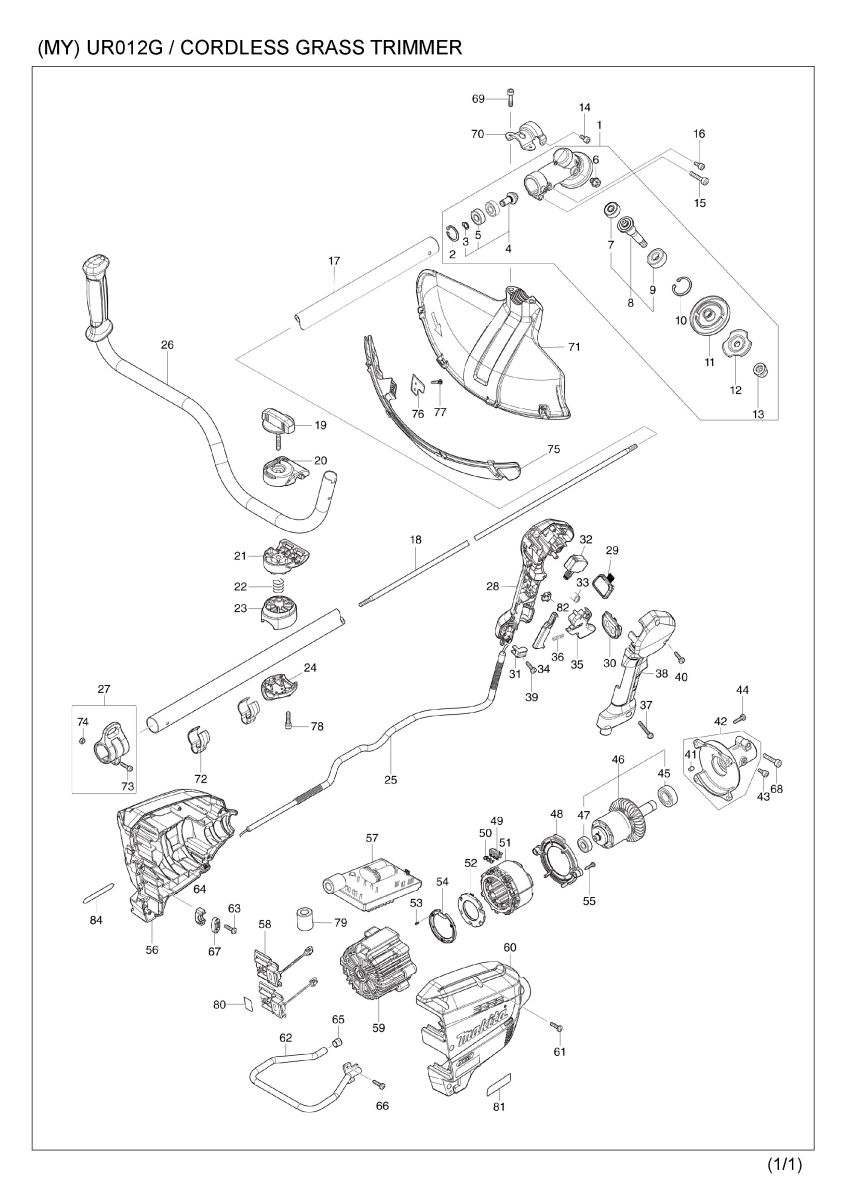

Part Diagram
Total: 116 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 127238-3 | GEAR CASE ASSEMBLY G | 1 | |
| D10 | INC. 2,4,6,8,10-13 | |||
| 002 | 257470-6 | RETAINING RING (INT) R-26 | 1 | |
| 003 | 257471-4 | RETAINING RING (EXT) S-10 | 1 | |
| 004 | 136564-9 | SPIRAL BEVEL GEAR 13 ASS'Y | 1 | |
| D10 | INC. 3,5 | |||
| 005 | 210067-2 | BALL BEARING 6000ZZ | 2 | |
| 006 | 265590-2 | +HEX.BOLT M8X10 WITH R | 1 | |
| 007 | 210084-2 | BALL BEARING 629ZZ | 1 | |
| 008 | 136565-7 | CUTTER SHAFT G ASS'Y | 1 | |
| D10 | INC. 7,9 | |||
| 009 | 211137-0 | BALL BEARING 6201LLU | 1 | |
| 010 | 257469-1 | RETAINING RING (INT) R-32 | 1 | |
| 011 | 140J59-6 | RECEIVE WASHER COMPLETE G | 1 | |
| 012 | 162567-7 | CLAMP WASHER COMPLETE G | 1 | |
| 013 | 252236-9 | HEX. LOCK NUT M10-17 | 1 | |
| 014 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 015 | 922353-6 | HEX.SOCKET HEAD BOLT M6X30 | 1 | |
| 016 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 017 | 141D74-7 | SHAFT PIPE COMPLETE A | 1 | |
| C10 | 819312-8 | MAKITA LOGO LABEL | 1 | |
| C20 | 8040V7-0 | CAUTION LABEL | 1 | |
| 018 | 327845-4 | SHAFT | 1 | |
| 019 | 168796-0 | KNOB 57 | 1 | |
| 020 | 144313-0 | UPPER HANDLE HOLDER COMPLETE | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 1 | |
| 021 | 319517-5 | LOWER HANDLE HOLDER | 1 | |
| 022 | 233309-7 | COMPRESSION SPRING 17 | 1 | |
| 023 | 319799-9 | PIPE HOLDER | 1 | |
| 024 | 318422-3 | PIPE CLAMP | 1 | |
| 025 | 699170-6 | POWER SUPPLY CORD UNIT | 1 | |
| 026 | 140J61-9 | HANDLE 22 COMPLETE | 1 | |
| C10 | 273014-4 | GRIP 36 | 1 | |
| 027 | 125558-9 | HANGER ASSEMBLY | 1 | |
| D10 | INC. 73,74 | |||
| 028 | 183T68-2 | GRIP SET | 1 | |
| C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 | |
| D10 | INC. 38 | |||
| 029 | 141D26-8 | INDICATION CIRCUIT COMPLETE G | 1 | |
| 030 | 140W06-5 | SWITCH CIRCUIT COMPLETE G | 1 | |
| C10 | 819J26-9 | SWITCH LABEL | 1 | |
| 031 | 687260-7 | STRAIN RELIEF | 1 | |
| 032 | 651492-2 | SWITCH C3JR-1A-PAXD3 | 1 | |
| 033 | 233540-5 | TORSION SPRING 11 | 1 | |
| 034 | 459146-3 | LOCK OFF LEVER | 1 | |
| 035 | 459145-5 | SWITCH LEVER | 1 | |
| 036 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 037 | 911258-5 | PAN HEAD SCREW M5X35 | 1 | |
| 038 | 183T68-2 | GRIP SET | 1 | |
| C10 | 252180-0 | HEX. LOCK NUT M5-8 | 1 | |
| D10 | INC. 28 | |||
| 039 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 040 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 041 | 263005-3 | RUBBER PIN 6 | 1 | |
| 042 | 136465-1 | PIPE BRACKET ASSEMBLY | 1 | |
| D10 | INC. 41 | |||
| 043 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 044 | 266420-0 | TAPPING SCREW 5X20 | 4 | |
| 045 | 211275-8 | BALL BEARING 6003DDW | 1 | |
| 046 | 519560-6 | ROTOR ASS'Y | 1 | |
| D10 | IMC. 45,47 | |||
| 047 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 048 | 459144-7 | BAFFLE PLATE | 1 | |
| 049 | 632T09-0 | LEAD UNIT | 1 | |
| 050 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 051 | 629A82-5 | STATOR | 1 | |
| 052 | 620F36-5 | CONTROLLER B | 1 | |
| 053 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 054 | 687B69-9 | STOPPER | 1 | |
| 055 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 056 | 183T69-0 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 60 | |||
| 057 | 620F35-7 | CONTROLLER | 1 | |
| 058 | 632P49-4 | TERMINAL UNIT | 2 | |
| 059 | 459143-9 | MOTOR HOUSING | 1 | |
| 060 | 183T69-0 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 4 | |
| D10 | INC. 56 | |||
| 061 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 062 | 347846-6 | BATTERY GUARD | 1 | |
| 063 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 064 | 687051-6 | STRAIN RELIEF | 1 | |
| 065 | 422230-7 | CAP | 1 | |
| 066 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 067 | 687052-4 | STRAIN RELIEF | 1 | |
| 068 | 922353-6 | HEX.SOCKET HEAD BOLT M6X30 | 1 | |
| 069 | 266280-0 | HEX. SOCKET HEAD BOLT M6X25 | 2 | |
| 070 | 347494-1 | PROTECTOR CLAMP28 | 1 | |
| 071 | 459147-1 | PROTECTOR 480 | 1 | |
| 072 | 455588-9 | WIRE CLAMP | 2 | |
| 073 | 266698-5 | HEX. SOCKET HEAD BOLT M5X20 | 1 | |
| 074 | 264086-0 | HEX.NUT M5 | 1 | |
| 075 | 141D72-1 | PROTECTOR EXT. 480 COMPLETE | 1 | |
| 076 | 347493-3 | CUTTER | 1 | |
| 077 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 078 | 922341-3 | HEX. SOCKET HEAD BOLT M6X25 | 2 | |
| 079 | 688140-0 | LINE FILTER | 1 | |
| 080 | 811X20-1 | UR012G SERIAL NO. LABEL | 1 | |
| 081 | 811X12-0 | UR012G NAME PLATE | 1 | |
| 082 | 632G61-0 | SWITCH UNIT | 1 | |
| 084 | 8040V4-6 | XGT LOGO LABEL | 1 | |
| A01 | 122A37-4 | BAND ASSEMBLY | 1 | |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03 | 195624-6 | CUTTER BLADE 305 SET | 1 | |
| A05 | 782238-6 | BOX WRENCH 17 | 1 | |
| A06 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A07 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A08 | 831304-7 | ACCESSORY BAG | 1 | |
| A09 | 199884-2 | TRIMMER HEAD 105-M10L SET MG | 1 | |
| A10 | 199868-0 | PLASTIC BLADE 305 SET MG | 1 | |
| C10 | 140J62-7 | BLADE BASE COMPLETE | 1 | |
| C20 | 326958-8 | HOLDER M10L | 1 | |
| C30 | 459154-4 | BLADE BASE COVER | 1 | |
| C40 | 199870-3 | PLASTIC BLADE 305 BLADE SET MG | 1 | |
| A11 | 422818-3 | BLADE COVER | 2 |
