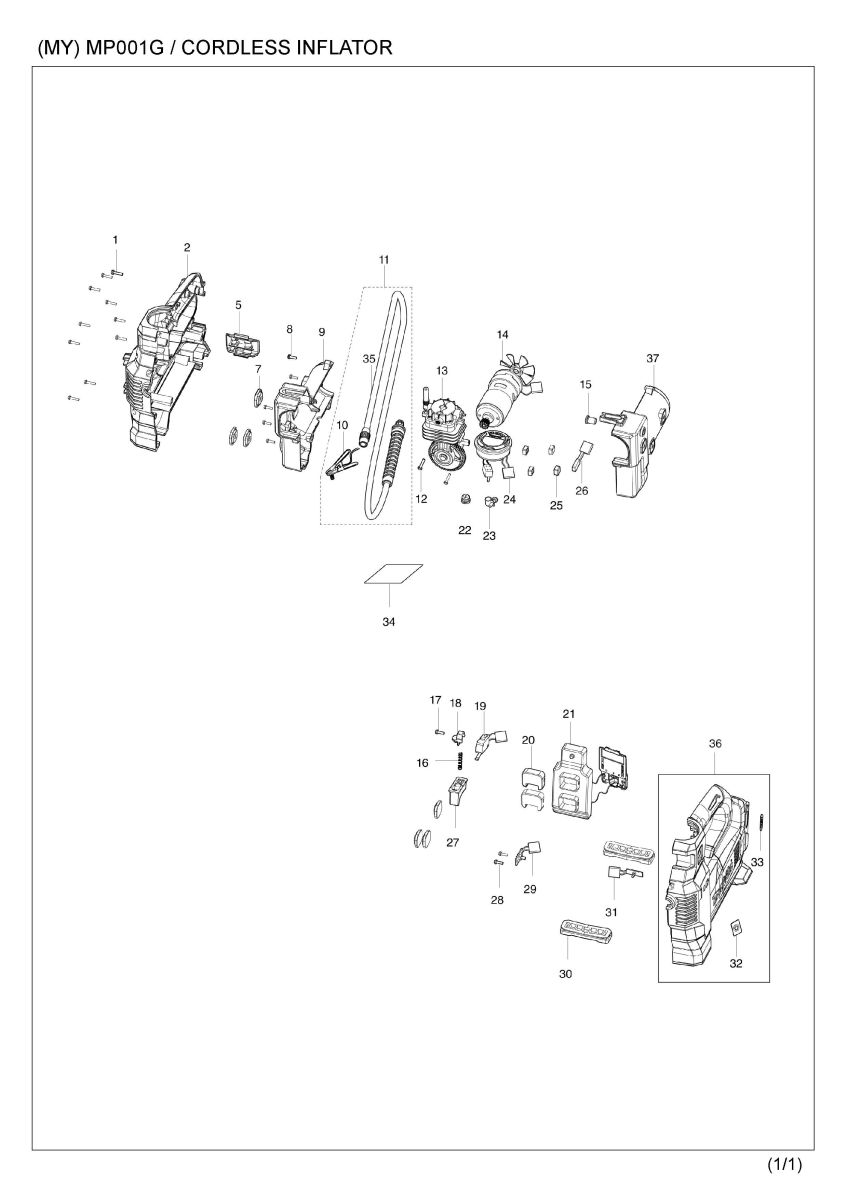

Part Diagram
Total: 43 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | TE00000028 | TAPPING SCREW 3X14 | 10 | |
| 002 | TE00000591 | HOUSING SET | 1 | |
| D10 | INC. 32,33,36 | |||
| D11 | INC. 36 | |||
| 005 | TE00000593 | FIXED BRACKET | 1 | |
| 007 | TE00000595 | INNER PAD | 6 | |
| 008 | TE00000029 | TAPPING SCREW 3X10 | 5 | |
| 009 | TE00000596 | INNER HOUSING SET | 1 | |
| D10 | INC. 37 | |||
| 010 | TE00000597 | BRITISH ADAPTER | 1 | |
| 011 | TE00000598 | HOSE ASSEMBLY | 1 | |
| D10 | INC. 10 | |||
| 012 | TE00000624 | SCREW 4X6 | 2 | |
| 013 | TE00000625 | CYLINDER COMPLETE | 1 | |
| 014 | TE00000599 | MOTOR ASSEMBLY | 1 | |
| 015 | TE00000600 | RELEASE VALVE BUTTON | 1 | |
| 016 | TE00000330 | SPRING | 1 | |
| 017 | TE00000029 | TAPPING SCREW 3X10 | 1 | |
| 018 | TE00000328 | TRIGGER SPRING-FIXED BLOCK | 1 | |
| 019 | TE00000601 | BUTTON | 1 | |
| 020 | TE00000602 | PLATE | 2 | |
| 021 | TE00000603 | CONTROLLER ASSY | 1 | |
| 022 | TE00000604 | PLUG | 1 | |
| 023 | TE00000352 | CLAMP | 1 | |
| 024 | TE00000605 | DIGITAL DISPLAY | 1 | |
| 025 | TE00000606 | PAD | 4 | |
| 026 | TE00000607 | THERMAL PROTECTOR | 1 | |
| 027 | TE00000485 | SWITCH | 1 | |
| 028 | TE00000029 | TAPPING SCREW 3X10 | 2 | |
| 029 | TE00000608 | POWER SWTICH | 1 | |
| 030 | TE00000609 | MAT | 2 | |
| 031 | TE00000610 | LED CIRCUIT | 1 | |
| 032 | TE00000426 | SWITCH LABEL | 1 | |
| 033 | TE00000611 | XGT LABEL | 1 | |
| 034 | TE00000612 | NAME PLATE | 1 | |
| 036 | TE00000591 | HOUSING SET | 1 | |
| D10 | INC. 2,32,33 | |||
| D11 | INC. 2 | |||
| 037 | TE00000596 | INNER HOUSING SET | 1 | |
| D10 | INC. 9 | |||
| A01 | TE00000592 | BALL ADAPTER | 1 | |
| A02 | TE00000333 | SWIM RING ADAPTER | 1 | |
| A03 | TE00000594 | FRENCH ADAPTER | 1 |
