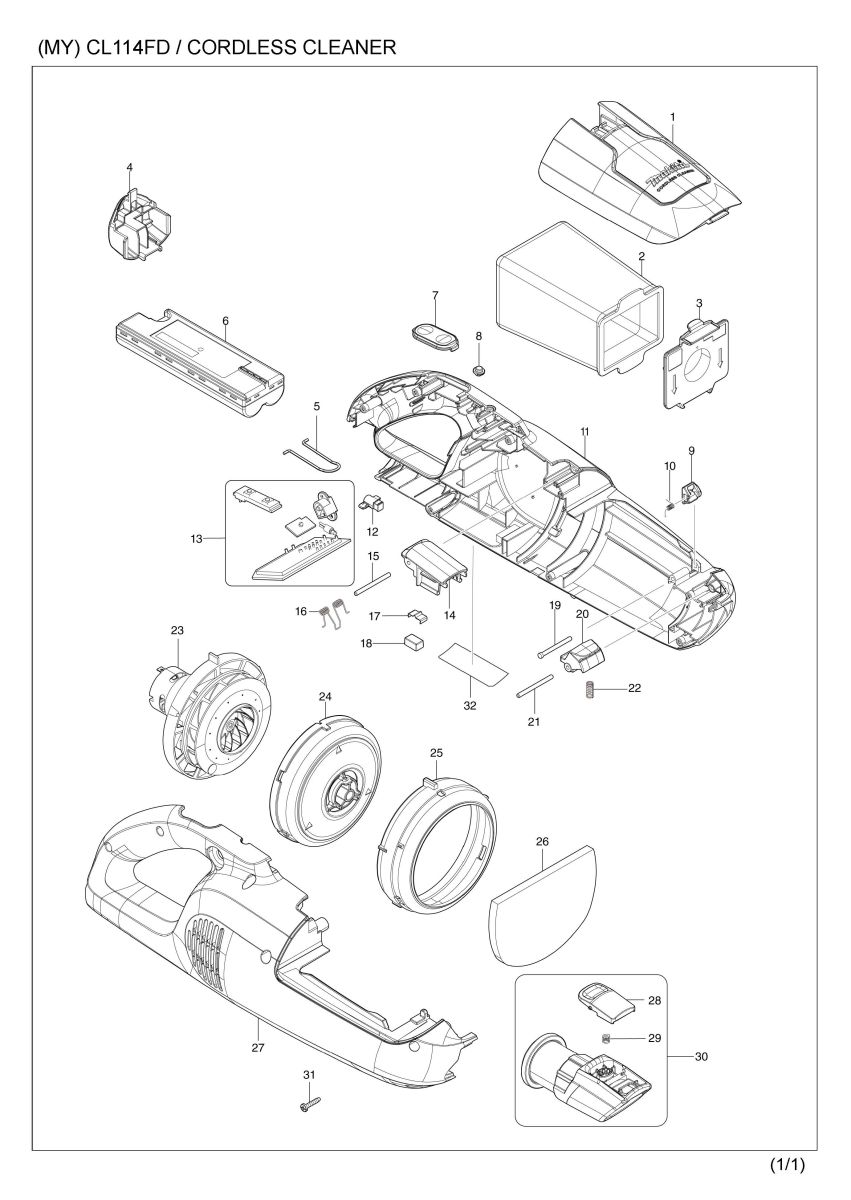

Part Diagram
Total: 48 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 140W12-0 | FRONT COVER COMPLETE | 1 | |
| C10 | 458927-2 | SEAL | 1 | |
| 002 | 166084-9 | DUST BAG | 1 | |
| 003 | 143677-9 | VALVE STAY COMPLETE | 1 | |
| 004 | 454080-2 | COVER | 1 | |
| 005 | 324885-3 | HANGER | 1 | |
| 006 | 632R12-9 | BATTERY | 1 | |
| 007 | 144096-2 | SWITCH PLATE COMPLETE | 1 | |
| 008 | 450522-4 | LENS | 1 | |
| 009 | 458943-4 | STOPPER PLATE | 1 | |
| 010 | 232484-6 | TORSION SPRING 4 | 1 | |
| 011 | 183R32-1 | HOUSING SET | 1 | |
| C10 | 423444-1 | SPONGE SHEET 52-76 | 2 | |
| D10 | INC. 27 | |||
| 012 | 140K40-3 | LENS CASE COMPLETE | 1 | |
| 013 | 620985-0 | CONTROLLER | 1 | |
| 013-1 | 620H15-5 | CONTROLLER | 1 | |
| 014 | 458932-9 | FRONT COVER JOINT | 1 | |
| 015 | 268271-7 | PIN 3 | 1 | |
| 016 | 233580-3 | TORSION SPRING 4 | 1 | |
| 017 | 232264-0 | LEAF SPRING | 1 | |
| 018 | 424367-6 | RUBBER | 1 | |
| 019 | 256590-3 | FLAT FILLISTER HD. PIN 3 | 1 | |
| 020 | 458933-7 | BUTTON B | 1 | |
| 021 | 268271-7 | PIN 3 | 1 | |
| 022 | 233344-5 | COMPRESSION SPRING 4 | 1 | |
| 023 | 127090-9 | MOTOR ASSEMBLY | 1 | |
| 024 | 459035-2 | FAN COVER | 1 | |
| 025 | 422421-0 | RUBBER RING | 1 | |
| 026 | 424804-0 | SUPONGE SHEET 76-110 | 1 | |
| 027 | 183R32-1 | HOUSING SET | 1 | |
| C10 | 423444-1 | SPONGE SHEET 52-76 | 2 | |
| D10 | INC. 11 | |||
| 028 | 458939-5 | BUTTON A | 1 | |
| 029 | 232485-4 | COMPRESSION SPRING 5 | 1 | |
| 030 | 136033-0 | INLET ASSY | 1 | |
| C10 | 424094-5 | PACKING | 1 | |
| D10 | INC. 28,29 | |||
| 031 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 032 | 857R57-8 | CL114FD NAME PLATE | 1 | |
| A01 | 198755-0 | NOZZLE ASSEMBLY SET | 1 | |
| C10 | 451410-8 | ROLLER | 4 | |
| C20 | 743108-4 | BRUSH 205 | 1 | |
| A02 | 194566-1 | PAPER FILTER SET (5PCS/SET) | 1 | |
| A03 | 416041-0 | SASH NOZZLE 28 IVO | 1 | |
| A04 | 458940-0 | PIPE | 1 | |
| A05 | 459036-0 | NOZZLE HOLDER | 1 | |
| A06 | ***DC1002 | DC1002 BATTERY CHARGER | 1 |
