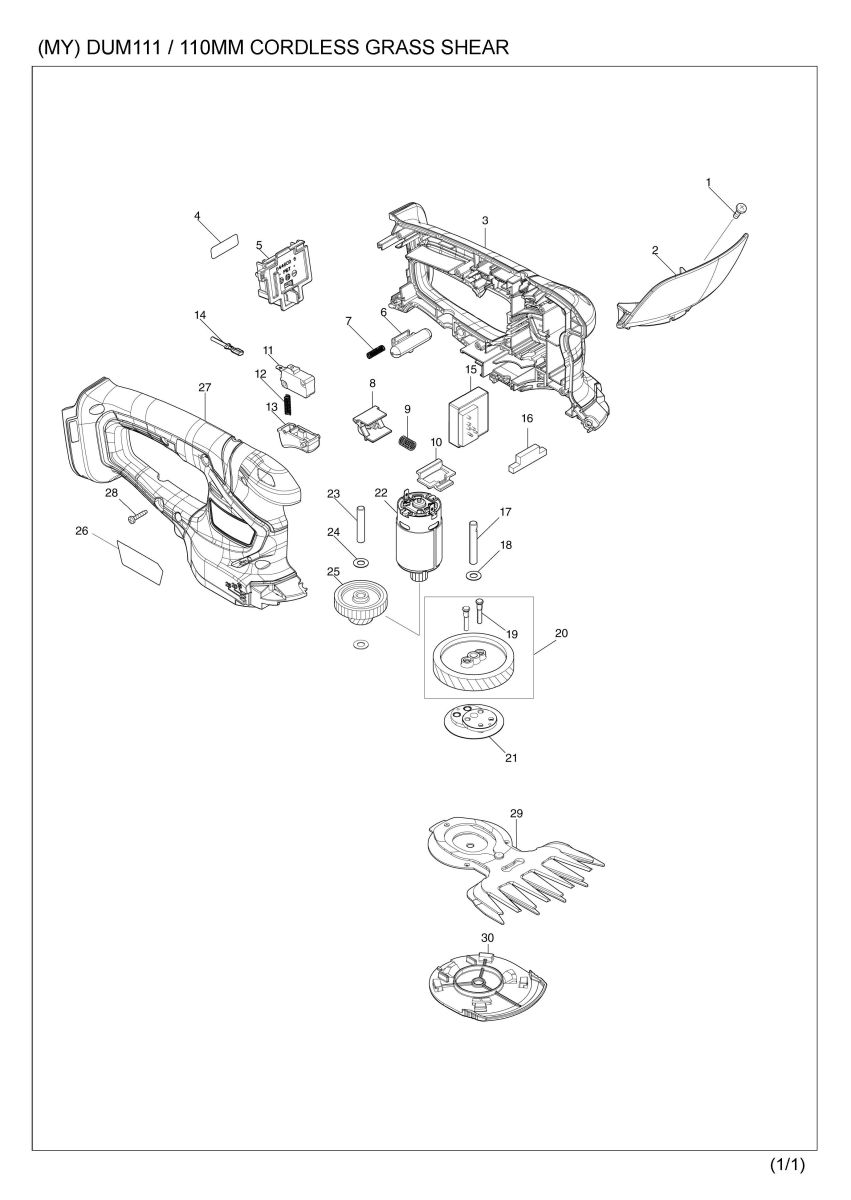

Part Diagram
Total: 76 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 915116-7 | BINDING HEAD SCREW M4X12 | 1 | |
| 2 | 141C31-9 | PROTECTER COMPLETE | 1 | |
| 2 | C10 | 8030K3-8 | CAUTION LABEL | 1 |
| 002-1 | 140V97-0 | PROTECTOR COMPLETE | 1 | |
| 002-1 | C10 | 819948-3 | CAUTION LABEL | 1 |
| 002-1 | C11 | 819948-3 | CAUTION LABEL | 1 |
| 002-2 | 1410D3-4 | PROTECTOR COMPLETE | 1 | |
| 002-2 | C12 | 8072W3-6 | CAUTION LABEL | 1 |
| 3 | 183G03-2 | HOUSING SET | 1 | |
| 3 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 3 | C20 | 346275-0 | PLATE | 2 |
| 3 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 3 | D10 | INC. 27 | ||
| 003-1 | 183U53-1 | HOUSING SET | 1 | |
| 003-1 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 003-1 | C20 | 346275-0 | PLATE | 2 |
| 003-1 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 003-1 | D10 | INC. 27 | ||
| 4 | 811957-8 | DUM111 SERIAL NO. LABEL | 1 | |
| 5 | 644809-6 | TERMINAL | 1 | |
| 005-1 | 643852-2 | TERMINAL | 1 | |
| 6 | 452438-9 | LOCK OFF BUTTON | 1 | |
| 006-1 | 413A16-6 | LOCK OFF BUTTON | 1 | |
| 7 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 8 | 457534-8 | SLIDE PLATE | 1 | |
| 9 | 234339-1 | COMPRESSION SPRING 6 | 1 | |
| 10 | 454879-5 | LOCK LEVER | 1 | |
| 11 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 12 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 13 | 417564-1 | SWITCH LEVER | 1 | |
| 14 | 632S19-1 | LEAD UNIT | 1 | |
| 15 | 620E35-1 | CONTROLLER | 1 | |
| 16 | 451814-4 | DUST GUARD | 1 | |
| 17 | 268254-7 | PIN 6 | 1 | |
| 18 | 253715-0 | FLAT WASHER 6 | 1 | |
| 19 | 268256-3 | PIN 4 | 2 | |
| 20 | 135883-0 | HELICAL GEAR 47 ASS'Y | 1 | |
| 20 | D10 | INC. 19 | ||
| 21 | 161598-3 | CRANK COMPLETE | 1 | |
| 22 | 629943-3 | DC MOTOR | 1 | |
| 23 | 268076-5 | PIN 6 | 1 | |
| 24 | 253715-0 | FLAT WASHER 6 | 2 | |
| 25 | 226831-1 | GEAR 12-31 | 1 | |
| 26 | 811949-7 | DUM111 NAME PLATE | 1 | |
| 27 | 183G03-2 | HOUSING SET | 1 | |
| 27 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 27 | C20 | 346275-0 | PLATE | 2 |
| 27 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 27 | D10 | INC. 3 | ||
| 027-1 | 183U53-1 | HOUSING SET | 1 | |
| 027-1 | C10 | 931102-0 | HEX. NUT M4 | 1 |
| 027-1 | C20 | 346275-0 | PLATE | 2 |
| 027-1 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 027-1 | D10 | INC. 3 | ||
| 28 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| 29 | 191N23-4 | SHEAR BLADE ASSEMBLY 110 SET | 1 | |
| 29 | C10 | 188369-3 | OIL VESSEL SET | 1 |
| 30 | 140451-6 | UNDER COVER COMPLETE | 1 | |
| A01 | 191N24-2 | SHEAR BLADE ASSEMBLY 200S SET | 1 | |
| A01 | C10 | 188369-3 | OIL VESSEL SET | 1 |
| A02 | 413885-9 | BLADE COVER 110 | 1 | |
| A03 | 413429-5 | STORAGE COVER | 1 | |
| A04 | 458342-0 | BLADE COVER | 1 | |
| A05 | 450128-8 | BATTERY COVER | 1 | |
| A06 | ***DC18SD | DC18SD BATTERY CHARGER | 1 | |
| A06 | D10 | COMPO-PARTS | ||
| A07 | 196235-0 | BATTERY BL1815N SET | 1 | |
| F01 | 191N23-4 | SHEAR BLADE ASSEMBLY 110 SET | 1 | |
| F02 | 191N24-2 | SHEAR BLADE ASSEMBLY 200S SET | 1 | |
| F03 | 191N25-0 | GRASS RECEIVER 110 SET | 1 | |
| F03 | C10 | 454880-0 | GRASS RECEIVER 110 | 1 |
| F04 | 195267-4 | SHEAR BLADE ASSEMBLY SET | 1 | |
| F06 | 198401-5 | CHIP RECEIVER SET | 1 | |
| F07 | 198408-1 | SHEAR BLADE ASSEMBLY 200 S SET | 1 | |
| F08 | 198412-0 | GRASS RECEIVER 160 SET | 1 | |
| F08 | C10 | 457426-1 | GRASS RECEIVER 160 | 1 |
