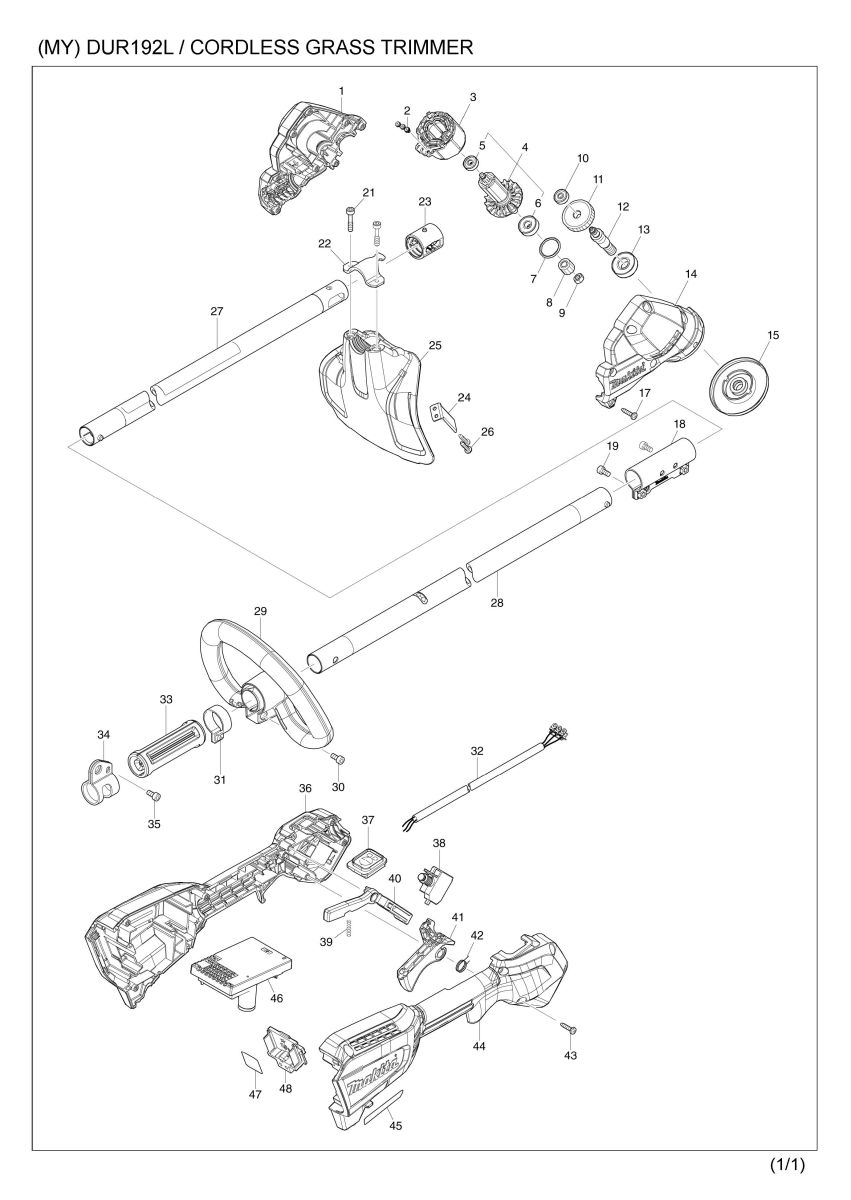

Part Diagram
Total: 66 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183R54-1 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 14 | |||
| 002 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 003 | 629A22-3 | STATOR | 1 | |
| 004 | 519643-2 | ROTOR ASS'Y | 1 | |
| D10 | INC. 5,6 | |||
| 005 | 210235-7 | BALL BEARING 625ZZ | 1 | |
| 006 | 210236-5 | BALL BEARING 627ZZ | 1 | |
| 007 | 213843-3 | O-RING 21 | 1 | |
| 007-1 | 213925-1 | O-RING 21 | 1 | |
| 008 | 227831-4 | HELICAL GEAR 11 | 1 | |
| 008-1 | 227883-5 | HELICAL GEAR 11 | 1 | |
| 009 | 931302-2 | HEX. NUT M6 | 1 | |
| 010 | 210235-7 | BALL BEARING 625ZZ | 1 | |
| 011 | 227830-6 | HELICAL GEAR 32 | 1 | |
| 012 | 327678-7 | CUTTER SHAFT | 1 | |
| 013 | 210216-1 | BALL BEARING 6001DDW | 1 | |
| 014 | 183R54-1 | MOTOR HOUSING SET | 1 | |
| D10 | INC. 1 | |||
| 015 | 140W47-1 | RECEIVE WASHER COMPLETE | 1 | |
| C10 | 213134-2 | O-RING 11 | 1 | |
| 017 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 018 | 347747-8 | JOINT 24 | 1 | |
| 019 | 922207-7 | HEX. SOCKET HEAD BOLT M5X10 | 2 | |
| 021 | 251513-6 | H.S.H.BOLT M5X25 | 2 | |
| 022 | 347667-6 | PROTECTOR CLAMP | 1 | |
| 023 | 424567-8 | RUBBER SLEEVE 24 | 1 | |
| 024 | 346855-2 | CUTTER | 1 | |
| 025 | 412580-8 | PROTECTOR N 330 | 1 | |
| 026 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 027 | 140W46-3 | PIPE COMPLETE C | 1 | |
| C10 | 8023L9-8 | CAUTION LABEL | 1 | |
| C20 | 819312-8 | MAKITA LOGO LABEL | 1 | |
| 028 | 140W45-5 | PIPE COMPLETE B | 1 | |
| C10 | 808723-2 | CAUTION LABEL | 1 | |
| 029 | 457937-6 | LOOP HANDLE 24 | 1 | |
| 030 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | |
| 031 | 347011-7 | PIPE CLAMP 29 | 1 | |
| 032 | 699157-8 | POWER SUPPLY CORD UNIT | 1 | |
| 034 | 347116-3 | HANGER | 1 | |
| 035 | 922212-4 | HEX. SOCKET HEAD BOLT M5X12 | 1 | |
| 036 | 183R55-9 | GRIP HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 3 | |
| D10 | INC. 44 | |||
| 037 | 140W41-3 | SWITCH CIRCUIT COMPLETE | 1 | |
| C10 | 8007N9-0 | SWITCH LABEL | 1 | |
| 038 | 651494-8 | SWITCH C3JW-1A-PA-2 | 1 | |
| 039 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 040 | 412863-6 | LOCK OFF LEVER | 1 | |
| 041 | 459758-2 | SWITCH LEVER | 1 | |
| 042 | 233622-3 | TORSION SPRING 12 | 1 | |
| 043 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 044 | 183R55-9 | GRIP HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 3 | |
| D10 | INC. 36 | |||
| 045 | 857T44-9 | DUR192L NAME PLATE | 1 | |
| 046 | 620D78-7 | CONTROLLER | 1 | |
| 047 | 857T51-2 | DUR192L SERIAL NO. LABEL | 1 | |
| 048 | 644809-6 | TERMINAL | 1 | |
| A01 | 198892-0 | CUTTER ASSEMBLY 95-M10L SET M | 1 | |
| A02 | 127508-0 | BAND ASS'Y | 1 | |
| A03 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A04 | 195246-2 | SAFETY GOGGLE | 1 | |
| A05B | ***DC18SD | DC18SD BATTERY CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A06B | 197280-8 | BATTERY BL1850B SET | 1 |
