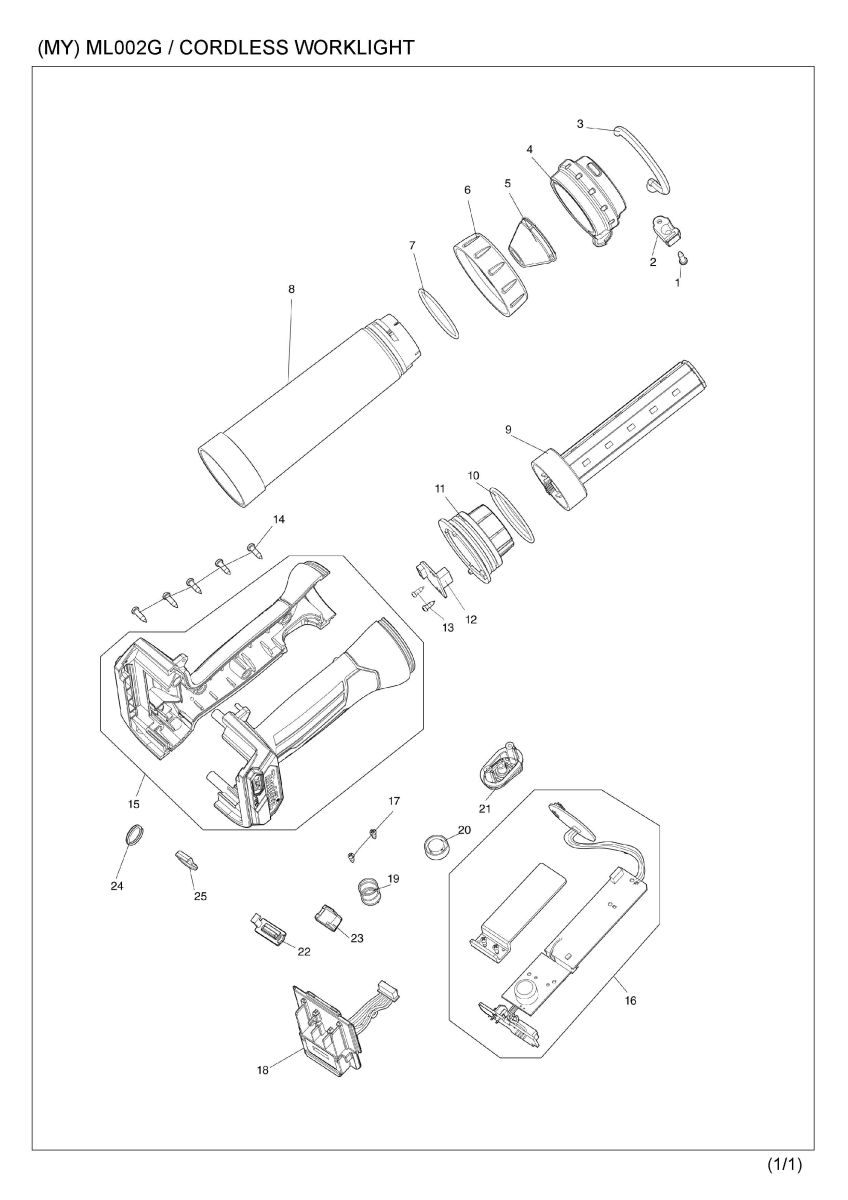

Part Diagram
Total: 26 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | GM00001024 | SCREW 3X12 B0130120202 | 1 | |
| 002 | GM00001472 | HOOK BALL COVER C3020807002 | 1 | |
| 003 | GM00001471 | HOOK ASSY ROS88070000 | 1 | |
| 004 | GM00001470 | BEZEL ASSY ROS88070001 | 1 | |
| 005 | GM00001469 | REFLECTOR ROS88070008 | 1 | |
| 006 | GM00001468 | LOCK RING C0110184004 | 1 | |
| 007 | GM00001467 | O-RING C9820807003 | 1 | |
| 008 | GM00001466 | DIFFUSING CAP ROS88070007 | 1 | |
| 009 | GM00002278 | LED LAMP TUBE ASSY | 1 | |
| 010 | GM00001464 | O-RING (CAP) C9820807004 | 1 | |
| 011 | GM00001463 | LAMP HOLDER C1020807004 | 1 | |
| 012 | GM00001462 | FEMALE SOCKET PCBA ROS88070003 | 1 | |
| 013 | GM00001395 | SCREW 2.6X8PB B0126081102 | 2 | |
| 014 | GM00001024 | SCREW 3X12 B0130120202 | 5 | |
| 015 | GM00002274 | HOUSING ASSY | 1 | |
| 016 | GM00002276 | MAIN PCBA ASSY | 1 | |
| 016-1 | GM00002488 | MAIN +USB PCBA ASSY | 1 | |
| 017 | GM00001395 | SCREW 2.6X8PB B0126081102 | 2 | |
| 018 | GM00002275 | BATTERY HOLDER | 1 | |
| 019 | GM00001689 | METAL SPRING, B1312104021 | 1 | |
| 020 | GM00001690 | PLASTIC SWITCH POST C102010400 | 1 | |
| 021 | GM00001461 | SWITCH HOLDER ASSY ROS88070004 | 1 | |
| 022 | GM00002277 | USB RUBBER COVER | 1 | |
| 023 | GM00002279 | USB SWITCH BUTTON | 1 | |
| 024 | SM00000190 | RING B3103184009 | 1 | |
| 025 | GM00001459 | METAL STRAP HOOK B2808807021 | 1 |
