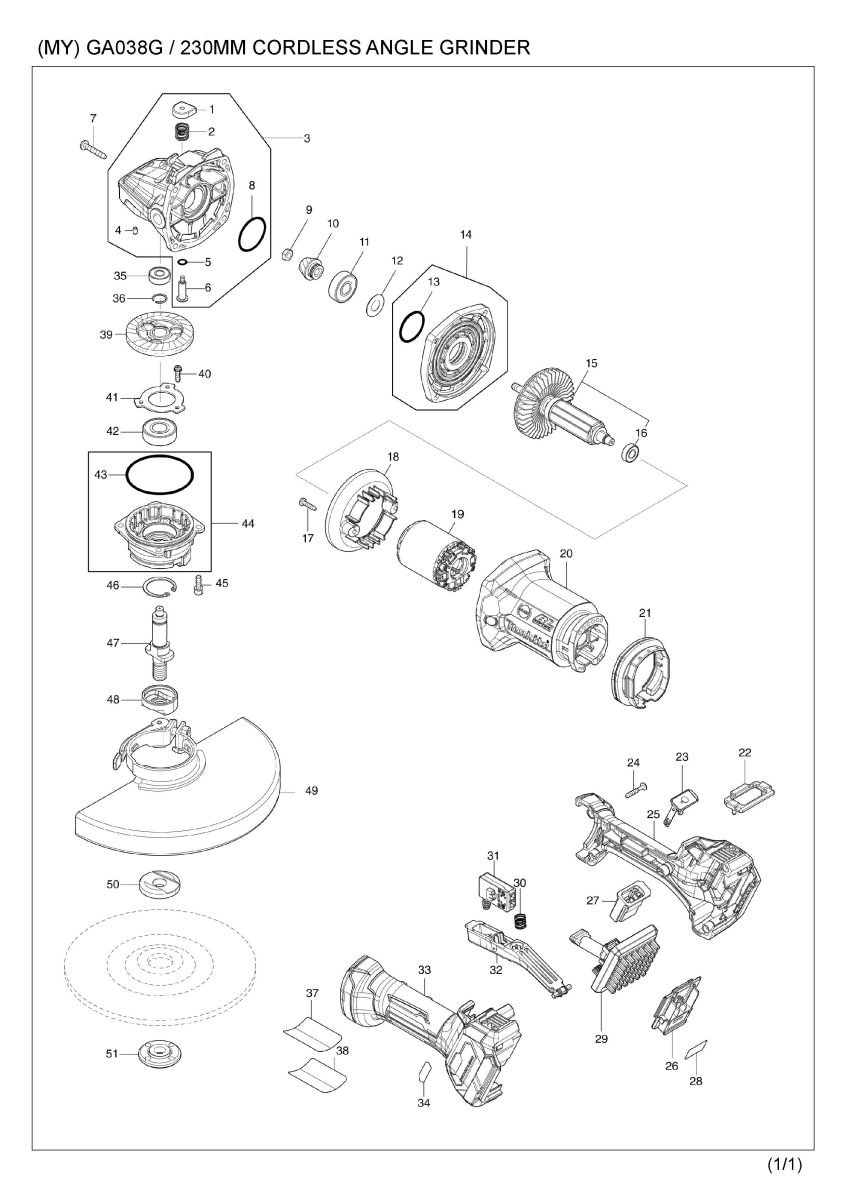

Part Diagram
Total: 81 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 413219-6 | PIN CAP | 1 | |
| 002 | 233292-8 | COMPRESSION SPRING 12 | 1 | |
| 003 | 136365-5 | GEAR HOUSING ASS'Y | 1 | |
| D10 | INC. 1,2,4-6,8 | |||
| 004 | 263002-9 | RUBBER PIN 4 | 1 | |
| 005 | 213026-5 | O RING 7 | 1 | |
| 006 | 256516-5 | SHOULDER PIN 11 | 1 | |
| 007 | 266173-1 | TAPPING SCREW 5X30 | 4 | |
| 008 | 213510-0 | O RING 36 | 1 | |
| 009 | 264010-3 | HEX.NUT M7 | 1 | |
| 010 | 227564-1 | SPIRAL BEVEL GEAR 10A | 1 | |
| 011 | 211137-0 | BALL BEARING 6201LLU | 1 | |
| 012 | 253759-0 | FLAT WASHER 12 | 1 | |
| 013 | 213459-4 | O RING 32 | 1 | |
| 014 | 136363-9 | GEAR HOUSING COVER ASS'Y | 1 | |
| D10 | INC. 13 | |||
| 015 | 519436-7 | ROTOR ASS'Y | 1 | |
| D10 | INC. 16 | |||
| 016 | 211166-3 | BALL BEARING 698DDW | 1 | |
| 017 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 018 | 457618-2 | BAFFLE PLATE | 1 | |
| 019 | 629A38-8 | STATOR | 1 | |
| 020 | 457615-8 | MOTOR HOUSING | 1 | |
| 021 | 457619-0 | VIBRATION PROOF RUBBER | 1 | |
| 022 | 422656-3 | DUST COVER | 1 | |
| 023 | 140F99-0 | CAP COMPLETE | 1 | |
| C10 | 213218-6 | O RING 16 | 1 | |
| C11 | 213A05-9 | O-RING16 | 1 | |
| C20 | 818H07-8 | CAP LABEL | 1 | |
| 024 | 265999-8 | TAPPING SCREW 4X25 | 5 | |
| 025 | 183R97-3 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 33 | |||
| 026 | 632P49-4 | TERMINAL UNIT | 1 | |
| 027 | 413218-8 | CONNECTOR CASE | 1 | |
| 028 | 858B02-0 | GA038G SERIAL NO. LABEL | 1 | |
| 029 | 620E22-0 | CONTROLLER | 1 | |
| 030 | 234357-9 | COMPRESSION SPRING 11 | 1 | |
| 031 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 032 | 140X49-3 | SWITCH LEVER COMPLETE | 1 | |
| 033 | 183R97-3 | HANDLE SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 25 | |||
| 034 | 8012U4-2 | XGT LOGO LABEL | 1 | |
| 035 | 210029-0 | BALL BEARING 608ZZ | 1 | |
| 036 | 233925-5 | RING SPRING 13 | 1 | |
| 037 | 858A96-9 | GA038G NAME PLATE | 1 | |
| 038 | 8026G1-7 | CLEAR LABEL | 1 | |
| 039 | 227562-5 | SPIRAL BEVEL GEAR 38 | 1 | |
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 3 | |
| 041 | 285851-4 | BEARING RETAINER | 1 | |
| 042 | 211241-5 | BALL BEARING 6202DDW | 1 | |
| 043 | 213720-9 | O RING 67 | 1 | |
| 044 | 136364-7 | BEARING BOX ASS'Y | 1 | |
| D10 | INC. 43 | |||
| 045 | 922221-3 | HEX. SOCKET HEAD BOLT M5X16 | 4 | |
| 046 | 962151-6 | RETAINING RING R-32 | 1 | |
| 047 | 326963-5 | SPINDLE | 1 | |
| 048 | 310800-3 | LEAD FLANGE | 1 | |
| 049 | 127714-7 | TOOLLESS WHEEL COVER 230F ASSY | 1 | |
| 050 | 224447-6 | INNER FLANGE 42B | 1 | |
| 051 | 224485-8 | LOCK NUT 14-45 | 1 | |
| A01 | 143486-6 | GRIP 37 COMPLETE | 1 | |
| A02 | 782034-2 | LOCK NUT WRENCH 35 | 1 | |
| A03B | 8027X4-6 | GA038GT201 MODEL NO. LABEL | 1 | |
| A03C | 8027W9-9 | GA038GM201 MODEL NO. LABEL | 1 | |
| A04B | 412393-7 | BATTERY COVER | 2 | |
| A04C | 412393-7 | BATTERY COVER | 2 | |
| A05B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A05C | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A06B | 191L47-8 | BATTERY BL4050F SET | 1 | |
| A07B | 821841-9 | PLASTIC CASE | 1 | |
| C10 | 162271-8 | LATCH | 2 | |
| C20 | 451134-6 | HANDLE | 1 | |
| C30 | 452875-7 | SHAFT | 2 | |
| A07C | 821841-9 | PLASTIC CASE | 1 | |
| C10 | 162271-8 | LATCH | 2 | |
| C20 | 451134-6 | HANDLE | 1 | |
| C30 | 452875-7 | SHAFT | 2 |
