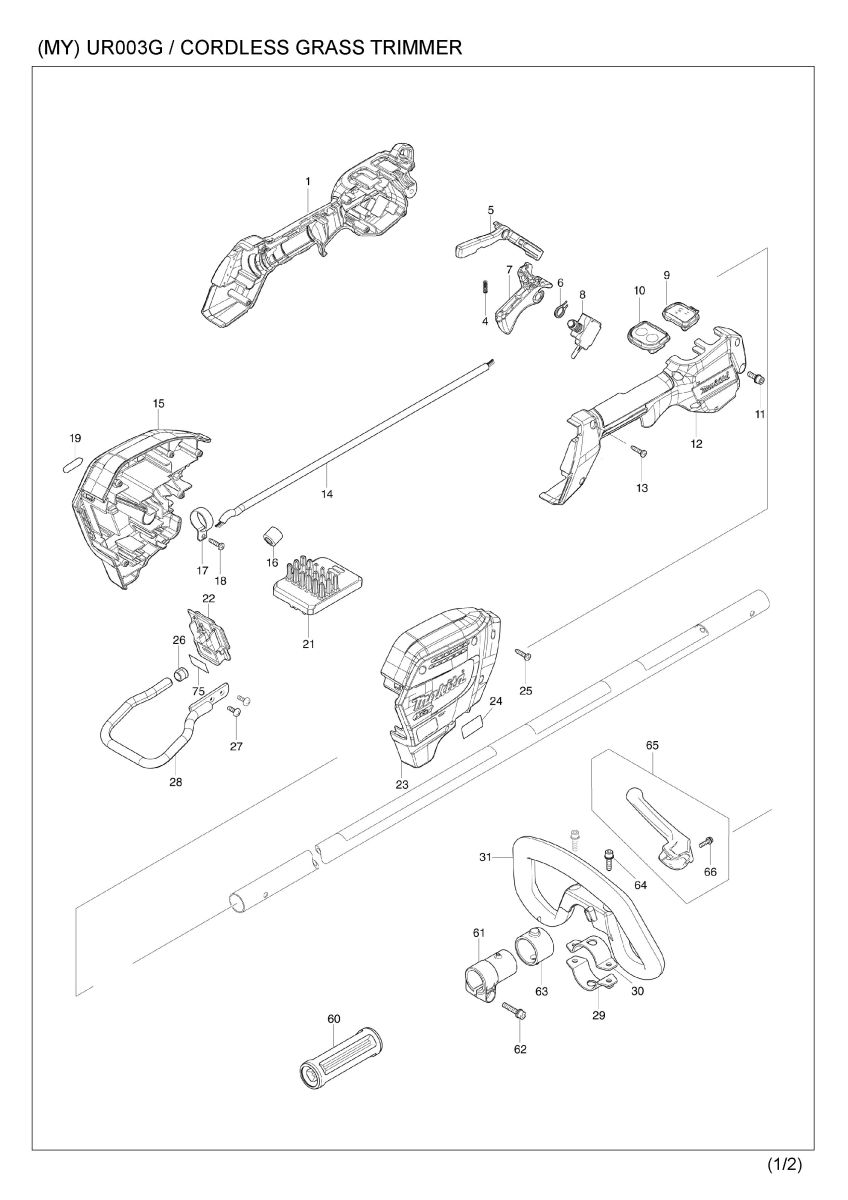

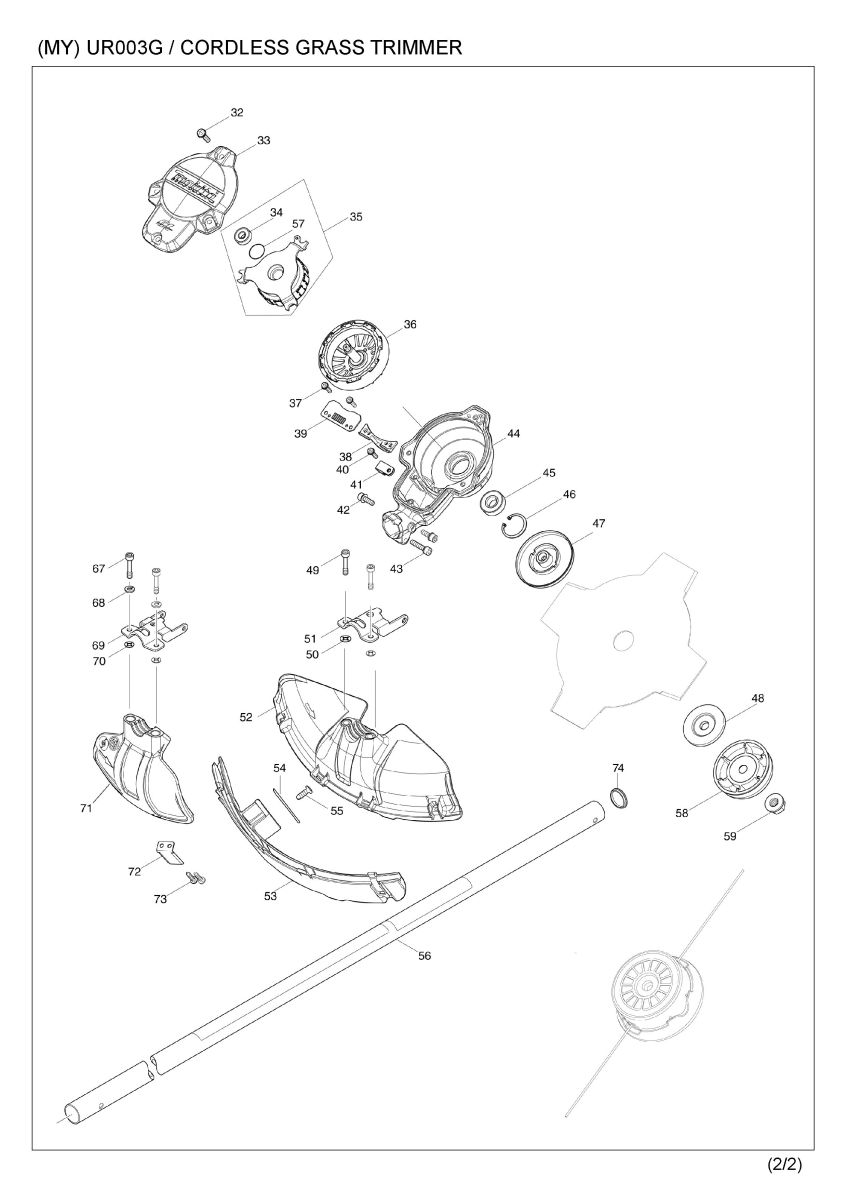

Part Diagram
Total: 98 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183S36-9 | GRIP SET | 1 | |
| 001 | D10 | INC. 12 | ||
| 004 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 005 | 459759-0 | LOCK OFF LEVER | 1 | |
| 006 | 233622-3 | TORSION SPRING 12 | 1 | |
| 007 | 459758-2 | SWITCH LEVER | 1 | |
| 008 | 651492-2 | SWITCH C3JR-1A-PAXD3 | 1 | |
| 009 | 141B31-3 | INDICATION CIRCUIT COMPLETE | 1 | |
| 010 | 140W06-5 | SWITCH CIRCUIT COMPLETE G | 1 | |
| 010 | C10 | 819J26-9 | SWITCH LABEL | 1 |
| 011 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 012 | 183S36-9 | GRIP SET | 1 | |
| 012 | D10 | INC. 1 | ||
| 013 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 014 | 699159-4 | POWER SUPPLY CORD UNIT | 1 | |
| 015 | 183S34-3 | HOUSING SET | 1 | |
| 015 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 015 | D10 | INC. 23 | ||
| 017 | 346248-3 | CLAMP 24 | 1 | |
| 018 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 019 | 8012U4-2 | XGT LOGO LABEL | 1 | |
| 021 | 620E47-4 | CONTROLLER | 1 | |
| 021-1 | 620J66-0 | CONTROLLER | 1 | |
| 021-2 | 620K62-4 | CONTROLLER | 1 | |
| 022 | 632P49-4 | TERMINAL UNIT | 1 | |
| 023 | 183S34-3 | HOUSING SET | 1 | |
| 023 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 023 | D10 | INC. 15 | ||
| 024 | 811A61-9 | UR003G NAME PLATE | 1 | |
| 025 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 026 | 422230-7 | CAP | 1 | |
| 027 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 028 | 347752-5 | BATTERY GUARD | 1 | |
| 029 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 030 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 031 | 457267-5 | LOOP HANDLE | 1 | |
| 031 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 032 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 033 | 413335-4 | TOP COVER | 1 | |
| 034 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 035 | 529146-8 | STATOR ASS'Y | 1 | |
| 035 | D10 | INC. 34,57 | ||
| 035-1 | 520136-4 | STATOR ASS'Y | 1 | |
| 035-1 | D10 | INC. 34,57 | ||
| 035-2 | 520152-6 | STATOR ASS'Y | 1 | |
| 035-2 | D10 | INC. 34,57 | ||
| 036 | 619462-7 | ROTOR | 1 | |
| 037 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 038 | 455628-3 | INNER COVER | 1 | |
| 039 | 620E48-2 | CONTROLLER B | 1 | |
| 039-1 | 620J62-8 | CONTROLLER B | 1 | |
| 040 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 041 | 687042-7 | STRAIN RELIEF | 1 | |
| 042 | 922223-9 | H.S.H.BOLT M5X16 WITH WR | 2 | |
| 043 | 922241-7 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 044 | 141A05-8 | MOTOR HOUSING COMPLETE | 1 | |
| 045 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 046 | 962106-1 | RETAINING RING R-28 | 1 | |
| 047 | 140L84-9 | RECEIVE WASHER COMPLETE G | 1 | |
| 048 | 346084-7 | CLAMP WASHER | 1 | |
| 049 | 266896-1 | HEX. SOCKET HEAD BOLT M5X20 | 2 | |
| 050 | 261156-6 | POLYPROPYLENE WASHER 4 | 2 | |
| 051 | 346785-7 | PROTECTOR CLAMP | 1 | |
| 052 | 413336-2 | PROTECTOR | 1 | |
| 053 | 141A09-0 | PROTECTOR U EXT. 350 COMPLETE | 1 | |
| 054 | 347115-5 | CUTTER | 1 | |
| 055 | 266388-0 | TAPPING SCREW 5X16 | 1 | |
| 056 | 141B05-4 | PIPE COMPLETE O | 1 | |
| 056 | C10 | 819312-8 | MAKITA LOGO LABEL | 1 |
| 056 | C20 | 819J22-7 | CAUTION LABEL | 1 |
| 057 | 213325-5 | O RING 19 | 1 | |
| 058 | 168526-9 | CUP | 1 | |
| 059 | 264025-0 | HEX. NUT M10-17 | 1 | |
| 060 | 451601-1 | SPACER 24 | 1 | |
| 061 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 062 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 063 | 424942-8 | DAMPER | 1 | |
| 064 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 065 | 144315-6 | BARRIER COMPLETE | 1 | |
| 065 | D10 | INC. 66 | ||
| 066 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 074 | 422727-6 | RUBBER CAP 24 | 1 | |
| 075 | 811A67-7 | UR003G SERIAL NO. LABEL | 1 | |
| A01 | 127508-0 | BAND ASS'Y | 1 | |
| A02 | 198892-0 | CUTTER ASSEMBLY 95-M10L SET M | 1 | |
| A03 | 783013-3 | BOX DRIVER 16-17 | 1 | |
| A04 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A05 | 831304-7 | ACCESSORY BAG | 1 | |
| A09 | 195246-2 | SAFETY GOGGLE | 1 | |
| F09 | 197472-9 | NYLON CORD 2.0-15M SET | 1 | |
| F10 | 197473-7 | NYLON CORD 2.0-30M SET | 1 | |
| F11 | 197474-5 | NYLON CORD 2.0-160M SET | 1 | |
| F12 | 197475-3 | NYLON CORD 2.0-280M SET | 1 | |
| F17 | 198502-9 | NYLON CORD 2.4-30M SET | 1 | |
| F18 | 198503-7 | NYLON CORD 2.4-120M SET | 1 | |
| F19 | 198504-5 | NYLON CORD 2.4-180M SET | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
