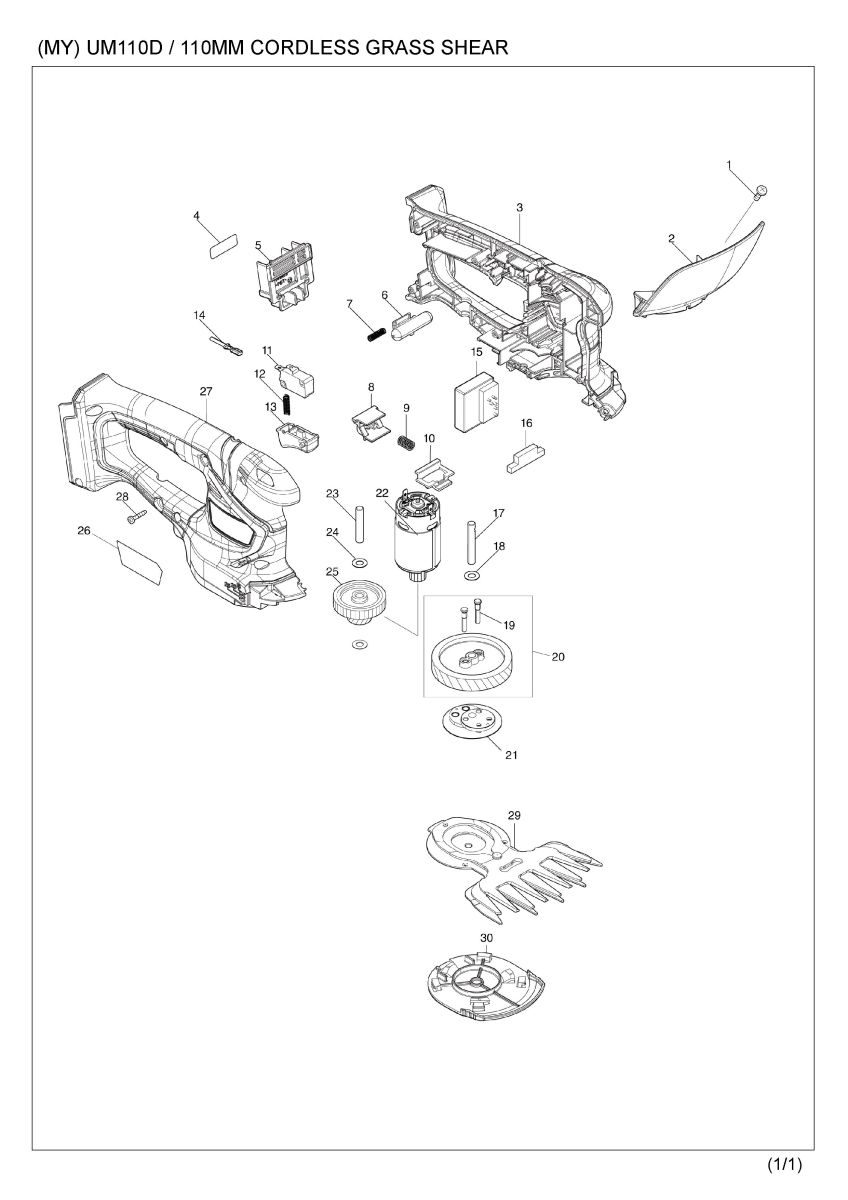

Part Diagram
Total: 62 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 915116-7 | BINDING HEAD SCREW M4X12 | 1 | |
| 002 | 141C31-9 | PROTECTER COMPLETE | 1 | |
| C10 | 8030K3-8 | CAUTION LABEL | 1 | |
| 002-1 | 140V97-0 | PROTECTOR COMPLETE | 1 | |
| C10 | 819948-3 | CAUTION LABEL | 1 | |
| 003 | 183G07-4 | HOUSING SET | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| C20 | 346275-0 | PLATE | 2 | |
| D10 | INC. 27 | |||
| 003-1 | 183U49-2 | HOUSING SET | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| C20 | 346275-0 | PLATE | 2 | |
| D10 | INC. 27 | |||
| 004 | 811935-8 | UM110D SERIAL NO. LABEL | 1 | |
| 005 | 643862-9 | TERMINAL | 1 | |
| 006 | 452438-9 | LOCK OFF BUTTON | 1 | |
| 006-1 | 413A16-6 | LOCK OFF BUTTON | 1 | |
| 007 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 008 | 454878-7 | SLIDE PLATE | 1 | |
| 009 | 234339-1 | COMPRESSION SPRING 6 | 1 | |
| 010 | 454879-5 | LOCK LEVER | 1 | |
| 011 | 650744-8 | SWITCH D3V-16-3C26 | 1 | |
| 012 | 231473-8 | COMPRESSION SPRING 4 | 1 | |
| 013 | 417564-1 | SWITCH LEVER | 1 | |
| 014 | 632S19-1 | LEAD UNIT | 1 | |
| 015 | 620E39-3 | CONTROLLER | 1 | |
| 016 | 451814-4 | DUST GUARD | 1 | |
| 017 | 268254-7 | PIN 6 | 1 | |
| 018 | 253715-0 | FLAT WASHER 6 | 1 | |
| 019 | 268256-3 | PIN 4 | 2 | |
| 020 | 135883-0 | HELICAL GEAR 47 ASS'Y | 1 | |
| D10 | INC. 19 | |||
| 021 | 161598-3 | CRANK COMPLETE | 1 | |
| 022 | 629943-3 | DC MOTOR | 1 | |
| 023 | 268076-5 | PIN 6 | 1 | |
| 024 | 253715-0 | FLAT WASHER 6 | 2 | |
| 025 | 226831-1 | GEAR 12-31 | 1 | |
| 026 | 811932-4 | UM110D NAME PLATE | 1 | |
| 027 | 183G07-4 | HOUSING SET | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| C20 | 346275-0 | PLATE | 2 | |
| D10 | INC. 3 | |||
| 027-1 | 183U49-2 | HOUSING SET | 1 | |
| C10 | 931102-0 | HEX. NUT M4 | 1 | |
| C20 | 346275-0 | PLATE | 2 | |
| D10 | INC. 3 | |||
| 028 | 266429-2 | TAPPING SCREW 3X16 | 6 | |
| 029 | 191N23-4 | SHEAR BLADE ASSEMBLY 110 SET | 1 | |
| C10 | 188369-3 | OIL VESSEL SET | 1 | |
| 029-1 | 191N23-4 | SHEAR BLADE ASSEMBLY 110 SET | 1 | |
| C10 | 188369-3 | OIL VESSEL SET | 1 | |
| 030 | 140451-6 | UNDER COVER COMPLETE | 1 | |
| A01 | 191N24-2 | SHEAR BLADE ASSEMBLY 200S SET | 1 | |
| C10 | 188369-3 | OIL VESSEL SET | 1 | |
| A02 | 413885-9 | BLADE COVER 110 | 1 | |
| A03 | 413429-5 | STORAGE COVER | 1 | |
| A04 | 458342-0 | BLADE COVER | 1 | |
| A05 | 452652-7 | BATTERY COVER | 1 | |
| A06 | ***DC18WA | DC18WA BATTRY CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A07 | 191B96-5 | BATTERY BL1815G SET | 1 | |
| A07-1 | 198186-3 | BATTERY BL1815G SET | 1 |
