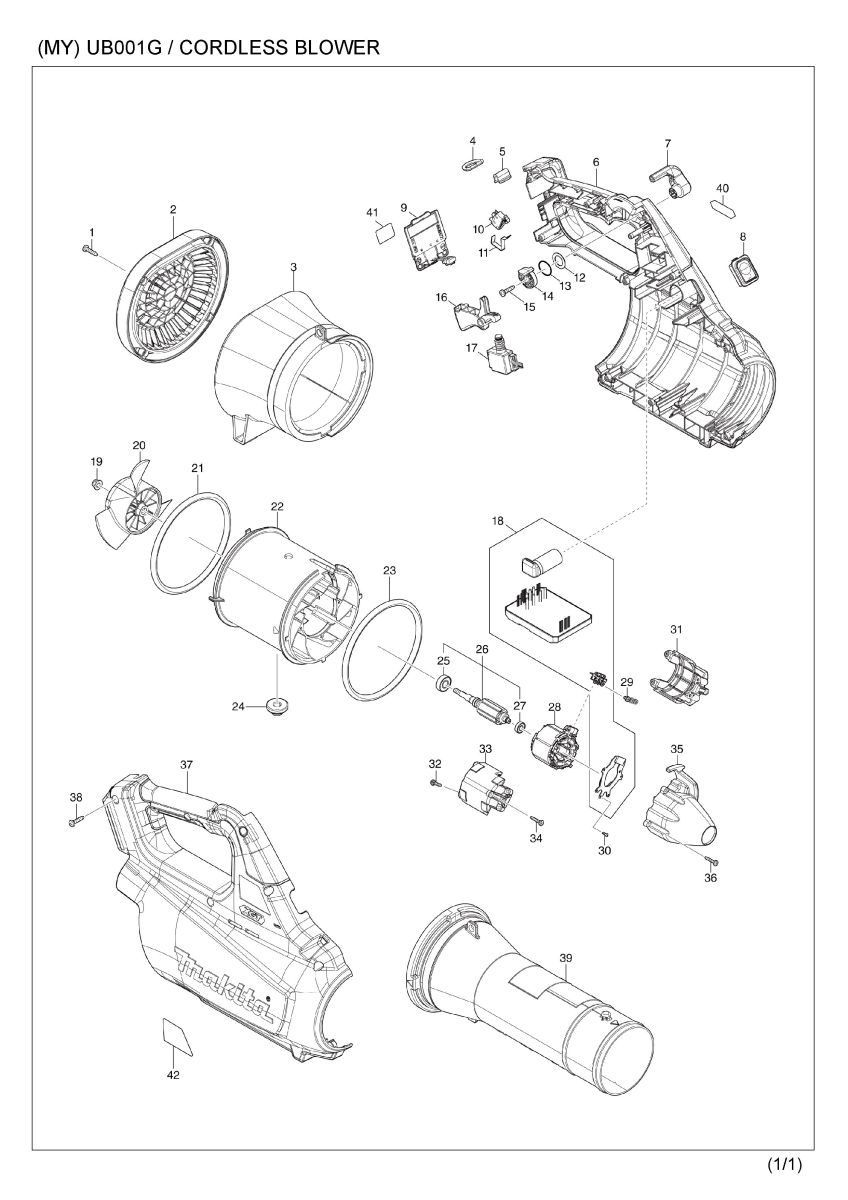

Part Diagram
Total: 80 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 002 | 413368-9 | REAR COVER | 1 | |
| 003 | 140Y68-5 | REAR HOUSING COMPLETE | 1 | |
| 003 | C10 | 422668-6 | SPONGE | 4 |
| 003-1 | 122C63-5 | REAR HOUSING ASSEMBLY | 1 | |
| 003-1 | C10 | 422668-6 | SPONGE | 4 |
| 003-1 | D10 | INC. 1 | ||
| 004 | 327742-4 | D RING 20 | 1 | |
| 005 | 347783-4 | RING SUPPORT | 1 | |
| 006 | 183T07-2 | HOUSING SET | 1 | |
| 006 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 006 | C20 | 8011Y4-4 | CAUTION LABEL | 1 |
| 006 | D10 | INC. 37 | ||
| 006-1 | 1831D3-4 | HOUSING SET | 1 | |
| 006-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 006-1 | C20 | 8012T7-9 | CAUTION LABEL | 1 |
| 006-1 | D10 | INC. 37 | ||
| 007 | 412755-9 | CONTROL LEVER | 1 | |
| 008 | 140X08-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 008 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 009 | 632P65-6 | TERMINAL UNIT | 1 | |
| 010 | 632L48-2 | SWITCH UNIT | 1 | |
| 011 | 232634-3 | LEAF SPRING | 1 | |
| 012 | 253798-0 | FLAT WASHER 13 | 1 | |
| 013 | 213154-6 | O RING 14 | 1 | |
| 014 | 412754-1 | LINK | 1 | |
| 015 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 016 | 412756-7 | SWITCH LEVER | 1 | |
| 017 | 651496-4 | SWITCH C3JR-1AT-PAXD3 | 1 | |
| 018 | 620E14-9 | CONTROLLER | 1 | |
| 019 | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 020 | 240177-1 | FAN 110 | 1 | |
| 021 | 424721-4 | RUBBER RING 115 | 1 | |
| 022 | 413366-3 | FAN HOUSING | 1 | |
| 023 | 424721-4 | RUBBER RING 115 | 1 | |
| 024 | 424194-1 | RUBBER RING 8 | 1 | |
| 025 | 210040-2 | BALL BEARING 698LLU | 1 | |
| 026 | 519580-0 | ROTOR ASS'Y | 1 | |
| 026 | D10 | INC. 25,27 | ||
| 027 | 211157-4 | BALL BEARING 695ZZ | 1 | |
| 028 | 629A49-3 | STATOR | 1 | |
| 029 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 030 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 031 | 183M64-8 | MOTOR HOUSING SET | 1 | |
| 031 | D10 | INC. 33 | ||
| 032 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 033 | 183M64-8 | MOTOR HOUSING SET | 1 | |
| 033 | D10 | INC. 31 | ||
| 034 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 035 | 413365-5 | CAP | 1 | |
| 036 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 037 | 183T07-2 | HOUSING SET | 1 | |
| 037 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 037 | C20 | 8011Y4-4 | CAUTION LABEL | 1 |
| 037 | D10 | INC. 6 | ||
| 037-1 | 1831D3-4 | HOUSING SET | 1 | |
| 037-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 037-1 | C20 | 8012T7-9 | CAUTION LABEL | 1 |
| 037-1 | D10 | INC. 6 | ||
| 038 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 039 | 413367-1 | FRONT PIPE | 1 | |
| 040 | 8030S0-0 | XGT LOGO LABEL | 1 | |
| 041 | 811D71-4 | UB001G SERIAL NO. LABEL | 1 | |
| 042 | 811D64-1 | UB001G NAME PLATE | 1 | |
| A01 | 166094-6 | SHOULDER BELT | 1 | |
| A02 | 412758-3 | END NOZZLE 80 | 1 | |
| A02-1 | 191P97-7 | END NOZZLE 80 SET | 1 | |
| A03 | 191L96-5 | ADAPTER PIPE 85-72 SET | 1 | |
| A04 | 183P97-1 | EXTENSION NOZZLE SET | 1 | |
| A04-1 | 197888-8 | EXTENSION NOZZLE SET | 1 | |
| A05 | 183P98-9 | FLAT NOZZLE SET | 1 | |
| A05-1 | 197889-6 | FLAT NOZZLE SET | 1 | |
| A06B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 412393-7 | BATTERY COVER | 1 | |
| A08B | 191B26-6 | BATTERY BL4040 SET | 1 | |
| F02 | 191B03-8 | GUTTER NOZZLE SET | 1 | |
| F03 | 191L96-5 | ADAPTER PIPE 85-72 SET | 1 | |
| F05 | 197888-8 | EXTENSION NOZZLE SET | 1 | |
| F06 | 197889-6 | FLAT NOZZLE SET | 1 |
