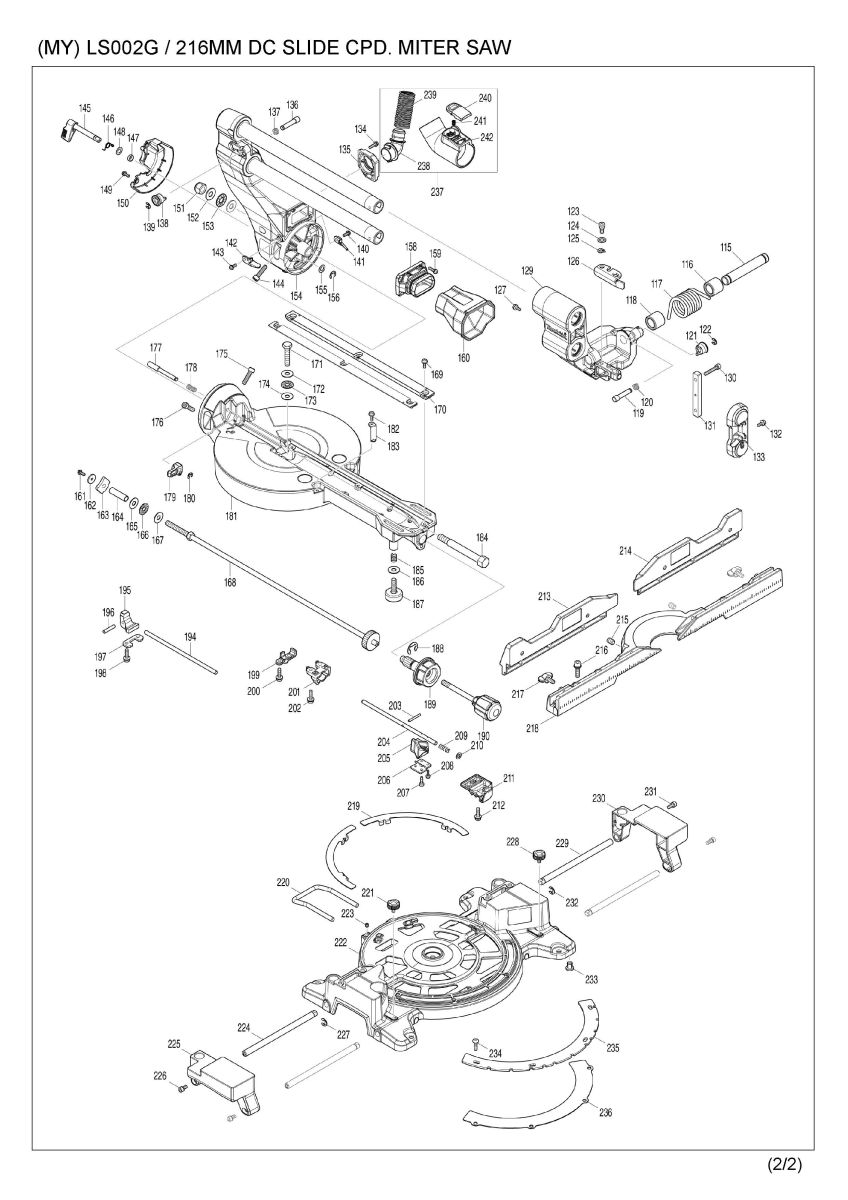

Part Diagram
Total: 268 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266192-7 | TAPPING SCREW 4X14 | 1 | |
| 003 | 412933-1 | SAFETY COVER | 1 | |
| 003-1 | 412933-1 | SAFETY COVER | 1 | |
| 004 | 265985-9 | HEX.SOCKET HEAD BOLT M6 | 1 | |
| 005 | 232311-7 | TORSION SPRING 30 | 1 | |
| 006 | 210150-5 | BALL BEARING 6803DDW | 1 | |
| 007 | 266732-1 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 008 | 347731-3 | CENTER COVER | 1 | |
| 009 | 347059-9 | CENTER PLATE | 1 | |
| 010 | 266733-9 | HEX. S.F.H. BOLT M6X16 | 1 | |
| 011 | 224275-9 | OUTER FLANGE 40 | 1 | |
| 012 | 224614-3 | INNER FLANGE 40 | 1 | |
| 013 | 327697-3 | SPINDLE | 1 | |
| 014 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 015 | 285043-5 | BEARING RETAINER 52 | 1 | |
| 016 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 017 | 312A44-7 | BEARING BOX | 1 | |
| 018 | 422652-1 | GASKET | 1 | |
| 019 | 227838-0 | HELICAL GEAR 43 | 1 | |
| 020 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 021 | 210006-2 | BALL BEARING 696ZZ | 1 | |
| 022 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 023 | 227837-2 | HELICAL GEAR 30 | 1 | |
| 024 | 254011-9 | WOODRUFF KEY 4 | 1 | |
| 025 | 227836-4 | SPIRAL BEVEL GEAR 33 | 1 | |
| 026 | 253744-3 | FLAT WASHER 12 | 1 | |
| 027 | 261104-5 | RUBBER WASHER 12 | 1 | |
| 028 | 253744-3 | FLAT WASHER 12 | 1 | |
| 029 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 030 | 211021-9 | BALL BEARING 607LLB | 1 | |
| 031 | 424605-6 | RUBBER RING 19 | 1 | |
| 032 | 261153-2 | URETHAN WASHER 15 | 1 | |
| 033 | 961018-5 | STOP RING E-5 | 1 | |
| 034 | 253804-1 | FLAT WASHER 6 | 1 | |
| 035 | 257163-5 | RING 6 | 1 | |
| 036 | 140W98-4 | LINK PLATE COMPLETE | 1 | |
| 040 | 140W84-5 | BLADE CASE COMPLETE | 1 | |
| 040 | C10 | 263002-9 | RUBBER PIN 4 | 3 |
| 040 | C20 | 422724-2 | CUSHION | 1 |
| 040 | C30 | 322316-6 | LINK SHAFT | 1 |
| 041 | 422651-3 | GUARD | 1 | |
| 042 | 345438-5 | GUARD PLATE | 1 | |
| 043 | 911119-9 | PAN HEAD SCREW M4X12 | 1 | |
| 044 | 257785-1 | SLEEVE 6 | 1 | |
| 045 | 922226-3 | HEX. SOCKET HEAD BOLT M5X18 | 1 | |
| 046 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 047 | 458075-7 | LEAD COVER | 1 | |
| 050 | 140X03-7 | LENS COMPLETE | 1 | |
| 051 | 266421-8 | TAPPING SCREW 3X10 | 1 | |
| 052 | 620E07-6 | LED CIRCUIT | 1 | |
| 053 | 141A59-5 | LED COVER COMPLETE | 1 | |
| 053 | C10 | 8024V4-4 | CAUTION LABEL | 1 |
| 053 | C20 | 931102-0 | HEX. NUT M4 | 1 |
| 054 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 066 | 231240-1 | COMPRESSION SPRING 7 | 1 | |
| 067 | 256633-1 | PIN 6 | 1 | |
| 068 | 231928-3 | RING SPRING 8 | 1 | |
| 069 | 519649-0 | ROTOR ASS'Y | 1 | |
| 069 | D10 | INC. 70,71 | ||
| 070 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 071 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 072 | 8024V5-2 | XGT LOGO LABEL | 1 | |
| 073 | 942151-2 | SPRING WASHER 6 | 1 | |
| 074 | 253842-3 | FLAT WASHER 14 | 1 | |
| 075 | 261153-2 | URETHAN WASHER 15 | 1 | |
| 076 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 077 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 079 | 140F99-0 | CAP COMPLETE | 1 | |
| 079 | C10 | 213218-6 | O RING 16 | 1 |
| 079 | C11 | 213A05-9 | O-RING16 | 1 |
| 079 | C20 | 818H07-8 | CAP LABEL | 1 |
| 080 | 459933-0 | BAFFLE PLATE | 1 | |
| 081 | 629A26-5 | STATOR | 1 | |
| 082 | 412926-8 | MOTOR HOUSING | 1 | |
| 083 | 858A05-8 | LS002G NAME PLATE | 1 | |
| 084 | 911278-9 | PAN HEAD SCREW M5X55 | 4 | |
| 086 | 256123-4 | PIN 5 | 1 | |
| 087 | 140X02-9 | SWITCH PLATE COMPLETE | 1 | |
| 087 | C10 | 8024V3-6 | SWITCH LABEL | 1 |
| 088 | 631973-2 | SWITCH UNIT | 1 | |
| 089 | 911268-2 | PAN HEAD SCREW M5X45 | 1 | |
| 090 | 417113-4 | SWITCH BUTTON | 1 | |
| 091 | 183R96-5 | HANDLE SET | 1 | |
| 091 | D10 | INC. 99 | ||
| 092 | 632P64-8 | TERMINAL UNIT | 1 | |
| 093 | 620E06-8 | CONTROLLER | 1 | |
| 094 | 231026-3 | COMPRESSION SPRING 4 | 1 | |
| 095 | 416533-9 | LOCK OFF LEVER | 1 | |
| 096 | 459966-5 | SWITCH LEVER | 1 | |
| 097 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 098 | 620E08-4 | POWER SUPPLY CIRCUIT | 1 | |
| 099 | 183R96-5 | HANDLE SET | 1 | |
| 099 | D10 | INC. 91 | ||
| 100 | 265995-6 | TAPPING SCREW 4X18 | 6 | |
| 101 | 265995-6 | TAPPING SCREW 4X18 | 3 | |
| 102 | 183R92-3 | BATTERY HOUSING SET | 1 | |
| 102 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 102 | D10 | INC. 105 | ||
| 103 | 459250-8 | DUST NOZZLE | 1 | |
| 104 | 858A11-3 | LS002G SERIAL NO. LABEL | 1 | |
| 105 | 183R92-3 | BATTERY HOUSING SET | 1 | |
| 105 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 105 | D10 | INC. 102 | ||
| 106 | 257163-5 | RING 6 | 1 | |
| 107 | 253804-1 | FLAT WASHER 6 | 1 | |
| 108 | 922331-6 | HEX. SOCKET HEAD BOLT M6X20 | 1 | |
| 109 | 265484-1 | H.S.BUTTON HEAD SCREW M6X17 | 1 | |
| 110 | 265B58-0 | HEX SOCKET HEAD BOLT M6X45 | 1 | |
| 111 | 941152-7 | FLAT WASHER 6 | 1 | |
| 112 | 233343-7 | COMPRESSION SPRING 7 | 1 | |
| 113 | 266757-5 | HEX. SOCKET HEAD BOLT M6X16 | 1 | |
| 114 | 266321-2 | H.S.SET SCREW(FLAT POINT)M6X16 | 1 | |
| 115 | 327710-7 | ROD 16 | 1 | |
| 116 | 416905-8 | SLEEVE 17-23 | 1 | |
| 117 | 231685-3 | TORSION SPRING 29 | 1 | |
| 117-1 | 232772-1 | TORSION SPRING 29 | 1 | |
| 118 | 416905-8 | SLEEVE 17-23 | 1 | |
| 119 | 327702-6 | LOCK PIN 7-9 | 1 | |
| 120 | 234316-3 | COMPRESSION SPRING 7 | 1 | |
| 121 | 271428-1 | KNOB 20 | 1 | |
| 122 | 961018-5 | STOP RING E-5 | 1 | |
| 123 | 251267-5 | + PAN HEAD SCREW M6 | 1 | |
| 124 | 253215-0 | FLAT WASHER 8 | 1 | |
| 125 | 253948-7 | WAVE WASHER 8 | 1 | |
| 126 | 344643-1 | STOPPER ARM | 1 | |
| 127 | 911119-9 | PAN HEAD SCREW M4X12 | 2 | |
| 129 | 140W83-7 | FRONT ARM COMPLETE | 1 | |
| 129 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 129-1 | 1410J3-6 | FRONT ARM COMPLETE | 1 | |
| 129-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 130 | 922251-4 | HEX. SOCKET HEAD BOLT M5X30 | 2 | |
| 131 | 327705-0 | SQUARE ROD | 1 | |
| 132 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 133 | 412938-1 | RAIL HOLDER | 1 | |
| 134 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 135 | 412947-0 | INLET | 1 | |
| 136 | 327702-6 | LOCK PIN 7-9 | 1 | |
| 137 | 234316-3 | COMPRESSION SPRING 7 | 1 | |
| 138 | 271428-1 | KNOB 20 | 1 | |
| 139 | 961018-5 | STOP RING E-5 | 1 | |
| 140 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 141 | 412943-8 | INDICATION PLATE R | 1 | |
| 142 | 412942-0 | INDICATION PLATE L | 1 | |
| 143 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 144 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 145 | 271466-3 | LEVER 30 | 1 | |
| 146 | 232651-3 | TORSION SPRING 8 | 1 | |
| 147 | 257848-3 | RING 8 | 1 | |
| 148 | 253215-0 | FLAT WASHER 8 | 1 | |
| 149 | 911118-1 | PAN HEAD SCREW M4X12 | 2 | |
| 150 | 412934-9 | ARM COVER | 1 | |
| 150-1 | 141G28-2 | ARM COVER COMPLETE | 1 | |
| 150-1 | C10 | 8024V1-0 | INDICATION LABEL | 1 |
| 151 | 252130-5 | HEX. LOCK NUT M10-17 | 1 | |
| 152 | 253024-7 | FLAT WASHER 10 | 2 | |
| 153 | 216413-7 | THRUST NEEDLE CAGE 1024 | 1 | |
| 154 | 140W82-9 | ARM COMPLETE | 1 | |
| 154 | C10 | 8024V1-0 | INDICATION LABEL | 1 |
| 154-1 | 141F27-8 | ARM COMPLETE | 1 | |
| 155 | 253215-0 | FLAT WASHER 8 | 1 | |
| 156 | 961013-5 | STOP RING E-7 | 1 | |
| 158 | 412944-6 | DUST GUIDE HOLDER | 1 | |
| 159 | 911128-8 | P.H.SCREW M4X16 WITH WR | 4 | |
| 160 | 422648-2 | DUST GUIDE | 1 | |
| 161 | 911118-1 | PAN HEAD SCREW M4X12 | 1 | |
| 162 | 253400-5 | FLAT WASHER 4 | 1 | |
| 163 | 347759-1 | LOCK PLATE | 1 | |
| 164 | 257849-1 | SLEEVE 8 | 1 | |
| 165 | 253731-2 | FLAT WASHER 8 | 1 | |
| 166 | 216415-3 | THRUST NEEDLE CAGE 821 | 1 | |
| 167 | 253731-2 | FLAT WASHER 8 | 1 | |
| 168 | 162942-7 | LOCK SHAFT COMPLETE | 1 | |
| 169 | 911119-9 | PAN HEAD SCREW M4X12 | 6 | |
| 170 | 412940-4 | KERF BOARD | 2 | |
| 170-1 | 413C45-1 | KERF BOARD | 2 | |
| 171 | 265442-7 | HEX. BOLT M8X40 | 1 | |
| 172 | 253731-2 | FLAT WASHER 8 | 1 | |
| 173 | 216415-3 | THRUST NEEDLE CAGE 821 | 1 | |
| 174 | 253731-2 | FLAT WASHER 8 | 1 | |
| 175 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 176 | 251582-7 | HEX SOCKET HEAD BOLT M6X25 | 1 | |
| 177 | 327704-2 | STOPPER ROD | 1 | |
| 178 | 234122-6 | COMPRESSION SPRING 6 | 1 | |
| 179 | 271465-5 | LEVER 24 | 1 | |
| 180 | 961018-5 | STOP RING E-5 | 1 | |
| 181 | 140W81-1 | TURN BASE COMPLETE | 1 | |
| 181 | C10 | 8024U7-1 | BEVEL SCALE LABEL | 1 |
| 181 | C20 | 8024U8-9 | INDICATION LABEL | 1 |
| 181 | C30 | 812X85-6 | CAUTION LABEL | 1 |
| 181 | C40 | 813L22-1 | CAUTION LABEL | 2 |
| 182 | 911119-9 | PAN HEAD SCREW M4X12 | 1 | |
| 183 | 459928-3 | INDICATION PLATE | 1 | |
| 184 | 327698-1 | CENTER SHAFT | 1 | |
| 185 | 231418-6 | COMPRESSION SPRING 9 | 1 | |
| 186 | 253731-2 | FLAT WASHER 8 | 1 | |
| 187 | 266432-3 | ADJUST BOLT M8X27 | 1 | |
| 188 | 961062-2 | STOP RING E-12 | 1 | |
| 189 | 271464-7 | GRIP 46 | 1 | |
| 190 | 271463-9 | GRIP 38 | 1 | |
| 194 | 327700-0 | LOCK ROD 6 | 1 | |
| 195 | 313326-4 | TURN STOPPER | 1 | |
| 196 | 256186-0 | PIN 5 | 1 | |
| 197 | 347601-6 | STOPPER HOLDER | 1 | |
| 198 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 199 | 312A46-3 | PIN HOLDER | 1 | |
| 200 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 201 | 412941-2 | LEAD BLOCK | 1 | |
| 202 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 203 | 256267-0 | PIN 3 | 1 | |
| 204 | 327701-8 | LOCK PIN 6 | 1 | |
| 205 | 412939-9 | LEVER 38 | 1 | |
| 206 | 347760-6 | LEVER PLATE | 1 | |
| 207 | 266192-7 | TAPPING SCREW 4X14 | 1 | |
| 208 | 911013-5 | PAN HEAD SCREW M3X10 | 2 | |
| 209 | 233201-7 | COMPRESSION SPRING 6 | 1 | |
| 210 | 941152-7 | FLAT WASHER 6 | 1 | |
| 211 | 312A45-5 | GEAR COVER | 1 | |
| 212 | 911233-1 | PAN HEAD SCREW M5X20 | 2 | |
| 213 | 140W85-3 | UPPER FENCE L COMPLETE | 1 | |
| 213 | C10 | 810503-4 | CAUTION LABEL | 1 |
| 214 | 140W86-1 | UPPER FENCE R COMPLETE | 1 | |
| 214 | C10 | 810503-4 | CAUTION LABEL | 1 |
| 215 | 266089-0 | H.S.SET SCREW(FLAT POINT)M8X12 | 2 | |
| 215-1 | 265C19-6 | H.S.SET SCREW(FLAT POINT)M8X12 | 2 | |
| 216 | 922344-7 | H.S.H.BOLT M6X25 WITH WG | 4 | |
| 217 | 265701-9 | THUMB SCREW M6X14 | 2 | |
| 218 | 312A38-2 | GUIDE FENCE | 1 | |
| 219 | 347758-3 | SLIDE PLATE | 2 | |
| 220 | 327706-8 | BASE SUPPORTER | 1 | |
| 221 | 265785-7 | THUMB SCREW M5X10 | 1 | |
| 222 | 140W80-3 | BASE COMPLETE | 1 | |
| 222 | C10 | 810486-8 | CAUTION LABEL | 1 |
| 223 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X6 | 1 | |
| 224 | 327703-4 | ROD 10 | 2 | |
| 225 | 312A42-1 | SUB BASE L | 1 | |
| 226 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 2 | |
| 227 | 961013-5 | STOP RING E-7 | 1 | |
| 228 | 265785-7 | THUMB SCREW M5X10 | 1 | |
| 229 | 327703-4 | ROD 10 | 2 | |
| 230 | 312A43-9 | SUB BASE R | 1 | |
| 231 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 2 | |
| 232 | 961013-5 | STOP RING E-7 | 1 | |
| 233 | 286044-6 | CAP 13 | 4 | |
| 234 | 251546-1 | + PAN HEAD SCREW M5 | 4 | |
| 235 | 347756-7 | MITER SCALE PLATE | 1 | |
| 236 | 347757-5 | MITER LOCK PLATE | 1 | |
| 237 | 127692-1 | DUST NOZZLE ASSEMBLY | 1 | |
| 237 | D10 | INC. 238-242 | ||
| 238 | 412945-4 | HOSE CONNECTOR | 1 | |
| 239 | 245062-3 | HOSE 20-0.4 | 1 | |
| 240 | 458939-5 | BUTTON A | 1 | |
| 241 | 232485-4 | COMPRESSION SPRING 5 | 1 | |
| 242 | 412946-2 | HOSE JOINT | 1 | |
| A01 | 127693-9 | VISE ASSEMBLY | 1 | |
| A01 | C10 | 312A56-0 | VISE ARM | 1 |
| A01 | C20 | 265785-7 | THUMB SCREW M5X10 | 1 |
| A01 | C30 | 327707-6 | VISE ROD | 1 |
| A01 | C40 | 265B61-1 | THUMB SCREW M10X70 | 1 |
| A01 | C50 | 253804-1 | FLAT WASHER 6 | 1 |
| A01 | C60 | 343651-9 | VISE PLATE | 1 |
| A01 | C70 | 251370-2 | + PAN HEAD SCREW M5 | 1 |
| A02 | 127512-9 | DUST BAG ASSEMBLY | 1 | |
| A02 | C10 | 412411-1 | FASTENER | 1 |
| A03 | 762001-3 | TRIANGULAR RULE | 1 | |
| A05 | 783022-2 | HEX. WRENCH 5 | 1 | |
| A06 | E-07010 | EFFICUT FOR WOOD CUTTING/ GENE | 1 | |
| F03 | 198687-1 | STAND SET | 1 | |
| F04 | 198688-9 | STAND SET | 1 |
Back Download
