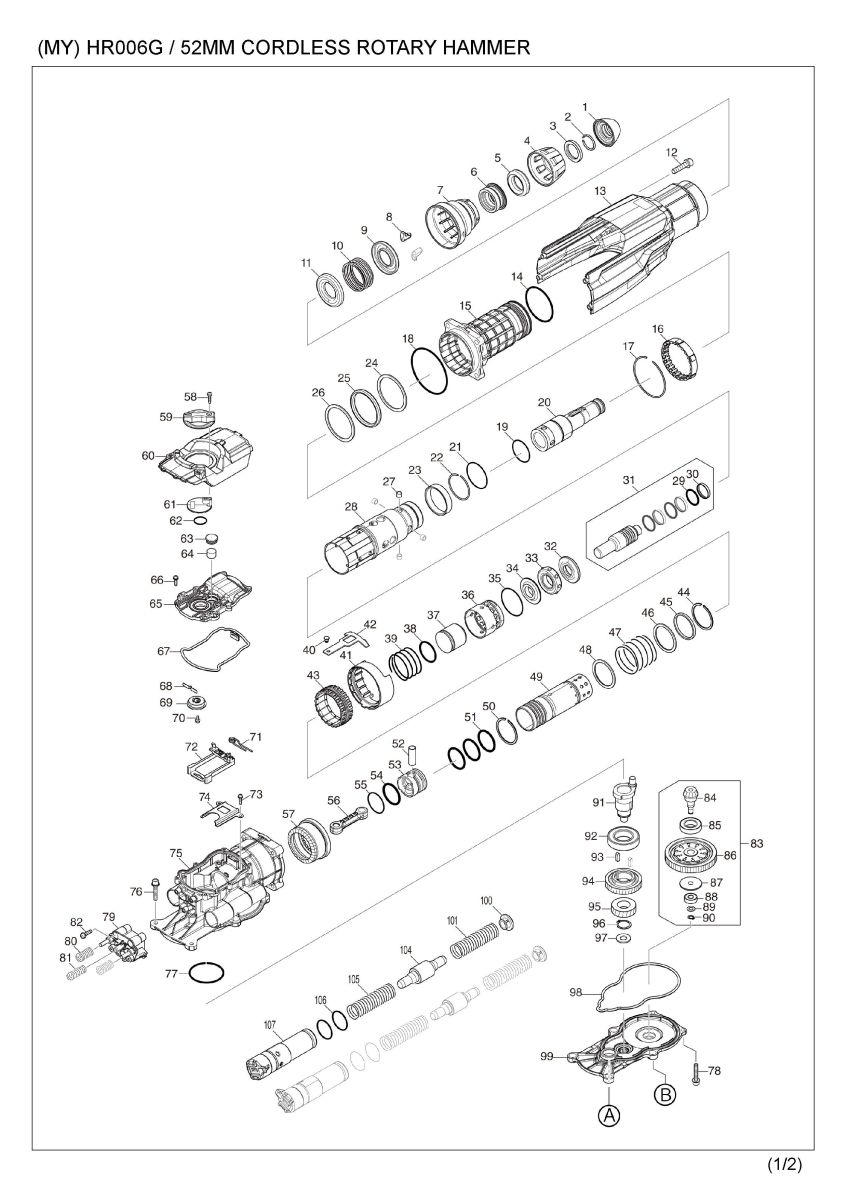

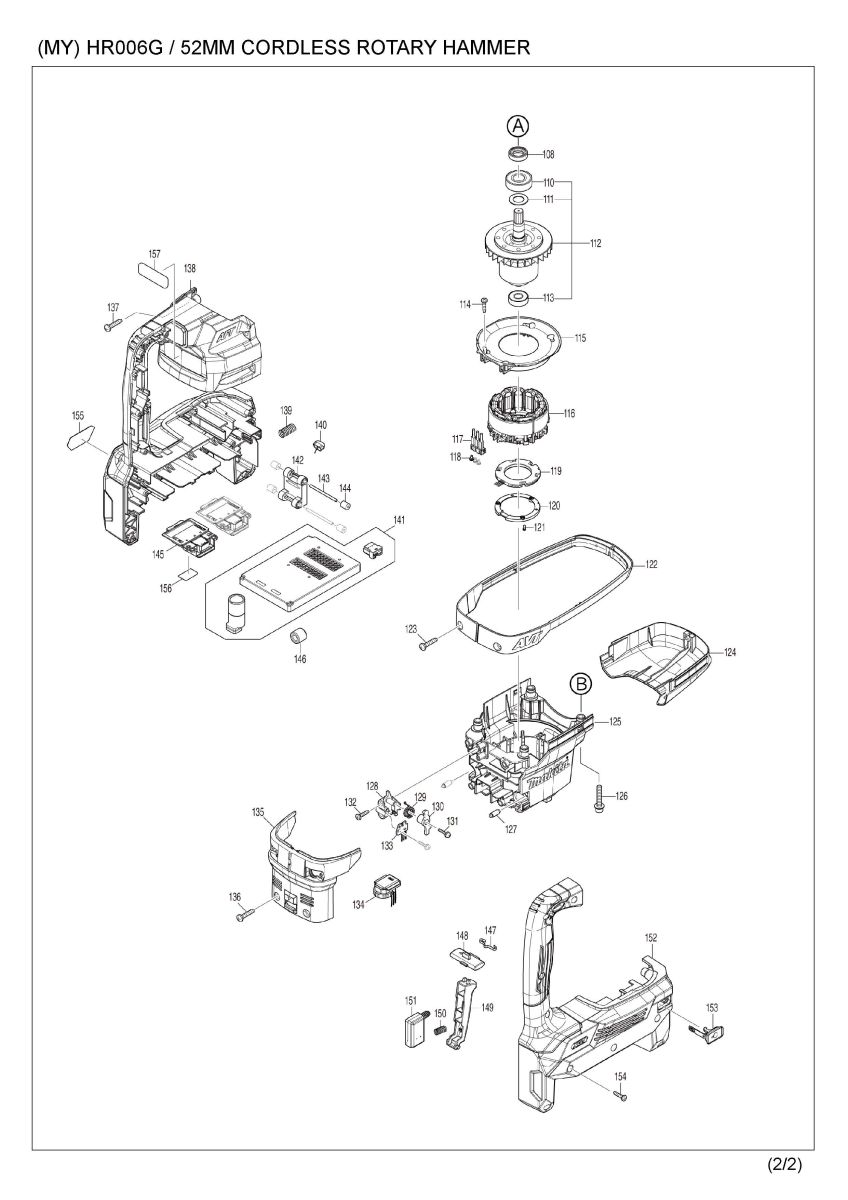

Part Diagram
Total: 422 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 286292-7 | TOOL HOLDER CAP | 1 | |
| 002 | 233948-3 | RING SPRING 25 | 1 | |
| 003 | 257367-9 | RING 28 | 1 | |
| 004 | 454767-6 | CHUCK COVER | 1 | |
| 005 | 262172-1 | RUBBER RING 29 | 1 | |
| 006 | 327868-2 | CHUCK RING | 1 | |
| 007 | 454768-4 | RELEASE COVER | 1 | |
| 008 | 310178-4 | TOOL RETAINER | 2 | |
| 009 | 346751-4 | SPRING GUIDE | 1 | |
| 010 | 234317-1 | COMPRESSION SPRING 49 | 1 | |
| 011 | 346751-4 | SPRING GUIDE | 1 | |
| 012 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | |
| 013 | 140Y01-7 | HOUSING COVER COMPLETE | 1 | |
| 013 | C10 | 810100-6 | CAUTION LABEL | 1 |
| 014 | 213664-3 | O RING 60 | 1 | |
| 015 | 142408-3 | BARREL COMPLETE | 1 | |
| 015 | C10 | 213663-5 | O RING 55 | 1 |
| 015 | C20 | 213778-8 | OIL SEAL 42 | 1 |
| 015 | C30 | 214603-6 | PLANE BEARING 49 | 1 |
| 015 | C40 | 259056-2 | RING SPRING 54 | 1 |
| 016 | 454769-2 | LOCK SLEEVE | 1 | |
| 017 | 259057-0 | RING SPRING 74 | 1 | |
| 018 | 213766-5 | O-RING 78 | 1 | |
| 019 | 213789-3 | O-RING 38 | 1 | |
| 020 | 327735-1 | TOOL HOLDER A | 1 | |
| 021 | 213779-6 | O-RING 45 | 1 | |
| 022 | 231989-3 | RING SPRING 46 | 1 | |
| 023 | 257353-0 | RING 49 | 1 | |
| 024 | 267477-4 | FLAT WASHER 60 | 1 | |
| 025 | 262171-3 | RUBBER RING 60 | 1 | |
| 026 | 267477-4 | FLAT WASHER 60 | 1 | |
| 027 | 268308-0 | PIN 9 | 4 | |
| 028 | 326362-1 | TOOL HOLDER B | 1 | |
| 029 | 213394-6 | O RING 23 | 3 | |
| 030 | 213431-6 | FLUORIDE RING 28 | 3 | |
| 031 | 136413-0 | IMPACT BOLT ASSY | 1 | |
| 031 | D10 | INC. 29,30 | ||
| 032 | 324756-4 | RING 20 | 1 | |
| 033 | 424000-0 | RUBBUR RING 24 | 1 | |
| 034 | 327734-3 | SHOULDER WASHER 20 | 1 | |
| 035 | 213783-5 | O-RING 48 | 1 | |
| 036 | 413263-3 | SLIDE SLEEVE | 1 | |
| 037 | 327731-9 | STRIKER | 1 | |
| 038 | 213781-9 | O-RING 33 | 1 | |
| 039 | 234318-9 | COMPRESSION SPRING 45 | 1 | |
| 040 | 256548-2 | FLAT FILLISTER HEAD PIN 6 | 1 | |
| 041 | 454779-9 | GUIDE RING | 1 | |
| 042 | 346749-1 | LINK PLATE | 1 | |
| 043 | 313272-1 | DRIVING SLEEVE | 1 | |
| 044 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 045 | 257355-6 | RING 44 | 1 | |
| 046 | 267478-2 | FLAT WASHER 44 | 1 | |
| 047 | 234319-7 | COMPRESSION SPRING 46 | 1 | |
| 048 | 267478-2 | FLAT WASHER 44 | 1 | |
| 049 | 327730-1 | CYLINDER 40 | 1 | |
| 050 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 051 | 213460-9 | O RING 35 | 3 | |
| 052 | 257820-5 | SLEEVE 9 | 1 | |
| 053 | 312A68-3 | PISTON | 1 | |
| 054 | 213782-7 | O-RING 30 | 1 | |
| 055 | 213460-9 | O RING 35 | 1 | |
| 056 | 413261-7 | CONNECTING ROD | 1 | |
| 057 | 227625-7 | SPIRAL BEVEL GEAR 33 | 1 | |
| 058 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 059 | 454326-6 | CHANGE LEVER | 1 | |
| 060 | 312A70-6 | CRANK CAP COVER | 1 | |
| 061 | 454345-2 | CRANK LEVER | 1 | |
| 062 | 213262-3 | O RING 18 | 1 | |
| 063 | 424607-2 | FILTER CAP | 1 | |
| 064 | 443129-3 | FILTER | 1 | |
| 065 | 454764-2 | CRANK CAP | 1 | |
| 066 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 067 | 424608-0 | SEAL RING B | 1 | |
| 067-1 | 422787-8 | SEAL RING B | 1 | |
| 068 | 232280-2 | LEAF SPRING | 1 | |
| 069 | 413827-3 | LINK LEVER | 1 | |
| 070 | 911511-9 | PAN HEAD SCREW M4X10 | 1 | |
| 071 | 233611-8 | TORSION SPRING 7 | 1 | |
| 072 | 454778-1 | LINK GUIDE | 1 | |
| 073 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 074 | 346748-3 | GUIDE RAIL | 1 | |
| 075 | 140Y00-9 | CRANK HOUSING A COMPLETE | 1 | |
| 075-1 | 141H08-4 | CRANK HOUSING A COMPLETE | 1 | |
| 076 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 077 | 213662-7 | O RING 55 | 1 | |
| 078 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 079 | 413264-1 | SPRING BASE | 1 | |
| 080 | 232662-8 | COMPRESSION SPRING 12 | 2 | |
| 081 | 232664-4 | COMPRESSION SPRING 10 | 1 | |
| 082 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 083 | 127823-2 | TORQUE LIMITER ASSEMBLY | 1 | |
| 083 | D10 | INC. 84-90 | ||
| 084 | 227628-1 | SPIRAL BEVEL GEAR 10 | 1 | |
| 085 | 210256-9 | BALL BEARING 6904LLB | 1 | |
| 086 | 142410-6 | TORQUE LIMITER COMPLETE | 1 | |
| 087 | 324727-1 | SHOULDER WASHER 8 | 1 | |
| 088 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 089 | 253215-0 | FLAT WASHER 8 | 1 | |
| 090 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 091 | 327729-6 | CRANK SHAFT | 1 | |
| 092 | 210255-1 | BALL BEARING 6006LLB | 1 | |
| 093 | 254229-2 | KEY 5 | 2 | |
| 094 | 227788-9 | HELICAL GEAR 46 | 1 | |
| 095 | 227336-4 | SPUR GEAR 26 | 1 | |
| 096 | 961102-6 | RETAINING RING S-22 | 1 | |
| 097 | 253843-1 | FLAT WASHER 12 | 1 | |
| 098 | 424609-8 | SEAL RING A | 1 | |
| 098-1 | 422786-0 | SEAL RING A | 1 | |
| 099 | 142409-1 | GEAR HOUSING COMPLETE | 1 | |
| 100 | 454774-9 | SPRING PLATE | 2 | |
| 101 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 104 | 326375-2 | COUNTER WEIGHT | 2 | |
| 105 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 106 | 213953-6 | O RING 24 | 4 | |
| 107 | 141E52-3 | HOLDER COMPLETE | 2 | |
| 108 | 213231-4 | OIL SEAL 15 | 1 | |
| 110 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 111 | 267215-4 | FLAT WASHER 15 | 1 | |
| 112 | 519652-1 | ROTOR ASSY | 1 | |
| 112 | D10 | INC. 110,111,113 | ||
| 112-1 | 519652-1 | ROTOR ASSY | 1 | |
| 112-1 | D10 | INC. 110,111,113 | ||
| 112-2 | 519652-1 | ROTOR ASSY | 1 | |
| 112-2 | D10 | INC. 110,111,113 | ||
| 113 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 114 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 115 | 413260-9 | BAFFLE PLATE | 1 | |
| 116 | 629A27-3 | STATOR | 1 | |
| 117 | 632R89-4 | LEAD UNIT | 1 | |
| 118 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 119 | 620E26-2 | CONTROLLER B | 1 | |
| 120 | 687B69-9 | STOPPER | 1 | |
| 121 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 122 | 454780-4 | GUARD 52 | 1 | |
| 123 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 124 | 454763-4 | GEAR HOUSING COVER | 1 | |
| 125 | 413256-0 | MOTOR HOUSING | 1 | |
| 126 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 126-1 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 127 | 256380-4 | SHOULDER PIN 4-6 | 2 | |
| 128 | 412985-2 | BASE | 1 | |
| 129 | 232643-2 | TORSION SPRING 13 | 1 | |
| 130 | 140W48-9 | LEVER COMPLETE | 1 | |
| 131 | 263046-9 | TAPPING SCREW 3X14 | 2 | |
| 132 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 133 | 620E28-8 | SENSOR CIRCUIT | 1 | |
| 134 | 620E29-6 | DIAL CIRCUIT | 1 | |
| 135 | 140X97-2 | MOTOR HOUSING COVER COMPLETE | 1 | |
| 135 | C10 | 422660-2 | RUBBER SHEET | 1 |
| 136 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 137 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 138 | 183S32-7 | HOUSING SET | 1 | |
| 138 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 138 | C20 | 347755-9 | GUARD RAIL | 2 |
| 138 | C30 | 422646-6 | CAP 10 | 2 |
| 138 | C40 | 347782-6 | PLATE | 4 |
| 138 | D10 | INC. 152 | ||
| 139 | 232663-6 | COMPRESSION SPRING 8 | 1 | |
| 140 | 620E27-0 | LED CIRCUIT | 1 | |
| 141 | 620E25-4 | CONTROLLER | 1 | |
| 142 | 620E30-1 | ACCELEROMETER CIRCUIT | 1 | |
| 143 | 256886-2 | ROD 3 | 2 | |
| 144 | 422472-3 | SPONGE SLEEVE 3 | 4 | |
| 145 | 632R98-3 | TERMINAL UNIT | 2 | |
| 147 | 232152-1 | LEAF SPRING | 1 | |
| 148 | 412953-5 | TRIGGER LOCK | 1 | |
| 149 | 458097-7 | SWITCH LEVER | 1 | |
| 150 | 232418-9 | COMPRESSION SPRING 5 | 1 | |
| 151 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 152 | 183S32-7 | HOUSING SET | 1 | |
| 152 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 152 | C20 | 347755-9 | GUARD RAIL | 2 |
| 152 | C30 | 422646-6 | CAP 10 | 2 |
| 152 | C40 | 347782-6 | PLATE | 4 |
| 152 | D10 | INC. 138 | ||
| 153 | 140F99-0 | CAP COMPLETE | 1 | |
| 153 | C10 | 213218-6 | O RING 16 | 1 |
| 153 | C20 | 818H07-8 | CAP LABEL | 1 |
| 154 | 265995-6 | TAPPING SCREW 4X18 | 10 | |
| 155 | 8029M5-9 | XGT LOGO LABEL | 1 | |
| 156 | 811996-8 | HR006G SERIAL NO. LABEL | 1 | |
| 157 | 811990-0 | HR006G NAME PLATE | 1 | |
| A01 | 194683-7 | GREASE VESSEL SET | 1 | |
| A02 | 331955-1 | DEPTH GAUGE | 1 | |
| A03 | 443122-7 | CLOTH | 1 | |
| A04 | 135629-4 | SIDE GRIP ASSEMBLY | 1 | |
| A04 | C10 | 158131-0 | GRIP 36 COMPLETE | 1 |
| A04 | C20 | 234226-4 | COMPRESSION SPRING 6 | 1 |
| A04 | C30 | 266163-4 | CUP SQUARE NECK BOLT M8X80 | 1 |
| A04 | C40 | 313223-4 | RACK GUIDE | 1 |
| A04 | C50 | 344492-6 | PLATE | 1 |
| A04 | C60 | 346750-6 | GRIP SPRING 90 | 1 |
| A04 | C70 | 453114-8 | LOCK BUTTON | 1 |
| A04 | C80 | 454781-2 | SIDE GRIP BASE 90 | 1 |
| A05 | 135283-4 | SIDE HANDLE 90 ASSEMBLY | 1 | |
| A05 | C10 | 252640-2 | WING NUT M8 | 1 |
| A05 | C20 | 265439-6 | HEX. BOLT M8X150 | 1 |
| A05 | C30 | 318430-4 | SIDE HANDLE BASE 90A | 1 |
| A05 | C40 | 318431-2 | SIDE HANDLE BASE 90B | 1 |
| A05 | C50 | 417002-3 | SIDE HANDLE CAM | 2 |
| A05 | C60 | 417003-1 | SIDE HANDLE | 1 |
| A05 | C70 | 951166-8 | SPRING PIN 5-24 | 1 |
| A06 | 821848-5 | PLASTIC CASE | 1 | |
| A07 | 8030B5-1 | HR006GZ PLASTIC CASE LABEL | 2 | |
| B01 | 191N79-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 4 |
| B01 | C11 | 1914C5-7 | GREASE SET | 4 |
| B01 | D10 | INC. 1,2,8,29,30,38,54 | ||
| F08 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F09 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 | |
| 001 | 286292-7 | TOOL HOLDER CAP | 1 | |
| 002 | 233948-3 | RING SPRING 25 | 1 | |
| 003 | 257367-9 | RING 28 | 1 | |
| 004 | 454767-6 | CHUCK COVER | 1 | |
| 005 | 262172-1 | RUBBER RING 29 | 1 | |
| 006 | 327868-2 | CHUCK RING | 1 | |
| 007 | 454768-4 | RELEASE COVER | 1 | |
| 008 | 310178-4 | TOOL RETAINER | 2 | |
| 009 | 346751-4 | SPRING GUIDE | 1 | |
| 010 | 234317-1 | COMPRESSION SPRING 49 | 1 | |
| 011 | 346751-4 | SPRING GUIDE | 1 | |
| 012 | 922456-6 | HEX. SOCKET HEAD BOLT M8X35 | 4 | |
| 013 | 140Y01-7 | HOUSING COVER COMPLETE | 1 | |
| 013 | C10 | 810100-6 | CAUTION LABEL | 1 |
| 014 | 213664-3 | O RING 60 | 1 | |
| 015 | 142408-3 | BARREL COMPLETE | 1 | |
| 015 | C10 | 213663-5 | O RING 55 | 1 |
| 015 | C20 | 213778-8 | OIL SEAL 42 | 1 |
| 015 | C30 | 214603-6 | PLANE BEARING 49 | 1 |
| 015 | C40 | 259056-2 | RING SPRING 54 | 1 |
| 016 | 454769-2 | LOCK SLEEVE | 1 | |
| 017 | 259057-0 | RING SPRING 74 | 1 | |
| 018 | 213766-5 | O-RING 78 | 1 | |
| 019 | 213789-3 | O-RING 38 | 1 | |
| 020 | 327735-1 | TOOL HOLDER A | 1 | |
| 021 | 213779-6 | O-RING 45 | 1 | |
| 022 | 231989-3 | RING SPRING 46 | 1 | |
| 023 | 257353-0 | RING 49 | 1 | |
| 024 | 267477-4 | FLAT WASHER 60 | 1 | |
| 025 | 262171-3 | RUBBER RING 60 | 1 | |
| 026 | 267477-4 | FLAT WASHER 60 | 1 | |
| 027 | 268308-0 | PIN 9 | 4 | |
| 028 | 326362-1 | TOOL HOLDER B | 1 | |
| 029 | 213394-6 | O RING 23 | 3 | |
| 030 | 213431-6 | FLUORIDE RING 28 | 3 | |
| 031 | 136413-0 | IMPACT BOLT ASSY | 1 | |
| 031 | D10 | INC. 29,30 | ||
| 032 | 324756-4 | RING 20 | 1 | |
| 033 | 424000-0 | RUBBUR RING 24 | 1 | |
| 034 | 327734-3 | SHOULDER WASHER 20 | 1 | |
| 035 | 213783-5 | O-RING 48 | 1 | |
| 036 | 413263-3 | SLIDE SLEEVE | 1 | |
| 037 | 327731-9 | STRIKER | 1 | |
| 038 | 213781-9 | O-RING 33 | 1 | |
| 039 | 234318-9 | COMPRESSION SPRING 45 | 1 | |
| 040 | 256548-2 | FLAT FILLISTER HEAD PIN 6 | 1 | |
| 041 | 454779-9 | GUIDE RING | 1 | |
| 042 | 346749-1 | LINK PLATE | 1 | |
| 043 | 313272-1 | DRIVING SLEEVE | 1 | |
| 044 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 045 | 257355-6 | RING 44 | 1 | |
| 046 | 267478-2 | FLAT WASHER 44 | 1 | |
| 047 | 234319-7 | COMPRESSION SPRING 46 | 1 | |
| 048 | 267478-2 | FLAT WASHER 44 | 1 | |
| 049 | 327730-1 | CYLINDER 40 | 1 | |
| 050 | 257994-2 | RETAINING RING(EXT)WR-44 | 1 | |
| 051 | 213460-9 | O RING 35 | 3 | |
| 052 | 257820-5 | SLEEVE 9 | 1 | |
| 053 | 312A68-3 | PISTON | 1 | |
| 054 | 213782-7 | O-RING 30 | 1 | |
| 055 | 213460-9 | O RING 35 | 1 | |
| 056 | 413261-7 | CONNECTING ROD | 1 | |
| 057 | 227625-7 | SPIRAL BEVEL GEAR 33 | 1 | |
| 058 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 059 | 454326-6 | CHANGE LEVER | 1 | |
| 060 | 312A70-6 | CRANK CAP COVER | 1 | |
| 061 | 454345-2 | CRANK LEVER | 1 | |
| 062 | 213262-3 | O RING 18 | 1 | |
| 063 | 424607-2 | FILTER CAP | 1 | |
| 064 | 443129-3 | FILTER | 1 | |
| 065 | 454764-2 | CRANK CAP | 1 | |
| 066 | 911128-8 | P.H.SCREW M4X16 WITH WR | 6 | |
| 067 | 424608-0 | SEAL RING B | 1 | |
| 067-1 | 422787-8 | SEAL RING B | 1 | |
| 068 | 232280-2 | LEAF SPRING | 1 | |
| 069 | 413827-3 | LINK LEVER | 1 | |
| 070 | 911511-9 | PAN HEAD SCREW M4X10 | 1 | |
| 071 | 233611-8 | TORSION SPRING 7 | 1 | |
| 072 | 454778-1 | LINK GUIDE | 1 | |
| 073 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 074 | 346748-3 | GUIDE RAIL | 1 | |
| 075 | 140Y00-9 | CRANK HOUSING A COMPLETE | 1 | |
| 075-1 | 141H08-4 | CRANK HOUSING A COMPLETE | 1 | |
| 076 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 077 | 213662-7 | O RING 55 | 1 | |
| 078 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 079 | 413264-1 | SPRING BASE | 1 | |
| 080 | 232662-8 | COMPRESSION SPRING 12 | 2 | |
| 081 | 232664-4 | COMPRESSION SPRING 10 | 1 | |
| 082 | 911233-1 | PAN HEAD SCREW M5X20 | 3 | |
| 083 | 127823-2 | TORQUE LIMITER ASSEMBLY | 1 | |
| 083 | D10 | INC. 84-90 | ||
| 084 | 227628-1 | SPIRAL BEVEL GEAR 10 | 1 | |
| 085 | 210256-9 | BALL BEARING 6904LLB | 1 | |
| 086 | 142410-6 | TORQUE LIMITER COMPLETE | 1 | |
| 087 | 324727-1 | SHOULDER WASHER 8 | 1 | |
| 088 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 089 | 253215-0 | FLAT WASHER 8 | 1 | |
| 090 | 961004-6 | RETAINING RING (EXT) S-8 | 1 | |
| 091 | 327729-6 | CRANK SHAFT | 1 | |
| 092 | 210255-1 | BALL BEARING 6006LLB | 1 | |
| 093 | 254229-2 | KEY 5 | 2 | |
| 094 | 227788-9 | HELICAL GEAR 46 | 1 | |
| 095 | 227336-4 | SPUR GEAR 26 | 1 | |
| 096 | 961102-6 | RETAINING RING S-22 | 1 | |
| 097 | 253843-1 | FLAT WASHER 12 | 1 | |
| 098 | 424609-8 | SEAL RING A | 1 | |
| 098-1 | 422786-0 | SEAL RING A | 1 | |
| 099 | 142409-1 | GEAR HOUSING COMPLETE | 1 | |
| 100 | 454774-9 | SPRING PLATE | 2 | |
| 101 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 104 | 326375-2 | COUNTER WEIGHT | 2 | |
| 105 | 233497-0 | COMPRESSION SPRING 15 | 2 | |
| 106 | 213953-6 | O RING 24 | 4 | |
| 107 | 141E52-3 | HOLDER COMPLETE | 2 | |
| 108 | 213231-4 | OIL SEAL 15 | 1 | |
| 110 | 211228-7 | BALL BEARING 6202DDW | 1 | |
| 111 | 267215-4 | FLAT WASHER 15 | 1 | |
| 112 | 519652-1 | ROTOR ASSY | 1 | |
| 112 | D10 | INC. 110,111,113 | ||
| 112-1 | 519652-1 | ROTOR ASSY | 1 | |
| 112-1 | D10 | INC. 110,111,113 | ||
| 112-2 | 519652-1 | ROTOR ASSY | 1 | |
| 112-2 | D10 | INC. 110,111,113 | ||
| 113 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 114 | 265995-6 | TAPPING SCREW 4X18 | 4 | |
| 115 | 413260-9 | BAFFLE PLATE | 1 | |
| 116 | 629A27-3 | STATOR | 1 | |
| 117 | 632R89-4 | LEAD UNIT | 1 | |
| 118 | 652031-1 | PAN HEAD SCREW M3X6 | 3 | |
| 119 | 620E26-2 | CONTROLLER B | 1 | |
| 120 | 687B69-9 | STOPPER | 1 | |
| 121 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 122 | 454780-4 | GUARD 52 | 1 | |
| 123 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 124 | 454763-4 | GEAR HOUSING COVER | 1 | |
| 125 | 413256-0 | MOTOR HOUSING | 1 | |
| 126 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 126-1 | 922359-4 | H.S.H.BOLT M6X35 WITH WG | 2 | |
| 127 | 256380-4 | SHOULDER PIN 4-6 | 2 | |
| 128 | 412985-2 | BASE | 1 | |
| 129 | 232643-2 | TORSION SPRING 13 | 1 | |
| 130 | 140W48-9 | LEVER COMPLETE | 1 | |
| 131 | 263046-9 | TAPPING SCREW 3X14 | 2 | |
| 132 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 133 | 620E28-8 | SENSOR CIRCUIT | 1 | |
| 134 | 620E29-6 | DIAL CIRCUIT | 1 | |
| 135 | 140X97-2 | MOTOR HOUSING COVER COMPLETE | 1 | |
| 135 | C10 | 422660-2 | RUBBER SHEET | 1 |
| 136 | 266041-8 | TAPPING SCREW 5X25 | 2 | |
| 137 | 266041-8 | TAPPING SCREW 5X25 | 4 | |
| 138 | 183S32-7 | HOUSING SET | 1 | |
| 138 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 138 | C20 | 347755-9 | GUARD RAIL | 2 |
| 138 | C30 | 422646-6 | CAP 10 | 2 |
| 138 | C40 | 347782-6 | PLATE | 4 |
| 138 | D10 | INC. 152 | ||
| 139 | 232663-6 | COMPRESSION SPRING 8 | 1 | |
| 140 | 620E27-0 | LED CIRCUIT | 1 | |
| 141 | 620E25-4 | CONTROLLER | 1 | |
| 142 | 620E30-1 | ACCELEROMETER CIRCUIT | 1 | |
| 143 | 256886-2 | ROD 3 | 2 | |
| 144 | 422472-3 | SPONGE SLEEVE 3 | 4 | |
| 145 | 632R98-3 | TERMINAL UNIT | 2 | |
| 147 | 232152-1 | LEAF SPRING | 1 | |
| 148 | 412953-5 | TRIGGER LOCK | 1 | |
| 149 | 458097-7 | SWITCH LEVER | 1 | |
| 150 | 232418-9 | COMPRESSION SPRING 5 | 1 | |
| 151 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 152 | 183S32-7 | HOUSING SET | 1 | |
| 152 | C10 | 263005-3 | RUBBER PIN 6 | 8 |
| 152 | C20 | 347755-9 | GUARD RAIL | 2 |
| 152 | C30 | 422646-6 | CAP 10 | 2 |
| 152 | C40 | 347782-6 | PLATE | 4 |
| 152 | D10 | INC. 138 | ||
| 153 | 140F99-0 | CAP COMPLETE | 1 | |
| 153 | C10 | 213218-6 | O RING 16 | 1 |
| 153 | C20 | 818H07-8 | CAP LABEL | 1 |
| 154 | 265995-6 | TAPPING SCREW 4X18 | 10 | |
| 155 | 8029M5-9 | XGT LOGO LABEL | 1 | |
| 156 | 811996-8 | HR006G SERIAL NO. LABEL | 1 | |
| 157 | 811990-0 | HR006G NAME PLATE | 1 | |
| A01 | 194683-7 | GREASE VESSEL SET | 1 | |
| A02 | 331955-1 | DEPTH GAUGE | 1 | |
| A03 | 443122-7 | CLOTH | 1 | |
| A04 | 135629-4 | SIDE GRIP ASSEMBLY | 1 | |
| A04 | C10 | 158131-0 | GRIP 36 COMPLETE | 1 |
| A04 | C20 | 234226-4 | COMPRESSION SPRING 6 | 1 |
| A04 | C30 | 266163-4 | CUP SQUARE NECK BOLT M8X80 | 1 |
| A04 | C40 | 313223-4 | RACK GUIDE | 1 |
| A04 | C50 | 344492-6 | PLATE | 1 |
| A04 | C60 | 346750-6 | GRIP SPRING 90 | 1 |
| A04 | C70 | 453114-8 | LOCK BUTTON | 1 |
| A04 | C80 | 454781-2 | SIDE GRIP BASE 90 | 1 |
| A05 | 135283-4 | SIDE HANDLE 90 ASSEMBLY | 1 | |
| A05 | C10 | 252640-2 | WING NUT M8 | 1 |
| A05 | C20 | 265439-6 | HEX. BOLT M8X150 | 1 |
| A05 | C30 | 318430-4 | SIDE HANDLE BASE 90A | 1 |
| A05 | C40 | 318431-2 | SIDE HANDLE BASE 90B | 1 |
| A05 | C50 | 417002-3 | SIDE HANDLE CAM | 2 |
| A05 | C60 | 417003-1 | SIDE HANDLE | 1 |
| A05 | C70 | 951166-8 | SPRING PIN 5-24 | 1 |
| A06 | 821848-5 | PLASTIC CASE | 1 | |
| A07 | 8030B5-1 | HR006GZ PLASTIC CASE LABEL | 2 | |
| B01 | 191N79-7 | HAMMER SERVICE KIT | 1 | |
| B01 | C10 | 181490-7 | HAMMER GREASE 30G | 4 |
| B01 | C11 | 1914C5-7 | GREASE SET | 4 |
| B01 | D10 | INC. 1,2,8,29,30,38,54 | ||
| F08 | 199143-4 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| F09 | 199144-2 | DUST EXTRACTOR ATT SET(EU) | 1 | |
| G12 | 1914X3-8 | DUST EXTRACTION PAD SET | 1 |
Back Download
