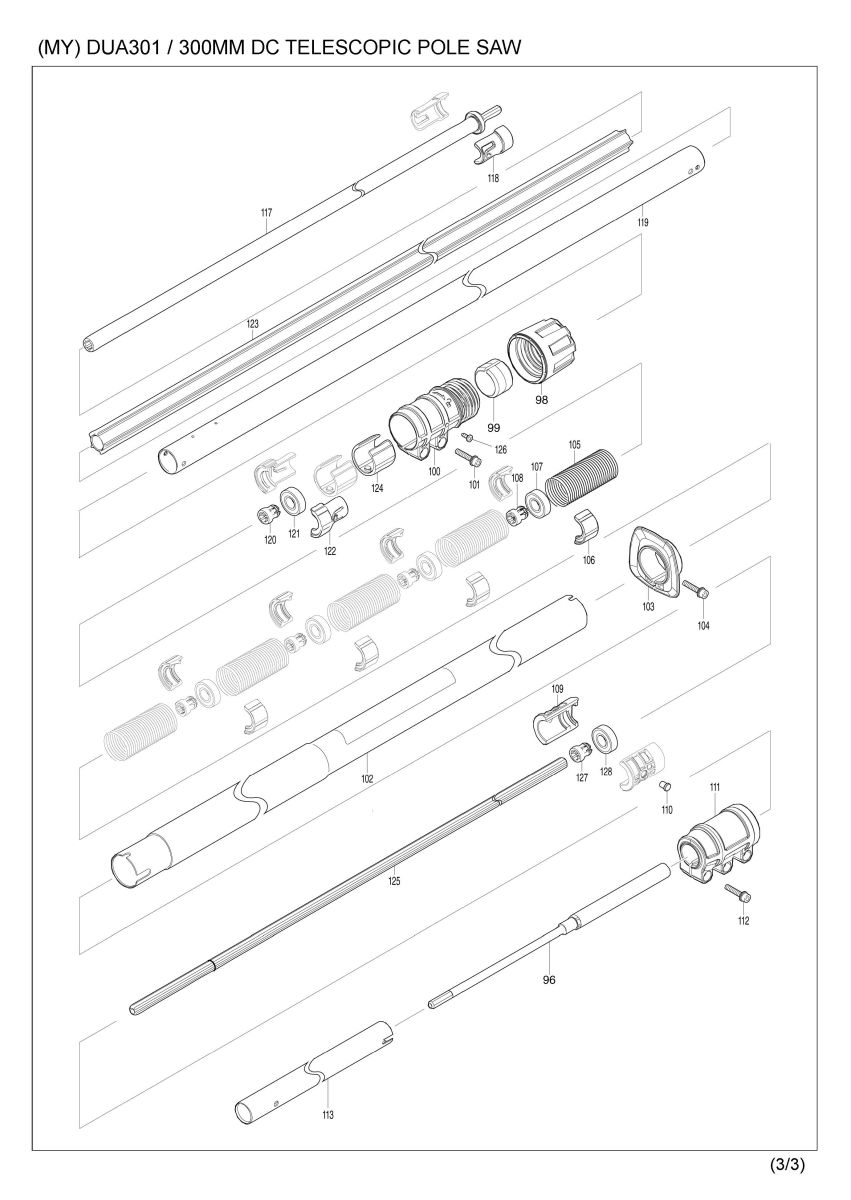

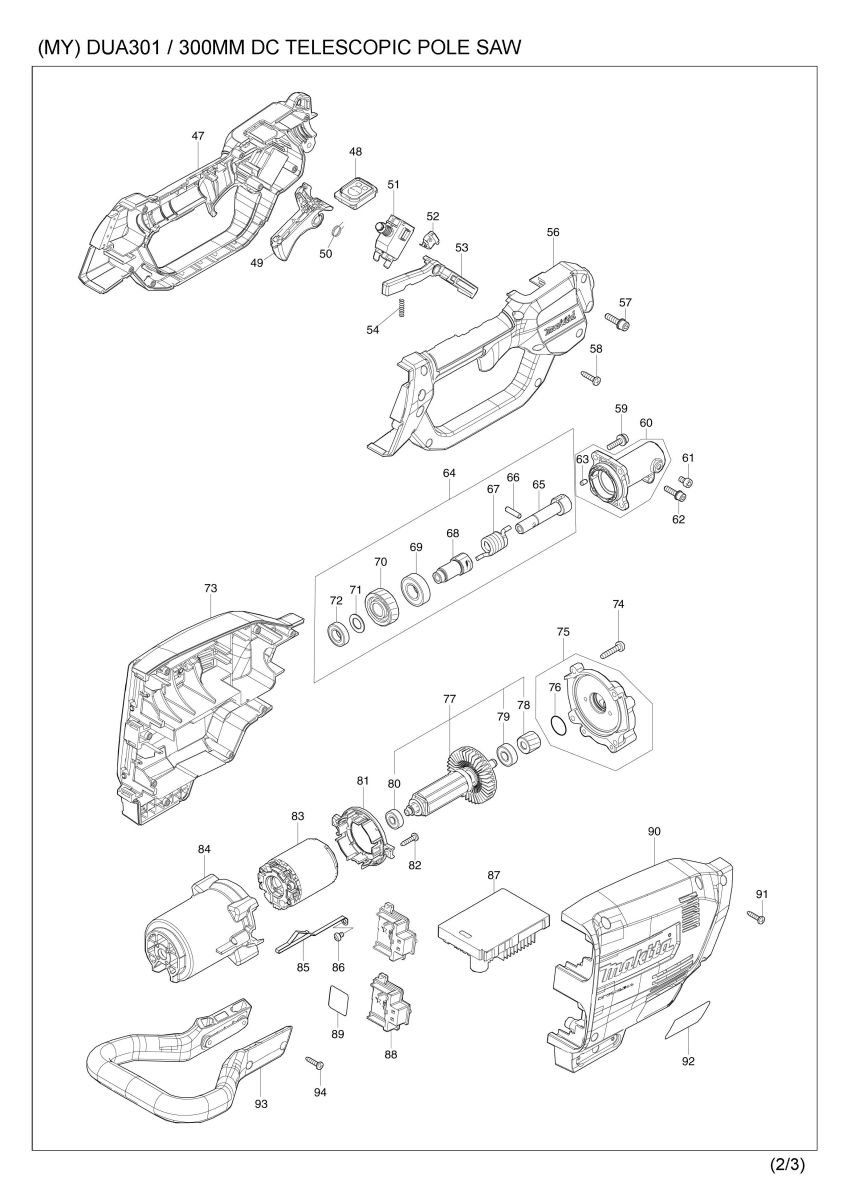

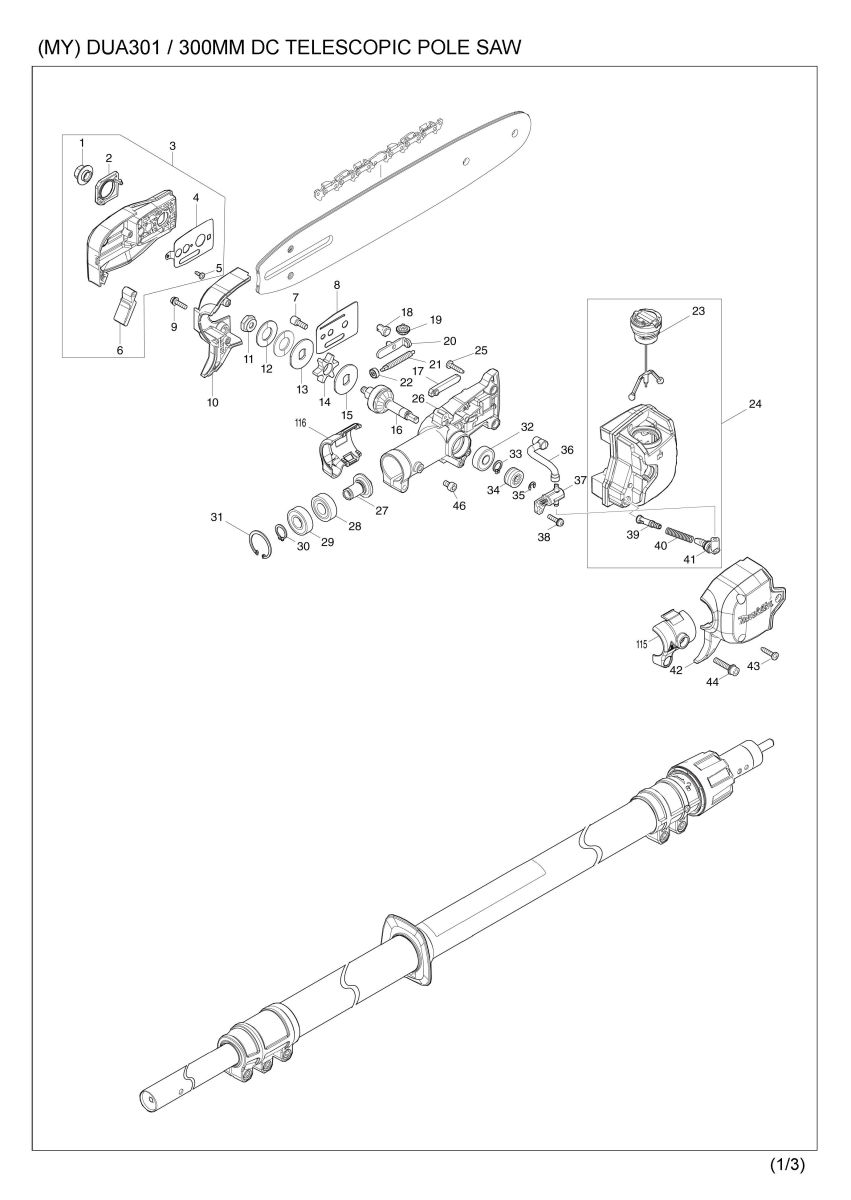

Part Diagram
Total: 194 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 162494-8 | FLANGE NUT COMPLETE | 1 | |
| 2 | 412638-3 | NUT COVER | 1 | |
| 3 | 136373-6 | SPROCKET COVER ASSY | 1 | |
| 3 | D10 | INC. 1,2,4-6 | ||
| 4 | 347707-0 | GUIDE PLATE L | 1 | |
| 5 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | |
| 6 | 422599-9 | CHIP GUIDE | 1 | |
| 7 | 266905-6 | H.L. SOCKET HEAD BOLT M5X12 | 1 | |
| 8 | 347708-8 | GUIDE PLATE R | 1 | |
| 9 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 10 | 183P83-2 | GEAR CASE HOUSING SET | 1 | |
| 10 | D10 | INC. 42 | ||
| 11 | 252291-1 | HEX. NUT M6 | 1 | |
| 12 | 232626-2 | CORNED DISK SPRING 14 | 2 | |
| 13 | 347705-4 | LOCK WASHER 12 | 1 | |
| 14 | 226992-7 | SPROCKET 6 | 1 | |
| 15 | 347705-4 | LOCK WASHER 12 | 1 | |
| 16 | 141D34-9 | SPINDLE COMPLETE A | 1 | |
| 016-1 | 140V32-8 | SPINDLE COMPLETE | 1 | |
| 17 | 422602-6 | GROMET | 1 | |
| 18 | 227620-7 | DRIVE GEAR 14 | 1 | |
| 19 | 227634-6 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 20 | 347706-2 | TENSION SLIDE | 1 | |
| 21 | 327606-2 | ADJUST SCREW | 1 | |
| 22 | 227496-2 | STRAIGHT BEVEL GEAR 14 | 1 | |
| 23 | 126832-8 | TANK CAP ASSEMBLY | 1 | |
| 23 | C10 | 213894-6 | O-RING 25 | 1 |
| 23 | C11 | 213A11-4 | O-RING 25 | 1 |
| 24 | 136372-8 | OIL TANK ASSEMBLY | 1 | |
| 24 | D10 | INC. 23,39-41 | ||
| 024-1 | 137016-3 | OIL TANK ASSEMBLY | 1 | |
| 024-1 | D10 | INC. 23,39-41 | ||
| 25 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 26 | 136301-1 | GEAR CASE ASSEMBLY | 1 | |
| 26 | C10 | 213437-4 | O RING 28 | 1 |
| 026-1 | 137017-1 | GEAR CASE ASS'Y | 1 | |
| 026-1 | C10 | 213437-4 | O RING 28 | 1 |
| 27 | 141D35-7 | SPIRAL BEVEL GEAR 18 COMPLETE | 1 | |
| 027-1 | 226995-1 | SPIRAL BEVEL GEAR 18 | 1 | |
| 28 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 29 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 30 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 31 | 962106-1 | RETAINING RING R-28 | 1 | |
| 32 | 211491-2 | BALL BEARING 609DDW | 1 | |
| 33 | 961005-4 | RETAINING RING S-9 | 1 | |
| 34 | 226884-0 | WORM GEAR | 1 | |
| 35 | 961011-9 | STOP RING E-4 | 1 | |
| 36 | 422600-0 | OIL TUBE 3-70 | 1 | |
| 37 | 140U04-7 | OIL PUMP COMPLETE | 1 | |
| 037-1 | 141N25-0 | OIL PUMP COMPLETE | 1 | |
| 38 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 39 | 452666-6 | NIPPLE | 1 | |
| 039-1 | 452666-6 | NIPPLE | 1 | |
| 40 | 231975-4 | SPRING | 1 | |
| 41 | 422601-8 | OIL TUBE 3-14 | 1 | |
| 42 | 183P83-2 | GEAR CASE HOUSING SET | 1 | |
| 42 | D10 | INC. 10 | ||
| 43 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 44 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 46 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 47 | 183P85-8 | GRIP SET | 1 | |
| 47 | C10 | 931202-6 | HEX. NUT M5 | 1 |
| 47 | D10 | INC. 56 | ||
| 48 | 140V21-3 | SWITCH CIRCUIT COMPLETE | 1 | |
| 48 | C10 | 819S81-5 | SWITCH LABEL | 1 |
| 49 | 459758-2 | SWITCH LEVER | 1 | |
| 50 | 233622-3 | TORSION SPRING 12 | 1 | |
| 51 | 651438-8 | SWITCH C3JW-6B-PAN | 1 | |
| 52 | 632G61-0 | SWITCH UNIT | 1 | |
| 53 | 459759-0 | LOCK OFF LEVER | 1 | |
| 54 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 56 | 183P85-8 | GRIP SET | 1 | |
| 56 | C10 | 931202-6 | HEX. NUT M5 | 1 |
| 56 | D10 | INC. 47 | ||
| 57 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 58 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 59 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 60 | 136371-0 | PIPE BRACKET ASSY | 1 | |
| 60 | D10 | INC. 63 | ||
| 61 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 62 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 63 | 263002-9 | RUBBER PIN 4 | 1 | |
| 64 | 127641-8 | DAMPER SHAFT ASSEMBLY | 1 | |
| 64 | D10 | INC. 65-72 | ||
| 65 | 327600-4 | JOINT SLEEVE | 1 | |
| 66 | 256964-8 | PIN 5 | 1 | |
| 67 | 232625-4 | TORSION SPRING 12 | 1 | |
| 68 | 327601-2 | SPINDLE HUB | 1 | |
| 69 | 211232-6 | BALL BEARING 6002LLU | 1 | |
| 70 | 226997-7 | HELICAL GEAR 33 | 1 | |
| 71 | 253744-3 | FLAT WASHER 12 | 1 | |
| 72 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 73 | 183P84-0 | HOUSING SET | 1 | |
| 73 | C10 | 263005-3 | RUBBER PIN 6 | 10 |
| 73 | D10 | INC. 90 | ||
| 74 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 75 | 136231-6 | GEAR BOX ASS'Y | 1 | |
| 75 | D10 | INC. 76 | ||
| 76 | 213961-7 | O RING 22 | 1 | |
| 77 | 510470-0 | ROTOR ASS'Y | 1 | |
| 77 | D10 | INC. 78-80 | ||
| 78 | 226996-9 | HELICAL GEAR 16 | 1 | |
| 79 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 80 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 81 | 459764-7 | BAFFLE PLATE | 1 | |
| 82 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 83 | 629A12-6 | STATOR | 1 | |
| 083-1 | 629C15-2 | STATOR | 1 | |
| 84 | 459763-9 | MOTOR HOUSING | 1 | |
| 87 | 620C84-6 | CONTROLLER | 1 | |
| 087-1 | 620F58-5 | CONTROLLER | 1 | |
| 88 | 644809-6 | TERMINAL | 2 | |
| 89 | 857J46-5 | DUA301 SERIAL NO. LABEL | 1 | |
| 90 | 183P84-0 | HOUSING SET | 1 | |
| 90 | C10 | 263005-3 | RUBBER PIN 6 | 10 |
| 90 | D10 | INC. 73 | ||
| 91 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 92 | 857J43-1 | DUA301 NAME PLATE | 1 | |
| 93 | 412645-6 | GUARD | 1 | |
| 94 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 96 | 140V20-5 | SHAFT C COMPLETE | 1 | |
| 96 | C10 | 162823-5 | SPINDLE D COMPLETE | 1 |
| 98 | 412631-7 | LOCK RING | 1 | |
| 99 | 412632-5 | LOCK SLEEVE | 1 | |
| 100 | 412630-9 | LOCK SCREW | 1 | |
| 100 | C10 | 931202-6 | HEX. NUT M5 | 2 |
| 101 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 2 | |
| 102 | 140V15-8 | PIPE 38 COMPLETE B | 1 | |
| 102 | C10 | 8016N5-5 | CAUTION LABEL | 1 |
| 103 | 412634-1 | GRIP END 38 | 1 | |
| 104 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 1 | |
| 105 | 232624-6 | COMPRESSION SPRING 28 | 5 | |
| 106 | 413312-6 | DRIVE BUSH | 8 | |
| 107 | 211148-5 | BALL BEARING 6001ZZ | 4 | |
| 108 | 412625-2 | SLIDE BUSH | 4 | |
| 109 | 412633-3 | PIPE SLEEVE 24 | 2 | |
| 110 | 327599-3 | SHOULDER PIN 6 | 1 | |
| 111 | 412629-4 | PIPE JOINT | 1 | |
| 112 | 922243-3 | HEX. SOCKET HEAD BOLT M5X25 | 3 | |
| 113 | 140V18-2 | PIPE 24 COMPLETE | 1 | |
| 115 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| 115 | D10 | INC. 116 | ||
| 116 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| 116 | D10 | INC. 115 | ||
| 117 | 136393-0 | SHAFT ASS'Y | 1 | |
| 117 | D10 | INC. 125 | ||
| 118 | 412627-8 | BEARING HOUSING B | 2 | |
| 119 | 327609-6 | PIPE 28 | 1 | |
| 120 | 412625-2 | SLIDE BUSH | 1 | |
| 121 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 122 | 412624-4 | BEARING HOUSING A | 2 | |
| 123 | 412623-6 | LINER 15 | 1 | |
| 124 | 412626-0 | PIPE SLEEVE 28 | 2 | |
| 125 | 136393-0 | SHAFT ASS'Y | 1 | |
| 125 | D10 | INC. 117 | ||
| 126 | 265954-0 | TAPPING SCREW BIND PT3X8 | 1 | |
| 127 | 412625-2 | SLIDE BUSH | 1 | |
| 128 | 211148-5 | BALL BEARING 6001ZZ | 1 | |
| 129 | 620K74-7 | CONTROLLER B | 1 | |
| 130 | 638A33-7 | LEAD UNIT | 1 | |
| 131 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 165200-0 | GUIDE BAR 12 | 1 | |
| A02 | 419288-5 | CHAIN COVER | 1 | |
| A02-1 | 419288-5 | CHAIN COVER | 1 | |
| A03 | 196206-7 | SAW CHAIN SET | 1 | |
| A03-1 | 191H10-7 | SAW CHAIN 12 SET | 1 | |
| A04 | 782023-7 | WRENCH 13-16 | 1 | |
| A05 | 198457-8 | CHAIN EDGER SET | 1 | |
| A05-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") | 1 | |
| A06 | 199897-3 | OIL VESSEL SET | 1 | |
| A07 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A08 | 422596-5 | CAP 28 | 2 | |
| A09 | 424434-7 | CAP 24 | 1 | |
| A10 | 191K37-5 | BAND ASSEMBLY SET | 1 | |
| A11 | 195246-2 | SAFETY GOGGLE | 1 | |
| A12B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A12B | D10 | COMPO-PARTS | ||
| A13B | 197280-8 | BATTERY BL1850B SET | 2 | |
| F08 | 195093-1 | CHAIN OIL SET | 1 | |
| F09 | 195923-6 | ROUND FILE 4.5 SET | 1 | |
| F09-1 | D-70954 | FILE HOLDER SET 4.5MM(11/64") | 1 | |
| F10 | 196205-9 | SAW CHAIN SET | 1 | |
| F10-1 | 191H08-4 | SAW CHAIN 10 SET | 1 | |
| F11 | 196206-7 | SAW CHAIN SET | 1 | |
| F12 | 196740-7 | SAW CHAIN SET | 1 | |
| F12-1 | 191H01-8 | SAW CHAIN 12 SET | 1 | |
| F13 | 198457-8 | CHAIN EDGER SET | 1 | |
| F13-1 | D-70948 | FILE HOLDER SET 4.0MM(5/32") | 1 | |
| F14 | 199075-5 | SAW CHAIN SET | 1 | |
| F17 | 1910J6-0 | ANGLED ATTACHMENT SET | 1 | |
| F18 | 1914F1-6 | SAW CHAIN 10 SET | 1 | |
| F19 | 1914F2-4 | SAW CHAIN 12 SET | 1 | |
| F20 | 1914F5-8 | SAW CHAIN 10 SET | 1 | |
| F21 | 1914F6-6 | SAW CHAIN 12 SET | 1 |
