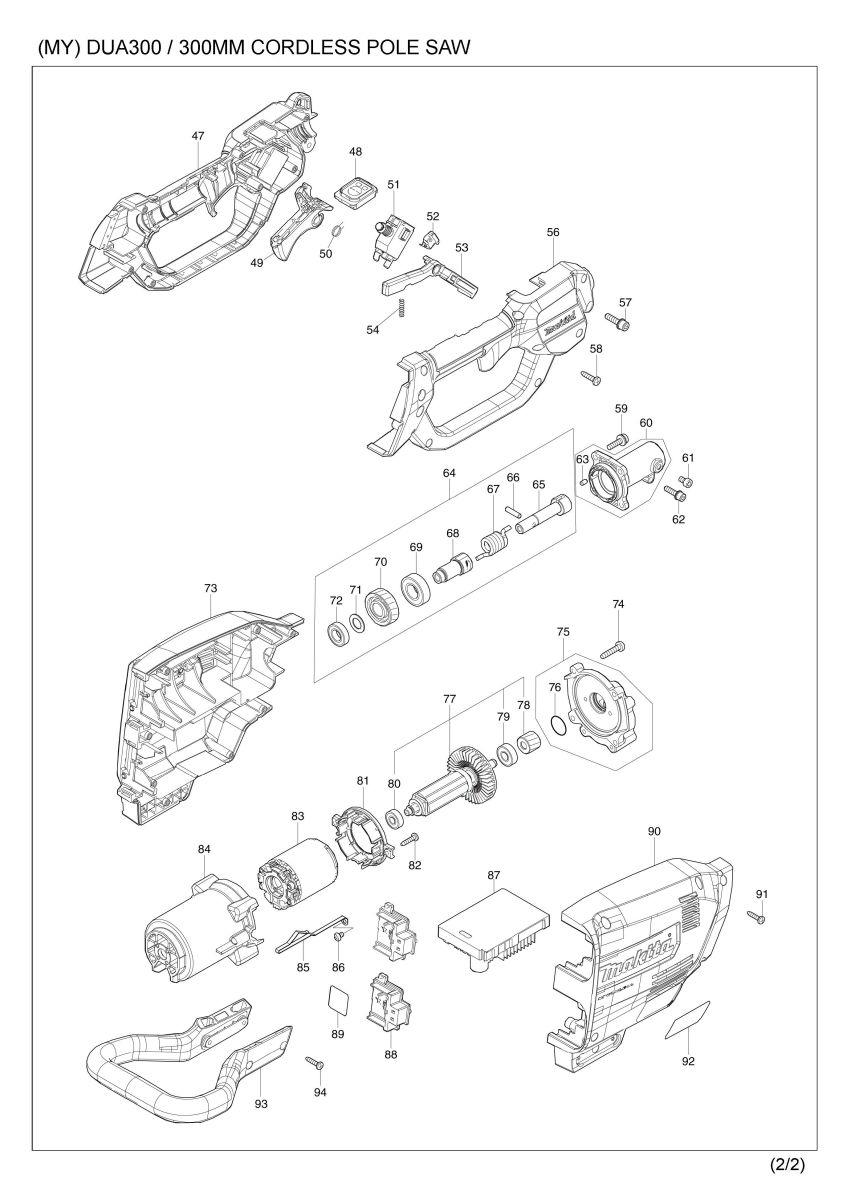

Part Diagram
Total: 66 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| C10 | 8016N5-5 | CAUTION LABEL | 1 | |
| 056 | 183P85-8 | GRIP SET | 1 | |
| C10 | 931202-6 | HEX. NUT M5 | 1 | |
| D10 | INC. 47 | |||
| 057 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 058 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 059 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 060 | 136371-0 | PIPE BRACKET ASSY | 1 | |
| D10 | INC. 63 | |||
| 061 | 922202-7 | HEX. SOCKET HEAD BOLT M5X8 | 1 | |
| 062 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 063 | 263002-9 | RUBBER PIN 4 | 1 | |
| 064 | 127641-8 | DAMPER SHAFT ASSEMBLY | 1 | |
| D10 | INC. 65-72 | |||
| 065 | 327600-4 | JOINT SLEEVE | 1 | |
| 066 | 256964-8 | PIN 5 | 1 | |
| 067 | 232625-4 | TORSION SPRING 12 | 1 | |
| 068 | 327601-2 | SPINDLE HUB | 1 | |
| 069 | 211232-6 | BALL BEARING 6002LLU | 1 | |
| 070 | 226997-7 | HELICAL GEAR 33 | 1 | |
| 071 | 253744-3 | FLAT WASHER 12 | 1 | |
| 072 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 073 | 183P84-0 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 10 | |
| D10 | INC. 90 | |||
| 074 | 266459-3 | TAPPING SCREW 5X25 | 4 | |
| 075 | 136231-6 | GEAR BOX ASS'Y | 1 | |
| D10 | INC. 76 | |||
| 076 | 213961-7 | O RING 22 | 1 | |
| 077 | 510470-0 | ROTOR ASS'Y | 1 | |
| D10 | INC. 78-80 | |||
| 078 | 226996-9 | HELICAL GEAR 16 | 1 | |
| 079 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 080 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 081 | 459764-7 | BAFFLE PLATE | 1 | |
| 082 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 083 | 629A12-6 | STATOR | 1 | |
| 084 | 459763-9 | MOTOR HOUSING | 1 | |
| 087 | 620C84-6 | CONTROLLER | 1 | |
| 087-1 | 620F58-5 | CONTROLLER | 1 | |
| 088 | 644809-6 | TERMINAL | 2 | |
| 089 | 857J52-0 | DUA300 SERIAL NO. LABEL | 1 | |
| 090 | 183P84-0 | HOUSING SET | 1 | |
| C10 | 263005-3 | RUBBER PIN 6 | 10 | |
| D10 | INC. 73 | |||
| 091 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 092 | 857J50-4 | DUA301 NAME PLATE | 1 | |
| 093 | 412645-6 | GUARD | 1 | |
| 094 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 095 | 327608-8 | SHAFT | 1 | |
| 096 | 312A03-1 | SLEEVE 28 | 2 | |
| 115 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| D10 | INC. 116 | |||
| 116 | 183R91-5 | GEAR CASE COVER SET | 1 | |
| D10 | INC. 115 | |||
| A01 | 165200-0 | GUIDE BAR 12 | 1 | |
| A02 | 419288-5 | CHAIN COVER | 1 | |
| A03 | 196206-7 | SAW CHAIN SET | 1 | |
| A04 | 782023-7 | WRENCH 13-16 | 1 | |
| A05 | 198457-8 | CHAIN EDGER SET | 1 | |
| A06 | 199897-3 | OIL VESSEL SET | 1 | |
| A10 | 191K37-5 | BAND ASSEMBLY SET | 1 | |
| A11 | 195246-2 | SAFETY GOGGLE | 1 | |
| A12B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A13B | 197280-8 | BATTERY BL1850B SET | 2 |
