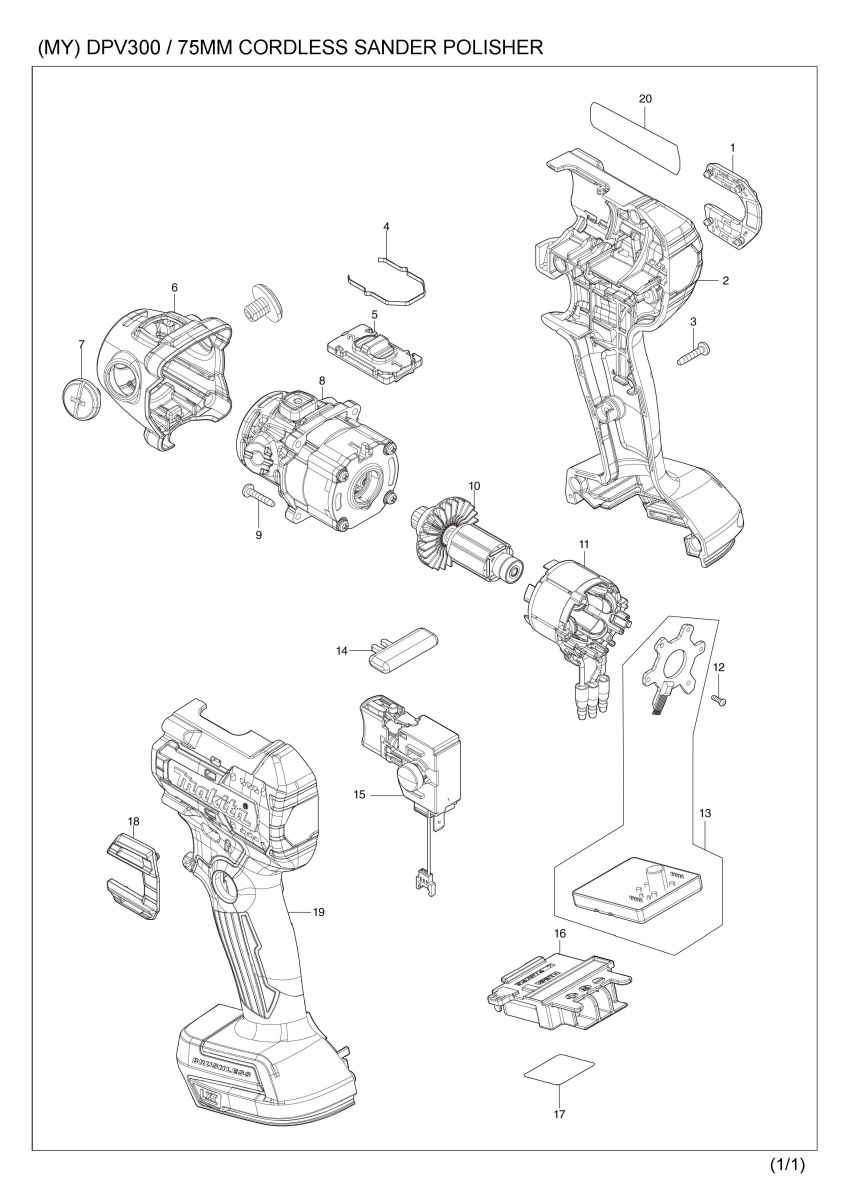

Part Diagram
Total: 45 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 422613-1 | DUST COVER | 1 | |
| 002 | 191P12-1 | HOUSING SET | 1 | |
| C10 | 8028C3-7 | INDICATION LABEL | 1 | |
| C20 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 19 | |||
| 003 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 7 | |
| 004 | 232659-7 | LEAF SPRING | 1 | |
| 005 | 127720-2 | SPEED CHANGE LEVER ASSEMBLY | 1 | |
| C10 | 232636-9 | COMPRESSION SPRING 3 | 2 | |
| 006 | 413228-5 | HEAD COVER | 1 | |
| 007 | 413229-3 | +ROUND HEAD SCREW M8X10 | 2 | |
| 008 | 127721-0 | GEAR ASSEMBLY | 1 | |
| 008-1 | 122D56-8 | GEAR ASSEMBLY | 1 | |
| 009 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 010 | 619663-7 | ROTOR | 1 | |
| 011 | 629A36-2 | STATOR | 1 | |
| 012 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 013 | 620D22-4 | CONTROLLER | 1 | |
| 014 | 412697-7 | LOCK OFF BUTTON | 1 | |
| 015 | 651489-1 | SWITCH C3JW-4B-L6 | 1 | |
| 016 | 643874-2 | TERMINAL | 1 | |
| 017 | 858B92-3 | DPV300 SERIAL NO. LABEL | 1 | |
| 018 | 422613-1 | DUST COVER | 1 | |
| 019 | 191P12-1 | HOUSING SET | 1 | |
| C10 | 8028C3-7 | INDICATION LABEL | 1 | |
| C20 | 263005-3 | RUBBER PIN 6 | 2 | |
| D10 | INC. 2 | |||
| 020 | 858B84-2 | DPV300 NAME PLATE | 1 | |
| A01 | 140X75-2 | GRIP 30 COMPLETE | 1 | |
| A02 | 191N90-9 | SPONGE PAD 80 SET | 1 | |
| A03 | 191N91-7 | SPONGE PAD 80 SET | 1 | |
| A04 | 191N92-5 | WOOL PAD 80 SET | 1 | |
| A05 | 743124-6 | PAD 50 | 1 | |
| A06 | 743125-4 | PAD 75 | 1 | |
| A07 | 743126-2 | ADAPTER | 1 | |
| A08B | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| C10 | 453974-8 | LATCH | 4 | |
| A09B | 835V03-5 | INNER TRAY | 1 | |
| A10B | 8027Y3-5 | DPV300RTJ PLASTIC CASE LABEL | 2 | |
| A11B | 8027Y2-7 | DPV300RTJ INDICATION LABEL | 1 | |
| A12B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A13B | 450128-8 | BATTERY COVER | 1 | |
| A14B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| D10 | COMPO-PARTS | |||
| A16 | 781006-4 | WRENCH 13 | 1 |
