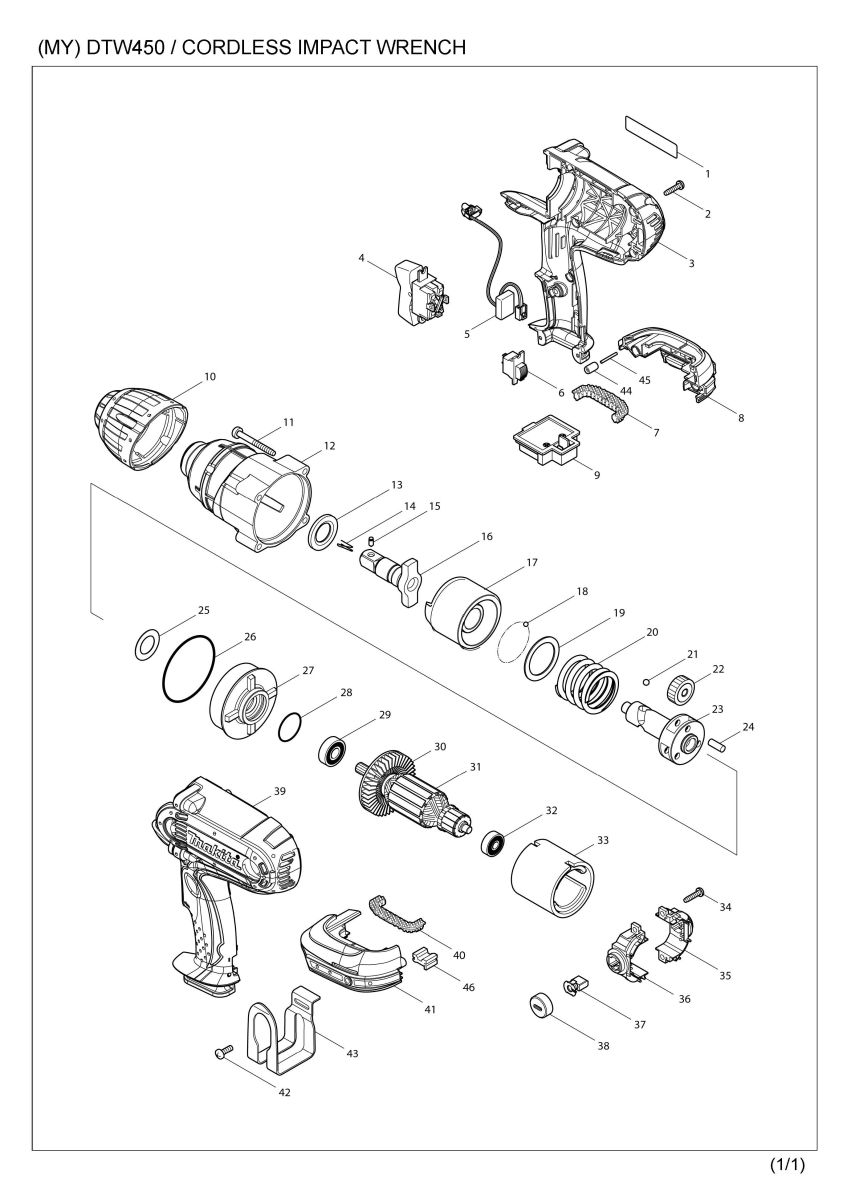

Part Diagram
Total: 98 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 850H18-7 | DTW450 NAME PLATE | 1 | |
| 001-1 | 857K22-5 | DTW450 NAME PLATE | 1 | |
| 2 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 3 | 188434-8 | HOUSING SET | 1 | |
| 3 | C10 | 263025-7 | RUBBER PIN 4 | 4 |
| 3 | D10 | INC. 39 | ||
| 4 | 651572-4 | SWITCH SL220SD-19 | 1 | |
| 004-1 | 651572-4 | SWITCH SL220SD-19 | 1 | |
| 5 | 631738-2 | LIGHT CIRCUIT | 1 | |
| 6 | 638503-0 | SWITCH UNIT | 1 | |
| 7 | 424042-4 | CUSHION RUBBER | 1 | |
| 8 | 187873-9 | BATTERY HOUSING SET | 1 | |
| 8 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 8 | D10 | INC. 41 | ||
| 009A | 643843-3 | TERMINAL | 1 | |
| 009B | 643843-3 | TERMINAL | 1 | |
| 009-1A | 643844-1 | TERMINAL | 1 | |
| 009-1B | 643844-1 | TERMINAL | 1 | |
| 009-1C | 643844-1 | TERMINAL | 1 | |
| 10 | 421971-2 | BUMPER | 1 | |
| 11 | 266056-5 | TAPPING SCREW 5X45 | 4 | |
| 12 | 158076-2 | HAMMER CASE COMPLETE | 1 | |
| 13 | 267268-3 | FLAT WASHER 19 | 1 | |
| 14 | 231907-1 | RING SPRING 10 | 1 | |
| 016A | 324406-1 | ANVIL | 1 | |
| 016B | 324406-1 | ANVIL | 1 | |
| 016-1A | 326983-9 | ANVIL | 1 | |
| 016-1B | 326983-9 | ANVIL | 1 | |
| 016-1C | 326983-9 | ANVIL | 1 | |
| 17 | 324697-4 | HAMMER | 1 | |
| 18 | 216008-6 | STEEL BALL 4 | 29 | |
| 19 | 267340-1 | FLAT WASHER 32 | 2 | |
| 20 | 234338-3 | COMPRESSION SPRING 33 | 1 | |
| 21 | 216007-8 | STEEL BALL 6.4 | 2 | |
| 22 | 227171-0 | SPUR GEAR 23 | 3 | |
| 23 | 310185-7 | SPINDLE | 1 | |
| 24 | 256033-5 | PIN 6 | 3 | |
| 25 | 253794-8 | FLAT WASHER 18 | 1 | |
| 26 | 213722-5 | O RING 63 | 1 | |
| 27 | 227172-8 | INTERNAL GEAR 53 | 1 | |
| 28 | 213407-3 | O RING 26 | 1 | |
| 29 | 210059-1 | BALL BEARING 6000DDW | 1 | |
| 30 | 241850-6 | FAN 60 | 1 | |
| 31 | 519199-5 | ARMATURE ASS'Y 18V | 1 | |
| 31 | D10 | INC. 29,30,32 | ||
| 32 | 210025-8 | BALL BEARING 627LLB | 1 | |
| 33 | 638107-8 | YOKE UNIT | 1 | |
| 34 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 35 | 643818-2 | BRUSH HOLDER | 1 | |
| 035-1 | 643531-2 | BRUSH HOLDER | 1 | |
| 36 | 643823-9 | BRUSH HOLDER | 1 | |
| 036-1 | 643532-0 | BRUSH HOLDER | 1 | |
| 37 | 194435-6 | CARBON BRUSH CB-441 | 1 | |
| 037-1 | 195022-4 | CARBON BRUSH SET CB-441 | 1 | |
| 038A | 643941-3 | BRUSH HOLDER CAP | 2 | |
| 038B | 643941-3 | BRUSH HOLDER CAP | 2 | |
| 038-1A | 643829-7 | HOLDER CAP | 2 | |
| 038-1B | 643829-7 | HOLDER CAP | 2 | |
| 038-1C | 643829-7 | HOLDER CAP | 2 | |
| 39 | 188434-8 | HOUSING SET | 1 | |
| 39 | C10 | 263025-7 | RUBBER PIN 4 | 4 |
| 39 | D10 | INC. 3 | ||
| 40 | 424042-4 | CUSHION RUBBER | 1 | |
| 41 | 187873-9 | BATTERY HOUSING SET | 1 | |
| 41 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 41 | D10 | INC. 8 | ||
| 42 | 251314-2 | + SCREW M4X12 | 1 | |
| 43 | 345736-7 | HOOK | 1 | |
| 44 | 263036-2 | RUBBER PIN 5 | 1 | |
| 45 | 268184-2 | PIN 1.5 | 1 | |
| 046A | 424026-2 | CUSHION | 1 | |
| 046B | 424026-2 | CUSHION | 1 | |
| 046-1A | 424476-1 | CUSHION | 1 | |
| 046-1B | 424476-1 | CUSHION | 1 | |
| 046-1C | 424476-1 | CUSHION | 1 | |
| 47 | 857K23-3 | DTW450 SERIAL NO. LABEL | 1 | |
| A01A | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02-1A | 196399-0 | BATTERY BL1840 SET | 2 | |
| A02-2A | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02-2C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02-3A | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02-3C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03A | 450128-8 | BATTERY COVER | 1 | |
| A03C | 450128-8 | BATTERY COVER | 1 | |
| A04A | 141644-8 | PLASTIC CASE COMPLETE | 1 | |
| A04A | C10 | 163467-4 | LATCH | 2 |
| A04C | 141644-8 | PLASTIC CASE COMPLETE | 1 | |
| A04C | C10 | 163467-4 | LATCH | 2 |
| A05A | 804R36-7 | DTW450RME MODEL NO. LABEL | 1 | |
| A05-1A | 807N34-6 | DTW450RME MODEL NO. LABEL | 1 | |
| A05-1C | 807N25-7 | DTW450RFE MODEL NO. LABEL | 1 | |
| F27 | 194649-7 | BATTERY PROTECTOR | 1 | |
| F27 | C10 | 251314-2 | + SCREW M4X12 | 2 |
| F28 | 195870-1 | DRILL BIT REMOVER SET | 1 | |
| F30-2 | 196235-0 | BATTERY BL1815N SET | 1 | |
| F31-1 | 196449-1 | BATTERY BL1815N SET | 1 | |
| F32-2 | 196449-1 | BATTERY BL1815N SET | 1 |
