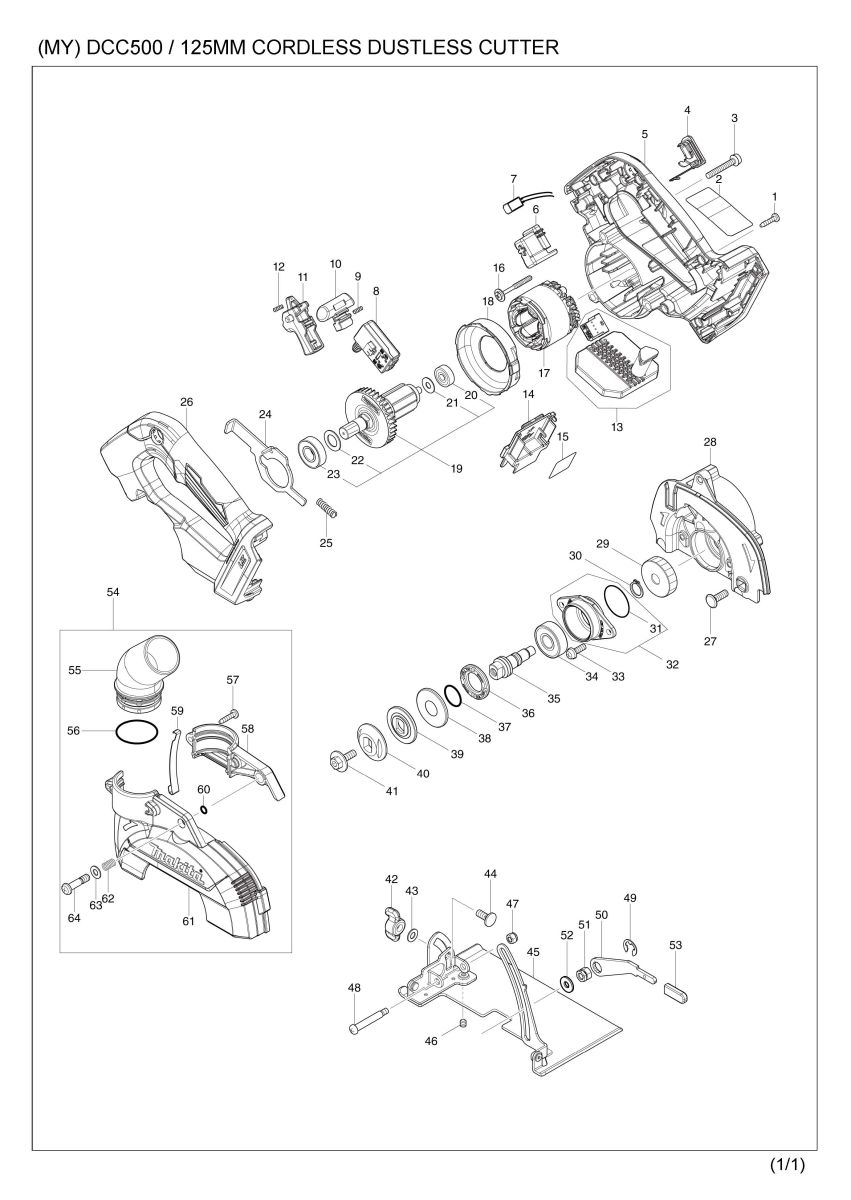

Part Diagram
Total: 104 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 2 | 858D79-7 | DCC500 NAME PLATE | 1 | |
| 3 | 911258-5 | PAN HEAD SCREW M5X35 | 3 | |
| 4 | 140F99-0 | CAP COMPLETE | 1 | |
| 4 | C10 | 213218-6 | O RING 16 | 1 |
| 4 | C11 | 213A05-9 | O-RING16 | 1 |
| 4 | C20 | 818H07-8 | CAP LABEL | 1 |
| 5 | 140Y20-3 | MOTOR HOUSING COMPLETE | 1 | |
| 5 | C10 | 263005-3 | RUBBER PIN 6 | 3 |
| 005-1 | 136652-2 | MOTOR HOUSING ASSEMBLY | 1 | |
| 005-1 | C10 | 263005-3 | RUBBER PIN 6 | 3 |
| 6 | 459256-6 | HOLDER | 1 | |
| 7 | 620936-3 | LED CIRCUIT | 1 | |
| 8 | 651083-9 | SWITCH C3XA-1PSPM | 1 | |
| 9 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 10 | 459264-7 | LOCK OFF BUTTON | 1 | |
| 11 | 458594-3 | SWITCH LEVER | 1 | |
| 12 | 231433-0 | COMPRESSION SPRING 4 | 1 | |
| 13 | 620E44-0 | CONTROLLER | 1 | |
| 013-1 | 620L79-3 | CONTROLLER | 1 | |
| 14 | 643874-2 | TERMINAL | 1 | |
| 15 | 858D86-0 | DCC500 SERIAL NO. LABEL | 1 | |
| 16 | 265679-6 | TAPPING SCREW 4X40 | 2 | |
| 17 | 629A39-6 | STATOR | 1 | |
| 017-1 | 629B61-9 | STATOR | 1 | |
| 18 | 413291-8 | BAFFLE PLATE | 1 | |
| 19 | 519665-2 | ROTOR ASS'Y | 1 | |
| 19 | D10 | INC. 20-23 | ||
| 20 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 21 | 253332-6 | THIN WASHER 6 | 1 | |
| 22 | 253744-3 | FLAT WASHER 12 | 1 | |
| 23 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 24 | 347785-0 | SHAFT LOCK | 1 | |
| 25 | 232667-8 | COMPRESSION SPRING 6 | 1 | |
| 26 | 140Y24-5 | HANDLE COVER COMPLETE | 1 | |
| 26 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 026-1 | 136660-3 | HANDLE COVER ASSEMBLY | 1 | |
| 026-1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 27 | 251586-9 | FLAT HEAD SQUARE NECK BOLT M6X | 1 | |
| 28 | 140Y21-1 | GEAR HOUSING COMPLETE | 1 | |
| 28 | C10 | 213430-8 | O RING 28 | 1 |
| 29 | 227855-0 | HELICAL GEAR 45 | 1 | |
| 30 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 31 | 213444-7 | O RING 30 | 1 | |
| 32 | 135948-8 | BEARING BOX ASSEMBLY | 1 | |
| 32 | D10 | INC. 31 | ||
| 33 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 34 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 35 | 325603-2 | SPINDLE | 1 | |
| 36 | 285858-0 | BEARING RETAINER 19-33 | 1 | |
| 37 | 213279-6 | O RING 18 | 1 | |
| 38 | 253397-8 | CUP WASHER 15 | 1 | |
| 39 | 224423-0 | INNER FLANGE 36 | 1 | |
| 40 | 224424-8 | OUTER FLANGE 36 | 1 | |
| 41 | 266510-9 | HEX. SOCKET HEX. BOLT M6X18 | 1 | |
| 42 | 252649-4 | THUMB NUT M6 | 1 | |
| 43 | 941151-9 | FLAT WASHER 6 | 1 | |
| 44 | 265939-6 | FLAT HEAD SQ. NECK BOLT M6X14 | 1 | |
| 45 | 162951-6 | BASE | 1 | |
| 46 | 266264-8 | H.S.SET SCREW(FLAT POINT)M5X6 | 1 | |
| 47 | 252103-8 | HEX. LOCK NUT M5-8 | 1 | |
| 48 | 266515-9 | + PAN HEAD SCREW M5 | 1 | |
| 49 | 257982-9 | BOW STOP RING E-8 | 1 | |
| 50 | 347399-5 | LEVER PLATE | 1 | |
| 51 | 264103-6 | HEX. NUT M6 | 1 | |
| 52 | 253111-2 | FLAT WASHER 6 | 1 | |
| 53 | 286036-5 | CAP | 1 | |
| 54 | 127750-3 | DUST COVER ASSEMBLY A | 1 | |
| 54 | D10 | INC. 55-64 | ||
| 55 | 416741-2 | ELBOW | 1 | |
| 56 | 213460-9 | O RING 35 | 1 | |
| 57 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 58 | 413294-2 | DUST COVER R | 1 | |
| 59 | 347787-6 | PLATE | 1 | |
| 60 | 213005-3 | O RING 5 | 1 | |
| 61 | 413292-6 | DUST COVER L | 1 | |
| 62 | 233267-7 | COMPRESSION SPRING 7 | 1 | |
| 63 | 941151-9 | FLAT WASHER 6 | 1 | |
| 64 | 265658-4 | PAN HEAD SCREW M6X26 | 1 | |
| 65 | 620K37-3 | CONTROLLER B | 1 | |
| 66 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 783217-7 | HEX. WRENCH 5 | 1 | |
| A02 | 126738-0 | DUST BAG ASSEMBLY | 1 | |
| A02 | C10 | 410602-8 | FASTENER | 1 |
| A05B | 450128-8 | BATTERY COVER | 1 | |
| A06B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A06B | D10 | COMPO-PARTS | ||
| A07B | 197280-8 | BATTERY BL1850B SET | 2 | |
| A08B | 8029D9-8 | DCC500RTJ INDICATION LABEL | 1 | |
| A09B | 8029E0-3 | DCC500RTJ PLASTIC CASE LABEL | 2 | |
| A10B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A10B | C10 | 453974-8 | LATCH | 4 |
| A11B | 835U78-8 | INNER TRAY | 1 | |
| F02 | 199140-0 | GUIDE RAIL 1000 SET | 1 | |
| F03 | 196943-3 | BASE COVER SET | 1 | |
| F04 | 198673-2 | GUIDE RAIL ADAPTER SET | 1 | |
| F05 | 199141-8 | GUIDE RAIL 1500 SET | 1 | |
| F06 | 194368-5 | GUIDE RAIL 1400 SET | 1 | |
| F07 | 194925-9 | GUIDE RAIL 1900 SET | 1 | |
| F08 | 194367-7 | GUIDE RAIL 3000 SET | 1 | |
| F09 | 194416-0 | SHEET 10000 SET | 1 | |
| F10 | 194417-8 | RUBBER SHEET 10000 SET | 1 | |
| F11 | 194418-6 | POSITION SHEET 1400 SET | 1 | |
| F12 | 194910-2 | POSITION SHEET 1900 SET | 1 |
