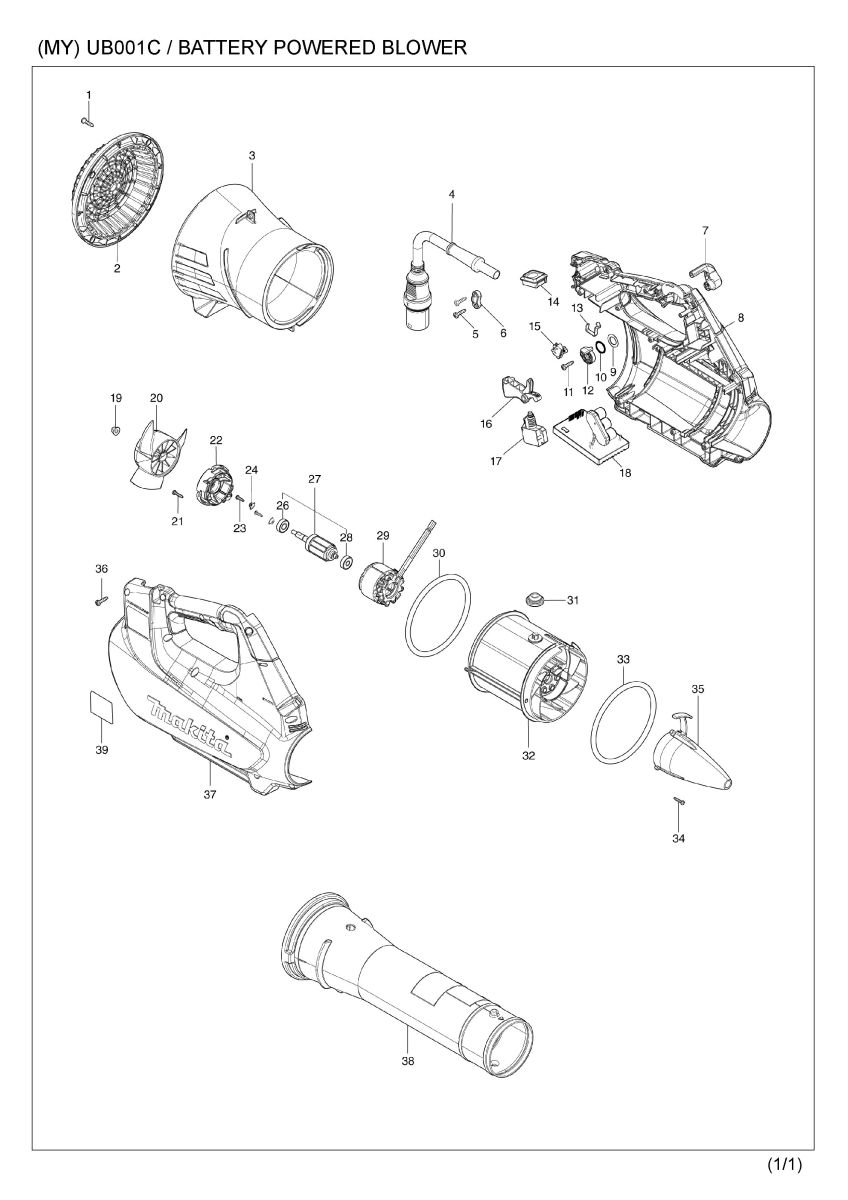

Part Diagram
Total: 68 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 002 | 412749-4 | REAR COVER | 1 | |
| 003 | 140V33-6 | REAR HOUSING COMPLETE | 1 | |
| 004 | 699156-0 | POWER SUPPLY CORD UNIT | 1 | |
| 005 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 006 | 687149-9 | STRAIN RELIEF | 1 | |
| 007 | 412755-9 | CONTROL LEVER | 1 | |
| 008 | 183R61-4 | HOUSING SET | 1 | |
| 008 | C10 | 8011Y4-4 | CAUTION LABEL | 1 |
| 008 | D10 | INC. 37 | ||
| 008-1 | 183R61-4 | HOUSING SET | 1 | |
| 008-1 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 008-1 | D10 | INC. 37 | ||
| 009 | 253798-0 | FLAT WASHER 13 | 1 | |
| 010 | 213154-6 | O RING 14 | 1 | |
| 011 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 012 | 412754-1 | LINK | 1 | |
| 013 | 232634-3 | LEAF SPRING | 1 | |
| 014 | 140X08-7 | SWITCH CIRCUIT COMPLETE | 1 | |
| 014 | C10 | 810D46-0 | SWITCH LABEL | 1 |
| 015 | 632L48-2 | SWITCH UNIT | 1 | |
| 016 | 412756-7 | SWITCH LEVER | 1 | |
| 017 | 651436-2 | SWITCH C3JW-1A-P-2 | 1 | |
| 018 | 620D15-1 | CONTROLLER | 1 | |
| 019 | 252286-4 | COLLARED HEX.LOCK NUT M5-8 | 1 | |
| 020 | 240177-1 | FAN 110 | 1 | |
| 021 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 4 | |
| 022 | 412753-3 | MOTOR HOUSING COVER | 1 | |
| 023 | 265893-4 | TAPPING SCREW 3X12 | 2 | |
| 024 | 347733-9 | RETAINER | 2 | |
| 026 | 210040-2 | BALL BEARING 698LLU | 1 | |
| 027 | 519639-3 | ROTOR ASS'Y | 1 | |
| 027 | D10 | INC. 26,28 | ||
| 027-1 | 519639-3 | ROTOR ASS'Y | 1 | |
| 027-1 | D10 | INC. 26,28 | ||
| 028 | 210022-4 | BALL BEARING 626DDW | 1 | |
| 029 | 629A15-0 | STATOR | 1 | |
| 029-1 | 629B61-9 | STATOR | 1 | |
| 030 | 424721-4 | RUBBER RING 115 | 1 | |
| 031 | 424194-1 | RUBBER RING 8 | 1 | |
| 032 | 412751-7 | MOTOR HOUSING | 1 | |
| 033 | 424721-4 | RUBBER RING 115 | 1 | |
| 034 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 3 | |
| 035 | 412752-5 | CAP | 1 | |
| 036 | 266326-2 | TAPPING SCREW 4X18 | 12 | |
| 037 | 183R61-4 | HOUSING SET | 1 | |
| 037 | C10 | 8011Y4-4 | CAUTION LABEL | 1 |
| 037 | D10 | INC. 8 | ||
| 037-1 | 183R61-4 | HOUSING SET | 1 | |
| 037-1 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 037-1 | D10 | INC. 8 | ||
| 038 | 412757-5 | FRONT PIPE | 1 | |
| 039 | 857M75-6 | UB001C NAME PLATE | 1 | |
| 040 | 422734-9 | SPONGE | 1 | |
| 041 | 620K74-7 | CONTROLLER B | 1 | |
| 042 | 638A36-1 | LEAD UNIT | 1 | |
| 043 | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01 | 191L94-9 | BAND ASSEMBLY SET | 1 | |
| A01-1 | 191J48-4 | BAND ASSEMBLY SET | 1 | |
| A02 | 412758-3 | END NOZZLE 80 | 1 | |
| A02-1 | 191P97-7 | END NOZZLE 80 SET | 1 | |
| F01 | 191B03-8 | GUTTER NOZZLE SET | 1 | |
| F01 | C10 | 162790-4 | END NOZZLE COMPLETE | 1 |
| F01 | C20 | 281030-2 | HOSE CLAMP 75-90 | 2 |
| F01 | C30 | 281031-0 | HOSE CLAMP 85-100 | 1 |
| F01 | C40 | 459816-4 | EXTENSION PIPE 72 | 3 |
| F03 | 191L96-5 | ADAPTER PIPE 85-72 SET | 1 | |
| F04 | 197889-6 | FLAT NOZZLE SET | 1 |
