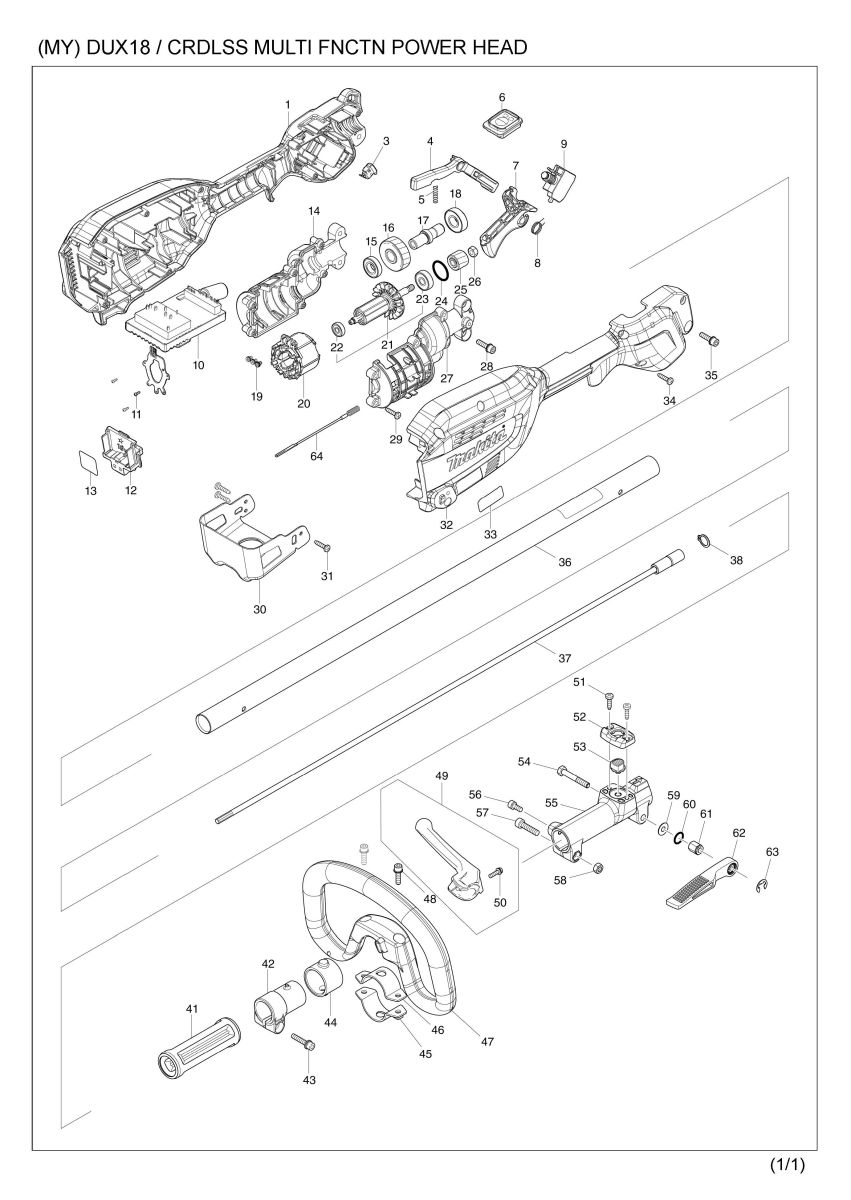

Part Diagram
Total: 87 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183R81-8 | GRIP HOUSING SET | 1 | |
| 1 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 1 | C20 | 931202-6 | HEX. NUT M5 | 1 |
| 1 | D10 | INC. 32 | ||
| 4 | 412863-6 | LOCK OFF LEVER | 1 | |
| 5 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 6 | 140W41-3 | SWITCH CIRCUIT COMPLETE | 1 | |
| 6 | C10 | 8007N9-0 | SWITCH LABEL | 1 |
| 7 | 459758-2 | SWITCH LEVER | 1 | |
| 8 | 233622-3 | TORSION SPRING 12 | 1 | |
| 9 | 651494-8 | SWITCH C3JW-1A-PA-2 | 1 | |
| 10 | 620D90-7 | CONTROLLER | 1 | |
| 11 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 12 | 644809-6 | TERMINAL | 1 | |
| 13 | 857X05-3 | DUX18 SERIAL NO. LABEL | 1 | |
| 14 | 183R80-0 | MOTOR HOUSING SET | 1 | |
| 14 | C10 | 931202-6 | HEX. NUT M5 | 2 |
| 14 | D10 | INC. 27 | ||
| 15 | 210243-8 | BALL BEARING 6901ZZ | 1 | |
| 16 | 227848-7 | HELICAL GEAR 33 | 1 | |
| 17 | 327719-9 | SPINDLE HUB | 1 | |
| 18 | 210244-6 | BALL BEARING 6001ZZ | 1 | |
| 19 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 20 | 629A28-1 | STATOR | 1 | |
| 21 | 519654-7 | ROTOR ASS'Y | 1 | |
| 21 | D10 | INC. 22,23 | ||
| 22 | 210235-7 | BALL BEARING 625ZZ | 1 | |
| 23 | 210236-5 | BALL BEARING 627ZZ | 1 | |
| 24 | 213843-3 | O-RING 21 | 1 | |
| 25 | 227849-5 | HELICAL GEAR 16 | 1 | |
| 26 | 252153-3 | HEX. NUT M6-10 | 1 | |
| 27 | 183R80-0 | MOTOR HOUSING SET | 1 | |
| 27 | C10 | 931202-6 | HEX. NUT M5 | 2 |
| 27 | D10 | INC. 14 | ||
| 28 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 29 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 30 | 347765-6 | BATTERY GUARD | 1 | |
| 31 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 32 | 183R81-8 | GRIP HOUSING SET | 1 | |
| 32 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 32 | C20 | 931202-6 | HEX. NUT M5 | 1 |
| 32 | D10 | INC. 1 | ||
| 33 | 857W99-2 | DUX18 NAME PLATE | 1 | |
| 34 | 266326-2 | TAPPING SCREW 4X18 | 10 | |
| 35 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 1 | |
| 36 | 141B22-4 | SHAFT PIPE B COMPLETE | 1 | |
| 37 | 141238-9 | SHAFT B COMPLETE | 1 | |
| 38 | 961052-5 | RETAINING RING S-12 | 1 | |
| 41 | 451601-1 | SPACER 24 | 1 | |
| 42 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 43 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 44 | 424942-8 | DAMPER | 1 | |
| 45 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 46 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 47 | 457772-2 | LOOP HANDLE | 1 | |
| 47 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 48 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 49 | 144315-6 | BARRIER COMPLETE | 1 | |
| 49 | D10 | INC. 50 | ||
| 50 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 51 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 52 | 452840-6 | RELEASE BUTTON COVER | 1 | |
| 53 | 452839-1 | RELEASE BUTTON | 1 | |
| 54 | 265596-0 | HEX.BOLT M6X40 | 1 | |
| 55 | 318750-6 | JOINT 24 | 1 | |
| 56 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 57 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | |
| 58 | 931302-2 | HEX. NUT M6 | 1 | |
| 59 | 253332-6 | THIN WASHER 6 | 1 | |
| 60 | 213105-9 | O RING 11 | 1 | |
| 61 | 252159-1 | HEX. NUT M6 | 1 | |
| 62 | 272268-0 | LEVER 94 | 1 | |
| 63 | 961014-3 | STOP RING E-8 | 1 | |
| 65 | 443170-6 | FELT | 1 | |
| A01 | 127508-0 | BAND ASS'Y | 1 | |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A04 | 831304-7 | ACCESSORY BAG | 1 | |
| A05B | 782238-6 | BOX WRENCH 17 | 1 | |
| A06B | 191D89-4 | TRIMMER HEAD 96-M10L SET | 1 | |
| A07B | ***EM408MP | GRASS TRIMMER ATTACHMENT | 1 | |
| A07B | D10 | COMPO-PARTS | ||
| A11B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A11B | D10 | COMPO-PARTS | ||
| A12B | 197422-4 | BATTERY BL1860B SET | 1 | |
| A13B | 450128-8 | BATTERY COVER | 1 | |
| A14B | 195638-5 | TOOL BAG SET | 1 |
