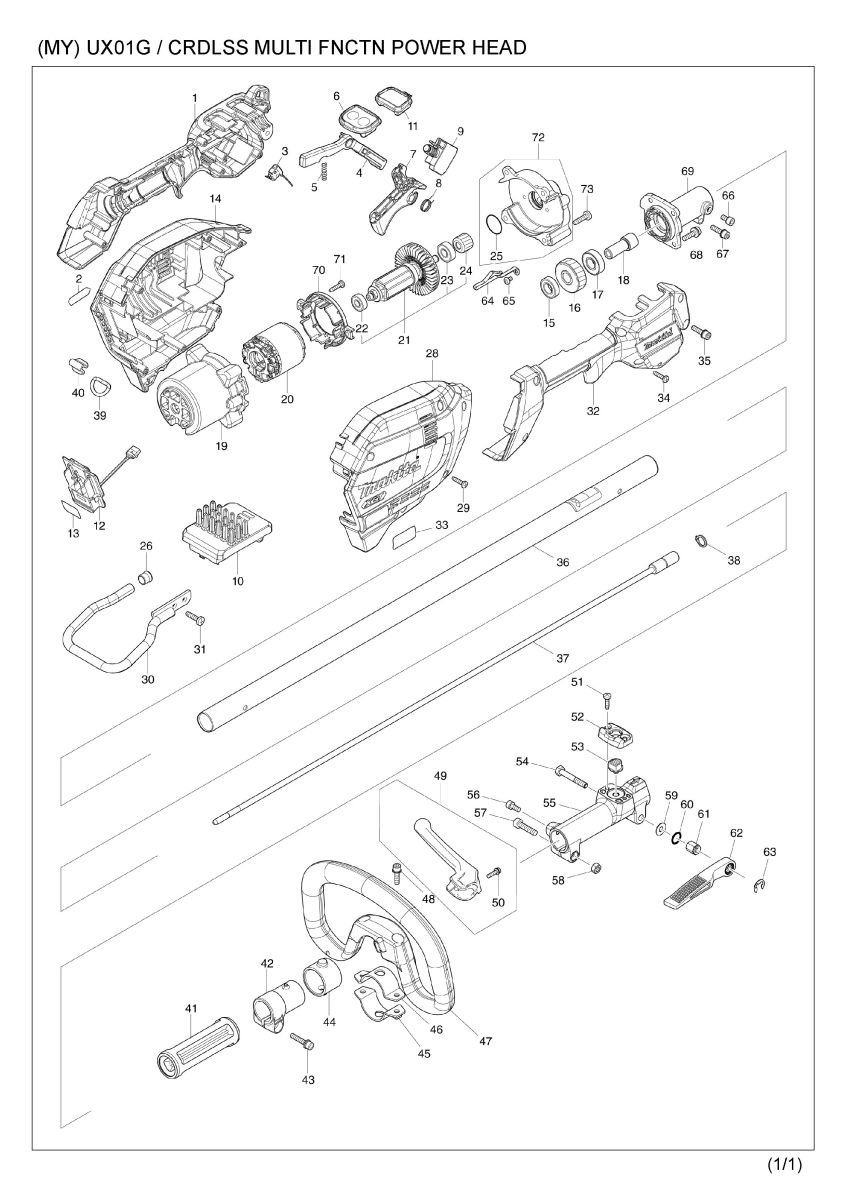

Part Diagram
Total: 89 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183N26-2 | GRIP SET | 1 | |
| 001 | D10 | INC. 32 | ||
| 002 | 8025F3-0 | XGT LOGO LABEL | 1 | |
| 004 | 459759-0 | LOCK OFF LEVER | 1 | |
| 005 | 233101-1 | COMPRESSION SPRING 4 | 1 | |
| 006 | 140W64-1 | SWITCH CIRCUIT COMPLETE G | 1 | |
| 006 | C10 | 8025F0-6 | SWITCH LABEL | 1 |
| 007 | 459758-2 | SWITCH LEVER | 1 | |
| 008 | 233622-3 | TORSION SPRING 12 | 1 | |
| 009 | 651436-2 | SWITCH C3JW-1A-P-2 | 1 | |
| 010 | 620D97-3 | CONTROLLER | 1 | |
| 011 | 140W63-3 | INDICATION CIRCUIT COMPLETE | 1 | |
| 012 | 632P49-4 | TERMINAL UNIT | 1 | |
| 013 | 8026A4-9 | UX01G SERIAL NO. LABEL | 1 | |
| 014 | 183R88-4 | HOUSING SET | 1 | |
| 014 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 014 | D10 | INC. 28 | ||
| 015 | 211150-8 | BALL BEARING 6901ZZ | 1 | |
| 016 | 227848-7 | HELICAL GEAR 33 | 1 | |
| 017 | 211131-2 | BALL BEARING 6001DDW | 1 | |
| 018 | 325811-5 | SPINDLE HUB | 1 | |
| 019 | 412961-6 | MOTOR HOUSING | 1 | |
| 020 | 629A25-7 | STATOR | 1 | |
| 021 | 519647-4 | ROTOR ASS'Y | 1 | |
| 021 | D10 | INC. 22-24 | ||
| 022 | 210062-2 | BALL BEARING 607ZZ | 1 | |
| 023 | 210005-4 | BALL BEARING 608DDW | 1 | |
| 024 | 227834-8 | HELICAL GEAR 16 | 1 | |
| 025 | 213961-7 | O RING 22 | 1 | |
| 026 | 422230-7 | CAP | 1 | |
| 028 | 183R88-4 | HOUSING SET | 1 | |
| 028 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 028 | D10 | INC. 14 | ||
| 029 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 030 | 347752-5 | BATTERY GUARD | 1 | |
| 031 | 266420-0 | TAPPING SCREW 5X20 | 2 | |
| 032 | 183N26-2 | GRIP SET | 1 | |
| 032 | D10 | INC. 1 | ||
| 033 | 8025Y8-3 | UX01G NAME PLATE | 1 | |
| 034 | 266326-2 | TAPPING SCREW 4X18 | 6 | |
| 035 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 036 | 140W68-3 | SHAFT PIPE B COMPLETE | 1 | |
| 036 | C10 | 8025E8-3 | CAUTION LABEL | 1 |
| 037 | 141238-9 | SHAFT B COMPLETE | 1 | |
| 038 | 961052-5 | RETAINING RING (EXT) S-12 | 1 | |
| 039 | 327742-4 | D RING 20 | 1 | |
| 040 | 347783-4 | RING SUPPORT | 1 | |
| 041 | 451601-1 | SPACER 24 | 1 | |
| 042 | 457269-1 | PIPE HOLDER 24 | 1 | |
| 043 | 922244-1 | H.S.H.BOLT M5X25 WITH WG | 1 | |
| 044 | 424942-8 | DAMPER | 1 | |
| 045 | 347114-7 | LOWER CLAMP 35 | 1 | |
| 046 | 347113-9 | UPPER CLAMP 35 | 1 | |
| 047 | 457772-2 | LOOP HANDLE | 1 | |
| 047 | C10 | 263005-3 | RUBBER PIN 6 | 1 |
| 048 | 922234-4 | H.S.H.BOLT M5X20 WITH WG | 2 | |
| 049 | 144315-6 | BARRIER COMPLETE | 1 | |
| 049 | D10 | INC. 50 | ||
| 050 | 911128-8 | P.H.SCREW M4X16 WITH WR | 1 | |
| 051 | 266034-5 | TAPPING SCREW CT 4X16 | 2 | |
| 052 | 452840-6 | RELEASE BUTTON COVER | 1 | |
| 053 | 452839-1 | RELEASE BUTTON | 1 | |
| 054 | 265596-0 | HEX.BOLT M6X40 | 1 | |
| 055 | 318750-6 | JOINT 24 | 1 | |
| 055-1 | 312D49-5 | JOINT24 | 1 | |
| 056 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 057 | 922342-1 | HEX. SOCKET HEAD BOLT M6X25 | 1 | |
| 058 | 931302-2 | HEX. NUT M6 | 1 | |
| 059 | 253332-6 | THIN WASHER 6 | 1 | |
| 060 | 213105-9 | O RING 11 | 1 | |
| 061 | 252159-1 | HEX. NUT M6 | 1 | |
| 062 | 272268-0 | LEVER 94 | 1 | |
| 063 | 961014-3 | STOP RING E-8 | 1 | |
| 066 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 067 | 922233-6 | H.S.H.BOLT M5X20 WITH WR | 1 | |
| 068 | 911233-1 | PAN HEAD SCREW M5X20 | 4 | |
| 069 | 140Y38-4 | PIPE BRACKET COMPLETE | 1 | |
| 069 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 070 | 459764-7 | BAFFLE PLATE | 1 | |
| 071 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 072 | 136368-9 | GEAR BOX ASSY | 1 | |
| 072 | D10 | INC. 25 | ||
| 073 | 266420-0 | TAPPING SCREW 5X20 | 4 | |
| A01 | 127759-5 | BAND ASSEMBLY L | 1 | |
| A02 | 195246-2 | SAFETY GOGGLE | 1 | |
| A03 | 783202-0 | HEX. WRENCH 4 | 1 | |
| A04 | 831304-7 | ACCESSORY BAG | 1 | |
| F47 | 1915D8-4 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 | |
| F48 | 1914R8-6 | TRIMMER HEAD ASSEMBLY 98-M10L | 1 |
