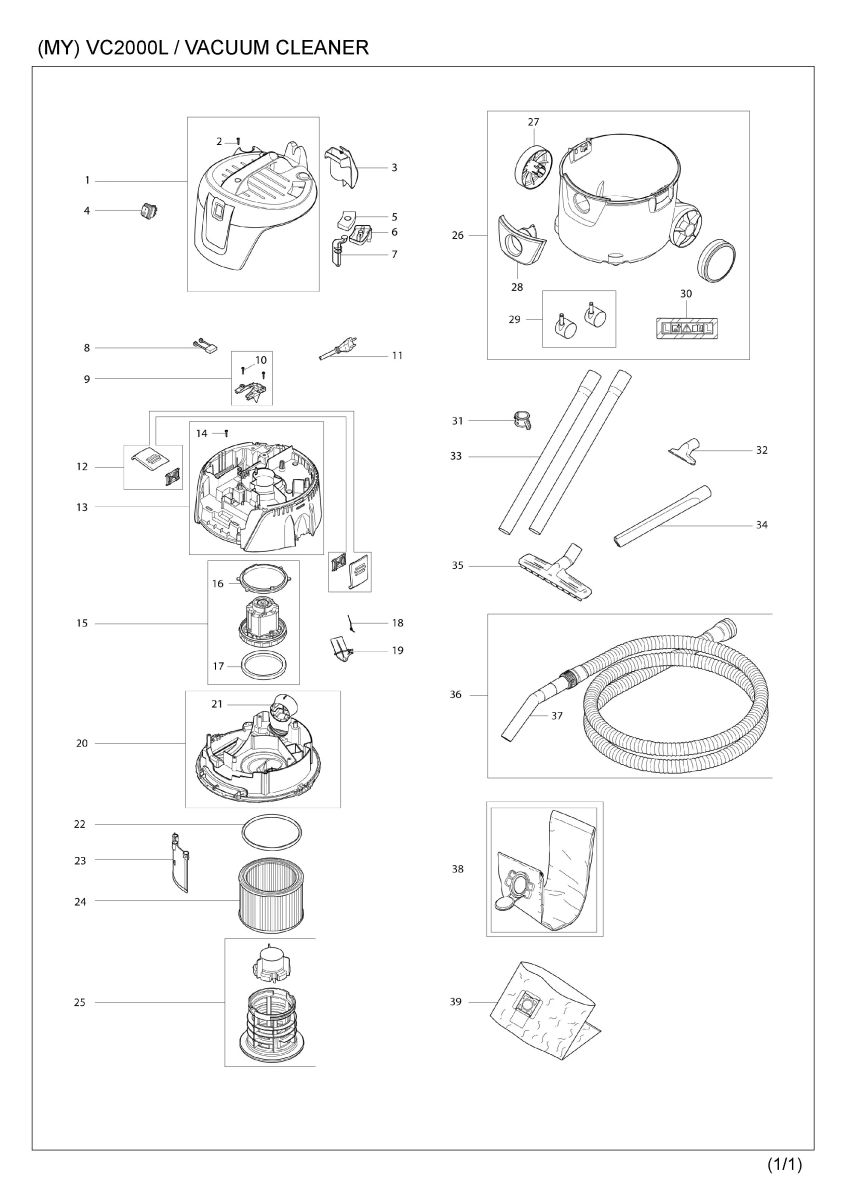

Part Diagram

Item	Sub	Parts No.	Parts Description	Qty
001		W107419618	COVER	1
001	D10		INC. 2
002		W302003704	SCREW 5X18 TX20	2
002-1		W302004029	SCREW 5X18 TX20	2
003		W107409981	HOSE AND CABLE HOOK	1
004		W107404540	SWITCH O-I	1
005		W107409183	DEDUSTING KNOB	1
006		W107409127	P&C DRAIN HOUSING	1
007		W107409128	DEDUTING ROD	1
008		W107404542	CAPACITOR 0.1 MICRO FARAD	1
009		W107409125	CABLE OUTLET	1
009	D10		INC. 10
010		W302003704	SCREW 5X18 TX20	2
010-1		W302004029	SCREW 5X18 TX20	2
011		W107400268	POWER CORD BS-1363	1
012		W107409130	KIT LOCKING CLAMP	2
013		W107409132	CLAMPING PLATE	1
013	D10		INC. 14
014		W302003704	SCREW 5X18 TX20	6
014-1		W302004029	SCREW 5X18 TX20	6
015		W107409160	MOTOR 220-240V 1000 W	1
015	D10		INC. 16,17
016		W107409163	UPPER MOTOR SEALING	1
017		W107409164	LOWER MOTOR SEALING	1
018		W909100083	TORSION SPRING	1
019		W107409129	DEDUSTING FLAP	1
020		W107409166	BASE PLATE WITH AIR OUTLET	1
020	D10		INC. 21
021		W107409167	AIR OUTLET	1
022		W107409165	SEALING FILTER	1
023		W107409159	DEFLECTOR SHIELD	1
024		P-70219	FILTER ELEMENT	1
025		W107402646	KIT FILTER SUPPORT CAGE +FLOAT	1
026		W107419619	MAKITA CONTAINER 20L	1
026	D10		INC. 27-30
027		W107409170	WHEEL D130	2
028		W107409169	INLET FITTING >VC2512L<	1
029		W140642250	KIT CASTOR WHEELS 50MM	1
030		W302004200	LABEL >DUST CLASS L<	1
031		W107409979	TUBE HOLDER KIT	1
032		W000014295	NOZZLE UNIVERSAL	1
032-1		W142950000	NOZZLE UNIVERSAL	1
033		P-72942	SUCTION TUBE 35X520MM 2PCS.	1
034		W000029541	CREVICE NOZZLE	1
035		W107402706	FLOOR NOZZLE 36X260MM	1
036		P-81739	SUCTION HOSE D32X3500 W/TUBE	1
036	D10		INC. 37
037		W107413340	HAND TUBE WITH REGULATION	1
038		P-72899	FILTER BAG	1
039		P-70297	DISPOSAL BAG	1
