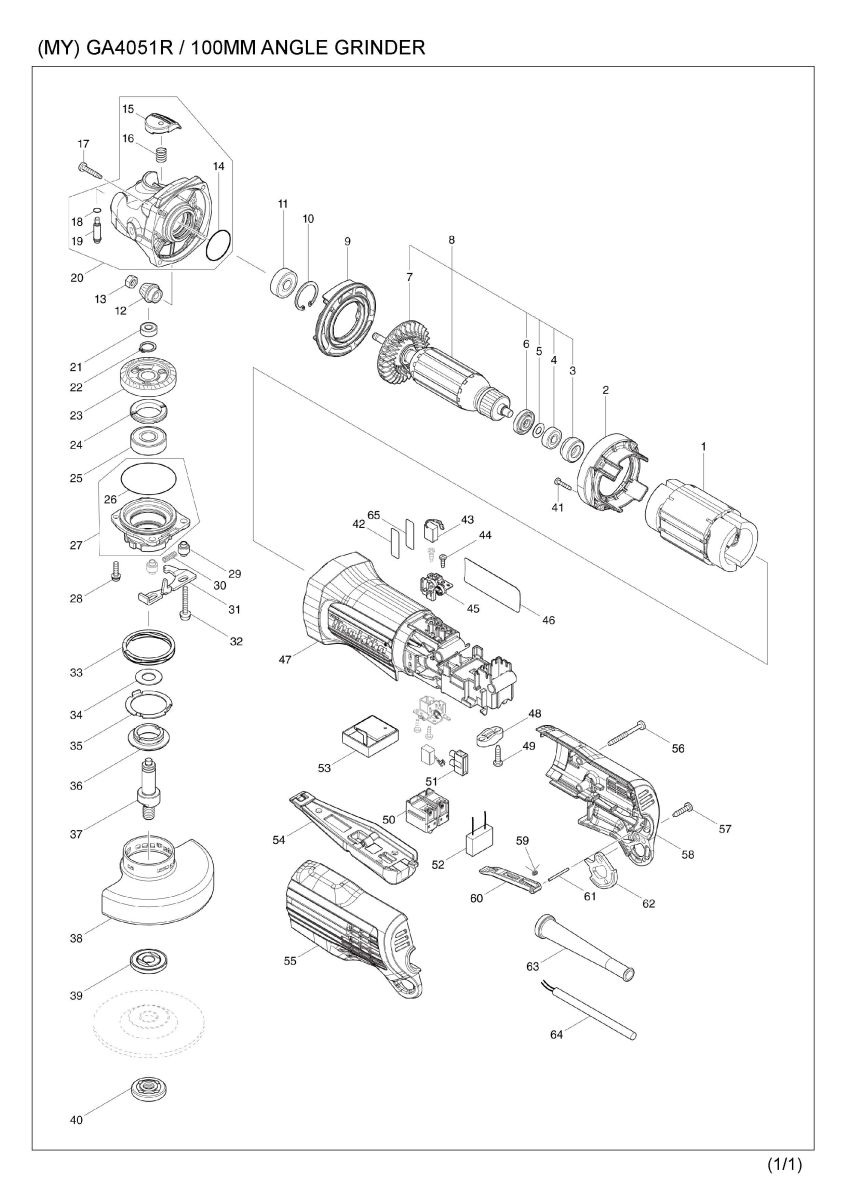

Part Diagram
Total: 79 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 634734-9 | FIELD | 1 | |
| 002 | 459003-5 | BAFFLE PLATE | 1 | |
| 003 | 422413-9 | RUBBER RING 19 | 1 | |
| 004 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 005 | 253186-1 | FLAT WASHER 7 | 1 | |
| 006 | 681636-0 | INSULATION WASHER | 1 | |
| 007 | 240197-5 | FAN60 | 1 | |
| 008 | 517994-7 | ARMATURE ASS'Y 240V | 1 | |
| 008 | D10 | INC. 3-7 | ||
| 009 | 459004-3 | DIFFUSER | 1 | |
| 010 | 962105-3 | RETAINING RING R-26 | 1 | |
| 011 | 211092-6 | BALL BEARING 629DDW | 1 | |
| 012 | 226858-1 | SPIRAL BEVEL GEAR 10 | 1 | |
| 013 | 252186-8 | HEX. NUT M6 | 1 | |
| 014 | 213445-5 | O-RING 26 | 1 | |
| 015 | 459006-9 | PIN CAP | 1 | |
| 016 | 232491-9 | COMPRESSION SPRING 9 | 1 | |
| 017 | 266324-6 | TAPPING SCREW 4X22 | 4 | |
| 018 | 213877-6 | O-RING 6 | 1 | |
| 019 | 256594-5 | SHOULDER PIN 6 | 1 | |
| 020 | 136144-1 | GEAR HOUSING B ASS'Y | 1 | |
| 020 | C10 | 263002-9 | RUBBER PIN 4 | 1 |
| 020 | D10 | INC. 14-16,18,19 | ||
| 021 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 022 | 961052-5 | RETAINING RING S-12 | 1 | |
| 023 | 226859-9 | SPIRAL BEVEL GEAR 37 | 1 | |
| 024 | 285039-6 | BEARING RETAINER 23-33 | 1 | |
| 025 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 026 | 213624-5 | O RING 48 | 1 | |
| 027 | 136142-5 | BEARING BOX B ASS'Y | 1 | |
| 027 | D10 | INC. 26 | ||
| 027 | D11 | INC. 26,66 | ||
| 028 | 911128-8 | P.H.SCREW M4X16 WITH WR | 2 | |
| 029 | 327322-6 | SLEEVE 4 | 2 | |
| 030 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 031 | 347475-5 | LEVER | 1 | |
| 032 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 033 | 232542-8 | SCROW WAVE SPRING 41 | 1 | |
| 034 | 267238-2 | FLAT WASHER 12 | 1 | |
| 035 | 347477-1 | PLATE 33 | 1 | |
| 036 | 319789-2 | PLATE RETAINER 20 | 1 | |
| 037 | 327240-8 | SPINDLE | 1 | |
| 038 | 347478-9 | WHEEL COVER 100 | 1 | |
| 039 | 224314-5 | INNER FLANGE 30 | 1 | |
| 040 | 224559-5 | LOCK NUT 10-30 | 1 | |
| 041 | 266429-2 | TAPPING SCREW 3X16 | 4 | |
| 042 | 856E65-8 | GA4051R SERIAL NO. LABEL | 1 | |
| 043 | 191D85-2 | CARBON BRUSH SET CB-260 | 1 | |
| 044 | 266007-8 | TAPPING SCREW BIND PT 3X10 | 4 | |
| 045 | 643541-9 | BRUSH HOLDER | 2 | |
| 046 | 856E63-2 | GA4051R NAME PLATE | 1 | |
| 047 | 458999-7 | MOTOR HOUSING | 1 | |
| 048 | 687123-7 | STRAIN RELIEF | 1 | |
| 049 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 050 | 650579-7 | SWITCH 1246.3223 | 1 | |
| 050-1 | 651396-8 | SWITCH FPC-2115S-0-03 | 1 | |
| 051 | 654532-5 | TERMINAL BLOCK 1P | 2 | |
| 053 | 620951-7 | CONTROLLER | 1 | |
| 054 | 162540-7 | SWITCH LEVER COMPLETE | 1 | |
| 054 | C10 | 231679-8 | TORSION SPRING 2 | 1 |
| 054 | C20 | 459007-7 | LOCK OFF LEVER | 1 |
| 054 | C21 | 412971-3 | LOCK OFF LEVER | 1 |
| 054 | C30 | 951019-1 | SPRING PIN 2-20 | 1 |
| 055 | 183M68-0 | REAR COVER SET | 1 | |
| 055 | D10 | INC. 58 | ||
| 056 | 266048-4 | TAPPING SCREW 4X40 | 3 | |
| 057 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 058 | 183M68-0 | REAR COVER SET | 1 | |
| 058 | D10 | INC. 55 | ||
| 059 | 232492-7 | TORSION SPRING 2 | 1 | |
| 060 | 459005-1 | SWITCH LINK LEVER | 1 | |
| 061 | 256595-3 | PIN 2 | 1 | |
| 062 | 347476-3 | STRAP RING | 1 | |
| 063 | 682559-5 | CORD GUARD 8 | 1 | |
| 064 | 692021-2 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 065 | 807G78-4 | CLEAR LABEL | 1 | |
| 066 | 213789-3 | O-RING 38 | 1 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | 782420-7 | LOCK NUT WRENCH 20 | 1 |
