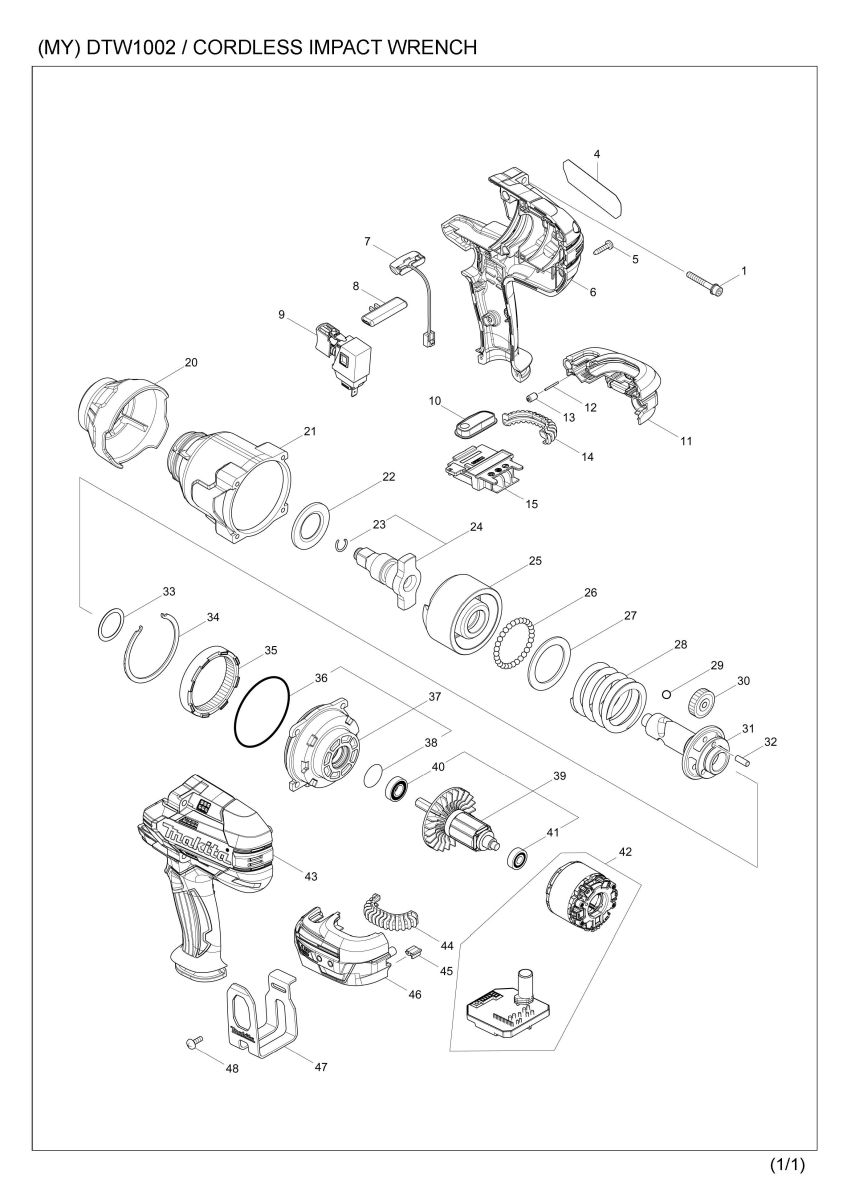

Part Diagram
Total: 348 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 251476-6 | H.S.H.BOLT M5X35 WITH WR | 4 | |
| 001-1 | 265D13-4 | H.S.H.BOLT M5X35 WITH WRM | 4 | |
| 004A | 851K57-8 | DTW1002 NAME PLATE | 1 | |
| 004B | 851K57-8 | DTW1002 NAME PLATE | 1 | |
| 004C | 851K57-8 | DTW1002 NAME PLATE | 1 | |
| 004D | 851K57-8 | DTW1002 NAME PLATE | 1 | |
| 004-1A | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1B | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1C | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1D | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1E | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1F | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1G | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 004-1H | 857K86-9 | DTW1002 NAME PLATE | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 005-1 | 265995-6 | TAPPING SCREW 4X18 | 9 | |
| 005-2 | 265E16-4 | TAPPING SCREW 4X18 | 9 | |
| 006A | 183C08-8 | HOUSING SET | 1 | |
| 006A | D10 | INC. 43 | ||
| 006B | 183C08-8 | HOUSING SET | 1 | |
| 006B | D10 | INC. 43 | ||
| 006C | 183C08-8 | HOUSING SET | 1 | |
| 006C | D10 | INC. 43 | ||
| 006D | 183C08-8 | HOUSING SET | 1 | |
| 006D | D10 | INC. 43 | ||
| 006-1A | 183H36-3 | HOUSING SET | 1 | |
| 006-1A | D10 | INC. 43 | ||
| 006-1B | 183H36-3 | HOUSING SET | 1 | |
| 006-1B | D10 | INC. 43 | ||
| 006-1C | 183H36-3 | HOUSING SET | 1 | |
| 006-1C | D10 | INC. 43 | ||
| 006-1D | 183H36-3 | HOUSING SET | 1 | |
| 006-1D | D10 | INC. 43 | ||
| 006-1E | 183H36-3 | HOUSING SET | 1 | |
| 006-1E | D10 | INC. 43 | ||
| 006-1F | 183H36-3 | HOUSING SET | 1 | |
| 006-1F | D10 | INC. 43 | ||
| 006-1G | 183H36-3 | HOUSING SET | 1 | |
| 006-1G | D10 | INC. 43 | ||
| 006-1H | 183H36-3 | HOUSING SET | 1 | |
| 006-1H | D10 | INC. 43 | ||
| 006-2 | 1830A6-1 | HOUSING SET | 1 | |
| 006-2 | D10 | INC. 43 | ||
| 7 | 620351-1 | LED CIRCUIT | 1 | |
| 8 | 456268-0 | F/R CHANGE LEVER | 1 | |
| 9 | 143416-7 | SWITCH COMPLETE | 1 | |
| 10 | 143417-5 | SWITCH PLATE COMPLETE | 1 | |
| 11 | 183C12-7 | BATTERY HOUSING SET | 1 | |
| 11 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 11 | D10 | INC. 46 | ||
| 12 | 268284-8 | PIN 1.5 | 1 | |
| 13 | 263036-2 | RUBBER PIN 5 | 1 | |
| 14 | 424773-5 | CUSHION RUBBER | 1 | |
| 014-1 | 422A56-3 | CUSHION RUBBER | 1 | |
| 15 | 643899-6 | TERMINAL | 1 | |
| 020A | 424775-1 | BUMPER | 1 | |
| 020B | 424775-1 | BUMPER | 1 | |
| 020C | 424775-1 | BUMPER | 1 | |
| 020D | 424775-1 | BUMPER | 1 | |
| 020-1A | 424978-7 | BUMPER | 1 | |
| 020-1B | 424978-7 | BUMPER | 1 | |
| 020-1C | 424978-7 | BUMPER | 1 | |
| 020-1D | 424978-7 | BUMPER | 1 | |
| 020-1E | 424978-7 | BUMPER | 1 | |
| 020-1F | 424978-7 | BUMPER | 1 | |
| 020-1G | 424978-7 | BUMPER | 1 | |
| 020-1H | 424978-7 | BUMPER | 1 | |
| 021A | 143411-7 | HAMMER CASE COMPLETE | 1 | |
| 021B | 143411-7 | HAMMER CASE COMPLETE | 1 | |
| 021C | 143411-7 | HAMMER CASE COMPLETE | 1 | |
| 021D | 143411-7 | HAMMER CASE COMPLETE | 1 | |
| 021-1A | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1B | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1C | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1D | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1E | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1F | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1G | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 021-1H | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 22 | 346948-5 | WASHER 25 | 1 | |
| 023A | 231907-1 | RING SPRING 10 | 1 | |
| 023B | 231907-1 | RING SPRING 10 | 1 | |
| 023C | 231907-1 | RING SPRING 10 | 1 | |
| 023D | 231907-1 | RING SPRING 10 | 1 | |
| 023-1A | 232323-0 | RING SPRING 10 | 1 | |
| 023-1B | 232323-0 | RING SPRING 10 | 1 | |
| 023-1C | 232323-0 | RING SPRING 10 | 1 | |
| 023-1D | 232323-0 | RING SPRING 10 | 1 | |
| 023-1E | 232323-0 | RING SPRING 10 | 1 | |
| 023-1F | 232323-0 | RING SPRING 10 | 1 | |
| 023-1G | 232323-0 | RING SPRING 10 | 1 | |
| 023-1H | 232323-0 | RING SPRING 10 | 1 | |
| 024A | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024A | D10 | INC. 23 | ||
| 024B | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024B | D10 | INC. 23 | ||
| 024C | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024C | D10 | INC. 23 | ||
| 024D | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024D | D10 | INC. 23 | ||
| 024-1A | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024-1A | D10 | INC. 23 | ||
| 024-1B | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024-1B | D10 | INC. 23 | ||
| 024-1C | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024-1C | D10 | INC. 23 | ||
| 024-1D | 135717-7 | ANVIL W ASS'Y | 1 | |
| 024-1D | D10 | INC. 23 | ||
| 024-2A | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2A | D10 | INC. 23 | ||
| 024-2B | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2B | D10 | INC. 23 | ||
| 024-2C | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2C | D10 | INC. 23 | ||
| 024-2D | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2D | D10 | INC. 23 | ||
| 024-2E | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2E | D10 | INC. 23 | ||
| 024-2F | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2F | D10 | INC. 23 | ||
| 024-2G | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2G | D10 | INC. 23 | ||
| 024-2H | 135804-2 | ANVIL W ASS'Y | 1 | |
| 024-2H | D10 | INC. 23 | ||
| 25 | 326613-2 | HAMMER | 1 | |
| 26 | 216002-8 | STEEL BALL 4.8 | 29 | |
| 27 | 267493-6 | FLAT WASHER 38 | 1 | |
| 28 | 234383-8 | COMPRESSION SPRING 38 | 1 | |
| 29 | 216009-4 | STEEL BALL 7.1 | 2 | |
| 030A | 227391-6 | SPUR GEAR 24 | 3 | |
| 030B | 227391-6 | SPUR GEAR 24 | 3 | |
| 030C | 227391-6 | SPUR GEAR 24 | 3 | |
| 030D | 227391-6 | SPUR GEAR 24 | 3 | |
| 030-1A | 226879-3 | SPUR GEAR 24 | 3 | |
| 030-1B | 226879-3 | SPUR GEAR 24 | 3 | |
| 030-1C | 226879-3 | SPUR GEAR 24 | 3 | |
| 030-1D | 226879-3 | SPUR GEAR 24 | 3 | |
| 030-2A | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2B | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2C | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2D | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2E | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2F | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2G | 226880-8 | SPUR GEAR 24 | 3 | |
| 030-2H | 226880-8 | SPUR GEAR 24 | 3 | |
| 31 | 326611-6 | SPINDLE | 1 | |
| 32 | 268079-9 | PIN 5 | 3 | |
| 033A | 267494-4 | FLAT WASHER 25 | 1 | |
| 033B | 267494-4 | FLAT WASHER 25 | 1 | |
| 033C | 267494-4 | FLAT WASHER 25 | 1 | |
| 033D | 267494-4 | FLAT WASHER 25 | 1 | |
| 033-1A | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1B | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1C | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1D | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1E | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1F | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1G | 267127-1 | FLAT WASHER 26 | 1 | |
| 033-1H | 267127-1 | FLAT WASHER 26 | 1 | |
| 34 | 346947-7 | RETAINER | 1 | |
| 35 | 227392-4 | INTERNAL SPUR GEAR 54 | 1 | |
| 36 | 213720-9 | O RING 67 | 1 | |
| 37 | 135718-5 | INTERNAL GEAR CASE ASS'Y | 1 | |
| 37 | D10 | INC. 36,38 | ||
| 38 | 213961-7 | O RING 22 | 1 | |
| 039A | 519384-0 | ROTOR ASS'Y | 1 | |
| 039A | D10 | INC. 40,41 | ||
| 039B | 519384-0 | ROTOR ASS'Y | 1 | |
| 039B | D10 | INC. 40,41 | ||
| 039C | 519384-0 | ROTOR ASS'Y | 1 | |
| 039C | D10 | INC. 40,41 | ||
| 039D | 519384-0 | ROTOR ASS'Y | 1 | |
| 039D | D10 | INC. 40,41 | ||
| 039-1A | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1A | D10 | INC. 40,41 | ||
| 039-1B | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1B | D10 | INC. 40,41 | ||
| 039-1C | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1C | D10 | INC. 40,41 | ||
| 039-1D | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1D | D10 | INC. 40,41 | ||
| 039-1E | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1E | D10 | INC. 40,41 | ||
| 039-1F | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1F | D10 | INC. 40,41 | ||
| 039-1G | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1G | D10 | INC. 40,41 | ||
| 039-1H | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1H | D10 | INC. 40,41 | ||
| 40 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 41 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 042A | 629170-2 | STATOR COMPLETE | 1 | |
| 042B | 629170-2 | STATOR COMPLETE | 1 | |
| 042C | 629170-2 | STATOR COMPLETE | 1 | |
| 042D | 629170-2 | STATOR COMPLETE | 1 | |
| 042-1A | 629330-6 | STATOR COMPLETE | 1 | |
| 042-1B | 629330-6 | STATOR COMPLETE | 1 | |
| 042-1C | 629330-6 | STATOR COMPLETE | 1 | |
| 042-1D | 629330-6 | STATOR COMPLETE | 1 | |
| 042-2A | 629B59-6 | STATOR | 1 | |
| 042-2B | 629B59-6 | STATOR | 1 | |
| 042-2C | 629B59-6 | STATOR | 1 | |
| 042-2D | 629B59-6 | STATOR | 1 | |
| 042-2E | 629B59-6 | STATOR | 1 | |
| 042-2F | 629B59-6 | STATOR | 1 | |
| 042-2G | 629B59-6 | STATOR | 1 | |
| 042-2H | 629B59-6 | STATOR | 1 | |
| 043A | 183C08-8 | HOUSING SET | 1 | |
| 043A | D10 | INC. 6 | ||
| 043B | 183C08-8 | HOUSING SET | 1 | |
| 043B | D10 | INC. 6 | ||
| 043C | 183C08-8 | HOUSING SET | 1 | |
| 043C | D10 | INC. 6 | ||
| 043D | 183C08-8 | HOUSING SET | 1 | |
| 043D | D10 | INC. 6 | ||
| 043-1A | 183H36-3 | HOUSING SET | 1 | |
| 043-1A | D10 | INC. 6 | ||
| 043-1B | 183H36-3 | HOUSING SET | 1 | |
| 043-1B | D10 | INC. 6 | ||
| 043-1C | 183H36-3 | HOUSING SET | 1 | |
| 043-1C | D10 | INC. 6 | ||
| 043-1D | 183H36-3 | HOUSING SET | 1 | |
| 043-1D | D10 | INC. 6 | ||
| 043-1E | 183H36-3 | HOUSING SET | 1 | |
| 043-1E | D10 | INC. 6 | ||
| 043-1F | 183H36-3 | HOUSING SET | 1 | |
| 043-1F | D10 | INC. 6 | ||
| 043-1G | 183H36-3 | HOUSING SET | 1 | |
| 043-1G | D10 | INC. 6 | ||
| 043-1H | 183H36-3 | HOUSING SET | 1 | |
| 043-1H | D10 | INC. 6 | ||
| 043-2 | 1830A6-1 | HOUSING SET | 1 | |
| 043-2 | D10 | INC. 6 | ||
| 44 | 424773-5 | CUSHION RUBBER | 1 | |
| 044-1 | 422A56-3 | CUSHION RUBBER | 1 | |
| 45 | 424517-3 | CUSHION | 1 | |
| 46 | 183C12-7 | BATTERY HOUSING SET | 1 | |
| 46 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 46 | D10 | INC. 11 | ||
| 47 | 346949-3 | HOOK | 1 | |
| 48 | 251314-2 | + SCREW M4X12 | 2 | |
| 049A | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049B | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049C | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049D | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049E | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049F | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049G | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 049H | 857K87-7 | DTW1002 SERIAL NO. LABEL | 1 | |
| 050A | 620K29-2 | CONTROLLER | 1 | |
| 050B | 620K29-2 | CONTROLLER | 1 | |
| 050C | 620K29-2 | CONTROLLER | 1 | |
| 050D | 620K29-2 | CONTROLLER | 1 | |
| 050E | 620K29-2 | CONTROLLER | 1 | |
| 050F | 620K29-2 | CONTROLLER | 1 | |
| 050G | 620K29-2 | CONTROLLER | 1 | |
| 050H | 620K29-2 | CONTROLLER | 1 | |
| 050-1 | 620N12-7 | CONTROLLER | 1 | |
| 051A | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051B | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051C | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051D | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051E | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051F | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051G | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| 051H | 652119-7 | PAN HEAD SCREW M2X6 | 6 | |
| A01B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01C | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01D | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01F | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01F | D10 | COMPO-PARTS | ||
| A01G | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01G | D10 | COMPO-PARTS | ||
| A01H | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A01H | D10 | COMPO-PARTS | ||
| A02B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02C | 194204-5 | BATTERY BL1830 SET | 2 | |
| A02D | 197280-8 | BATTERY BL1850B SET | 2 | |
| A02F | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02G | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02H | 197280-8 | BATTERY BL1850B SET | 2 | |
| A02-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02-1C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02-1D | 197280-8 | BATTERY BL1850B SET | 2 | |
| A02-2C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03B | 450128-8 | BATTERY COVER | 1 | |
| A03C | 450128-8 | BATTERY COVER | 1 | |
| A03D | 450128-8 | BATTERY COVER | 1 | |
| A03F | 450128-8 | BATTERY COVER | 1 | |
| A03G | 450128-8 | BATTERY COVER | 1 | |
| A03H | 450128-8 | BATTERY COVER | 1 | |
| A04B | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A04C | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04C | C10 | 453974-8 | LATCH | 4 |
| A04D | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04D | C10 | 453974-8 | LATCH | 4 |
| A04F | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04F | C10 | 453974-8 | LATCH | 4 |
| A04G | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04G | C10 | 453974-8 | LATCH | 4 |
| A04H | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04H | C10 | 453974-8 | LATCH | 4 |
| A05B | 837645-9 | INNER TRAY | 1 | |
| A05C | 837645-9 | INNER TRAY | 1 | |
| A05D | 837645-9 | INNER TRAY | 1 | |
| A05F | 837645-9 | INNER TRAY | 1 | |
| A05G | 837645-9 | INNER TRAY | 1 | |
| A05H | 837645-9 | INNER TRAY | 1 | |
| A06B | 808B76-1 | DTW1002RMJ INDICATION LABEL | 1 | |
| A06C | 808B78-7 | DTW1002RFJ INDICATION LABEL | 1 | |
| A06D | 808B80-0 | DTW1002RTJ INDICATION LABEL | 1 | |
| A06F | 8060T3-0 | DTW1002JX4 INDICATION LABEL | 1 | |
| A06G | 8060S3-3 | DTW1002JX3 INDICATION LABEL | 1 | |
| A06H | 8060H7-8 | DTW1002JX2 INDICATION LABEL | 1 | |
| A06-1B | 817B48-5 | DTW1002RMJ INDICATION LABEL | 1 | |
| A06-1C | 817B51-6 | DTW1002RFJ INDICATION LABEL | 1 | |
| A06-1D | 817B54-0 | DTW1002RTJ INDICATION LABEL | 1 | |
| A07B | 808B77-9 | DTW1002RMJ PLASTIC CASE LABEL | 2 | |
| A07C | 808B79-5 | DTW1002RFJ PLASTIC CASE LABEL | 2 | |
| A07D | 808B81-8 | DTW1002RTJ PLASTIC CASE LABEL | 2 | |
| A07F | 8060T4-8 | DTW1002JX4 PLASTIC CASE LABEL | 2 | |
| A07G | 8060S4-1 | DTW1002JX3 PLASTIC CASE LABEL | 2 | |
| A07H | 8060H6-0 | DTW1002JX2 PLASTIC CASE LABEL | 2 | |
| A08E | 161347-8 | SHOULDER BELT | 1 | |
| A08F | 161347-8 | SHOULDER BELT | 1 | |
| A08G | 161347-8 | SHOULDER BELT | 1 | |
| A08H | 161347-8 | SHOULDER BELT | 1 | |
| B01E | 1913P0-2 | RING SET | 1 | |
| B01E | D10 | INC. A08,E01,E02 | ||
| B01F | 1913P0-2 | RING SET | 1 | |
| B01F | D10 | INC. A08,E01,E02 | ||
| B01G | 1913P0-2 | RING SET | 1 | |
| B01G | D10 | INC. A08,E01,E02 | ||
| B01H | 1913P0-2 | RING SET | 1 | |
| B01H | D10 | INC. A08,E01,E02 | ||
| E01E | 162341-3 | BRACKET | 1 | |
| E01F | 162341-3 | BRACKET | 1 | |
| E01G | 162341-3 | BRACKET | 1 | |
| E01H | 162341-3 | BRACKET | 1 | |
| E02E | 282022-4 | RING 40 | 1 | |
| E02F | 282022-4 | RING 40 | 1 | |
| E02G | 282022-4 | RING 40 | 1 | |
| E02H | 282022-4 | RING 40 | 1 | |
| F34-2 | 197606-4 | BATTERY BL1830B SET (2PIECES) | 1 | |
| F35-2 | 197600-6 | BATTERY BL1830B SET | 1 | |
| F36-3 | 197599-5 | BATTERY BL1830B SET | 1 | |
| F40 | 191G67-2 | EXTENSION HANDLE SET | 1 |
Back Download
