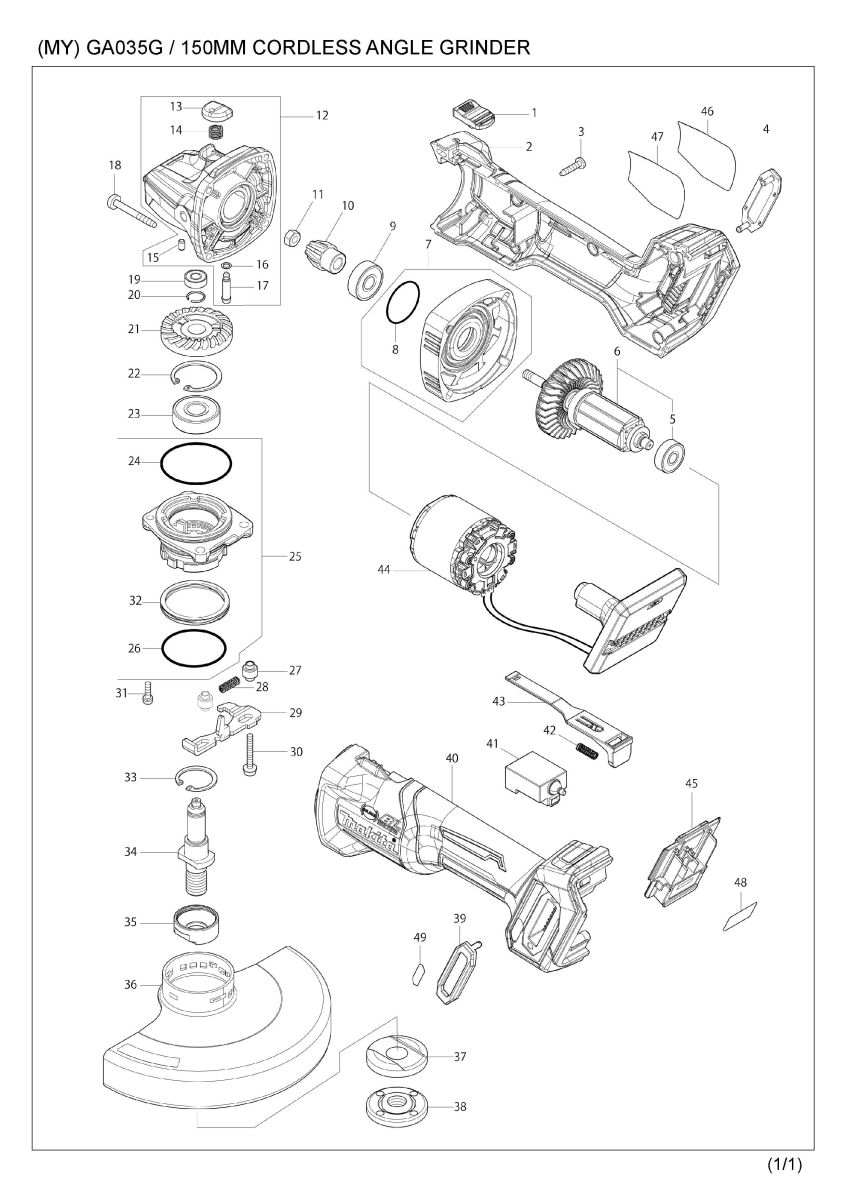

Part Diagram
Total: 60 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 455447-7 | SWITCH KNOB | 1 | |
| 2 | 183N63-6 | MOTOR HOUSING SET | 1 | |
| 2 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 2 | D10 | INC. 40 | ||
| 3 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 4 | 422563-0 | DUST COVER | 1 | |
| 5 | 210023-2 | BALL BEARING 627DDW | 1 | |
| 6 | 519595-7 | ROTOR ASS'Y | 1 | |
| 6 | D10 | INC. 5 | ||
| 7 | 136190-4 | GEAR HOUSING COVER ASS'Y | 1 | |
| 7 | D10 | INC. 8 | ||
| 8 | 213445-5 | O-RING 26 | 1 | |
| 9 | 210042-8 | BALL BEARING 629LLB | 1 | |
| 10 | 226976-5 | SPIRAL BEVEL GEAR 10 | 1 | |
| 11 | 252186-8 | HEX. NUT M6 | 1 | |
| 12 | 136198-8 | GEAR HOUSING ASS'Y | 1 | |
| 12 | D10 | INC. 13-17 | ||
| 13 | 412234-7 | PIN CAP | 1 | |
| 14 | 233072-2 | COMPRESSION SPRING 8 | 1 | |
| 15 | 263002-9 | RUBBER PIN 4 | 1 | |
| 16 | 213960-9 | O RING 5 | 1 | |
| 17 | 256546-6 | SHOULDER PIN 4 | 1 | |
| 18 | 266048-4 | TAPPING SCREW 4X40 | 4 | |
| 19 | 210033-9 | BALL BEARING 696ZZ | 1 | |
| 20 | 233950-6 | RING SPRING 11 | 1 | |
| 21 | 226862-0 | SPIRAL BEVEL GEAR 37 | 1 | |
| 22 | 962151-6 | RETAINING RING R-32 | 1 | |
| 23 | 211129-9 | BALL BEARING 6201DDW | 1 | |
| 24 | 213622-9 | O RING 45 | 1 | |
| 25 | 136347-7 | BEARING BOX ASS'Y | 1 | |
| 25 | D10 | INC. 24,26,32 | ||
| 26 | 213510-0 | O RING 36 | 1 | |
| 27 | 327322-6 | SLEEVE 4 | 2 | |
| 28 | 232490-1 | COMPRESSION SPRING 4 | 1 | |
| 29 | 347803-4 | LEVER | 1 | |
| 30 | 911159-7 | PAN HEAD SCREW M4X30 | 2 | |
| 31 | 911138-5 | P.H.SCREW M4X20 WITH WR | 2 | |
| 32 | 232542-8 | SCROW WAVE SPRING 41 | 1 | |
| 33 | 962105-3 | RETAINING RING R-26 | 1 | |
| 34 | 326672-6 | SPINDLE | 1 | |
| 35 | 310514-4 | LEAD FLANGE | 1 | |
| 36 | 347776-1 | WHEEL COVER 150 | 1 | |
| 37 | 224447-6 | INNER FLANGE 42B | 1 | |
| 38 | 224554-5 | LOCK NUT 14-45 | 1 | |
| 39 | 422563-0 | DUST COVER | 1 | |
| 40 | 183N63-6 | MOTOR HOUSING SET | 1 | |
| 40 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 40 | D10 | INC. 2 | ||
| 41 | 651445-1 | SWITCH FPM-1130 | 1 | |
| 42 | 233121-5 | COMPRESSION SPRING 4 | 1 | |
| 43 | 412233-9 | SWITCH LEVER | 1 | |
| 44 | 629458-0 | STATOR COMPLETE | 1 | |
| 45 | 632P65-6 | TERMINAL UNIT | 1 | |
| 46 | 8008U5-3 | CLEAR LABEL | 1 | |
| 47 | 857V40-9 | GA035G NAME PLATE | 1 | |
| 48 | 857V45-9 | GA035G SERIAL NO. LABEL | 1 | |
| 49 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| A01 | 158237-4 | GRIP 36 COMPLETE | 1 | |
| A02 | A-80846 | DEPRESSED CENTER WHEEL 150X36 | 1 | |
| A03 | 782423-1 | LOCK NUT WRENCH 35 | 1 |
