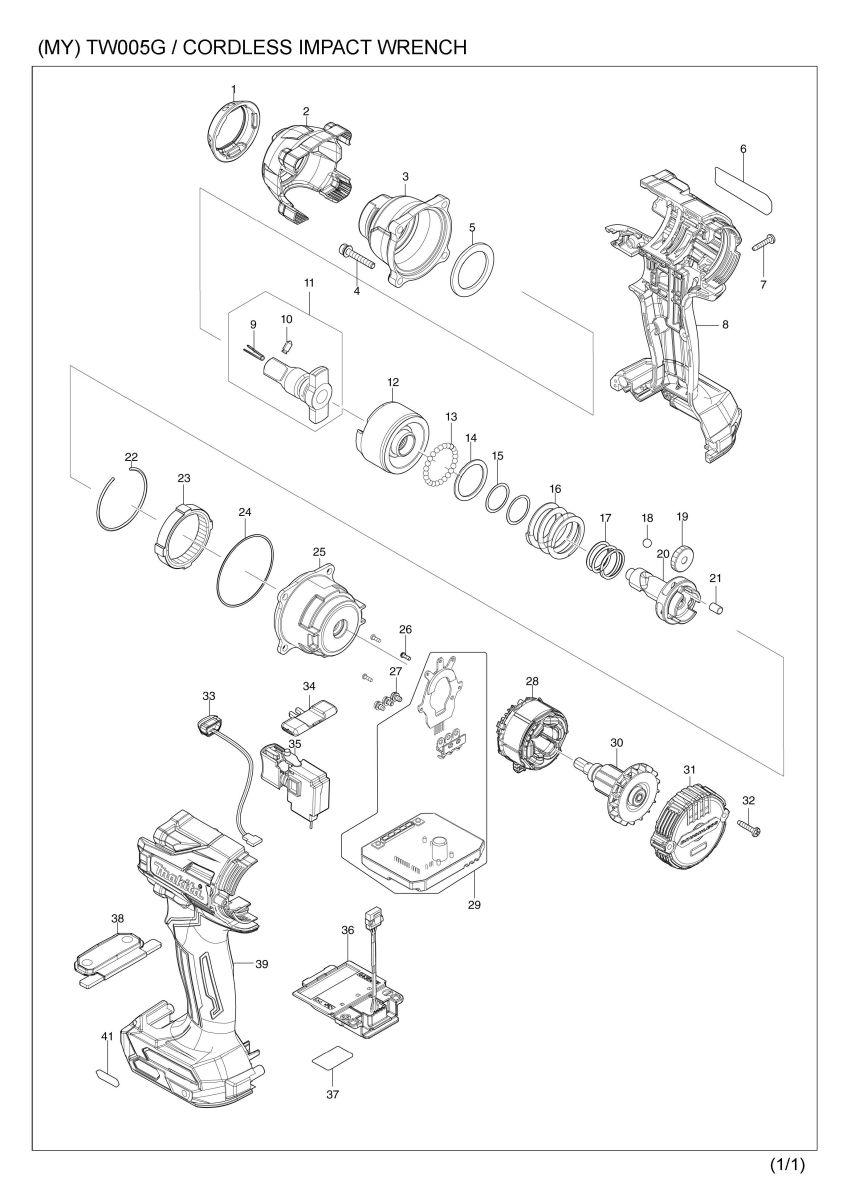

Part Diagram
Total: 68 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 422584-2 | BUMPER | 1 | |
| 2 | 412822-0 | HAMMER CASE COVER | 1 | |
| 3 | 140W13-8 | HAMMER CASE COMPLETE | 1 | |
| 4 | 265472-8 | HEX. SOCKET HEAD BOLT M4X25 | 4 | |
| 5 | 261154-0 | NYLON WASHER 28 | 1 | |
| 6 | 857P28-3 | TW005G NAME PLATE | 1 | |
| 7 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 8 | |
| 8 | 183R16-9 | HOUSING SET | 1 | |
| 8 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 8 | C20 | 263032-0 | RUBBER PIN 4 | 2 |
| 8 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 8 | D10 | INC. 39 | ||
| 9 | 322045-1 | CLIP | 1 | |
| 10 | 323675-1 | PIN 4 | 1 | |
| 11 | 136271-4 | ANVIL A ASS'Y | 1 | |
| 11 | D10 | INC. 9,10 | ||
| 011-1 | 136358-2 | ANVIL A ASS'Y | 1 | |
| 011-1 | D10 | INC. 9,10 | ||
| 12 | 327648-6 | HAMMER | 1 | |
| 13 | 216001-0 | STEEL BALL 3.5 | 24 | |
| 14 | 267175-0 | FLAT WASHER 24 | 1 | |
| 15 | 253343-1 | THIN WASHER 18 | 2 | |
| 015-1 | 267106-9 | FLAT WASHER 18 | 1 | |
| 16 | 232615-7 | COMPRESSION SPRING 25 | 1 | |
| 17 | 232637-7 | COMPRESSION SPRING 18 | 1 | |
| 017-1 | 232682-2 | COMPRESSION SPRING 18 | 1 | |
| 18 | 216011-7 | STEEL BALL 5.6 | 2 | |
| 19 | 227338-0 | SPUR GEAR 22 | 3 | |
| 20 | 327573-1 | SPINDLE | 1 | |
| 020-1 | 327689-2 | SPINDLE | 1 | |
| 21 | 268311-1 | PIN 5 | 3 | |
| 22 | 233910-8 | RING SPRING 43 | 1 | |
| 23 | 227337-2 | INTERNAL GEAR 51 | 1 | |
| 24 | 213785-1 | O-RING 49 | 1 | |
| 25 | 140W14-6 | INTERNAL GEAR CASE COMPLETE | 1 | |
| 26 | 266490-9 | TAPPING SCREW PT 2X6 | 3 | |
| 27 | 652069-6 | FLAT HEAD SCREW M3X6 | 3 | |
| 28 | 629A13-4 | STATOR | 1 | |
| 29 | 620D69-8 | CONTROLLER | 1 | |
| 30 | 619626-3 | ROTOR | 1 | |
| 31 | 412821-2 | REAR COVER | 1 | |
| 32 | 266130-9 | TAPPING SCREW BIND PT 3X16 | 2 | |
| 33 | 620521-2 | LED CIRCUIT | 1 | |
| 34 | 455053-8 | F/R CHANGE LEVER | 1 | |
| 35 | 651442-7 | SWITCH C3JR-1A-1 | 1 | |
| 36 | 632P49-4 | TERMINAL UNIT | 1 | |
| 37 | 857P33-0 | TW005G SERIAL NO. LABEL | 1 | |
| 38 | 140W19-6 | SWITCH PLATE COMPLETE | 1 | |
| 38 | C10 | 8020J3-8 | SWITCH LABEL | 1 |
| 39 | 183R16-9 | HOUSING SET | 1 | |
| 39 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 39 | C20 | 263032-0 | RUBBER PIN 4 | 2 |
| 39 | C30 | 252126-6 | HEX. LOCK NUT M4-7 | 2 |
| 39 | D10 | INC. 8 | ||
| 41 | 8007R2-2 | XGT LOGO LABEL | 1 | |
| A01 | 266622-8 | + TRUSS HEAD SCREW M4X12 | 1 | |
| A02 | 346317-0 | HOOK | 1 | |
| A03B | 412393-7 | BATTERY COVER | 1 | |
| A04B | 191B36-3 | BATTERY BL4025 SET | 2 | |
| A05B | ***DC40RA | DC40RA FAST CHARGER | 1 | |
| A05B | D10 | COMPO-PARTS | ||
| A06B | 821550-0 | CONNECTOR PLASTIC CASE (TYPE2) | 1 | |
| A06B | C10 | 453974-8 | LATCH | 4 |
| A07B | 8021N8-2 | TW005GD201 PLASTIC CASE LABEL | 2 | |
| A08B | 8021N7-4 | TW005GD201 INDICATION LABEL | 1 | |
| A09B | 835R29-3 | INNER TRAY | 1 | |
| A11 | 191F58-7 | TOOL HANGER SET | 1 | |
| A11-1 | 191K57-9 | TOOL HANGER SET | 1 |
