Part Diagram
Total: 144 record(s) at page 1 of 1

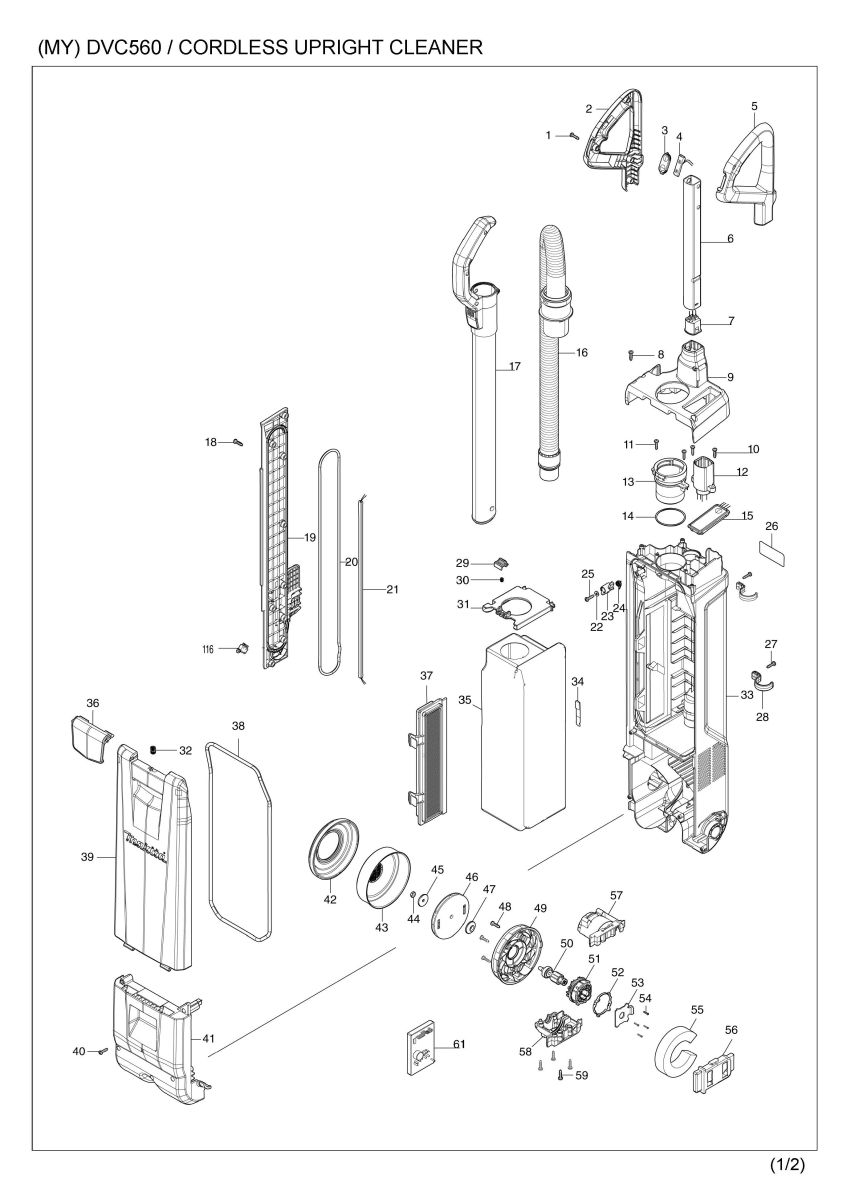

| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 2 | 183R12-7 | HANDLE SET | 1 | |
| 2 | D10 | INC. 5 | ||
| 3 | 140S35-4 | SWITCH PLATE COMPLETE | 1 | |
| 3 | C10 | 8020C7-1 | SWITCH LABEL | 1 |
| 4 | 631973-2 | SWITCH UNIT | 1 | |
| 5 | 183R12-7 | HANDLE SET | 1 | |
| 5 | D10 | INC. 2 | ||
| 6 | 327555-3 | PIPE A | 1 | |
| 7 | 632R23-4 | LEAD UNIT | 1 | |
| 8 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 9 | 140U72-0 | TOP COVER COMPLETE | 1 | |
| 10 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 11 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 12 | 632R22-6 | LEAD UNIT | 1 | |
| 13 | 412455-1 | INLET | 1 | |
| 14 | 213663-5 | O RING 55 | 1 | |
| 15 | 140V53-0 | INDICATION CIRCUIT COMPLETE | 1 | |
| 16 | 140S37-0 | HOSE COMPLETE 28-0.7 | 1 | |
| 016-1 | 141F95-1 | HOSE COMPLETE 28-0.7 | 1 | |
| 17 | 127522-6 | PIPE ASSEMBLY | 1 | |
| 18 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 19 | 412449-6 | SIDE DUST BOX COVER | 1 | |
| 20 | 422580-0 | SEAL RING B | 1 | |
| 21 | 632R24-2 | LEAD UNIT | 1 | |
| 22 | 941051-3 | FLAT WASHER 4 | 1 | |
| 23 | 412465-8 | STOPPER PLATE | 1 | |
| 24 | 232627-0 | TORSION SPRING 9 | 1 | |
| 25 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 26 | 857N02-9 | DVC560 NAME PLATE | 1 | |
| 27 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 28 | 412444-6 | NOZZLE HOLDER | 2 | |
| 29 | 412464-0 | LOCK LEVER A | 1 | |
| 30 | 231309-1 | COMPRESSION SPRING 5 | 1 | |
| 31 | 412463-2 | STAY | 1 | |
| 32 | 234391-9 | COMPRESSION SPRING 8 | 1 | |
| 33 | 136303-7 | DUST BOX ASSEMBLY | 1 | |
| 033-1 | 136605-1 | DUST BOX ASSEMBLY | 1 | |
| 033-2 | 137109-6 | DUST BOX ASSEMBLY | 1 | |
| 34 | 140V23-9 | VALVE COMPLETE | 1 | |
| 35 | 191D63-2 | FILTER BAG SET | 1 | |
| 035-1 | 191T96-3 | FILTER BAG SET | 1 | |
| 36 | 412446-2 | LATCH | 1 | |
| 37 | 191E39-5 | MAIN FILTER H SET | 1 | |
| 38 | 422578-7 | SEAL RING A | 1 | |
| 39 | 412445-4 | DUST BOX COVER | 1 | |
| 40 | 266326-2 | TAPPING SCREW 4X18 | 7 | |
| 41 | 140S32-0 | MOTOR COVER COMPLETE | 1 | |
| 42 | 422376-9 | SUPPORT RING | 1 | |
| 43 | 161804-6 | FAN COVER | 1 | |
| 44 | 252268-6 | HEX. NUT M6 | 1 | |
| 45 | 322407-3 | WASHER 6 | 1 | |
| 46 | 241851-4 | FAN 94 | 1 | |
| 47 | 313062-2 | FLANGE | 1 | |
| 48 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 49 | 456736-3 | FAN BASE | 1 | |
| 50 | 619517-8 | ROTOR | 1 | |
| 050-1 | 619517-8 | ROTOR | 1 | |
| 51 | 629A10-0 | STATOR | 1 | |
| 52 | 687464-1 | SUPPORT | 1 | |
| 53 | 620526-2 | CONTROLLER B | 1 | |
| 54 | 266786-8 | + PAN HEAD TAPPING SCREW 2X10 | 4 | |
| 55 | 422370-1 | BAND DAMPER C | 1 | |
| 56 | 424837-5 | SUPPORT A | 1 | |
| 57 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 57 | D10 | INC. 58 | ||
| 58 | 183D13-1 | MOTOR HOUSING SET | 1 | |
| 58 | D10 | INC. 57 | ||
| 59 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 61 | 620D17-7 | CONTROLLER | 1 | |
| 061-1 | 620G60-4 | CONTROLLER | 1 | |

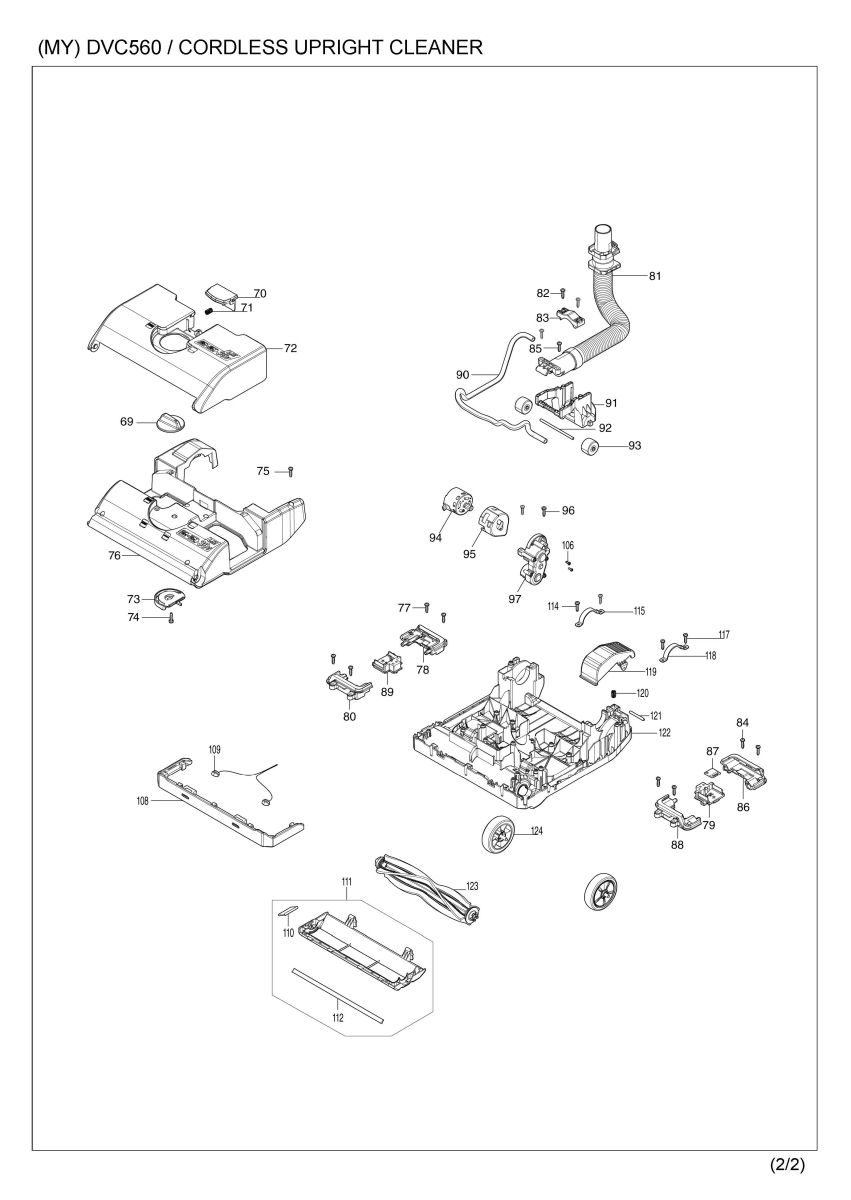

| 69 | 412438-1 | HEIGHT CHANGE LEVER | 1 | |
| 70 | 412440-4 | LOCK LEVER B | 1 | |
| 71 | 234332-5 | COMPRESSION SPRING 7 | 1 | |
| 72 | 412437-3 | BATTERY COVER | 1 | |
| 73 | 412439-9 | CAM | 1 | |
| 74 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| 75 | 266326-2 | TAPPING SCREW 4X18 | 8 | |
| 76 | 412420-0 | UPPER HOUSING | 1 | |
| 77 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 78 | 183R14-3 | TERMINAL CASE SET | 1 | |
| 78 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 78 | D10 | INC .80 | ||
| 79 | 644809-6 | TERMINAL | 1 | |
| 80 | 183R14-3 | TERMINAL CASE SET | 1 | |
| 80 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 80 | D10 | INC. 78 | ||
| 81 | 140S36-2 | HOSE COMPLETE 28-0.2 | 1 | |
| 081-1 | 141F94-3 | HOSE COMPLETE 28-0.2 | 1 | |
| 82 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 83 | 412435-7 | CAM PLATE | 1 | |
| 84 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 85 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 86 | 183R14-3 | TERMINAL CASE SET | 1 | |
| 86 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 86 | D10 | INC. 88 | ||
| 87 | 857N09-5 | DVC560 SERIAL NO. LABEL | 1 | |
| 88 | 183R14-3 | TERMINAL CASE SET | 1 | |
| 88 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 88 | D10 | INC. 86 | ||
| 89 | 644809-6 | TERMINAL | 1 | |
| 90 | 422582-6 | TUBE | 1 | |
| 91 | 412433-1 | FRONT ROLLER HOLDER | 1 | |
| 92 | 256954-1 | FRONT ROLLER SHAFT | 1 | |
| 93 | 412434-9 | FRONT ROLLER | 2 | |
| 94 | 629A11-8 | DC MOTOR | 1 | |
| 95 | 422583-4 | TUBE JOINT | 1 | |
| 96 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 97 | 122A42-1 | BRUSH GEAR ASSEMBLY | 1 | |
| 106 | 265199-0 | + PAN HEAD SCREW M3X8 | 2 | |
| 108 | 422574-5 | BUMPER | 1 | |
| 109 | 620D19-3 | LED CIRCUIT | 1 | |
| 110 | 422577-9 | SIDE BRUSH | 1 | |
| 111 | 127521-8 | BOTTOM PLATE ASSEMBLY | 1 | |
| 111 | D10 | INC. 110,112 | ||
| 112 | 422576-1 | BRUSH | 1 | |
| 114 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 115 | 347719-3 | HINGE HOLDER | 1 | |
| 116 | 632R30-7 | SWITCH UNIT | 1 | |
| 117 | 266326-2 | TAPPING SCREW 4X18 | 2 | |
| 118 | 347719-3 | HINGE HOLDER | 1 | |
| 119 | 412454-3 | FOOT LEVER | 1 | |
| 119-1 | 413J90-8 | FOOT LEVER | 1 | |
| 120 | 234339-1 | COMPRESSION SPRING 6 | 1 | |
| 121 | 256965-6 | PIN 4 | 1 | |
| 122 | 140W03-1 | LOWER HOUSING COMPLETE | 1 | |
| 122 | C10 | 8020C4-7 | CAUTION LABEL | 1 |
| 123 | 191D69-0 | BRUSH COMPLETE SET | 1 | |
| 123 | C10 | 141K74-9 | BRUSH METAL HOLDER COMPLETE | 1 |
| 123-1 | 1910T8-6 | BRUSH COMPLETE SET | 1 | |
| 123-1 | C10 | 141K74-9 | BRUSH METAL HOLDER COMPLETE | 1 |
| 124 | 140S28-1 | CASTER 75 COMPLETE | 2 | |
| 125 | 413R43-5 | FOOT LEVER STOPPER | 1 | |
| 126 | 266326-2 | TAPPING SCREW 4X18 | 1 | |
| A01 | 191D65-8 | LONG SASH NOZZLE SET | 1 | |
| A02 | 191D67-4 | ROUND BRUSH SET | 1 | |
| A03B | ***DC18RD | DC18RD TWO PORT FAST CHARGER | 1 | |
| A03B | D10 | COMPO-PARTS | ||
| A04B | 197280-8 | BATTERY BL1850B SET | 2 | |
| F02 | 191D65-8 | LONG SASH NOZZLE SET | 1 | |
| F03 | 191D67-4 | ROUND BRUSH SET | 1 | |
| F05 | 191E39-5 | MAIN FILTER H SET | 1 | |
| F06 | 191Y86-6 | DUST BAG SET | 1 | |
| F07 | 1912B1-6 | GRIP ASSEMBLY SET | 1 |
