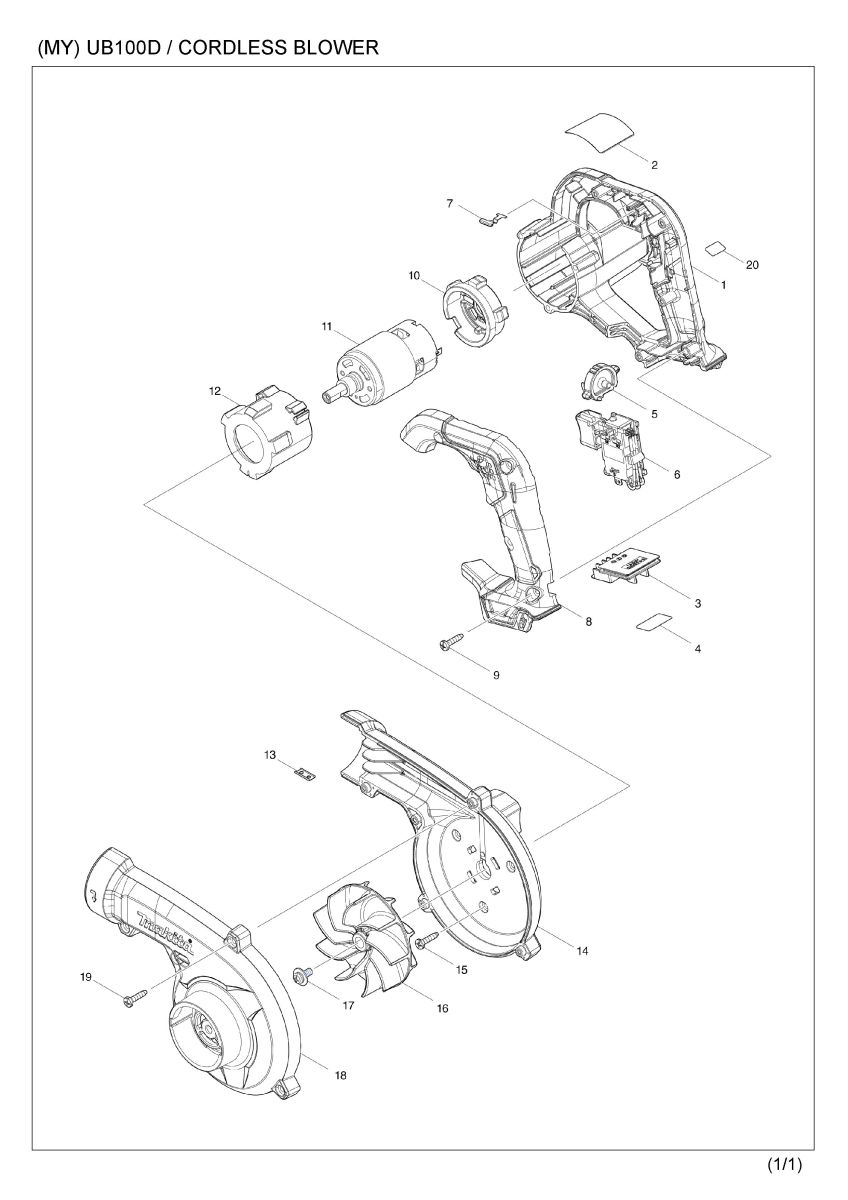

Part Diagram
Total: 32 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001 | 183R73-7 | MOTOR HOUSING SET | 1 | |
| 001 | D10 | INC. 8 | ||
| 002 | 857R07-3 | UB100D NAME PLATE | 1 | |
| 003 | 644813-5 | TERMINAL | 1 | |
| 004 | 857R14-6 | UB100D SERIAL NO. LABEL | 1 | |
| 005 | 412573-5 | DIAL | 1 | |
| 006 | 632R60-8 | SWITCH UNIT | 1 | |
| 006 | C20 | 654086-2 | RECEPTACLE | 2 |
| 007 | 232620-4 | LEAF SPRING | 1 | |
| 008 | 183R73-7 | MOTOR HOUSING SET | 1 | |
| 008 | D10 | INC. 1 | ||
| 009 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 010 | 422589-2 | MOTOR RUBBER RING B | 1 | |
| 011 | 629A20-7 | DC MOTOR | 1 | |
| 012 | 422588-4 | MOTOR RUBBER RING A | 1 | |
| 013 | 345998-7 | SET PLATE | 1 | |
| 014 | 183R77-9 | FAN HOUSING SET | 1 | |
| 014 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 014 | D10 | INC. 18 | ||
| 015 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 016 | 240210-9 | FAN 85 | 1 | |
| 017 | 265B25-5 | PAN HEAD SCREW M5X12 WITH WG | 1 | |
| 018 | 183R77-9 | FAN HOUSING SET | 1 | |
| 018 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 018 | D10 | INC. 14 | ||
| 019 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| A01 | 123245-4 | NOZZLE ASS'Y | 1 | |
| A01 | C10 | 454703-2 | JOINT | 1 |
| F05 | 191M30-1 | BRUSH NOZZLE SET | 1 | |
| F06 | 191M32-7 | WIPER NOZZLE SET | 1 | |
| F07 | 191M34-3 | FLEXIBLE HOSE SET | 1 | |
| F08 | 192236-6 | TAPERED NOZZLE SET | 1 |
