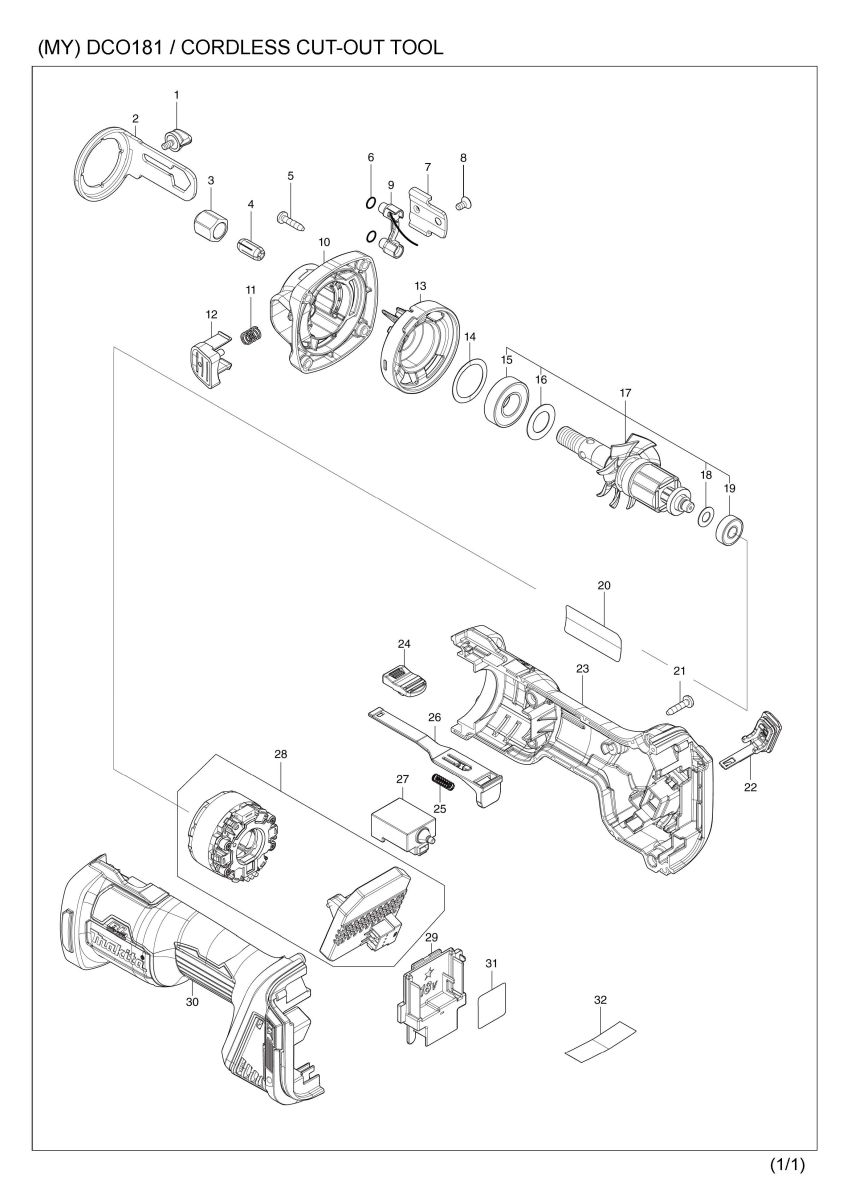

Part Diagram
Total: 43 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 266898-7 | THUMB SCREW M4X8 | 1 | |
| 2 | 346796-2 | SHOE PLATE | 1 | |
| 3 | 763258-9 | COLLET NUT | 1 | |
| 4 | 763677-9 | COLLET CONE 3.18 | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 4 | |
| 6 | 213048-5 | O RING 6 | 2 | |
| 7 | 346795-4 | SHOE SUPPORT | 1 | |
| 8 | 265085-5 | + COUNTERSUNK HEAD SCREW M4X8 | 1 | |
| 9 | 620D25-8 | LED CIRCUIT | 1 | |
| 10 | 140V89-9 | BEARING BOX COVER COMPLETE | 1 | |
| 11 | 234332-5 | COMPRESSION SPRING 7 | 1 | |
| 12 | 412727-4 | SHAFT LOCK | 1 | |
| 13 | 412702-0 | BEARING BOX | 1 | |
| 013-1 | 412702-0 | BEARING BOX | 1 | |
| 14 | 267785-3 | WAVE WASHER 23 | 1 | |
| 15 | 211236-8 | BALL BEARING 6002DDW | 1 | |
| 16 | 267164-5 | FLAT WASHER 15 | 1 | |
| 17 | 519636-9 | ROTOR ASS'Y | 1 | |
| 17 | D10 | INC. 15,16,18,19 | ||
| 18 | 253186-1 | FLAT WASHER 7 | 1 | |
| 19 | 210017-7 | BALL BEARING 607DDW | 1 | |
| 20 | 857P76-2 | DCO181 NAME PLATE | 1 | |
| 21 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 22 | 140G30-2 | CAP COMPLETE | 1 | |
| 22 | C10 | 213218-6 | O RING 16 | 1 |
| 23 | 183R26-6 | HOUSING SET | 1 | |
| 23 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 23 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 23 | D10 | INC. 30 | ||
| 24 | 455447-7 | SWITCH KNOB | 1 | |
| 25 | 233121-5 | COMPRESSION SPRING 4 | 1 | |
| 26 | 412233-9 | SWITCH LEVER | 1 | |
| 27 | 651445-1 | SWITCH FPM-1130 | 1 | |
| 28 | 629A08-7 | STATOR COMPLETE | 1 | |
| 29 | 643874-2 | TERMINAL | 1 | |
| 30 | 183R26-6 | HOUSING SET | 1 | |
| 30 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 30 | C20 | 252126-6 | HEX. LOCK NUT M4-7 | 1 |
| 30 | D10 | INC. 23 | ||
| 31 | 857P84-3 | DCO181 SERIAL NO. LABEL | 1 | |
| A01 | 193449-2 | DUST COLLECTION COVER | 1 | |
| A02 | 191G69-8 | DRYWALL GUIDE BIT 3.18 SET | 2 | |
| A04 | 781037-3 | WRENCH 17 | 1 |
