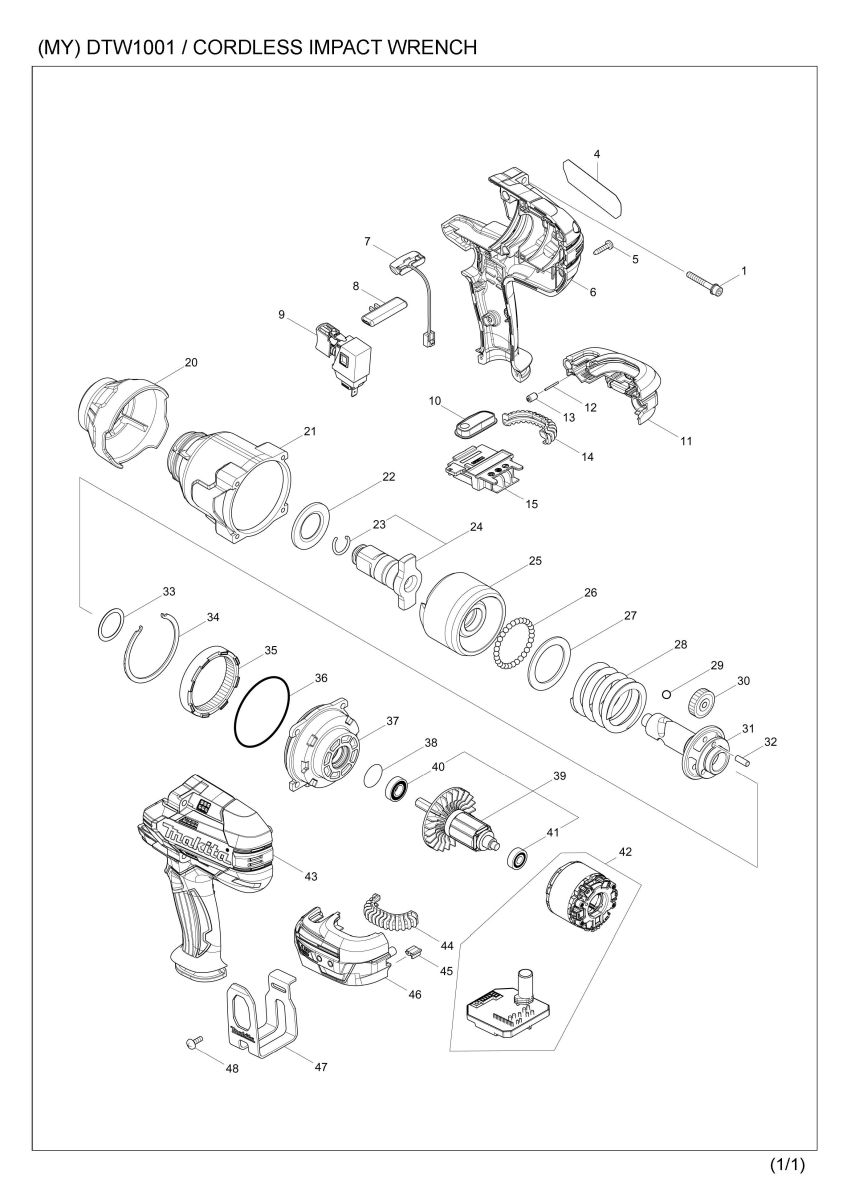

Part Diagram
Total: 89 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 251476-6 | H.S.H.BOLT M5X35 WITH WR | 4 | |
| 4 | 851K74-8 | DTW1001 NAME PLATE | 1 | |
| 004-1 | 857K63-1 | DTW1001 NAME PLATE | 1 | |
| 5 | 266326-2 | TAPPING SCREW 4X18 | 9 | |
| 6 | 183C08-8 | HOUSING SET | 1 | |
| 6 | D10 | INC. 43 | ||
| 006-1 | 183H36-3 | HOUSING SET | 1 | |
| 006-1 | D10 | INC. 43 | ||
| 7 | 620351-1 | LED CIRCUIT | 1 | |
| 8 | 456268-0 | F/R CHANGE LEVER | 1 | |
| 9 | 143416-7 | SWITCH COMPLETE | 1 | |
| 10 | 143417-5 | SWITCH PLATE COMPLETE | 1 | |
| 11 | 183C12-7 | BATTERY HOUSING SET | 1 | |
| 11 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 11 | D10 | INC. 46 | ||
| 12 | 268284-8 | PIN 1.5 | 1 | |
| 13 | 263036-2 | RUBBER PIN 5 | 1 | |
| 14 | 424773-5 | CUSHION RUBBER | 1 | |
| 15 | 643899-6 | TERMINAL | 1 | |
| 20 | 424775-1 | BUMPER | 1 | |
| 020-1 | 424978-7 | BUMPER | 1 | |
| 21 | 143411-7 | HAMMER CASE COMPLETE | 1 | |
| 021-1 | 144473-8 | HAMMER CASE COMPLETE | 1 | |
| 22 | 346948-5 | WASHER 25 | 1 | |
| 23 | 231920-9 | RING SPRING 16 | 1 | |
| 023-1 | 232334-5 | RING SPRING 16 | 1 | |
| 24 | 135716-9 | ANVIL E ASS'Y | 1 | |
| 24 | D10 | INC. 23 | ||
| 024-1 | 135803-4 | ANVIL E ASS'Y | 1 | |
| 024-1 | D10 | INC. 23 | ||
| 25 | 326612-4 | HAMMER | 1 | |
| 26 | 216002-8 | STEEL BALL 4.8 | 29 | |
| 27 | 267493-6 | FLAT WASHER 38 | 1 | |
| 28 | 234383-8 | COMPRESSION SPRING 38 | 1 | |
| 29 | 216009-4 | STEEL BALL 7.1 | 2 | |
| 30 | 227391-6 | SPUR GEAR 24 | 3 | |
| 030-1 | 226879-3 | SPUR GEAR 24 | 3 | |
| 030-2 | 226880-8 | SPUR GEAR 24 | 3 | |
| 31 | 326611-6 | SPINDLE | 1 | |
| 32 | 268079-9 | PIN 5 | 3 | |
| 33 | 267494-4 | FLAT WASHER 25 | 1 | |
| 033-1 | 267127-1 | FLAT WASHER 26 | 1 | |
| 34 | 346947-7 | RETAINER | 1 | |
| 35 | 227392-4 | INTERNAL SPUR GEAR 54 | 1 | |
| 36 | 213720-9 | O RING 67 | 1 | |
| 37 | 135718-5 | INTERNAL GEAR CASE ASS'Y | 1 | |
| 37 | D10 | INC. 36,38 | ||
| 38 | 213961-7 | O RING 22 | 1 | |
| 39 | 519384-0 | ROTOR ASS'Y | 1 | |
| 39 | D10 | INC. 40,41 | ||
| 039-1 | 519593-1 | ROTOR ASS'Y | 1 | |
| 039-1 | D10 | INC. 40,41 | ||
| 40 | 210069-8 | BALL BEARING 6900DDW | 1 | |
| 41 | 211022-7 | BALL BEARING 607ZZ | 1 | |
| 42 | 629170-2 | STATOR COMPLETE | 1 | |
| 042-1 | 629330-6 | STATOR COMPLETE | 1 | |
| 43 | 183C08-8 | HOUSING SET | 1 | |
| 43 | D10 | INC. 6 | ||
| 043-1 | 183H36-3 | HOUSING SET | 1 | |
| 043-1 | D10 | INC. 6 | ||
| 44 | 424773-5 | CUSHION RUBBER | 1 | |
| 45 | 424517-3 | CUSHION | 1 | |
| 46 | 183C12-7 | BATTERY HOUSING SET | 1 | |
| 46 | C10 | 263005-3 | RUBBER PIN 6 | 2 |
| 46 | D10 | INC. 11 | ||
| 47 | 346949-3 | HOOK | 1 | |
| 48 | 251314-2 | + SCREW M4X12 | 2 | |
| 49 | 857K64-9 | DTW1001 SERIAL NO. LABEL | 1 | |
| A01 | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A02B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02C | 194204-5 | BATTERY BL1830 SET | 2 | |
| A02D | 197280-8 | BATTERY BL1850B SET | 2 | |
| A02-1B | 197265-4 | BATTERY BL1840B SET | 2 | |
| A02-1C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A02-1D | 197280-8 | BATTERY BL1850B SET | 2 | |
| A02-2C | 197600-6 | BATTERY BL1830B SET | 2 | |
| A03 | 450128-8 | BATTERY COVER | 1 | |
| A04 | 821551-8 | CONNECTOR PLASTIC CASE (TYPE3) | 1 | |
| A04B | C10 | 453974-8 | LATCH | 4 |
| A05 | 837645-9 | INNER TRAY | 1 | |
| A06B | 808B95-7 | DTW1001RMJ INDICATION LABEL | 1 | |
| A06C | 808B97-3 | DTW1001RFJ INDICATION LABEL | 1 | |
| A06D | 808B99-9 | DTW1001RTJ INDICATION LABEL | 1 | |
| A06-1B | 817B44-3 | DTW1001RMJ INDICATION LABEL | 1 | |
| A06-1C | 817B45-1 | DTW1001RFJ INDICATION LABEL | 1 | |
| A06-1D | 817B46-9 | DTW1001RTJ INDICATION LABEL | 1 | |
| A07B | 808B96-5 | DTW1001RMJ PLASTIC CASE LABEL | 2 | |
| A07C | 808B98-1 | DTW1001RFJ PLASTIC CASE LABEL | 2 | |
| A07D | 808C00-0 | DTW1001RTJ PLASTIC CASE LABEL | 2 |
