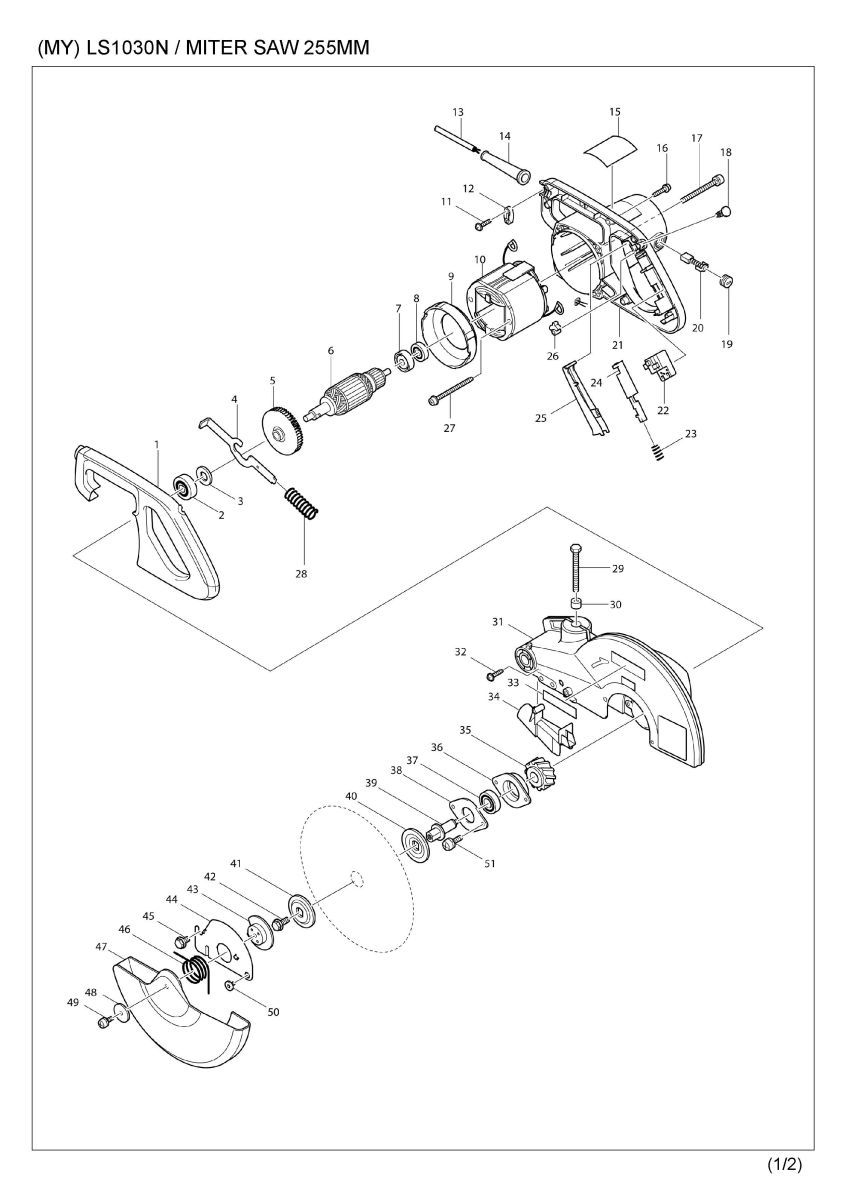

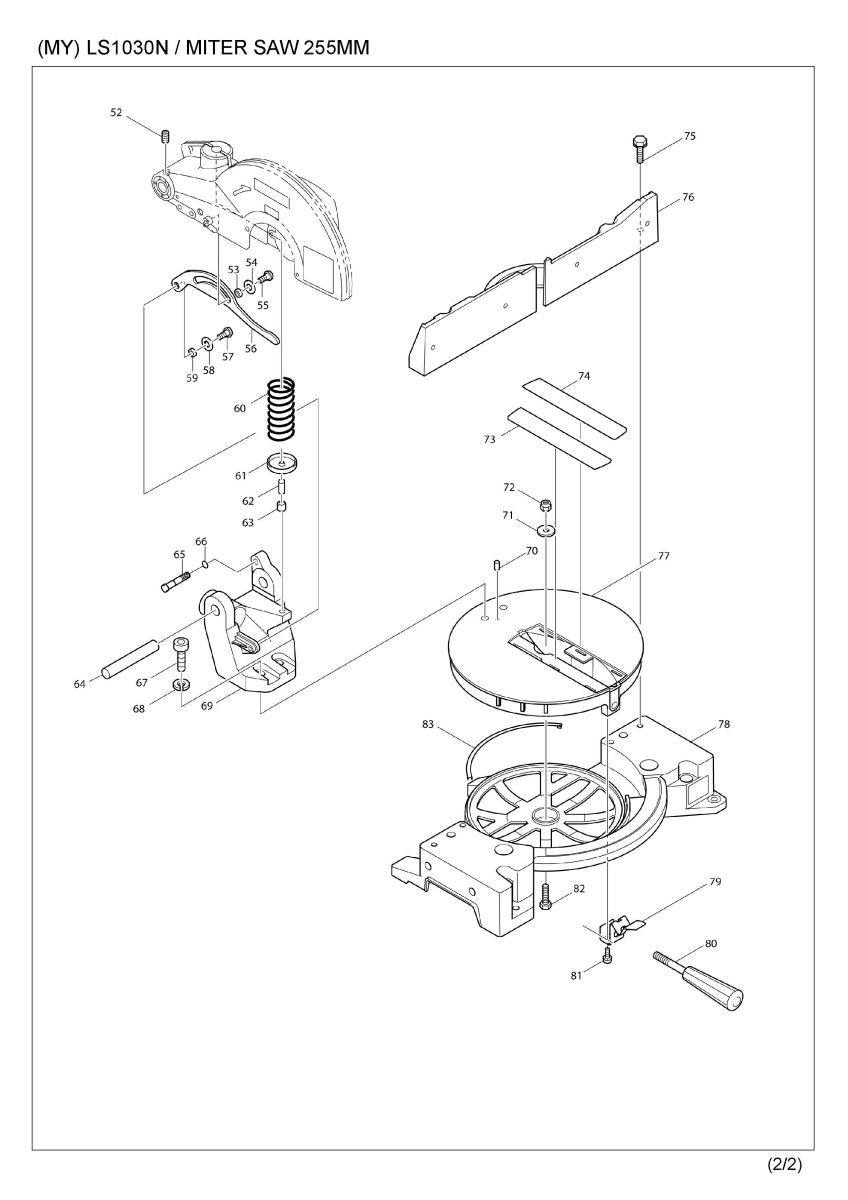

Part Diagram
Total: 117 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 001-1 | 458787-2 | HANDLE COVER | 1 | |
| 002 | 211206-7 | BALL BEARING 6202LLB | 1 | |
| 003-1 | 267280-3 | FLAT WASHER 15 | 1 | |
| 004 | 343641-2 | SHAFT LOCK | 1 | |
| 005 | 241909-9 | FAN 80 | 1 | |
| 006 | 516719-6 | ARMATURE ASS'Y 240V | 1 | |
| 006 | D10 | INC. 2,3,5,7,8 | ||
| 006-1 | 516719-6 | ARMATURE ASS'Y 240V | 1 | |
| 006-1 | D10 | INC. 2,3,5,7,8 | ||
| 007 | 681640-9 | INSULATION WASHER | 1 | |
| 007-1 | 681640-9 | INSULATION WASHER | 1 | |
| 008 | 211061-7 | BALL BEARING 6000LLB | 1 | |
| 008-1 | 211097-6 | BALL BEARING 6000LLB | 1 | |
| 009 | 416442-2 | BAFFLE PLATE | 1 | |
| 010 | 526068-3 | FIELD ASS'Y 220-240V | 1 | |
| 010 | C10 | 654020-2 | RING TERMINAL | 2 |
| 010 | C20 | 654502-4 | CONNECTOR P-2 | 2 |
| 011 | 265995-6 | TAPPING SCREW 4X18 | 2 | |
| 012-1 | 687124-5 | STRAIN RELIEF | 1 | |
| 013 | 692527-0 | POWER SUPPLY CORD 1.0-2-2.5 | 1 | |
| 014 | 682505-8 | CORD GUARD 10-90 | 1 | |
| 015 | 853791-0 | NAME PLATE LS1030N | 1 | |
| 016 | 265995-6 | TAPPING SCREW 4X18 | 5 | |
| 017 | 911383-2 | PAN HEAD SCREW M6X60 | 4 | |
| 018 | 411478-6 | SWITCH BUTTON | 1 | |
| 019-1 | 643650-4 | BRUSH HOLDER CAP 6.5-13.5 | 2 | |
| 020-2 | 181044-0 | CARBON BRUSH CB-153 | 1 | |
| 021-1 | 153792-1 | MOTOR HOUSING COMPLETE | 1 | |
| 021-1 | C12 | 643536-2 | BRUSH HOLDER 6.5X13.5 | 2 |
| 021-1 | C20 | 817880-5 | CAUTION LABEL | 1 |
| 022 | 651923-1 | SWITCH TG70B | 1 | |
| 023 | 231457-6 | COMPRESSION SPRING 3 | 1 | |
| 024 | 416000-4 | LOCK OFF LEVER | 1 | |
| 025 | 415999-0 | SWITCH LEVER | 1 | |
| 026 | 414546-4 | CAM | 1 | |
| 027 | 266029-8 | TAPPING SCREW 5X65 | 2 | |
| 028 | 231297-2 | COMPRESSION SPRING 9 | 1 | |
| 029 | 251667-9 | HEX. BOLT M8X75 | 1 | |
| 030 | 262511-5 | RUBBER SLEEVE 6 | 1 | |
| 031-4 | 140648-7 | BLADE CASE COMPLETE | 1 | |
| 031-4 | C10 | 816847-0 | OPERATIONAL INDICATION LABEL | 1 |
| 031-4 | C20 | 891309-9 | CAUTION LABEL | 1 |
| 031-4 | C30 | 263005-3 | RUBBER PIN 6 | 1 |
| 032 | 265995-6 | TAPPING SCREW 4X18 | 1 | |
| 034-1 | 453695-2 | GUIDE COVER | 1 | |
| 035 | 226465-0 | HELICAL GEAR 42 | 1 | |
| 036 | 316821-3 | BEARING BOX | 1 | |
| 037 | 211256-2 | BALL BEARING 6203LLB | 1 | |
| 038 | 285685-5 | BEARING RETAINER 64 | 1 | |
| 039 | 322865-3 | SPINDLE | 1 | |
| 040 | 224333-1 | FLANGE 53 | 1 | |
| 041 | 224333-1 | FLANGE 53 | 1 | |
| 042 | 265355-2 | HEX. FLANGE HEAD BOLT M8X20 | 1 | |
| 043 | 343639-9 | CENTER PLATE | 1 | |
| 044 | 344380-7 | CENTER COVER | 1 | |
| 045 | 265324-3 | HEX. FLANGE HEAD BOLT M8X12 | 1 | |
| 046 | 231593-8 | TORSION SPRING 36 | 1 | |
| 047 | 416003-8 | SAFETY COVER | 1 | |
| 048 | 267136-0 | FLAT WASHER 5 | 1 | |
| 049-1 | 922211-6 | H.S.H.BOLT M5X12 WITH W | 1 | |
| 050 | 265985-9 | HEX.SOCKET HEAD BOLT M6 | 1 | |
| 051 | 911223-4 | PAN HEAD SCREW M5X16 | 2 | |
| 052 | 251961-9 | H.S.SET SCREW(FLAT POINT)M6X10 | 1 | |
| 053 | 257162-7 | RING 7 | 1 | |
| 054 | 253823-7 | FLAT WASHER 7 | 1 | |
| 055 | 265984-1 | HEX.SOCKET BUTTON HEAD BOLT M6 | 1 | |
| 056 | 344377-6 | LINK PLATE | 1 | |
| 057 | 265984-1 | HEX.SOCKET BUTTON HEAD BOLT M6 | 1 | |
| 058 | 253823-7 | FLAT WASHER 7 | 1 | |
| 059 | 257162-7 | RING 7 | 1 | |
| 060 | 233152-4 | COMPRESSION SPRING 28 | 1 | |
| 061 | 344464-1 | SPRING HOLDER | 1 | |
| 062 | 256280-8 | PIN 8 | 1 | |
| 064 | 256836-7 | ROD 16 | 1 | |
| 065 | 322317-4 | STOPPER PIN | 1 | |
| 066 | 213021-5 | O RING 5 | 1 | |
| 067 | 922557-0 | HEX. SOCKET HEAD BOLT M10X35 | 2 | |
| 068 | 942251-8 | SPRING WASHER 10 | 2 | |
| 069-1 | 317027-6 | ARM | 1 | |
| 070 | 256040-8 | PIN 5 | 1 | |
| 071 | 253762-1 | FLAT WASHER 8 | 1 | |
| 072 | 252105-4 | HEX. LOCK NUT M8-13 | 1 | |
| 073 | 416001-2 | KERF BOARD | 1 | |
| 074 | 416001-2 | KERF BOARD | 1 | |
| 075 | 921461-0 | HEX. BOLT M8X40 | 4 | |
| 076-1 | 317029-2 | GUIDE FENCE | 1 | |
| 077 | 317028-4 | TURN BASE | 1 | |
| 078-1 | 150585-7 | BASE COMPLETE | 1 | |
| 078-1 | C10 | 816311-1 | MITER SCALE PLATE | 1 |
| 078-1 | C20 | 817837-6 | CAUTION LABEL | 1 |
| 078-1 | C30 | 817283-3 | CAUTION LABEL | 2 |
| 079 | 344381-5 | KNOCK SPRING | 1 | |
| 080 | 273495-2 | GRIP 32 | 1 | |
| 081 | 911213-7 | PAN HEAD SCREW M5X12 | 2 | |
| 082 | 921452-1 | HEX. BOLT M8X30 | 1 | |
| 083 | 343799-7 | SLIDE PLATE | 3 | |
| A01 | 762001-3 | TRIANGULAR RULE | 1 | |
| A02 | 782212-4 | SOCKET WRENCH 13 | 1 | |
| A03-1 | 122852-0 | DUST BAG ASS'Y | 1 | |
| A04 | 411478-6 | SWITCH BUTTON | 2 | |
| A05 | 122540-9 | VISE ASS'Y | 1 | |
| A05 | C10 | 251370-2 | + PAN HEAD SCREW M5 | 1 |
| A05 | C20 | 251887-5 | SCREW M6X10 | 1 |
| A05 | C30 | 253804-1 | FLAT WASHER 6 | 1 |
| A05 | C40 | 271303-1 | KNOB 40 | 1 |
| A05 | C50 | 316938-2 | VISE ARM | 1 |
| A05 | C60 | 322983-7 | VISE ROD | 1 |
| A05 | C70 | 343651-9 | VISE PLATE | 1 |
| A06 | 322312-4 | HOLDER | 2 | |
| B01 | 192621-3 | HOLDER SET | 1 | |
| B01 | D10 | INC. A06,E03 | ||
| B02 | 192672-6 | VISE SET | 1 | |
| B02 | D10 | INC. A05,E02 | ||
| E02 | 251887-5 | SCREW M6X10 | 1 | |
| E03 | 265708-5 | THUMB SCREW M6X20 | 2 | |
| F05 | 192622-1 | CROWN MOLDING STOPPER SET | 0 | |
| F11-1 | 198688-9 | STAND SET | 1 |
