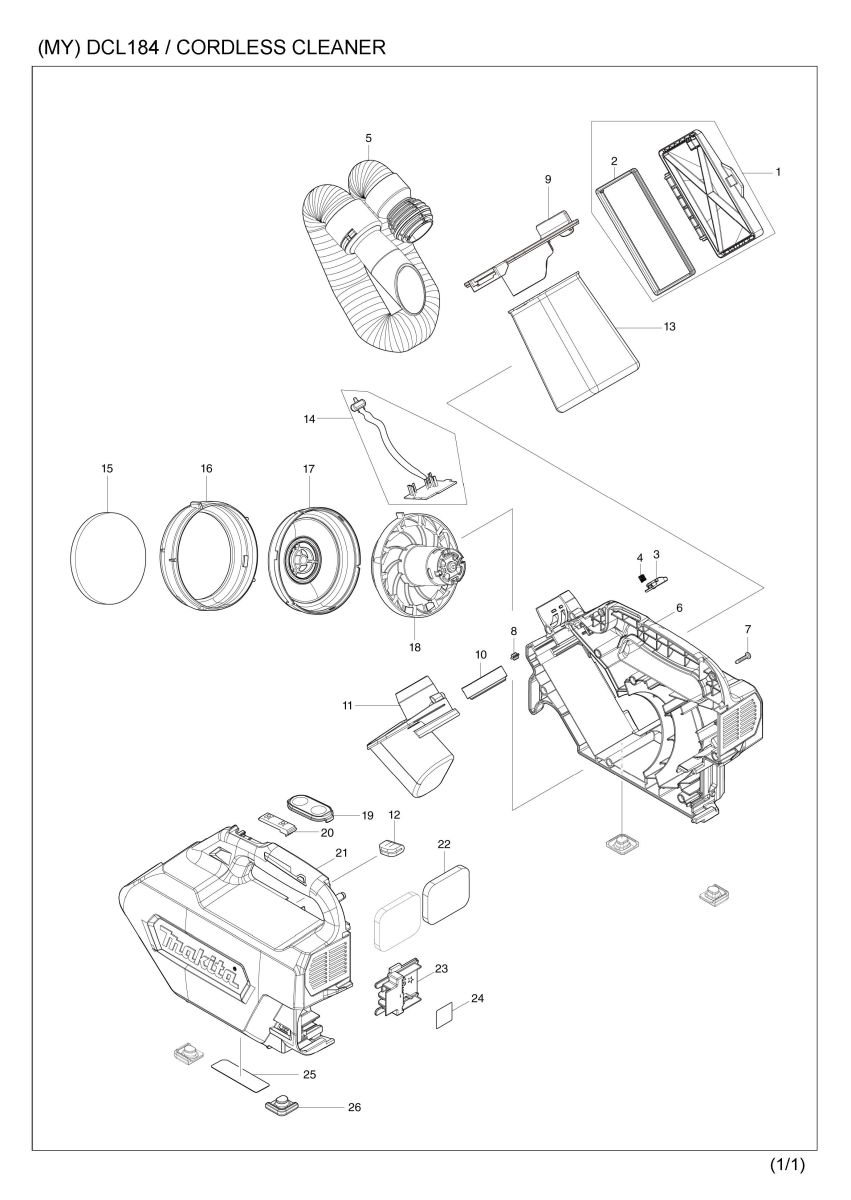

Part Diagram
Total: 56 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 136100-1 | DUST BOX COVER ASS'Y | 1 | |
| 1 | D10 | INC. 2 | ||
| 2 | 422433-3 | SEAL | 1 | |
| 3 | 459050-6 | STOPPER PLATE | 1 | |
| 4 | 232485-4 | COMPRESSION SPRING 5 | 1 | |
| 5 | 140H92-6 | HOSE COMPLETE | 1 | |
| 5 | C10 | 459042-5 | STRAIGHT PIPE | 1 |
| 5 | C20 | 459044-1 | STOPPER | 1 |
| 6 | 183R28-2 | HOUSING SET | 1 | |
| 6 | C10 | 422619-9 | DAMPER A | 1 |
| 6 | C20 | 422620-4 | DAMPER B | 1 |
| 6 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 6 | D10 | INC. 12,21 | ||
| 7 | 266429-2 | TAPPING SCREW 3X16 | 10 | |
| 8 | 450522-4 | LENS | 1 | |
| 9 | 143677-9 | VALVE STAY COMPLETE | 1 | |
| 10 | 422434-1 | PACKING | 1 | |
| 11 | 459048-3 | HOSE JOINT HOLDER | 1 | |
| 12 | 424246-8 | SPONGE SHEET | 1 | |
| 13 | 166084-9 | DUST BAG | 1 | |
| 14 | 620D43-6 | CONTROLLER | 1 | |
| 15 | 422440-6 | SPONGE SHEET 90 | 1 | |
| 16 | 422421-0 | RUBBER RING | 1 | |
| 17 | 459035-2 | FAN COVER | 1 | |
| 18 | 127654-9 | MOTOR ASSEMBLY | 1 | |
| 19 | 144096-2 | SWITCH PLATE COMPLETE | 1 | |
| 19 | C10 | 810P35-7 | SWITCH LABEL | 1 |
| 20 | 631973-2 | SWITCH UNIT | 1 | |
| 21 | 183R28-2 | HOUSING SET | 1 | |
| 21 | C10 | 422619-9 | DAMPER A | 1 |
| 21 | C20 | 422620-4 | DAMPER B | 1 |
| 21 | C30 | 263005-3 | RUBBER PIN 6 | 2 |
| 21 | D10 | INC. 6,12 | ||
| 22 | 422439-1 | SPONGE SHEET 47-57 | 2 | |
| 23 | 643874-2 | TERMINAL | 1 | |
| 24 | 857N50-8 | DCL184 SERIAL NO. LABEL | 1 | |
| 25 | 857N43-5 | DCL184 NAME PLATE | 1 | |
| 26 | 422435-9 | FOOT | 4 | |
| A01 | 140H94-2 | SOFT BRUSH 360 COMPLETE | 1 | |
| A02 | 140H95-0 | SEAT NOZZLE 120 COMPLETE | 1 | |
| A03 | 140J64-3 | BLOWER NOZZLE COMPLETE | 1 | |
| A03-1 | 140J64-3 | BLOWER NOZZLE COMPLETE | 1 | |
| A04 | 162544-9 | SHOULDER BELT | 1 | |
| A05 | 194566-1 | PAPER FILTER SET (5PCS/SET) | 1 | |
| A05-1 | 198745-3 | PAPER FILTER SET | 1 | |
| A06 | 422437-5 | RUBBER NOZZLE 330 | 1 | |
| A07 | 459056-4 | MAT NOZZLE 120 | 1 | |
| A08B | 450128-8 | BATTERY COVER | 1 | |
| A09B | 197600-6 | BATTERY BL1830B SET | 1 | |
| A10B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A10B | D10 | COMPO-PARTS | ||
| A11B | 832188-6 | TOOL BAG | 1 | |
| F01 | 199900-0 | TOOL BAG SET | 1 | |
| F02 | 198919-6 | LONG SASH NOZZLE SET 28 WHI | 1 | |
| F03 | 198990-0 | LONG SASH NOZZLE SET 28 BLU | 1 | |
| F04 | 198992-6 | LONG SASH NOZZLE SET 28 BLK | 1 |
