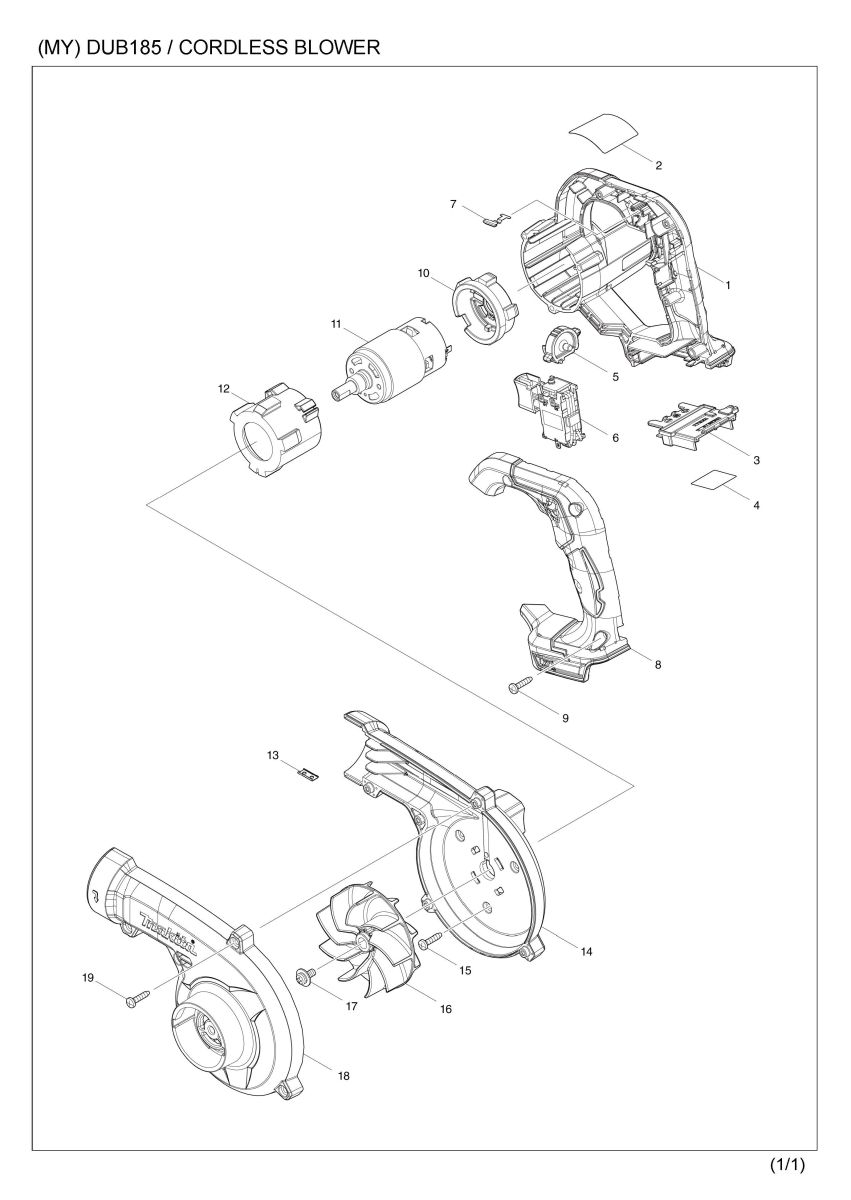

Part Diagram
Total: 30 record(s) at page 1 of 1
| Item | Sub | Parts No. | Parts Description | Qty |
|---|---|---|---|---|
| 1 | 183P63-8 | MOTOR HOUSING SET | 1 | |
| 1 | D10 | INC. 8 | ||
| 2 | 856X26-2 | DUB185 NAME PLATE | 1 | |
| 3 | 643874-2 | TERMINAL | 1 | |
| 4 | 856X33-5 | DUB185 SERIAL NO. LABEL | 1 | |
| 5 | 412573-5 | DIAL | 1 | |
| 6 | 632P92-3 | SWITCH UNIT | 1 | |
| 006-1 | 632R68-2 | SWITCH UNIT | 1 | |
| 7 | 232620-4 | LEAF SPRING | 1 | |
| 8 | 183P63-8 | MOTOR HOUSING SET | 1 | |
| 8 | D10 | INC. 1 | ||
| 9 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| 10 | 422589-2 | MOTOR RUBBER RING B | 1 | |
| 11 | 629484-9 | DC MOTOR | 1 | |
| 12 | 422588-4 | MOTOR RUBBER RING A | 1 | |
| 13 | 345998-7 | SET PLATE | 1 | |
| 14 | 140U56-8 | FAN HOUSING COMPLETE | 1 | |
| 14 | C10 | 8012T7-9 | CAUTION LABEL | 1 |
| 15 | 266326-2 | TAPPING SCREW 4X18 | 3 | |
| 16 | 240210-9 | FAN 85 | 1 | |
| 17 | 265B25-5 | PAN HEAD SCREW M5X12 WITH WG | 1 | |
| 18 | 412572-7 | FAN COVER | 1 | |
| 19 | 266326-2 | TAPPING SCREW 4X18 | 5 | |
| A02 | 123245-4 | NOZZLE ASS'Y | 1 | |
| A02 | C10 | 454703-2 | JOINT | 1 |
| A03B | 450128-8 | BATTERY COVER | 1 | |
| A04B | ***DC18RC | DC18RC FAST CHARGER | 1 | |
| A04B | D10 | COMPO-PARTS | ||
| A05B | 197280-8 | BATTERY BL1850B SET | 1 | |
| E01 | 807950-8 | SOUND 95DB LABEL | 1 |
